G628

TOTAL QUAD / HIP

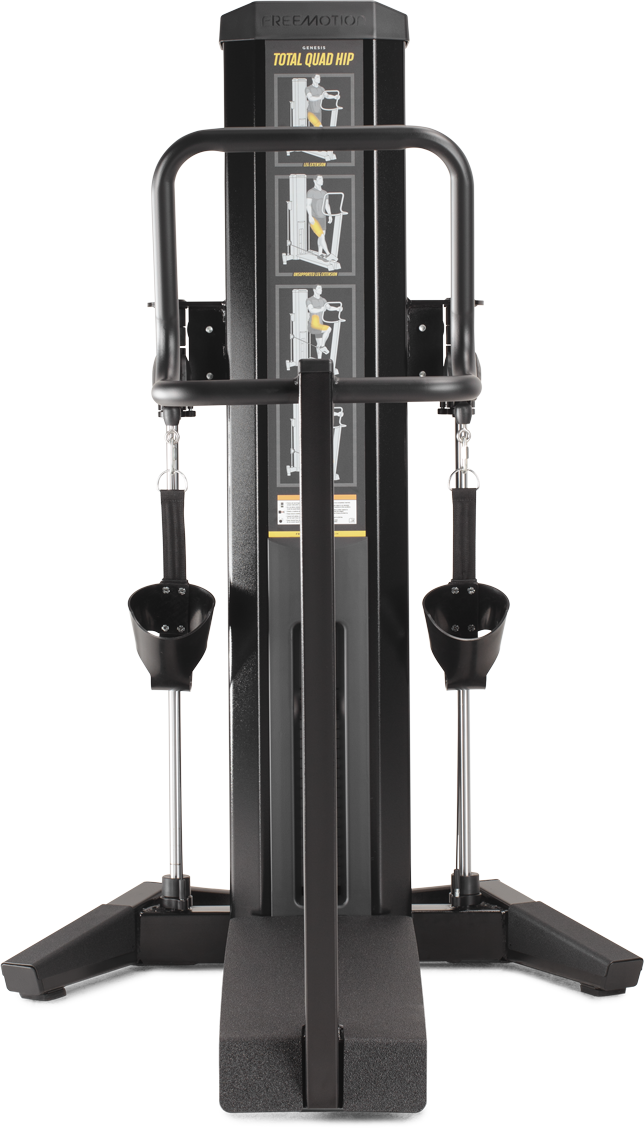

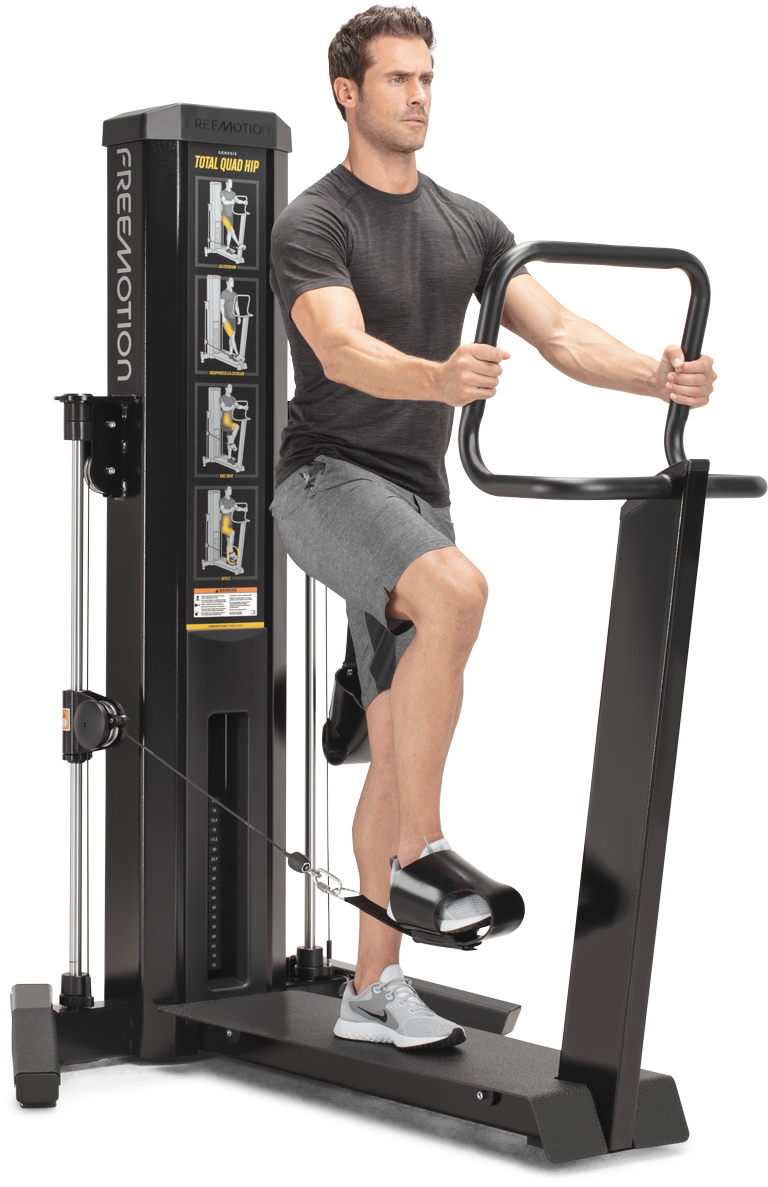

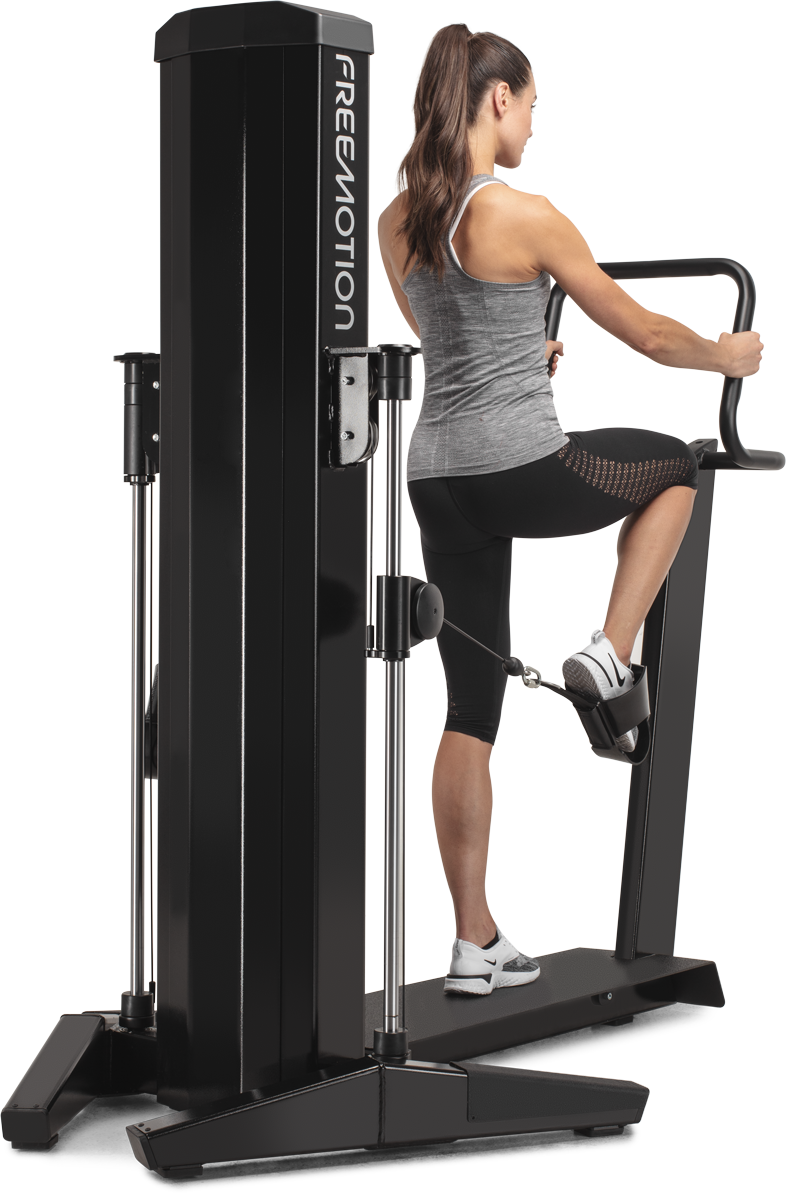

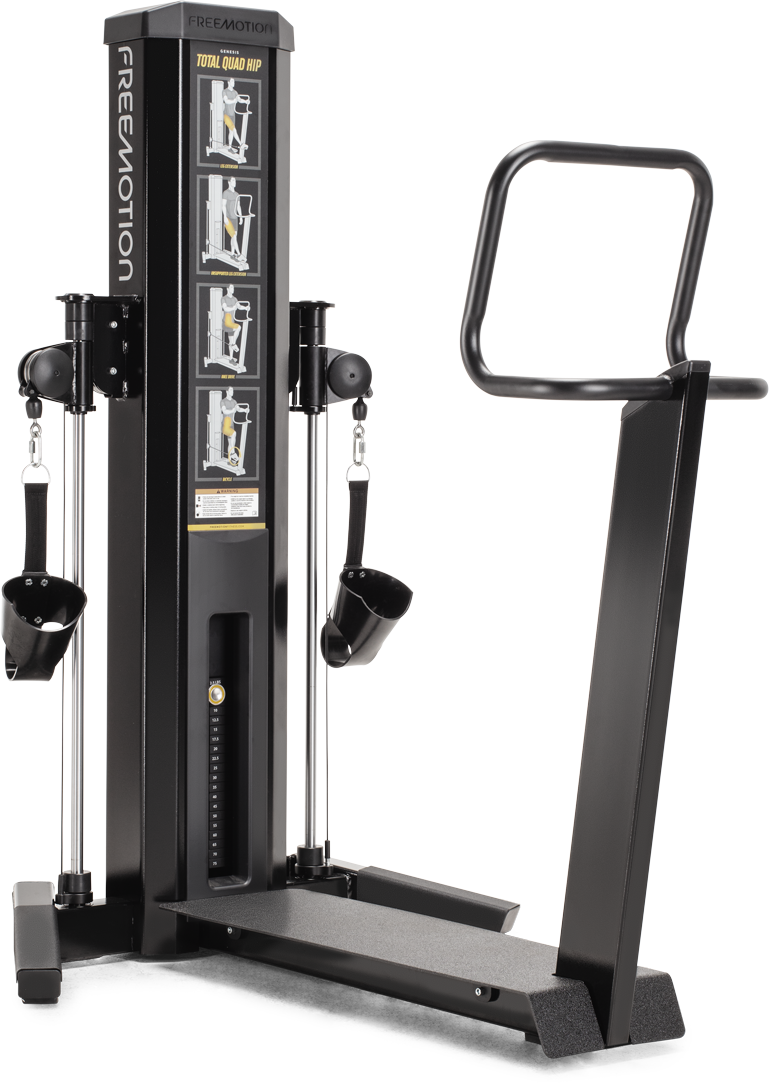

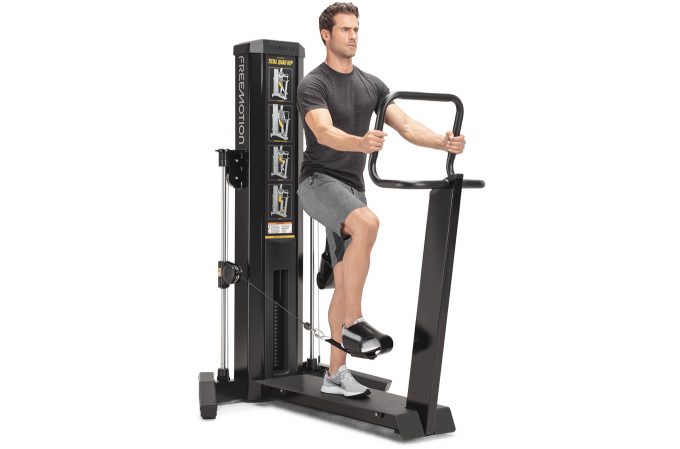

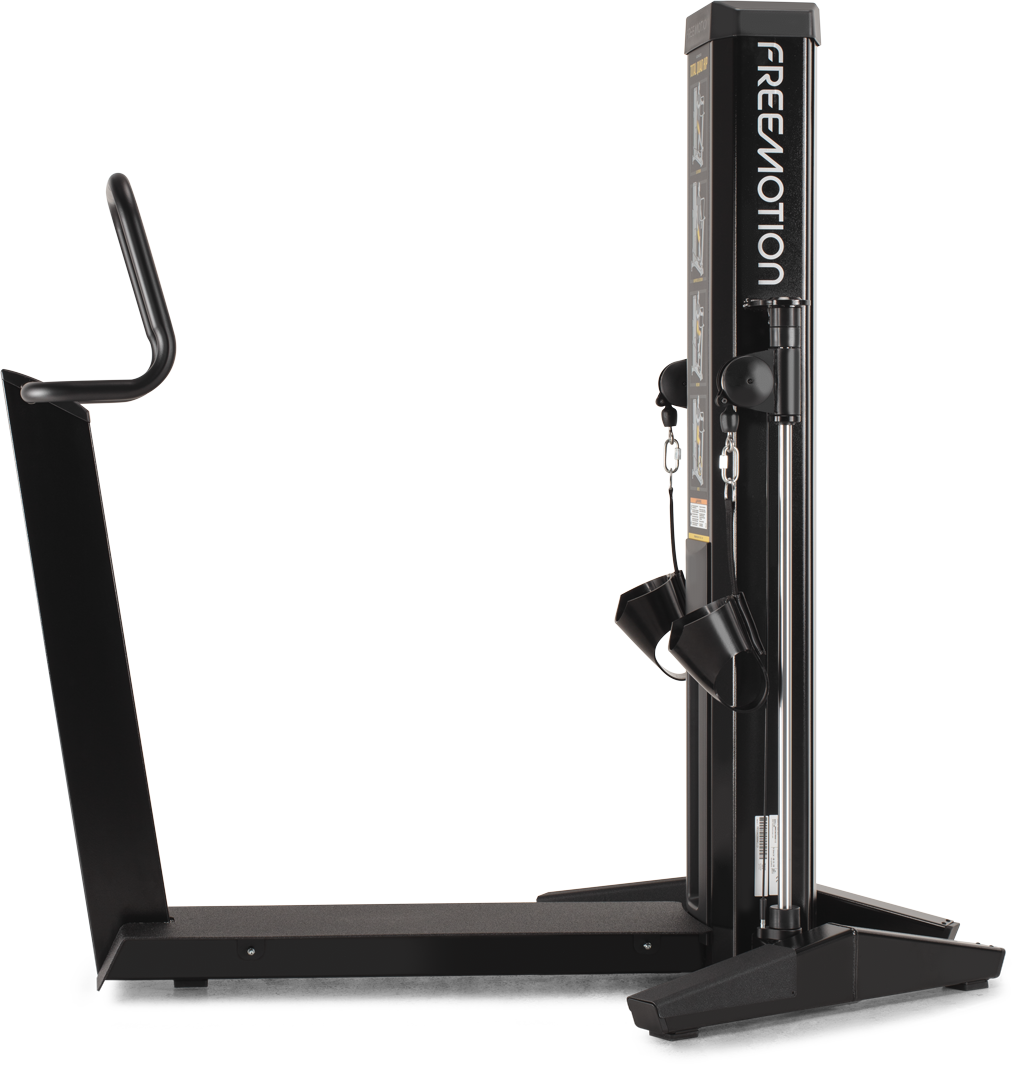

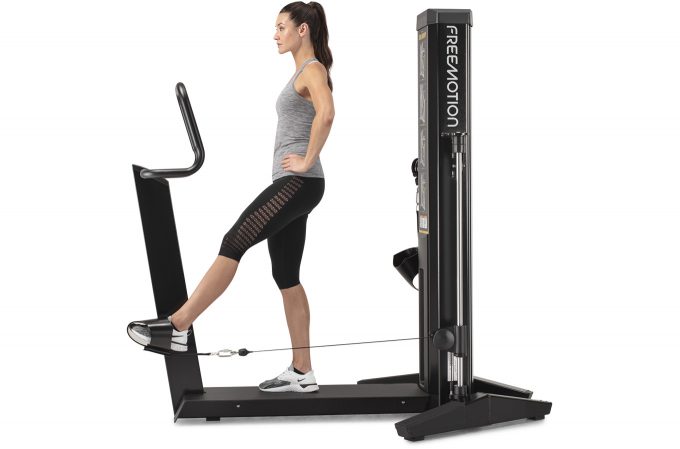

Performing leg extensions or simulating soccer kicks on the GENESIS Total Quad/Hip functionally trains the lower body from hips to ankles. This helps to build balance and increase strength in both the large muscle groups and joint stabilizers. The swivel pulleys travel along a linear guide to create progressive resistance that builds throughout the range of motion.
Enquire Today

Details & SPecs

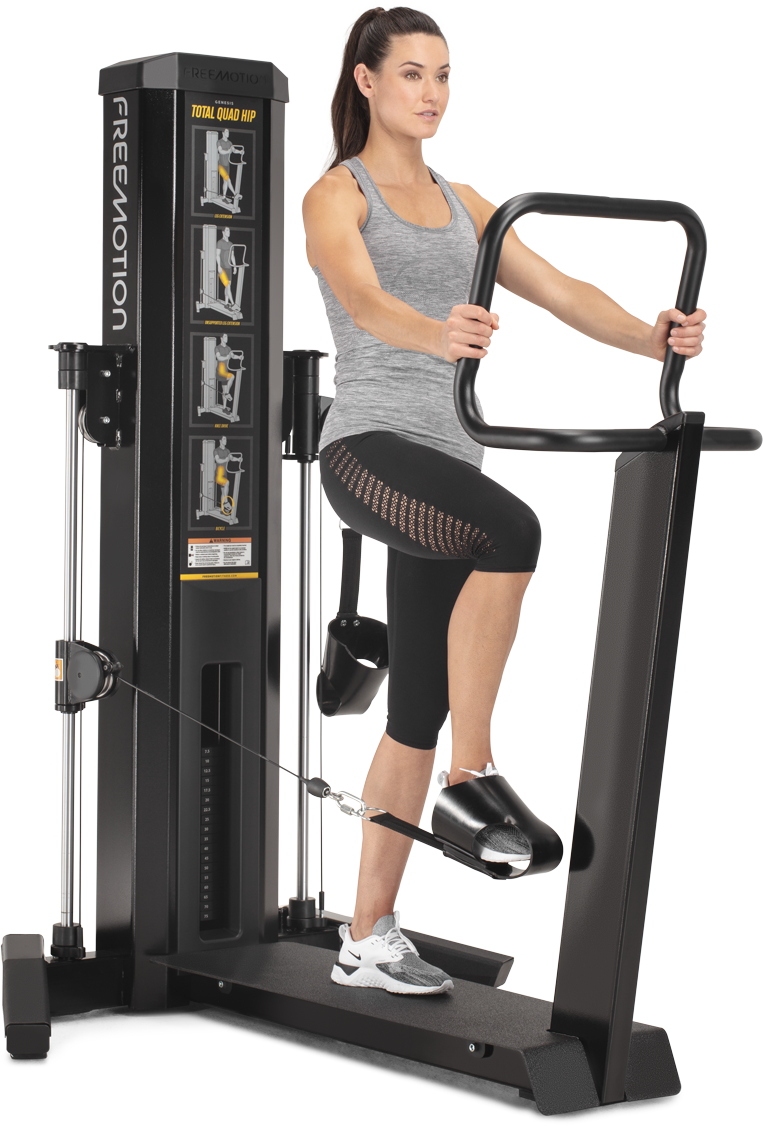

Isolation to Integration

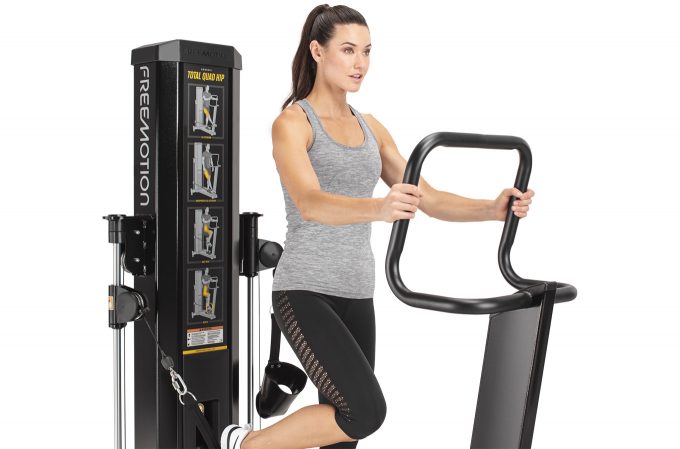

The machine features a multi-grip handle for balance and to isolate the upper body. Users can simply let go to work out unsupported and integrate more muscle groups.

Walk Up and Work Out

With no required adjustments, users can simply walk up, put on the foot harness and start moving.

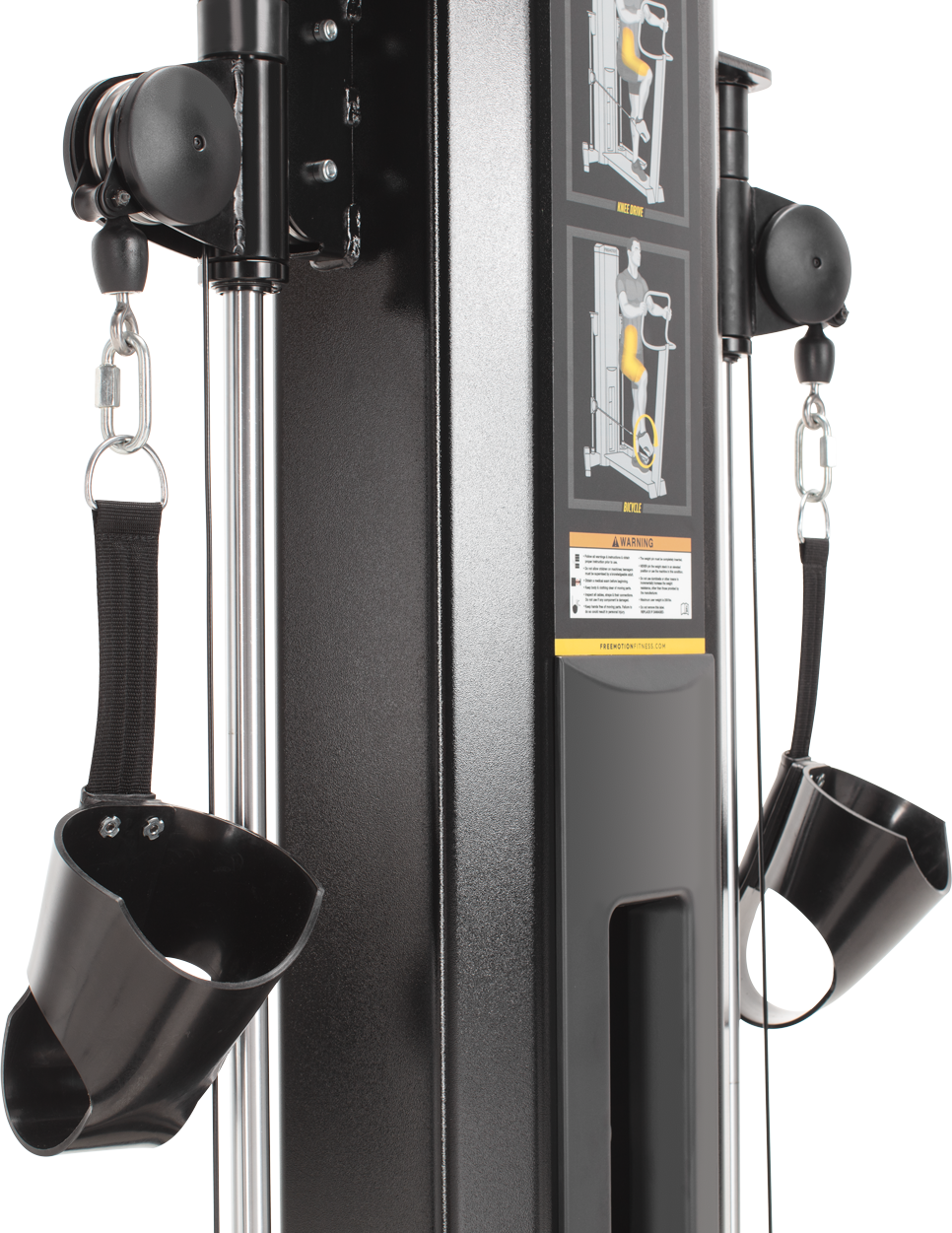

Foot Harness

Specially designed foot harness has a boot-like shape to fit users’ various foot sizes.

Extensive Cable Travel

Cable length allows for full flexion and extension: 37 in / 93.9 cm.

Enclosed Weight Stack

The weight stack is enclosed to limit access to moving parts for safety.

Built to Last

Constructed with 11- and 7-gauge steel and electrostatically powder-coated, this machine is built to stand up to the rigors of the weight room.

Kick Plates

Large, 16-gauge, stainless steel kick plates protect the machine from wear and tear.

G628 Total Quad:Hip Footprint
Product Features

  • Instructional Placards
    Yes
  • Adjustments
    N/A
  • Resistance
    150 lb / 68 kg
  • Seat
    N/A
  • Pulleys
    Swivel Pulleys
  • Cable Travel
    37 in / 93.9 cm
  • Rubber Feet
    Molded floor protectors
  • Maximum User Weight
    350 lb / 159 kg
  • Americans with Disabilities Act (ADA)
    N/A
Product Specifications

  • Weight Stack
    150 lb / 68 kg
  • Drop Down Weight
    N/A
  • Weight Stack Configuration
    5 – 50 x 5 lb / 2.2 – 22.6 x 2.2 kg
    60 – 150 x 10 lb / 27.2 – 68 x 4.5 kg
  • Standard Frame Color
    Black River, Flat Black, Platinum Sparkle, White River
  • Optional Frame Color
    Custom colors available upon request
  • Plastic Color
    Ebony
  • Standard Upholstery Color
    N/A
  • Optional Upholstery Color
    N/A
Product Dimensions & Weight

  • Dimensions L x W x H
    75 x 46 x 73 in / 190.5 x 116.8 x 185.4 cm
  • Footprint
    75 x 46 in / 190.5 x 116.8 cm
  • Weight
    513 lb / 232.6 kg
  • Shipping Dimensions
    74.8 x 63.2 x 76.6 in / 189.9 x 160 x 194.5 cm
  • Shipping Weight
    528 lb / 239.4 kg
Certifications

  • EN957, CE
Warranty (US & Canada)

  • Frame
    10 Years
  • Parts
    3 Years
  • Cables & Labor
    1 Year
  • Cosmetic & Wear Items
    6 Months
  • Upholstery & Padding
    120 Days
Warranty (International)

  • Frame
    10 Years
  • Parts
    3 Years
  • Cables & Labor
    1 Year
  • Cosmetic & Wear Items
    6 Months
  • Upholstery & Padding
    120 Days
Enquire Today

Build Resistance through the Motion

Swiveling pulley slides along a guide, changing the angle of the movement offering progressive resistance that increases through the motion.

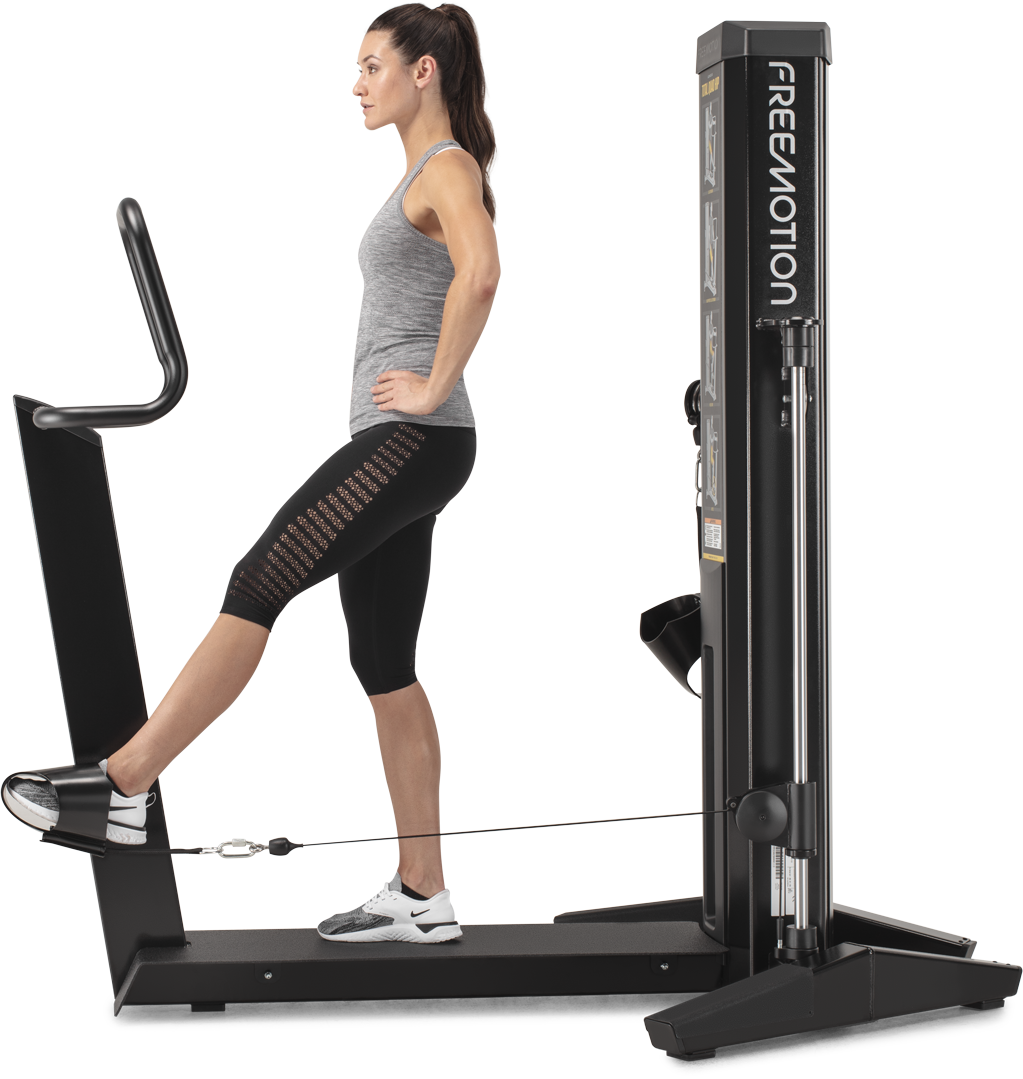

Freedom to Move

The swivel pulley design combined with the extensive cable travel allows users a wide, fluid range of motion.

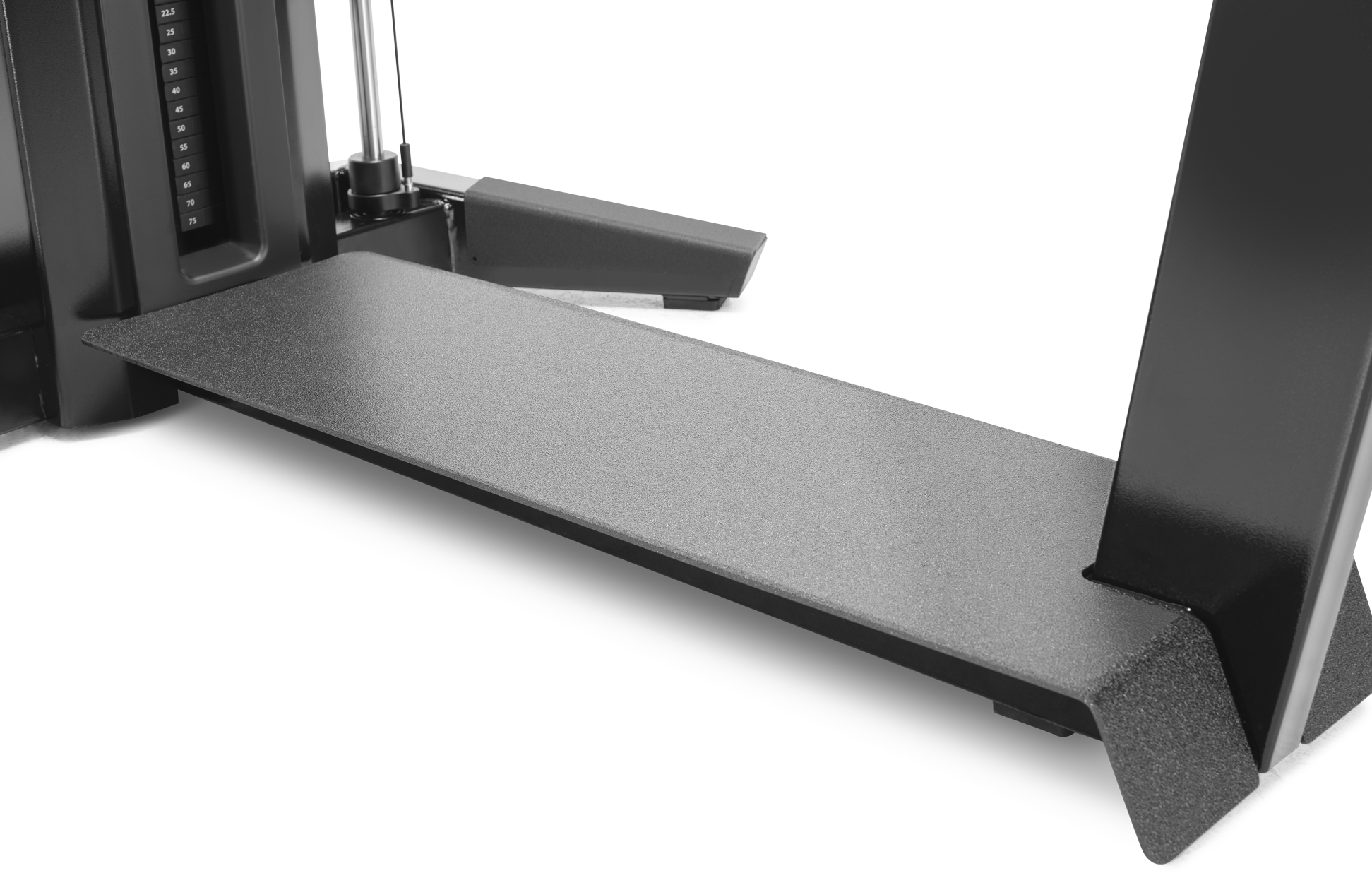

Sure Footing

Textured platform helps ensure secure foot placement even under heavy loads.
