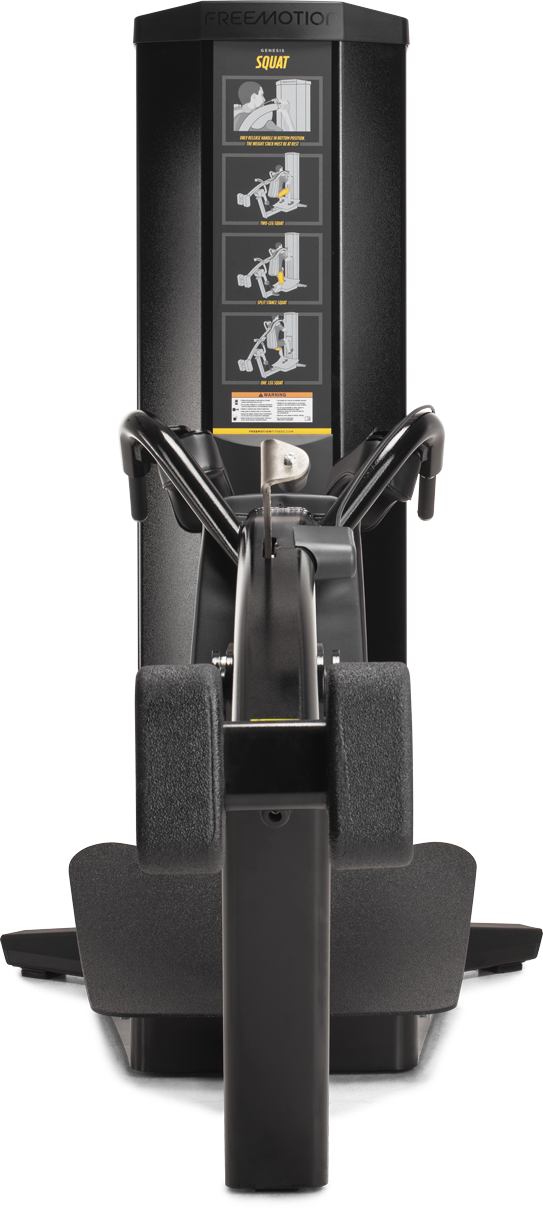

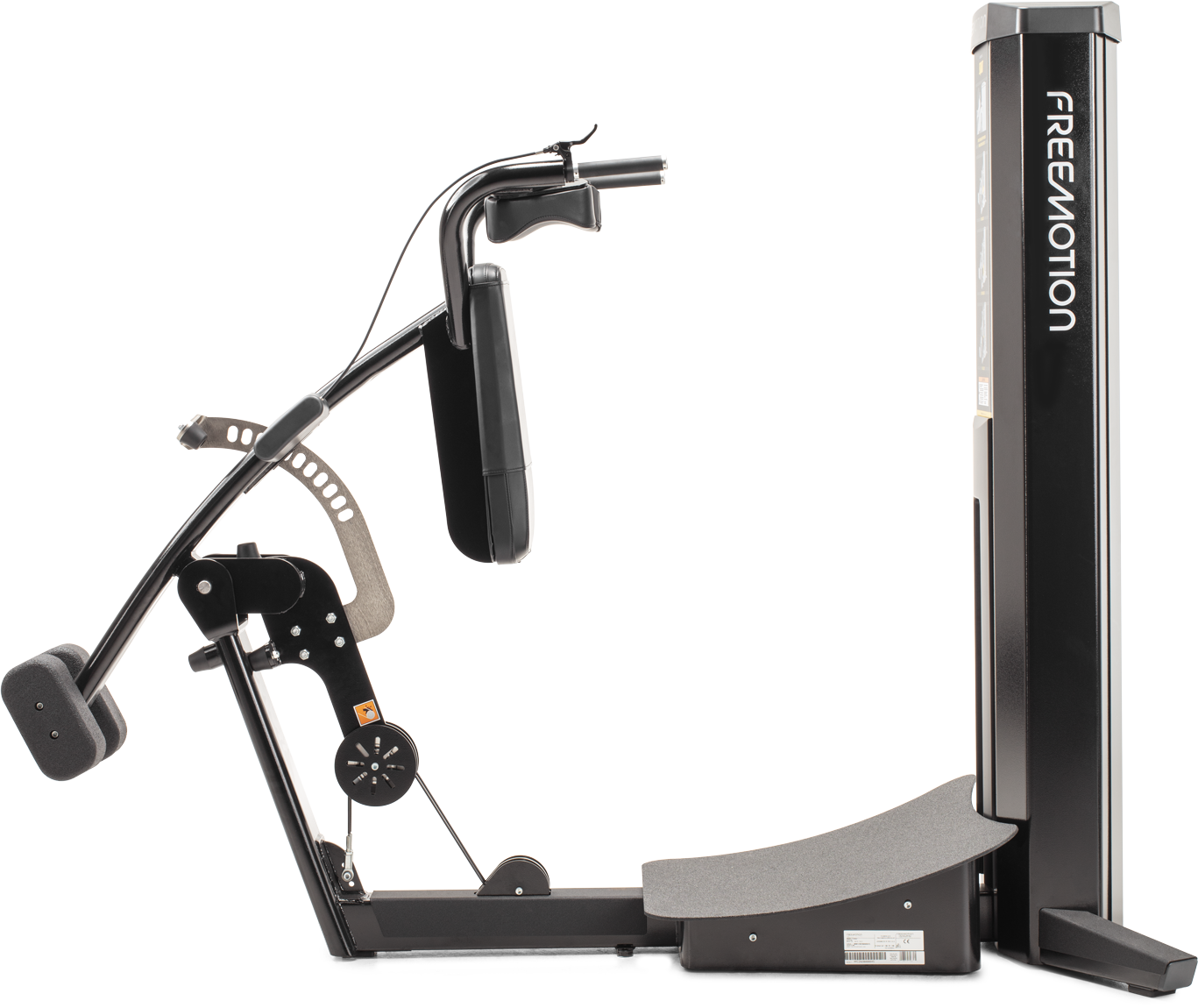

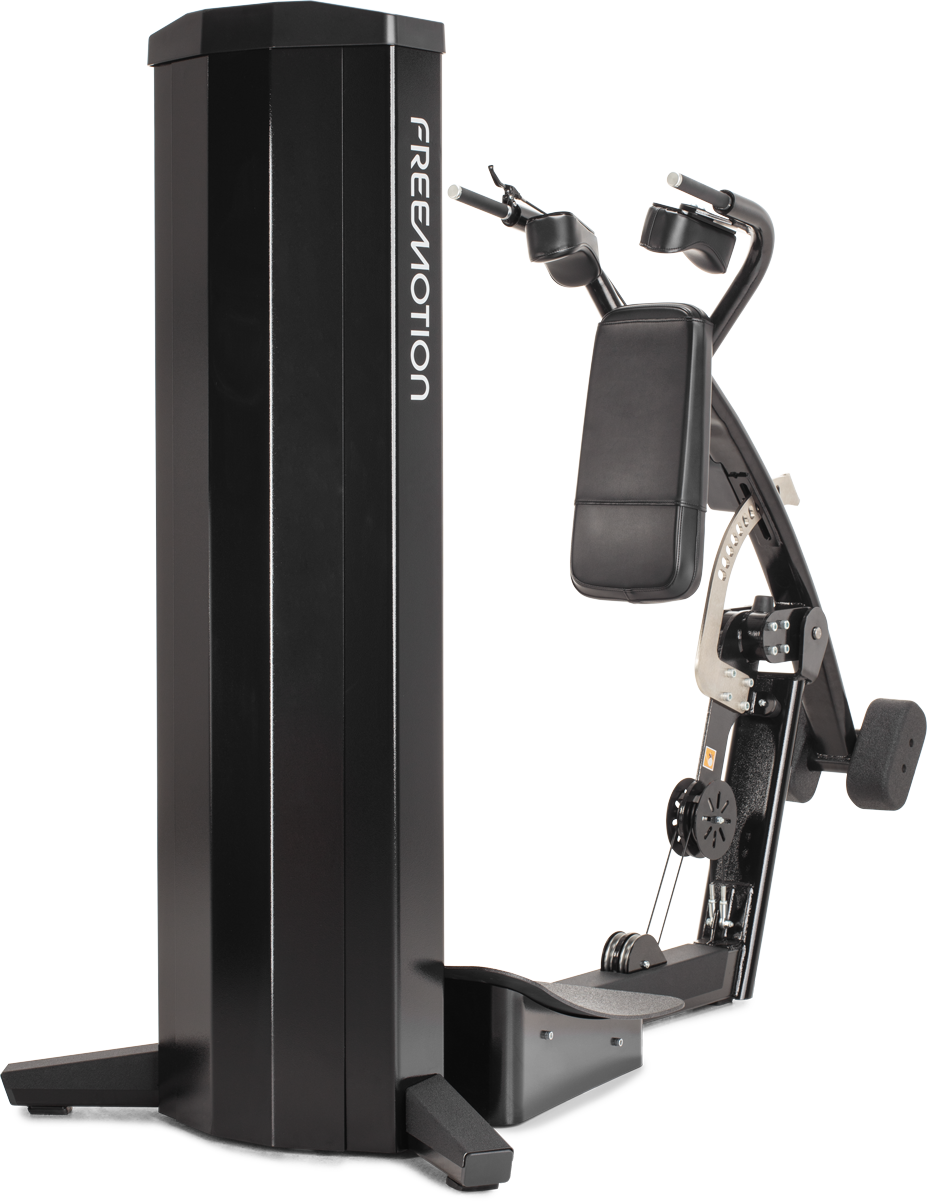

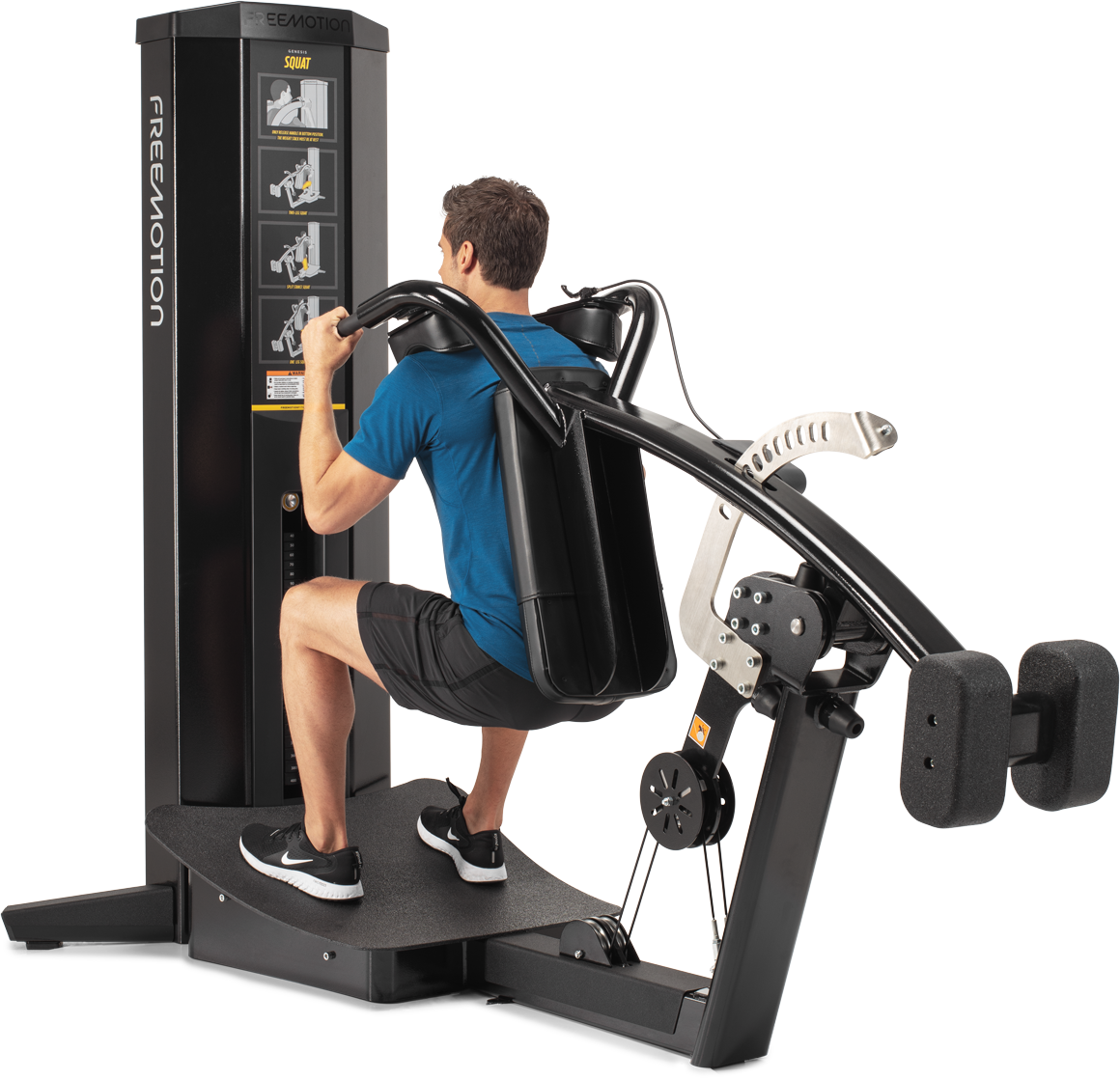

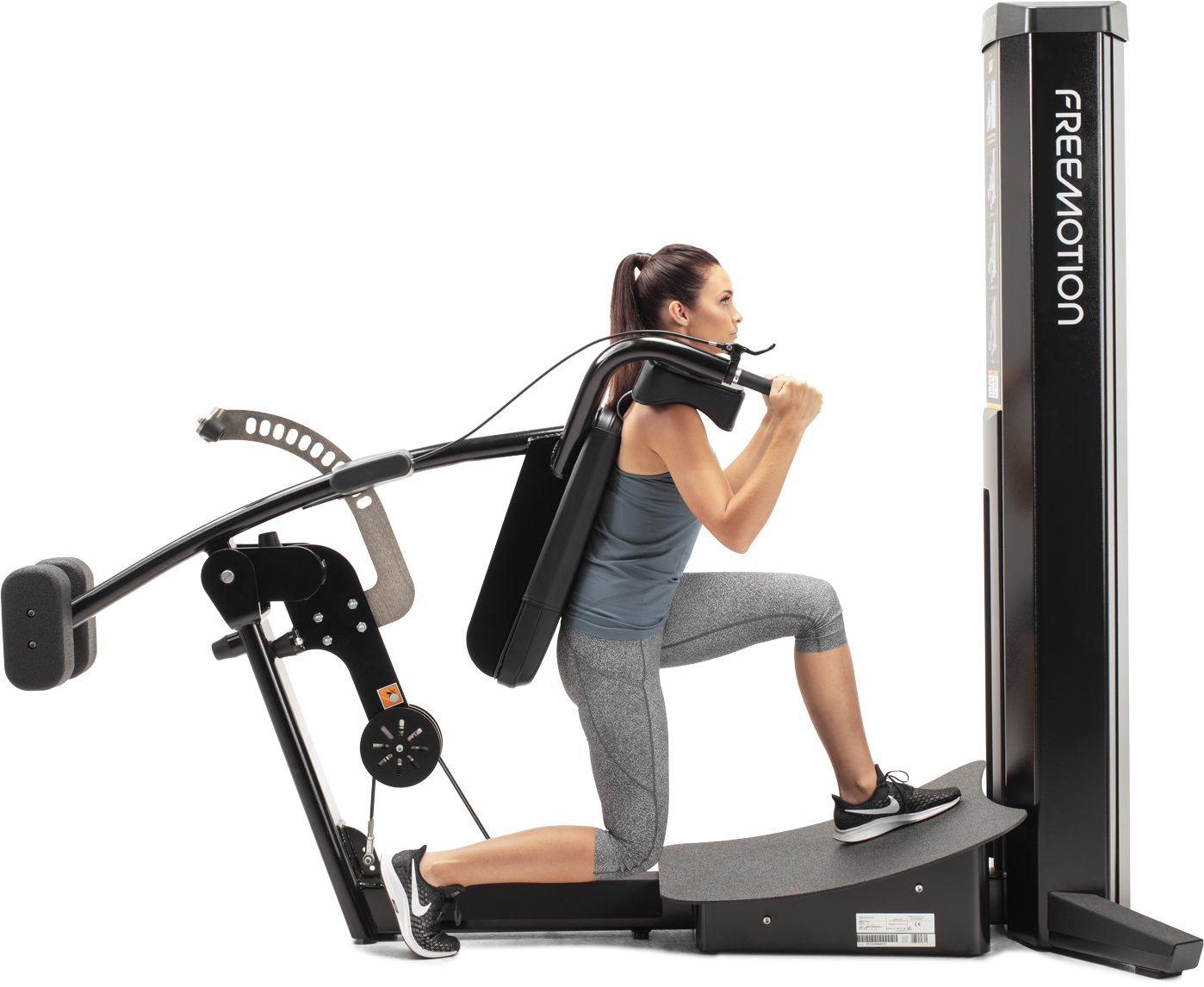

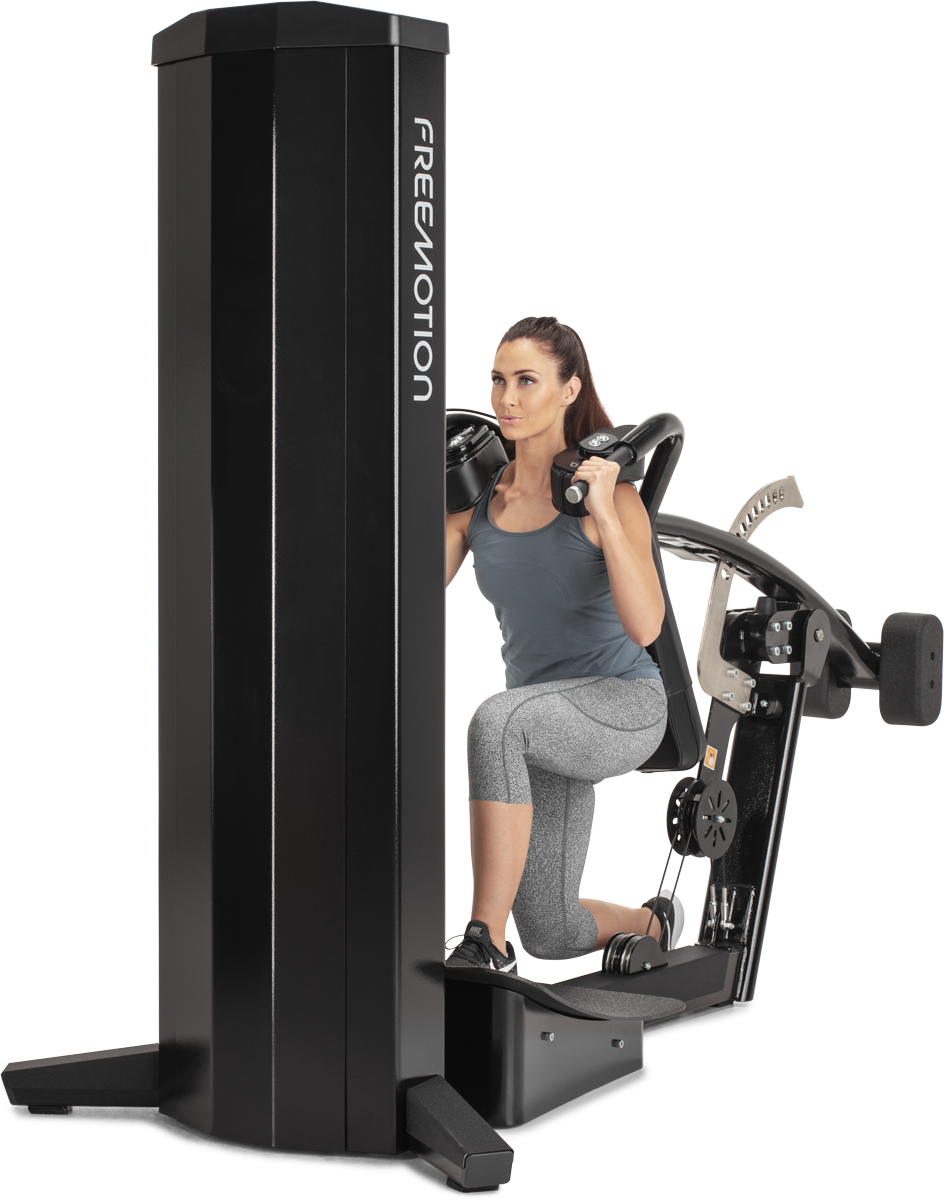

G610

SQUAT

Whether a split, single leg, or traditional squat, the GENESIS Squat boasts unique features to help ensure proper form without sacrificing resistance for a robust workout. Curved platform is textured for secure foot placement. Backpad is adjustable to fit and counterweighted for easy positioning. Contoured shoulder pads swivel for comfort. The Squat machine is built to withstand the rigors of the weight room with rugged construction.
Enquire Today

Details & SPecs

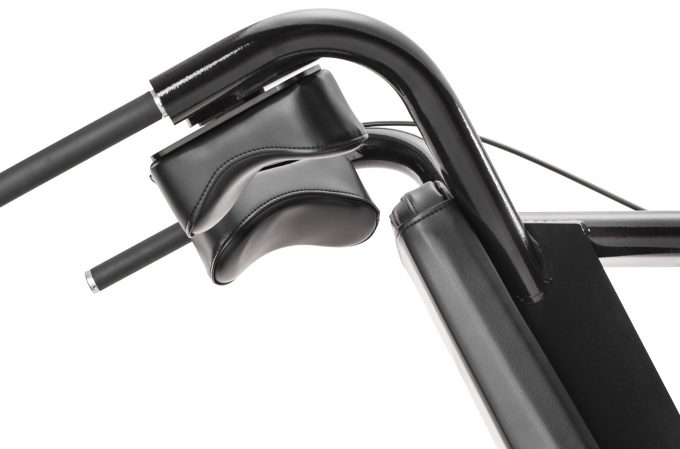

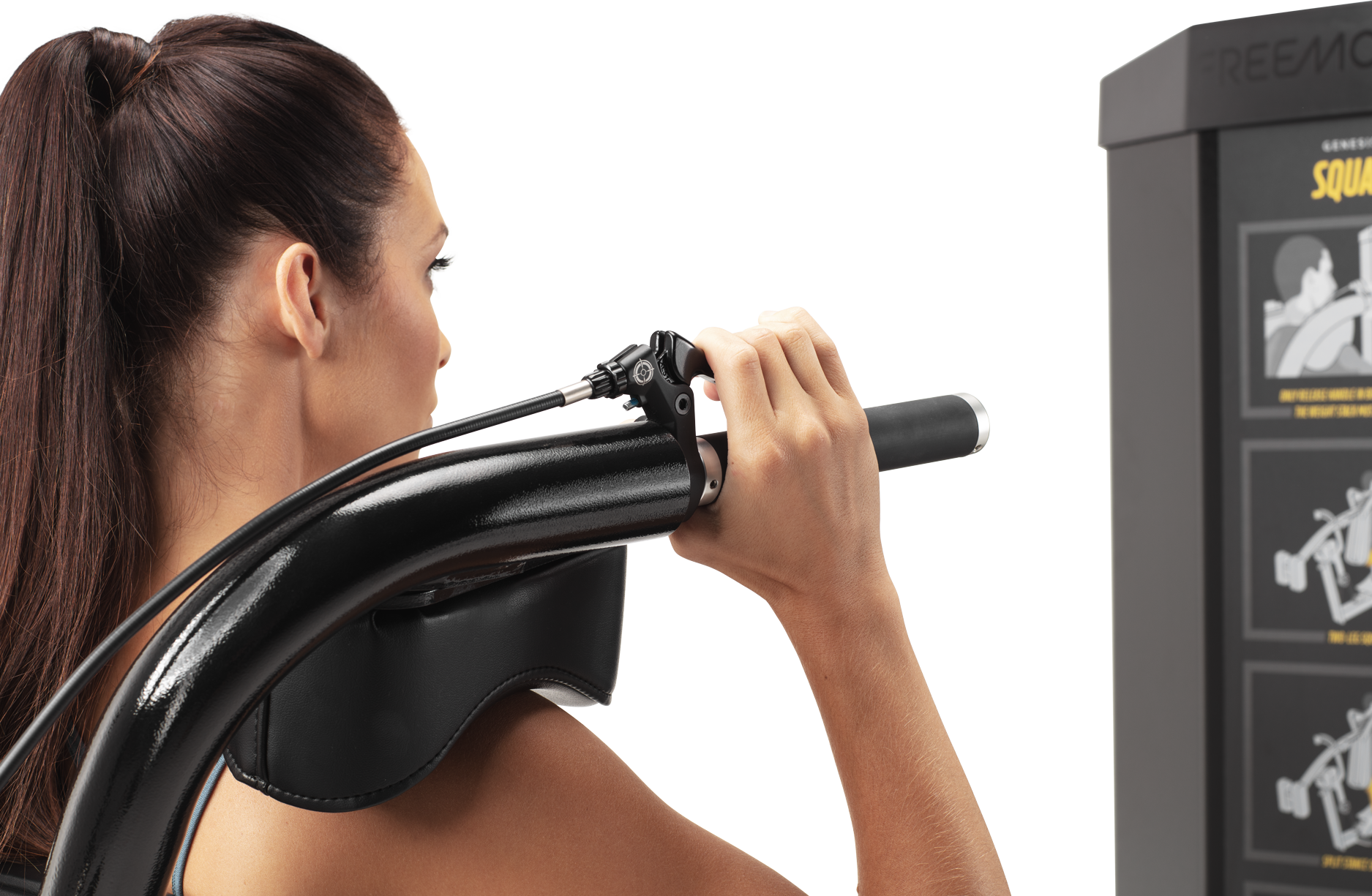

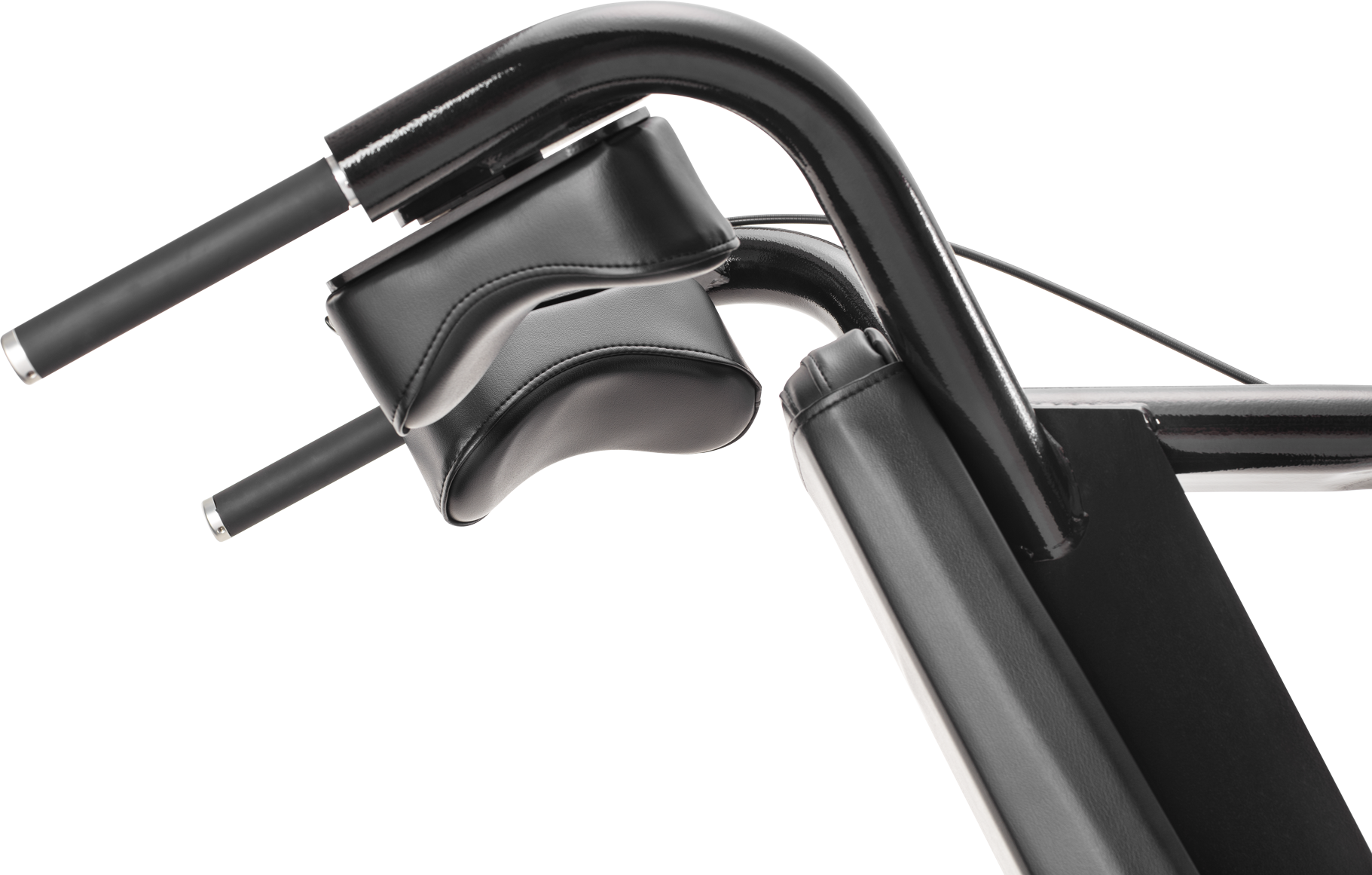

Padded Seat and Shoulder Pads

Shoulder pads are contoured and swivel to fit users of varying sizes. Backpad is also padded for comfort.

Enclosed Weight Stack

The weight stack is enclosed to limit access to moving parts for safety.

Built to Last

Constructed with 11- and 7-gauge steel and electrostatically powder-coated, this machine is built to stand up to the rigors of the weight room.

Kick Plates

Large, 16-gauge, stainless steel kick plates protect the machine from wear and tear.

G610 Squat Footprint
Product Features

  • Instructional Placards
    Yes
  • Adjustments
    Adjustable shoulder pads
  • Resistance
    400 lb / 181 kg Max Resistance
  • Seat
    Vinyl upholstery
  • Pulleys
    Advanced internal pulley system
  • Cable Travel
    N/A
  • Rubber Feet
    Molded floor protectors
  • Maximum User Weight
    350 lb / 159 kg
  • Americans with Disabilities Act (ADA)
    N/A
Product Specifications

  • Weight Stack
    400 lb / 181 kg
  • Drop Down Weight
    N/A
  • Weight Stack Configuration
    10 – 100 x 10 lb / 4.5 – 45.3 X 4.5 kg
    120 – 400 X 20 lb / 54.4 – 181.4 X 9 kg
  • Standard Frame Color
    Black River, Flat Black, Platinum Sparkle, White River
  • Optional Frame Color
    Custom colors available upon request
  • Plastic Color
    Ebony
  • Standard Upholstery Color
    Black, Graphite, Blue Ridge, Burgundy, American Beauty Red
  • Optional Upholstery Color
    Custom colors available upon request
Product Dimensions & Weight

  • Dimensions L x W x H
    90 x 36 x 73 in / 228.6 x 91.4 x 185.4 cm
  • Footprint
    90 x 36 in / 228.6 x 91.4 cm
  • Weight
    1,000 lb / 453.5 kg
  • Shipping Dimensions
    94 x 47 x 76 in / 238.7 x 119.3 x 193 cm
  • Shipping Weight
    485 lb / 219.9 kg
Certifications

  • EN957, CE
Warranty (US & Canada)

  • Frame
    10 Years
  • Parts
    3 Years
  • Cables & Labor
    1 Year
  • Cosmetic & Wear Items
    6 Months
  • Upholstery & Padding
    120 Days
Warranty (International)

  • Frame
    10 Years
  • Parts
    3 Years
  • Cables & Labor
    1 Year
  • Cosmetic & Wear Items
    6 Months
  • Upholstery & Padding
    120 Days
Enquire Today

Encourage Proper From

Platform is precisely curved to intuitively guide the user’s stance.

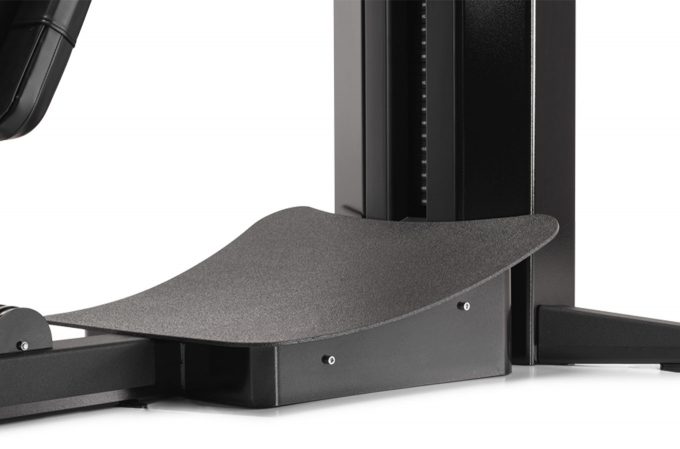

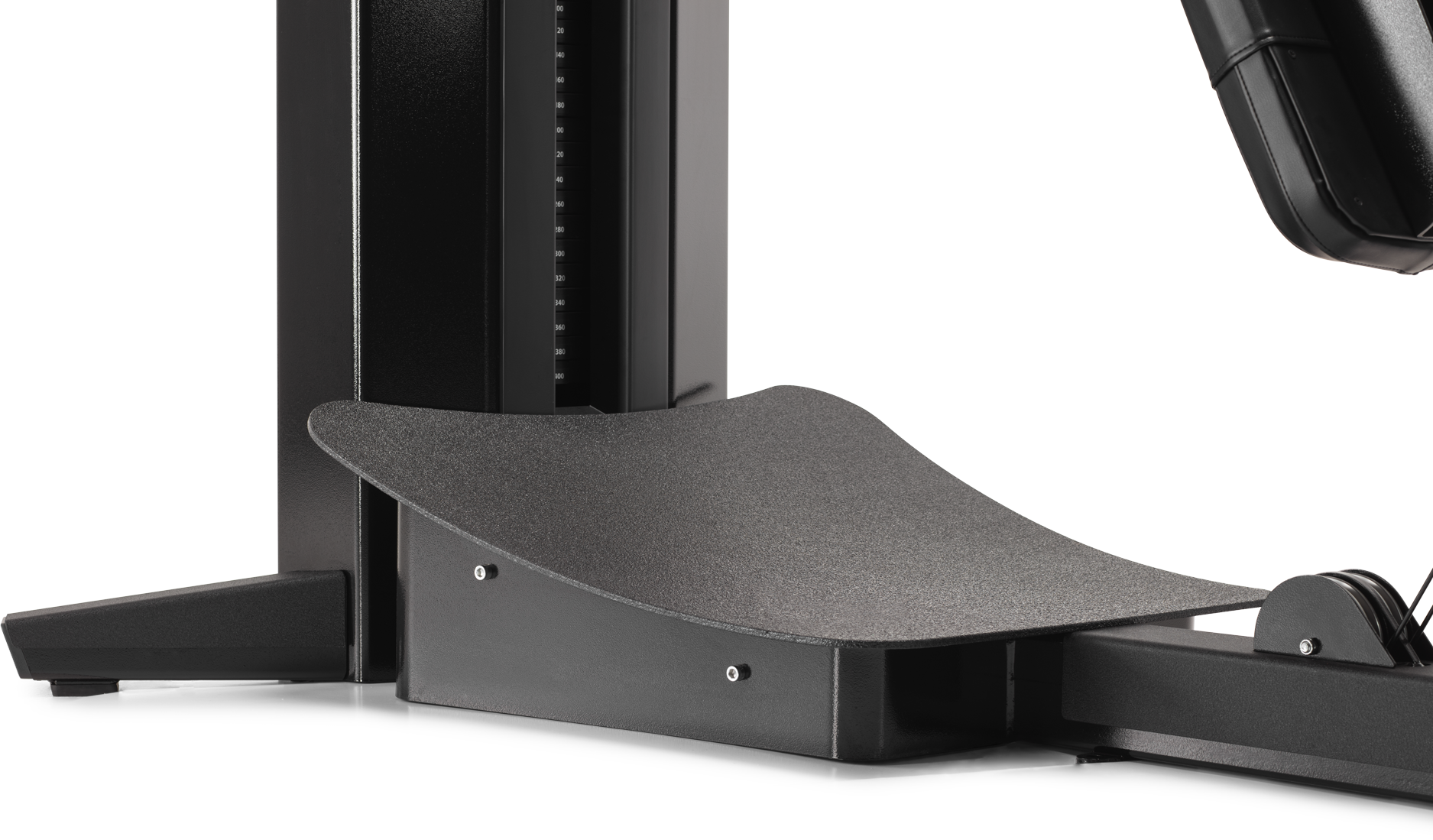

Sure Footing

Textured platform helps ensure secure foot placement even under heavy loads.

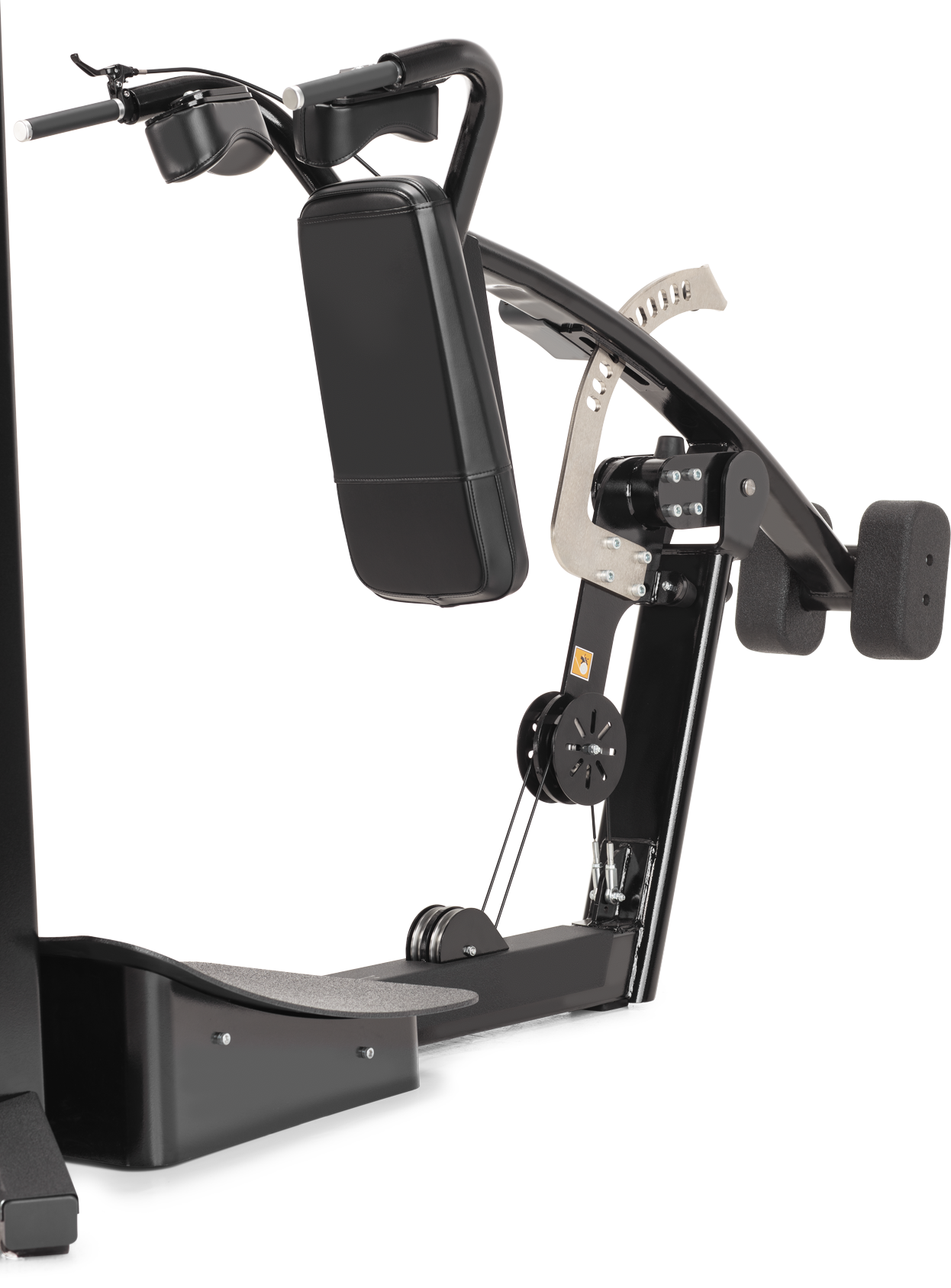

Easy-to-adjust Backpad

The backpad assembly has a convenient hand lever to engage the weight and is counter weighted for simple positioning.
