G601

MULTI-PLANE SHOULDER

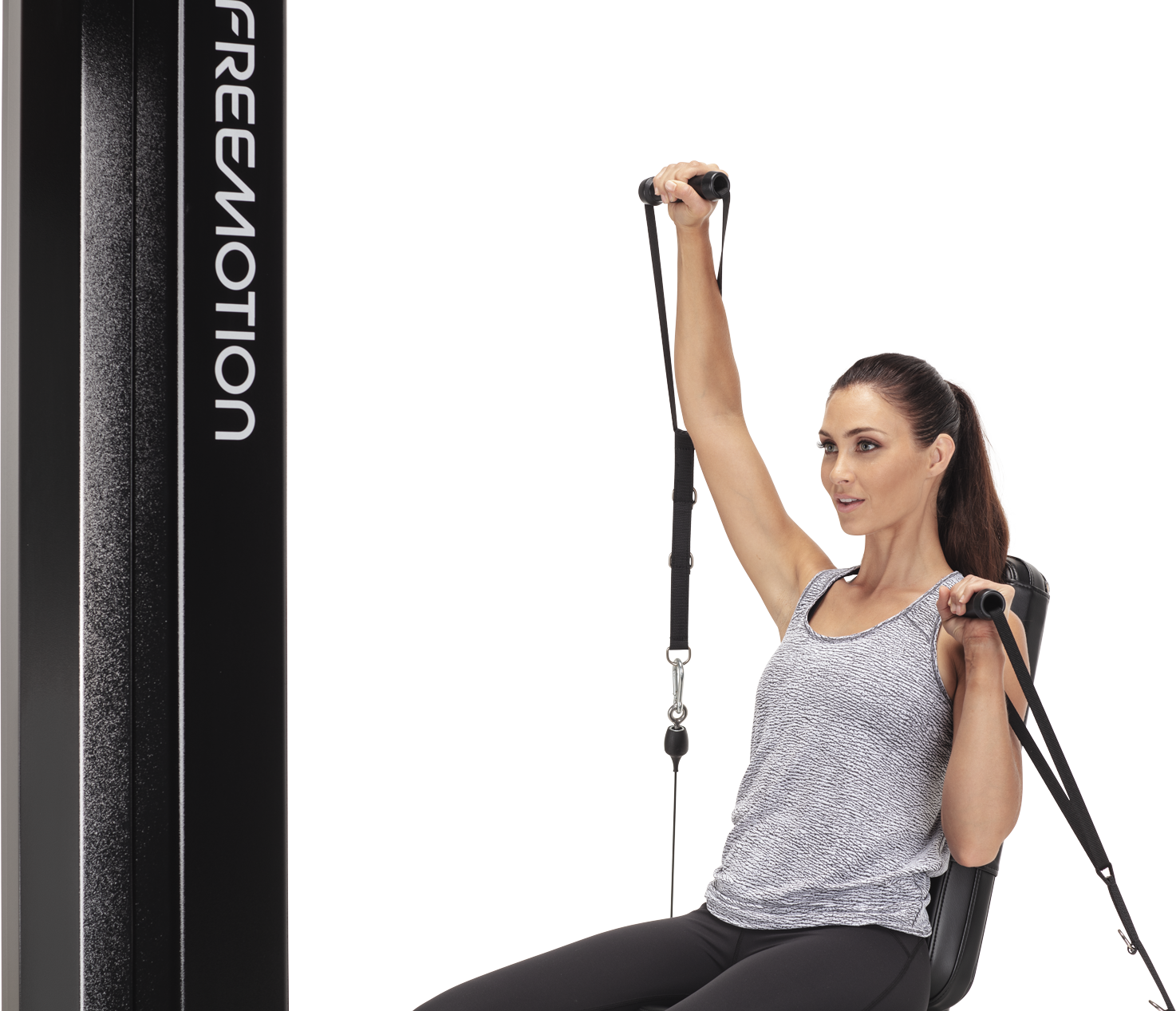

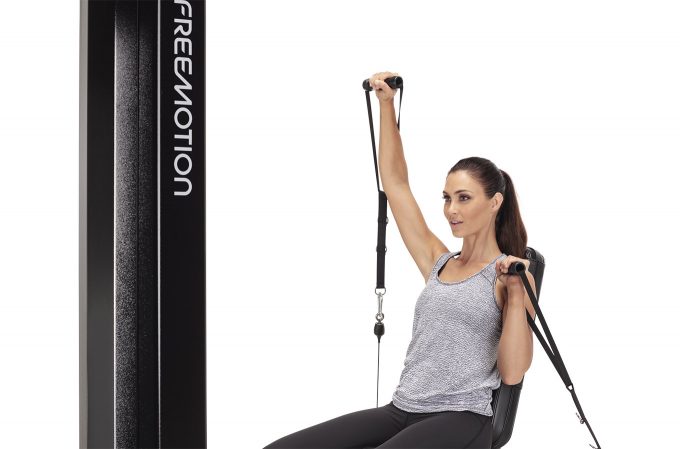

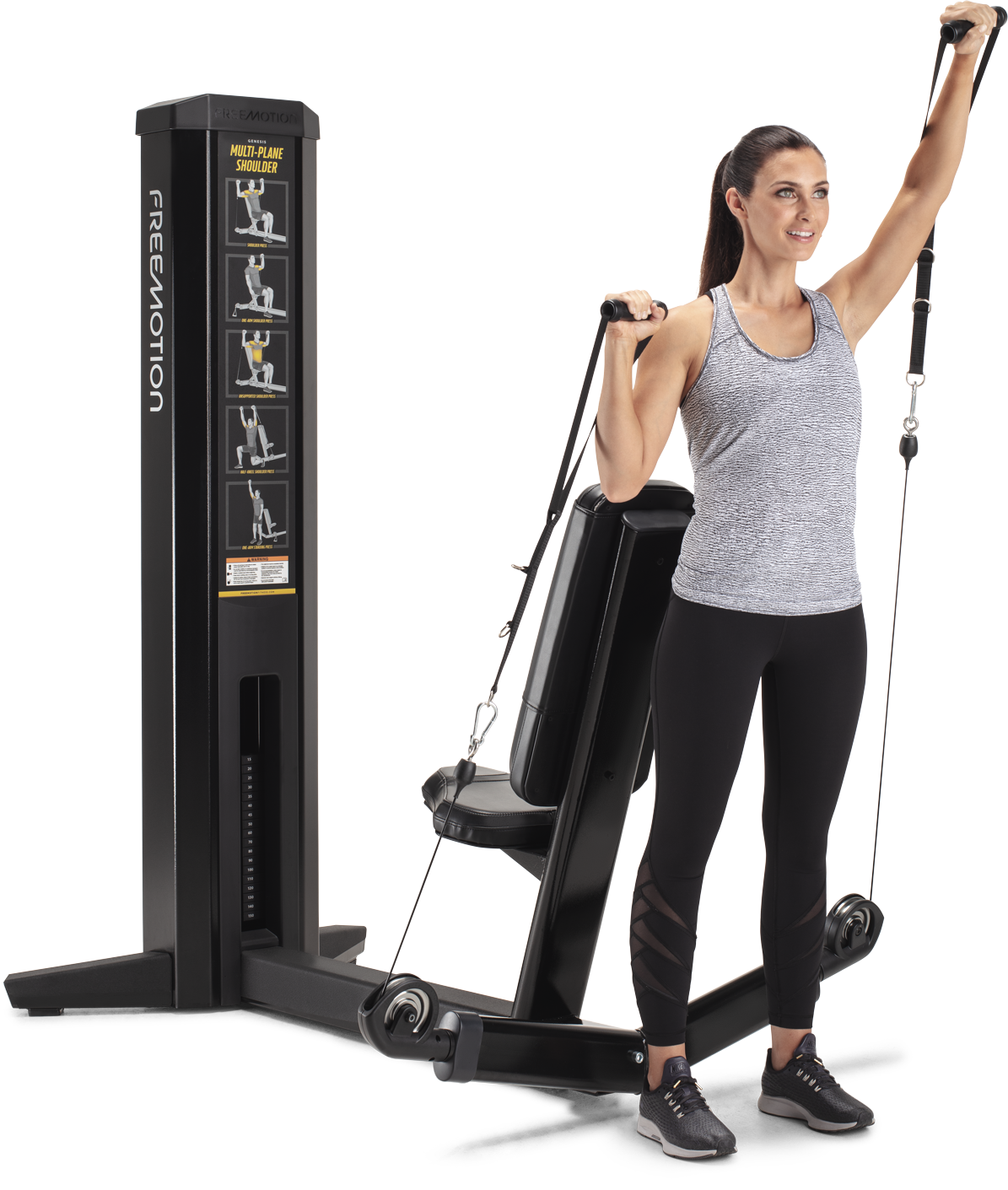

The ability to push things overhead is an essential function in life that requires more than isolated shoulder strength. It also requires core strength and stability to protect the spine. The GENESIS Multi-Plane Shoulder helps build strength through the torso and joint stabilizers with its cable-based design. The lack of required adjustments and the extensive cable travel lets the user move from supported to standing to adding rotation and beyond, continuously adding variety and challenge to their program.
Enquire Today

Details & SPecs

Extensive Cable Travel

Cable length allows for full flexion and extension. Single arm: 76 in / 193 cm, two arms: 38 in / 96.5 cm.

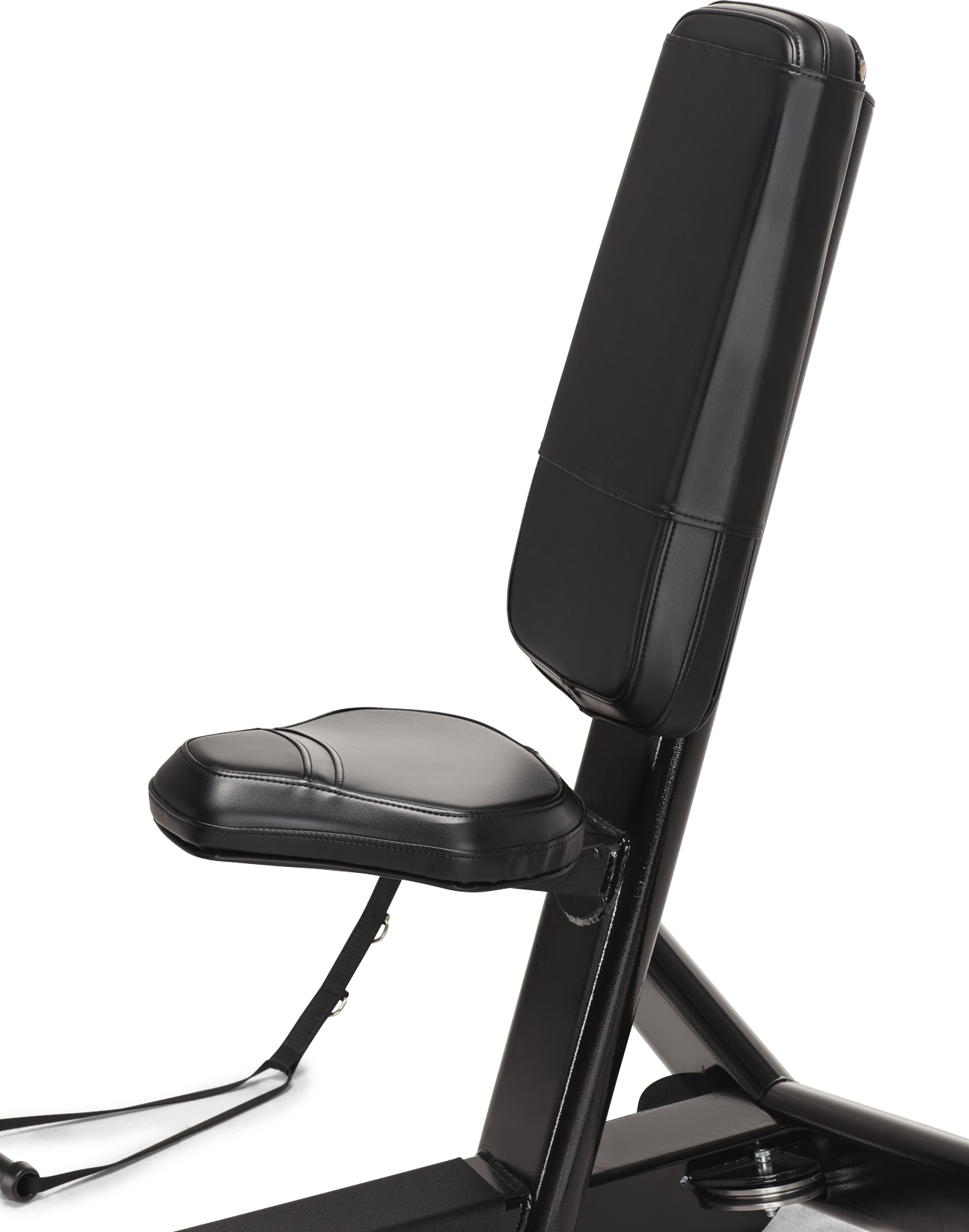

Padded, Contoured Seat

For beginning users or those looking to isolate the lower body, the seat features contoured padding for a comfortable fit.

Enclosed Weight Stack

The weight stack is enclosed to limit access to moving parts for safety.

Built to Last

Constructed with 11- and 7-gauge steel and electrostatically powder-coated, this machine is built to stand up to the rigors of the weight room.

Kick Plates

Large, 16-gauge, stainless steel kick plates protect the machine from wear and tear.

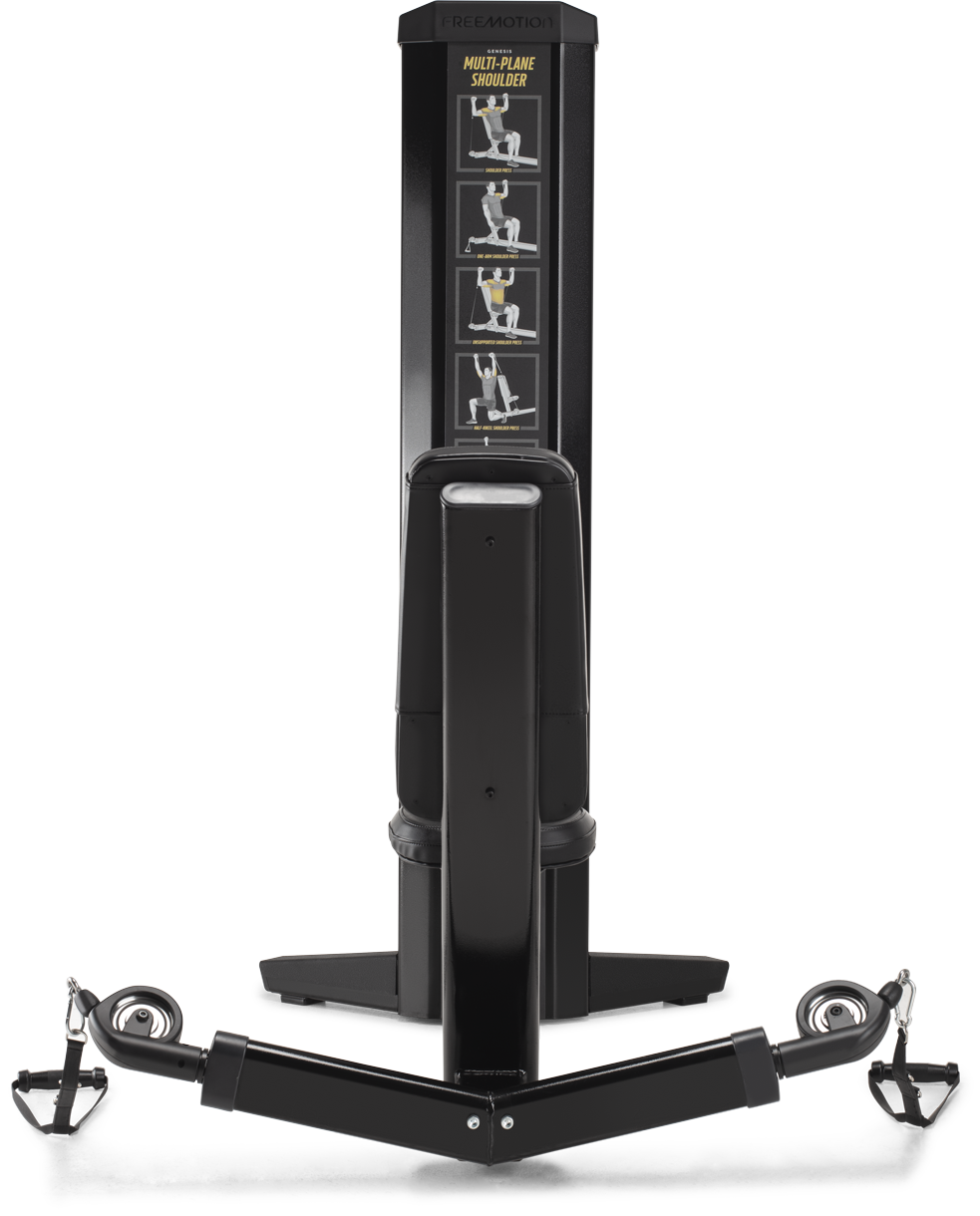

G601 Multi Plane Shoulder Footprint
Product Features

  • Instructional Placards
    Yes
  • Adjustments
    N/A
  • Resistance
    1 arm: 75 lb / 34 kg
    2 arms: 150 lb / 68 kg
  • Seat
    Vinyl, 4.5 in / 11.4 cm thick foam
  • Pulleys
    Swivel pulleys
  • Cable Travel
    42 in / 106.6 cm
  • Rubber Feet
    Molded floor protectors
  • Maximum User Weight
    350 lb / 159 kg
  • Americans with Disabilities Act (ADA)
    Wheelchair Accessible
Product Specifications

  • Weight Stack
    150 lb / 68 kg
  • Drop Down Weight
    N/A
  • Weight Stack Configuration
    5 – 50 x 5 lb / 2.2 – 22.6 x 2.2 kg
    60 – 150 x 10 lb / 27.2 – 68 x 4.5 kg
  • Standard Frame Color
    Black River, Flat Black, Platinum Sparkle, White River
  • Optional Frame Color
    Custom colors available upon request
  • Plastic Color
    Ebony
  • Standard Upholstery Color
    Black, Graphite, Blue Ridge, Burgundy, American Beauty Red
  • Optional Upholstery Color
    Custom colors available upon request
Product Dimensions & Weight

  • Dimensions L x W x H
    60 x 52 x 73 in / 152.4 x 132 x 185.4 cm
  • Footprint
    60 x 52 in / 152.4 x 132 cm
  • Weight
    435 lb / 197.3 kg
  • Shipping Dimensions
    63 x 50 x 73 in / 160 x 127 x 185.4 cm
  • Shipping Weight
    431 lb / 195.4 kg
Certifications

  • EN957, CE
Warranty (US & Canada)

  • Frame
    10 Years
  • Parts
    3 Years
  • Cables & Labor
    1 Year
  • Cosmetic & Wear Items
    6 Months
  • Upholstery & Padding
    120 Days
Warranty (International)

  • Frame
    10 Years
  • Parts
    3 Years
  • Cables & Labor
    1 Year
  • Cosmetic & Wear Items
    6 Months
  • Upholstery & Padding
    120 Days
Enquire Today

Freedom to Move

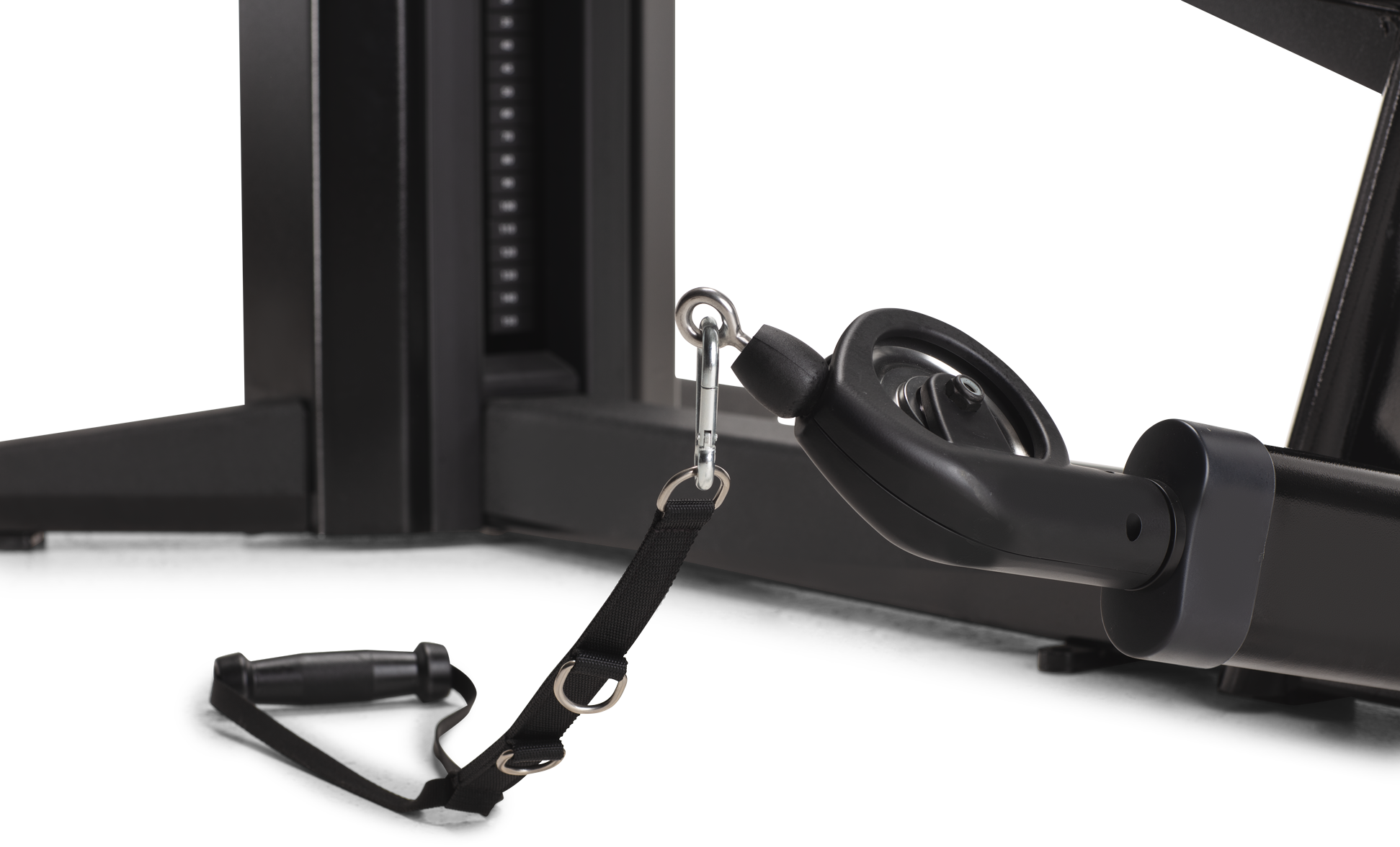

The swivel pulley design combined with the extensive cable travel allows users a wide, fluid range of motion.

Movement Variety

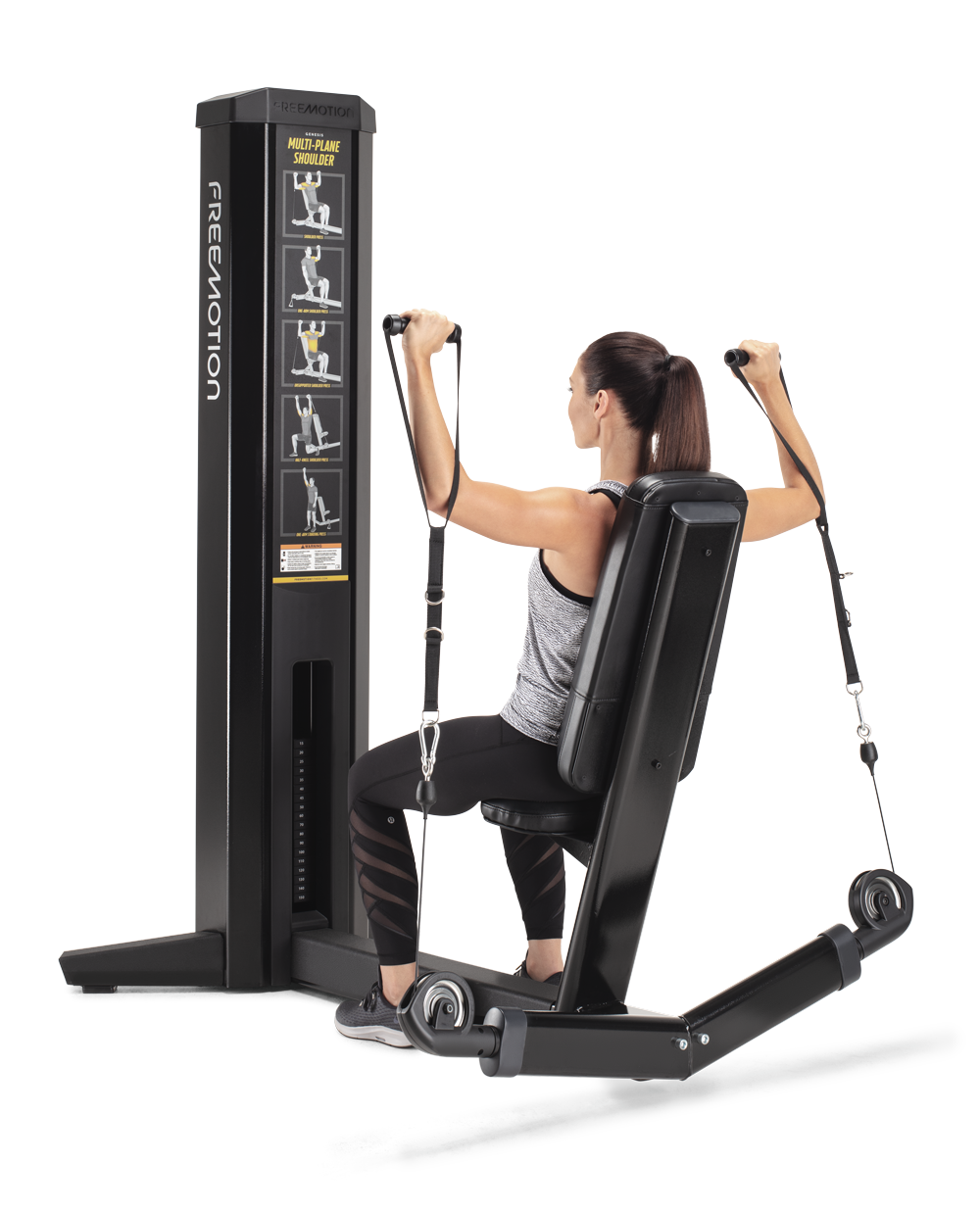

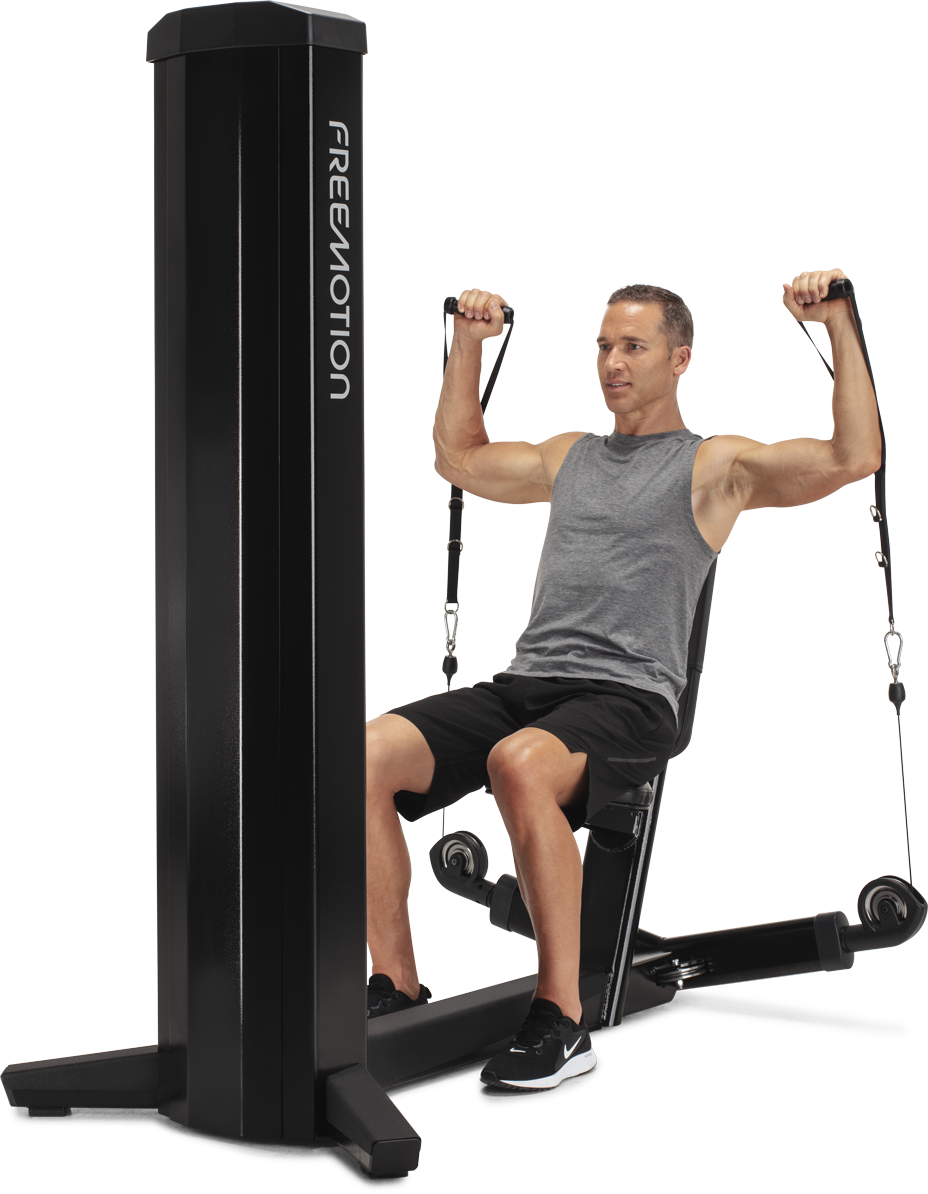

Handles move independently for single and alternating arm exercises.

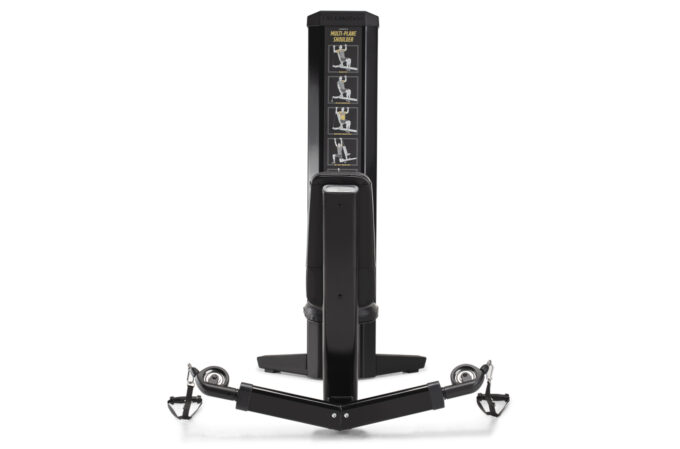

Walk Up and Work Out

With no required adjustments, users can simply walk up, grab the handles and start moving.
