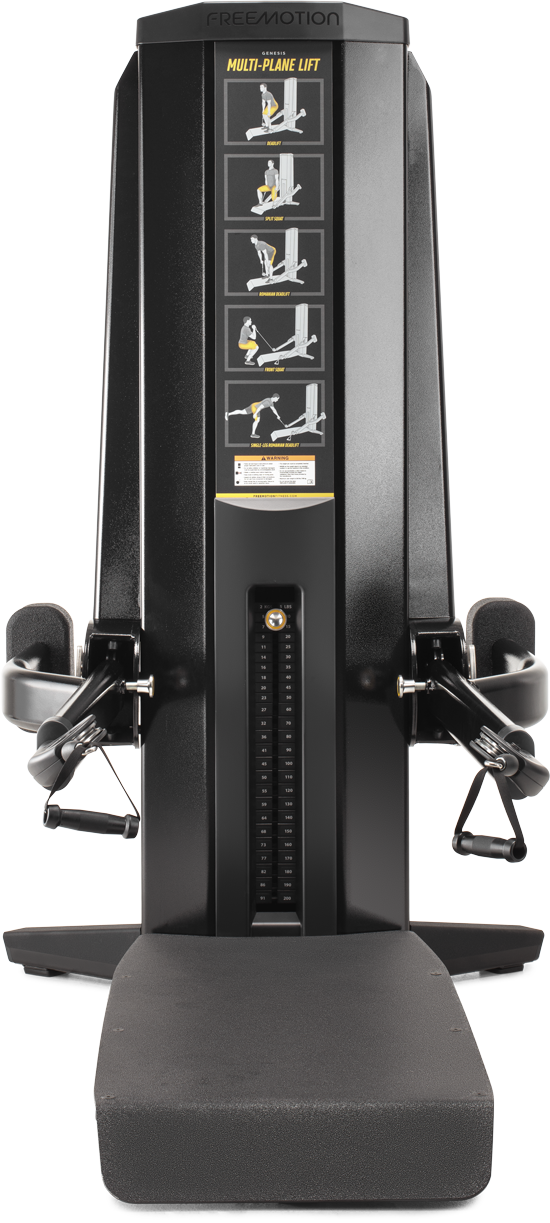

G612

MULTI-PLANE LIFT

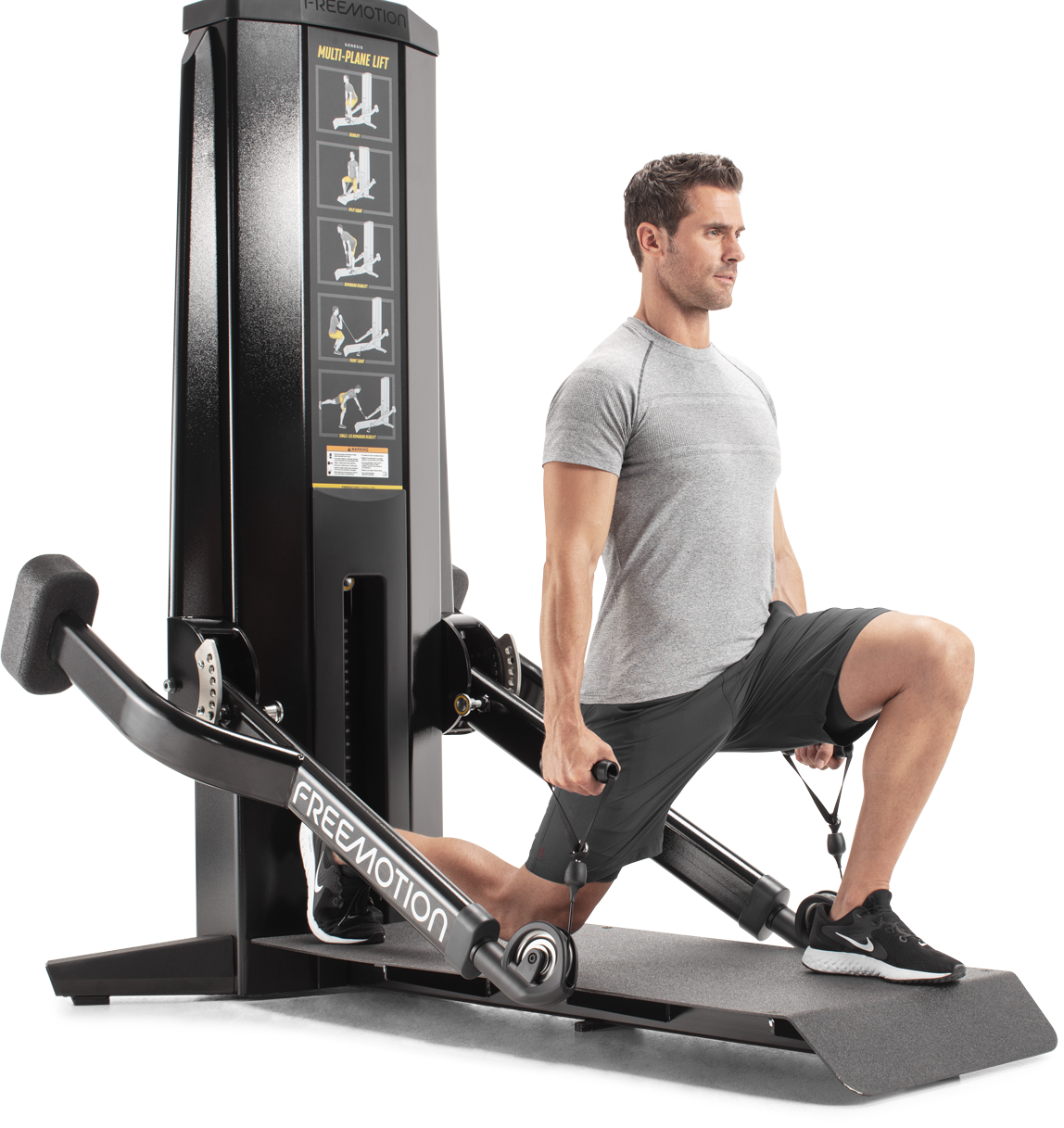

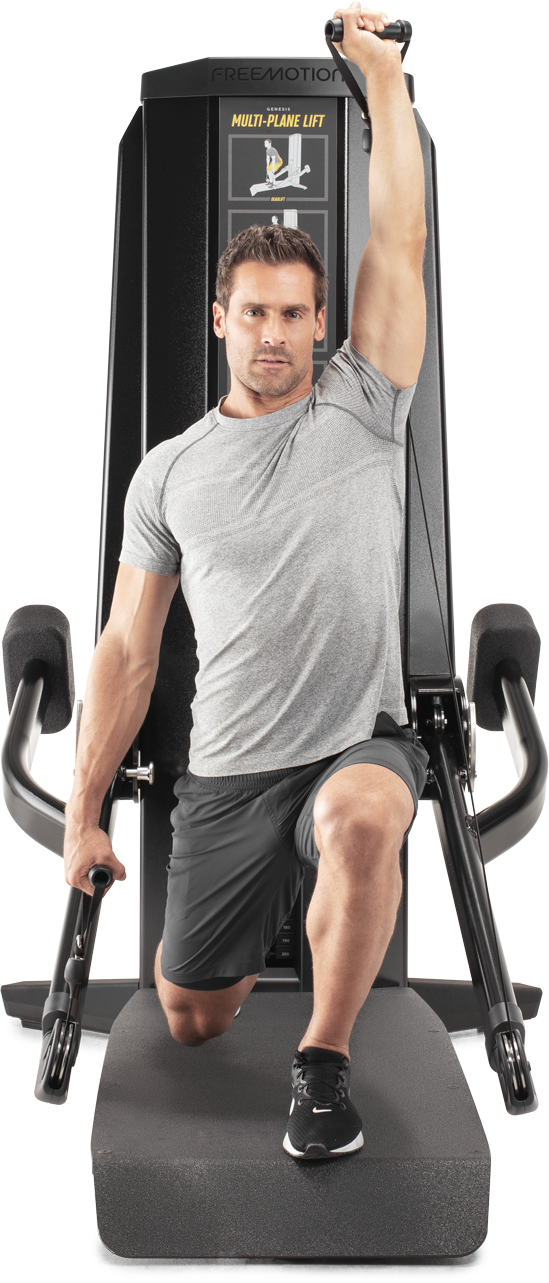

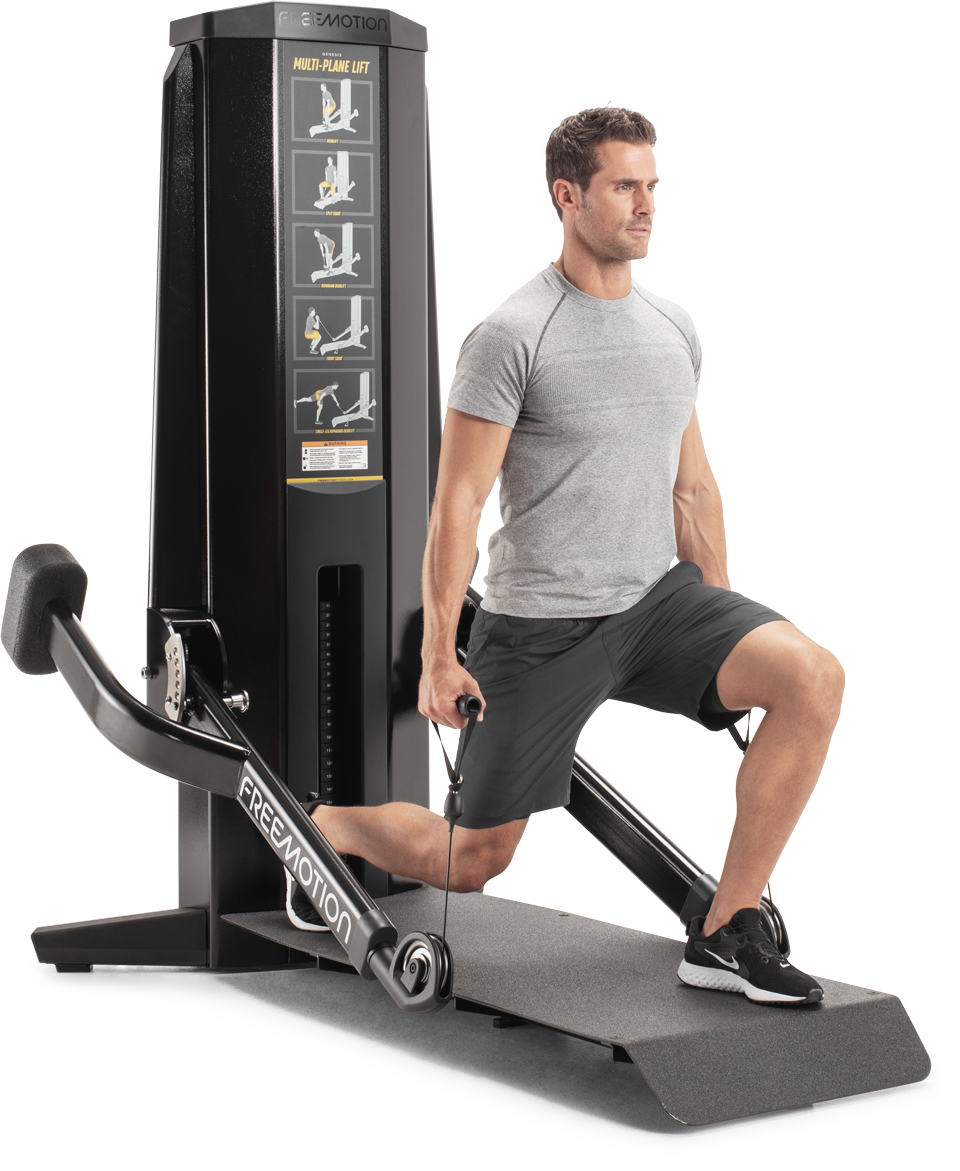

Regardless of user height or which lifting or lunging exercise, the GENESIS Multi-Plane Lift has vertically adjustable handle arms for a precise fit for the movement. The low-profile platform is textured for secure foot placement when moving or stepping off the machine. Swivel pulleys and ample cable travel allow for compound and dynamic movements like a single leg RDL to a row off the platform.
Enquire Today

Details & SPecs

Extensive Cable Travel

Cable length allows for full flexion and extension. Single arm: 76 in / 193 cm, two arms: 38 in / 96.5 cm.

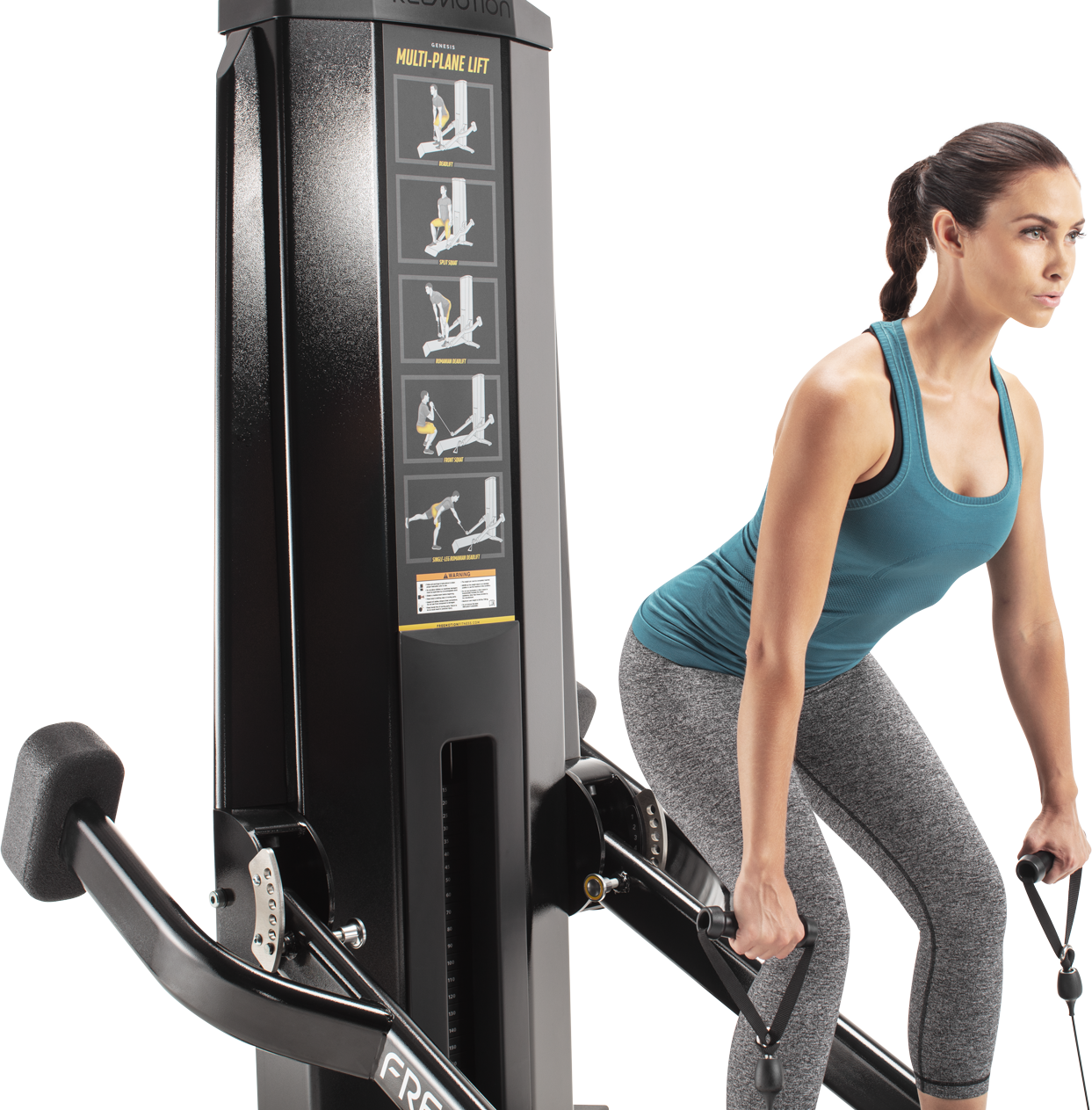

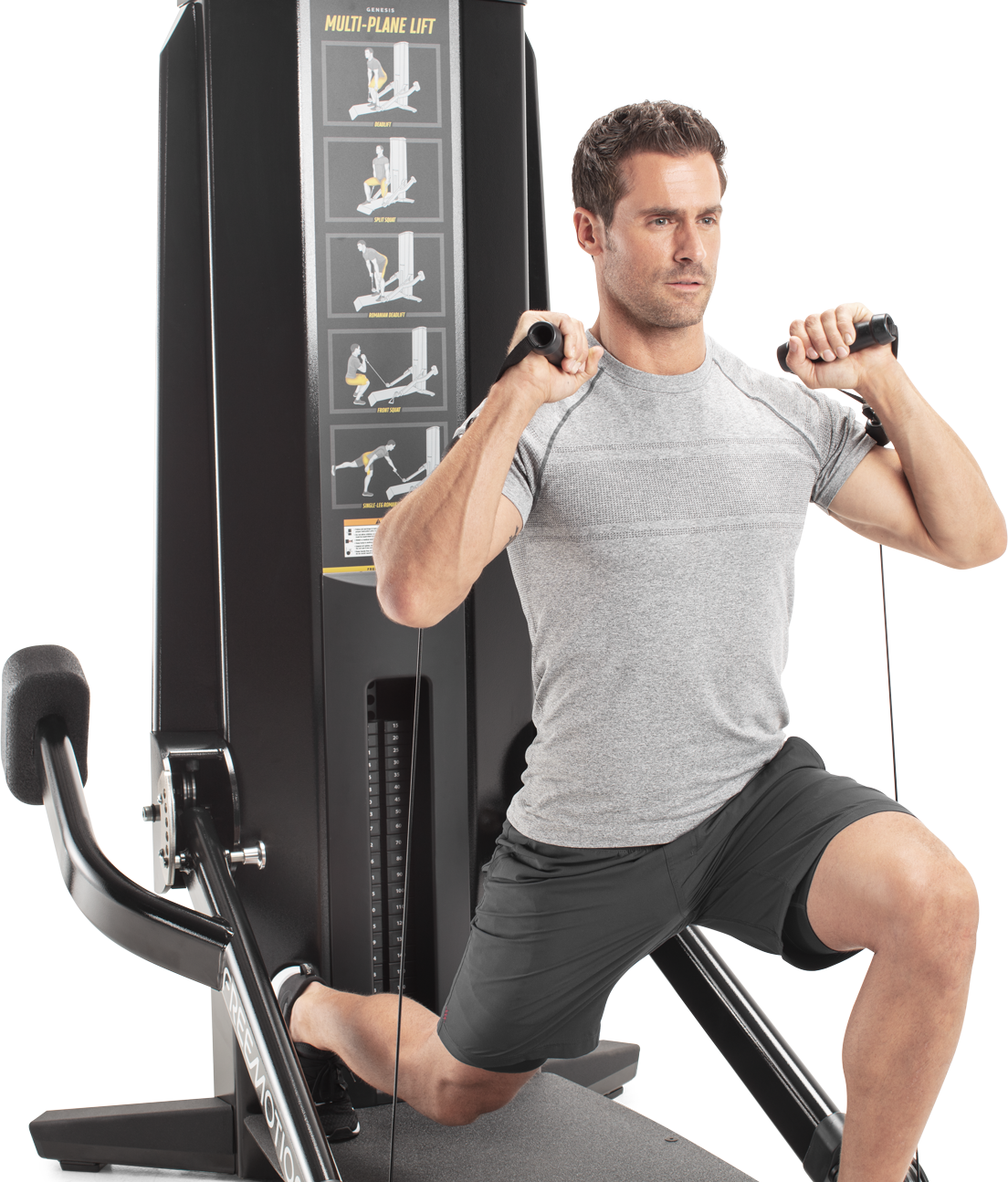

Movement Variety

Handles move independently for single and alternating side exercises.

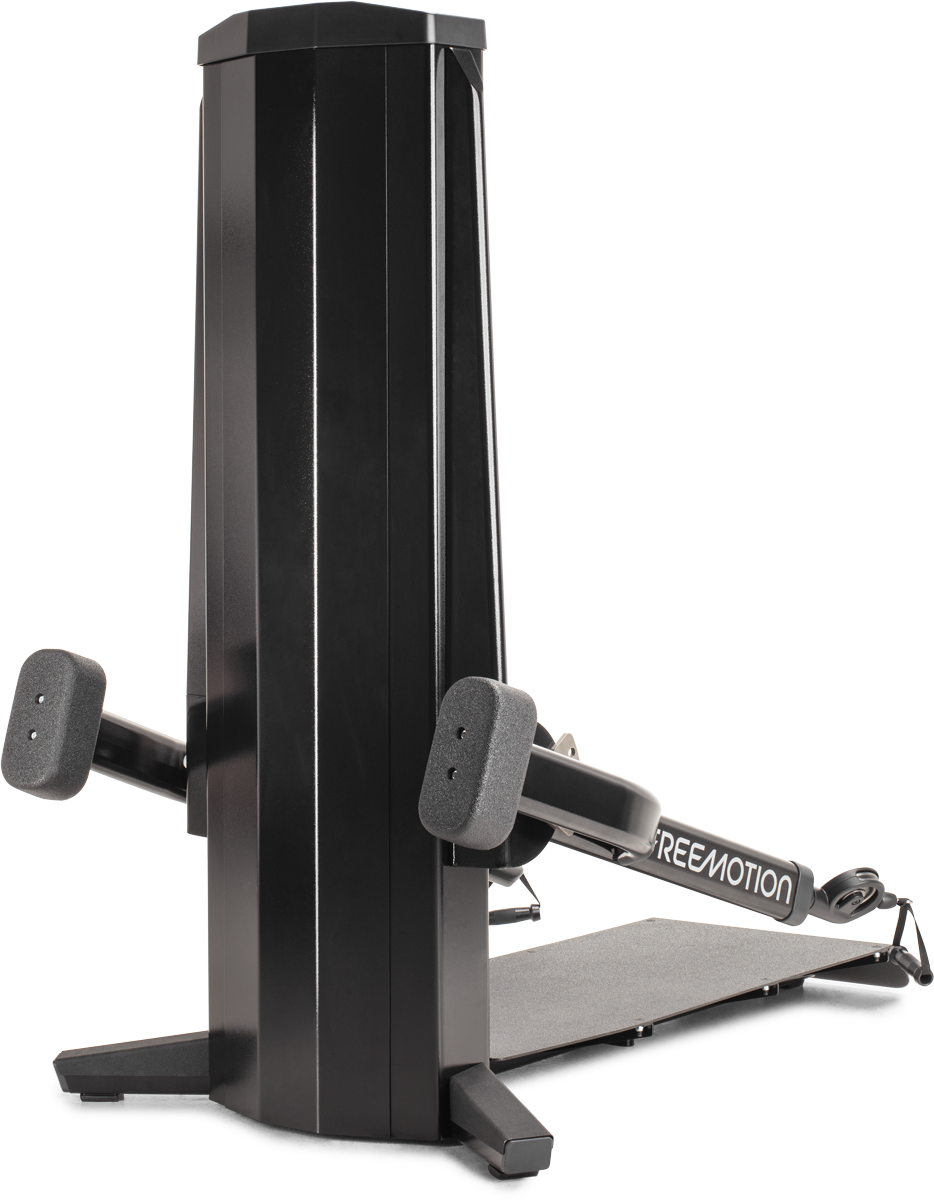

Enclosed Weight Stack

The weight stack is enclosed to limit access to moving parts for safety.

Built to Last

Constructed with 11- and 7-gauge steel and electrostatically powder-coated, this machine is built to stand up to the rigors of the weight room.

Kick Plates

Large, 16-gauge, stainless steel kick plates protect the machine from wear and tear.

G612 Multi Plane Lift Footprint
Product Features

  • Instructional Placards
    Yes
  • Adjustments
    Independently adjustable arms with 6 settings
  • Resistance
    1 arm: 100 lb / 45.3 kg
    2 arms: 200 lb / 90.7 kg
  • Seat
    N/A
  • Pulleys
    Single swivel pulley
  • Cable Travel
    120 in / 304.8 cm
  • Rubber Feet
    Molded floor protectors
  • Maximum User Weight
    350 lb / 159 kg
  • Americans with Disabilities Act (ADA)
    Wheelchair Accessible
Product Specifications

  • Weight Stack
    400 lb / 181 kg
  • Drop Down Weight
    N/A
  • Weight Stack Configuration
    5 – 50 x 5 lb / 2.2 – 22.6 x 2.2 kg
    60 – 200 x 10 lb / 27.2 – 90.7 x 4.5 kg
  • Standard Frame Color
    Black River, Flat Black, Platinum Sparkle, White River
  • Optional Frame Color
    Custom colors available upon request
  • Plastic Color
    Ebony
  • Standard Upholstery Color
    N/A
  • Optional Upholstery Color
    N/A
Product Dimensions & Weight

  • Dimensions L x W x H
    71 x 42 x 77 in / 180.3 x 106.6 x 195.5 cm
  • Footprint
    71 x 42 in / 180.3 x 106.6 cm
  • Weight
    977 lb / 443.1 kg
  • Shipping Dimensions
    76 x 42 x 73 in / 193. x 106.6 x 185.4 cm
  • Shipping Weight
    973 lb / 441.3 kg
Certifications

  • EN957, CE
Warranty (US & Canada)

  • Frame
    10 Years
  • Parts
    3 Years
  • Cables & Labor
    1 Year
  • Cosmetic & Wear Items
    6 Months
  • Upholstery & Padding
    120 Days
Warranty (International)

  • Frame
    10 Years
  • Parts
    3 Years
  • Cables & Labor
    1 Year
  • Cosmetic & Wear Items
    6 Months
  • Upholstery & Padding
    120 Days
Enquire Today

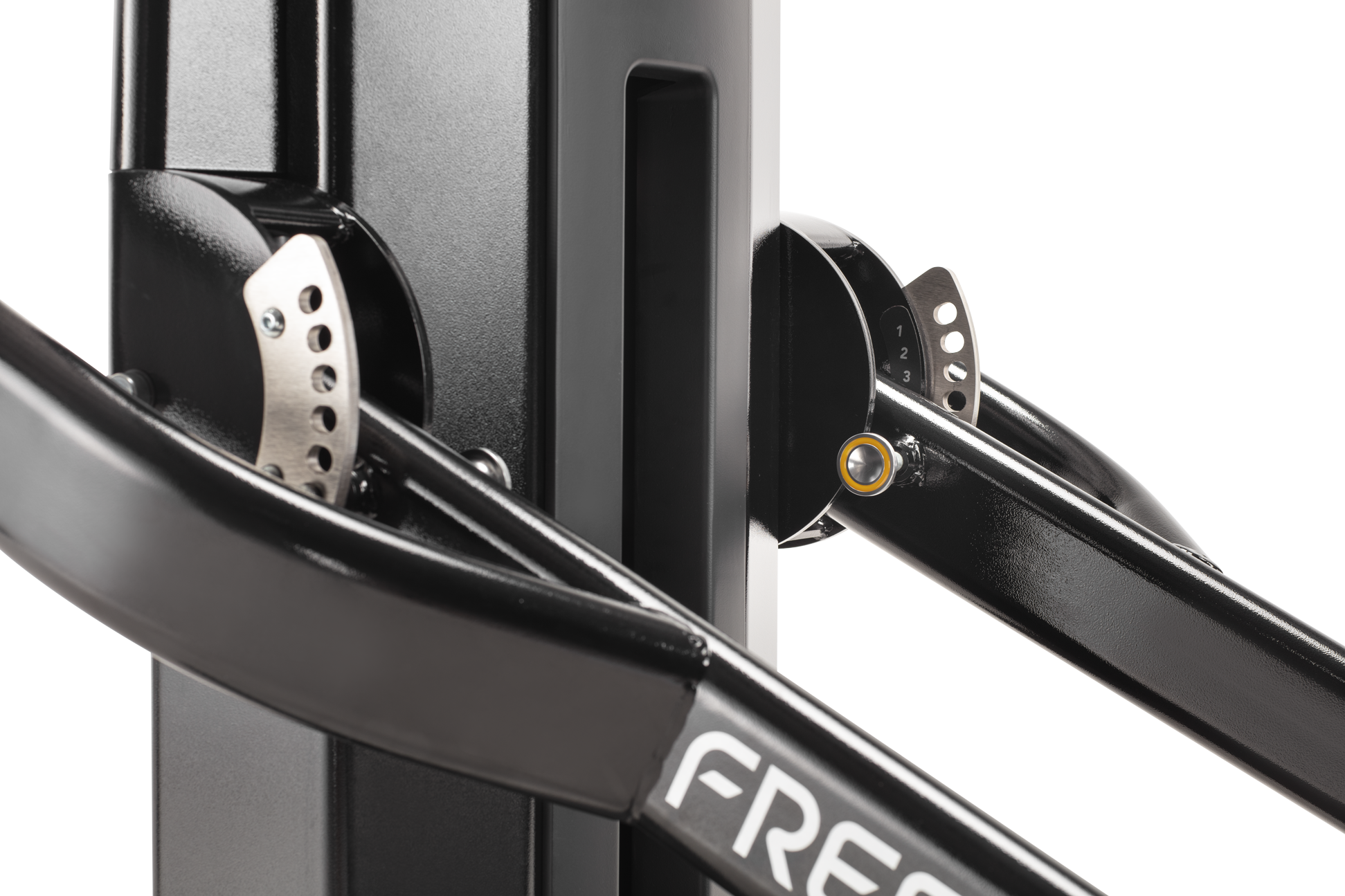

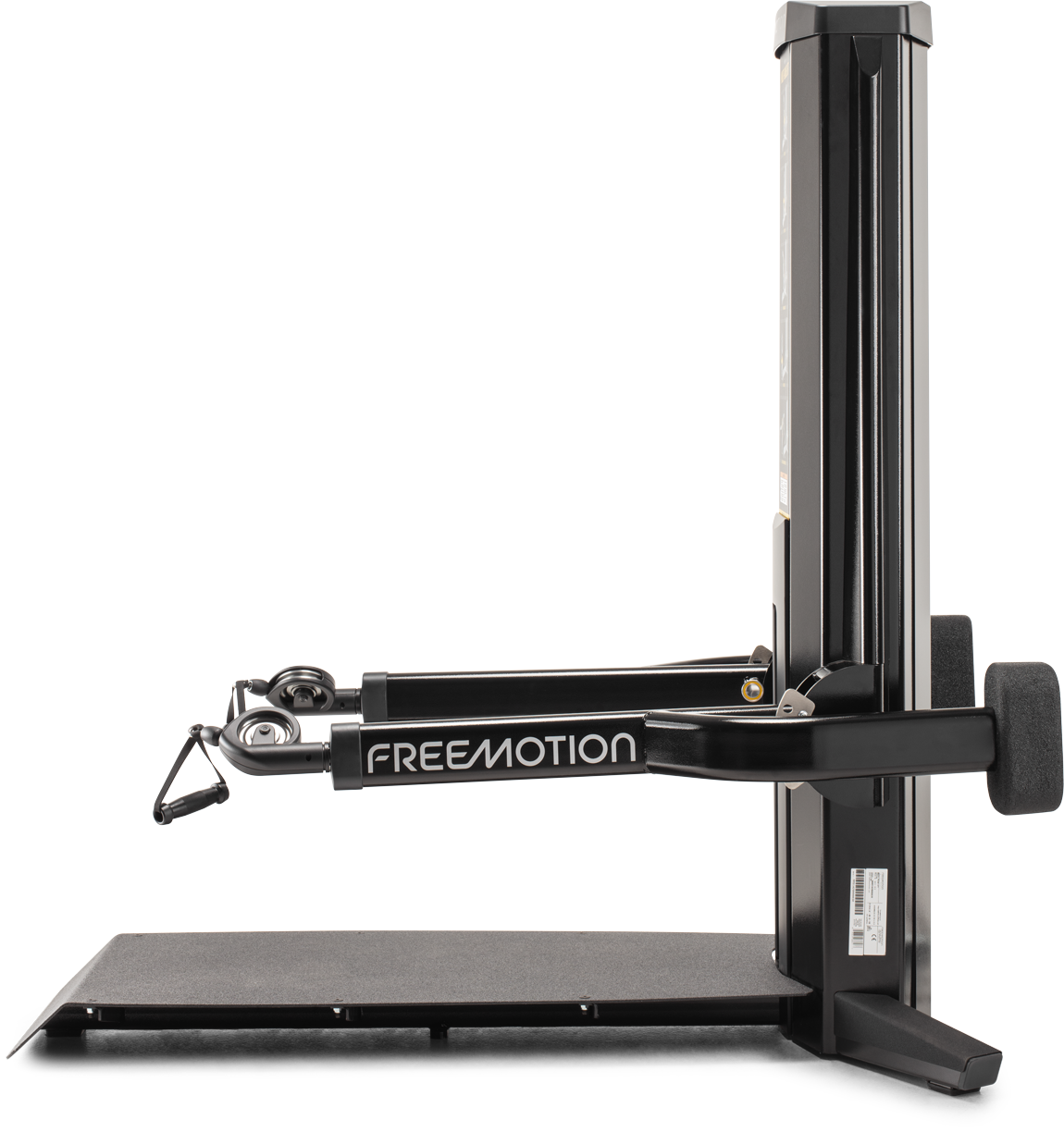

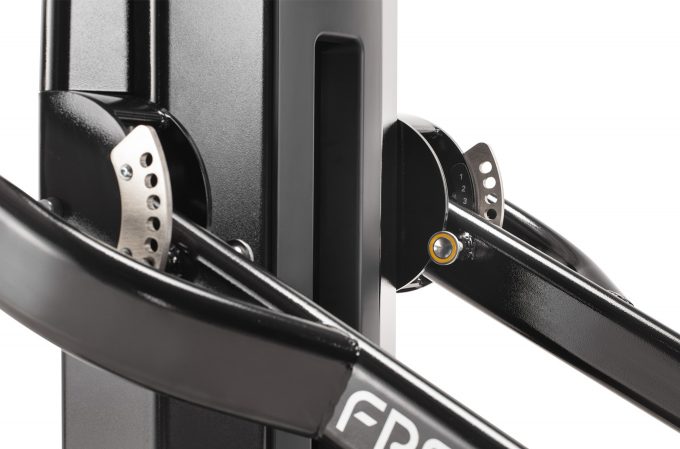

Fine-tune Range of Motion

Lift arms adjust vertically to customize starting range for users of varying heights.

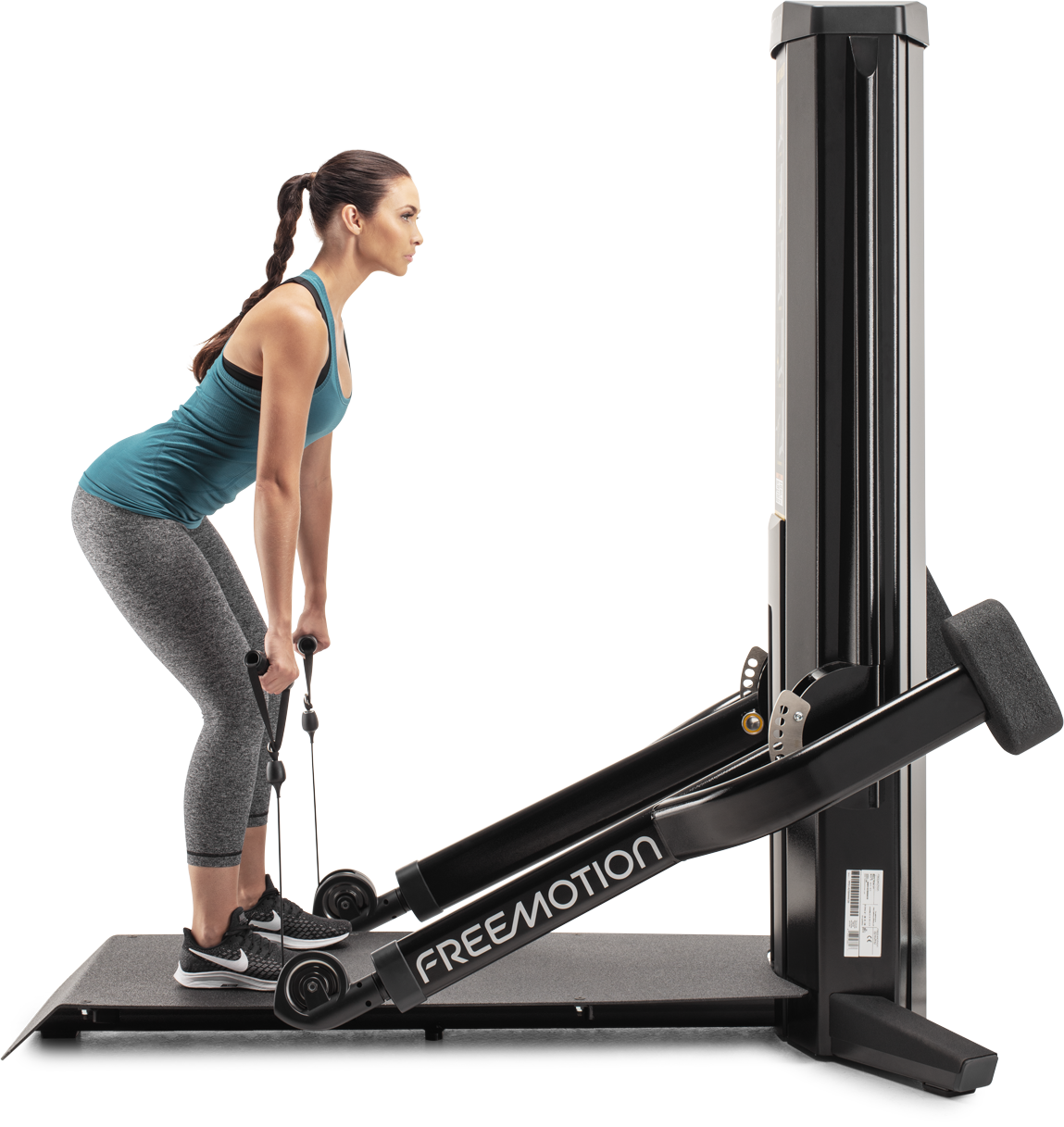

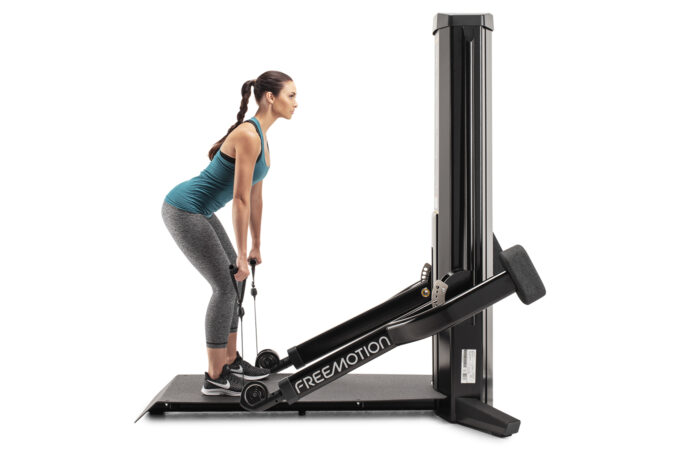

Freedom to Move

The swivel pulley design combined with the extensive cable travel allows users a wide, fluid range of motion.

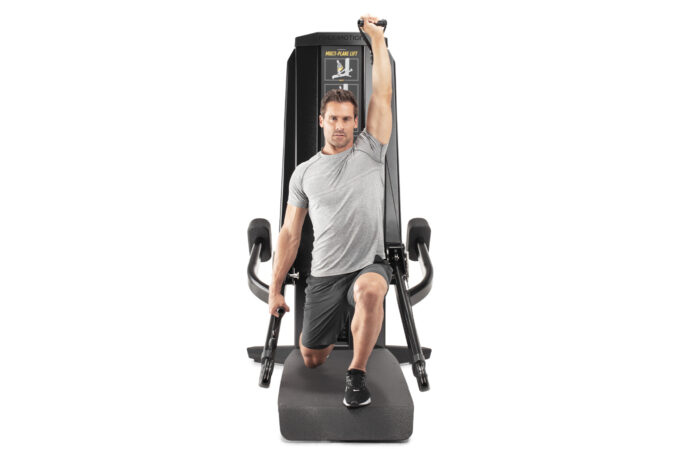

Movement Variety

Handles move independently for single and alternating arm exercises.

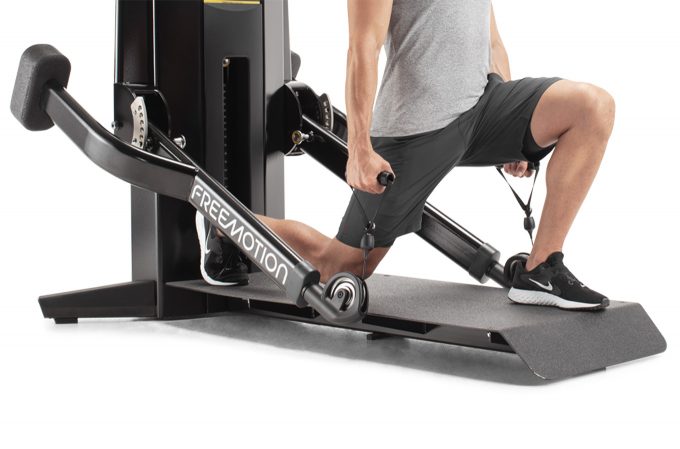

Sure Footing

Textured platform helps ensure secure foot placement even during dynamic exercise.
