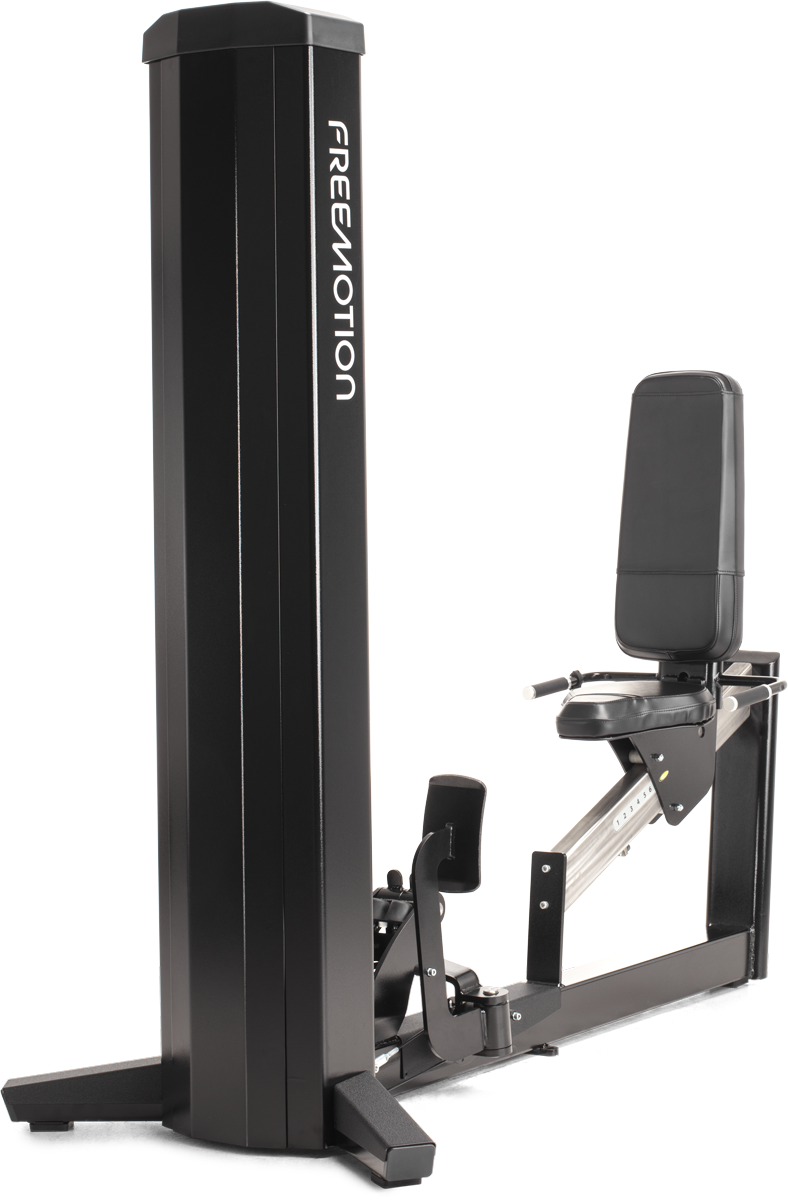

G607

MULTI-PLANE CALF

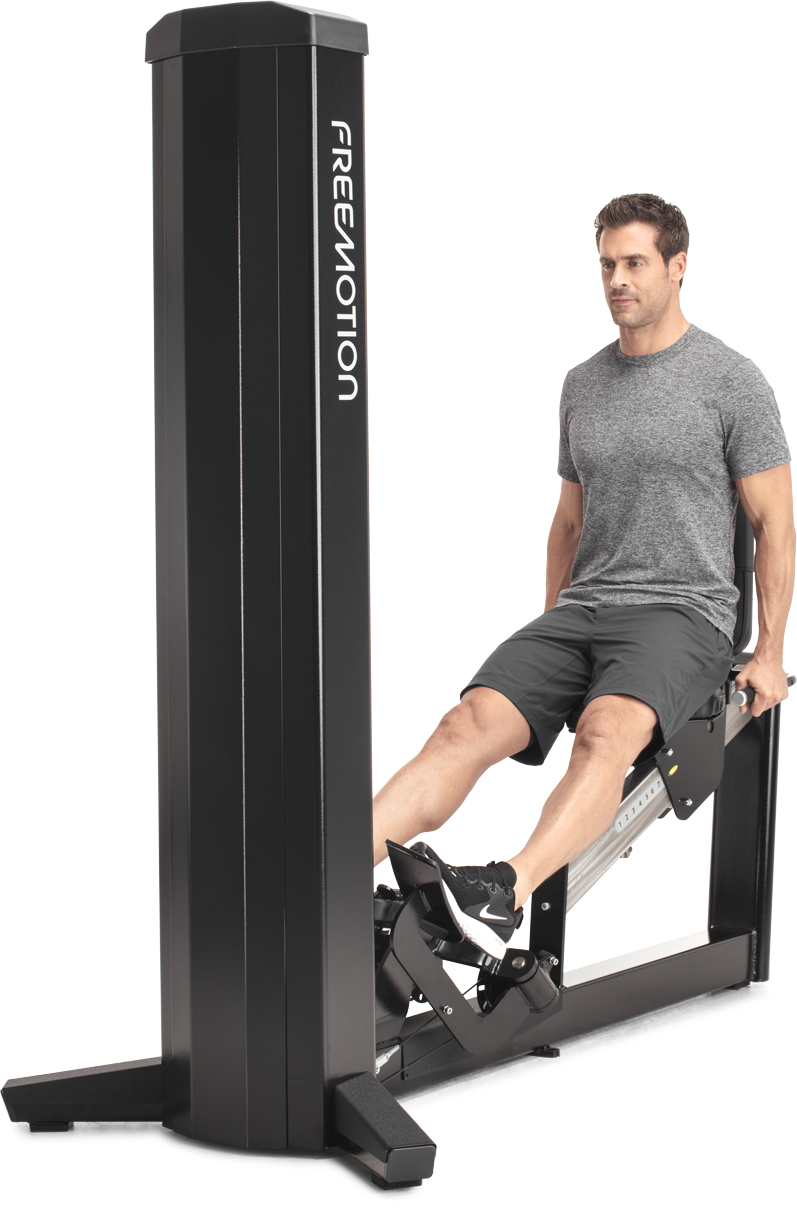

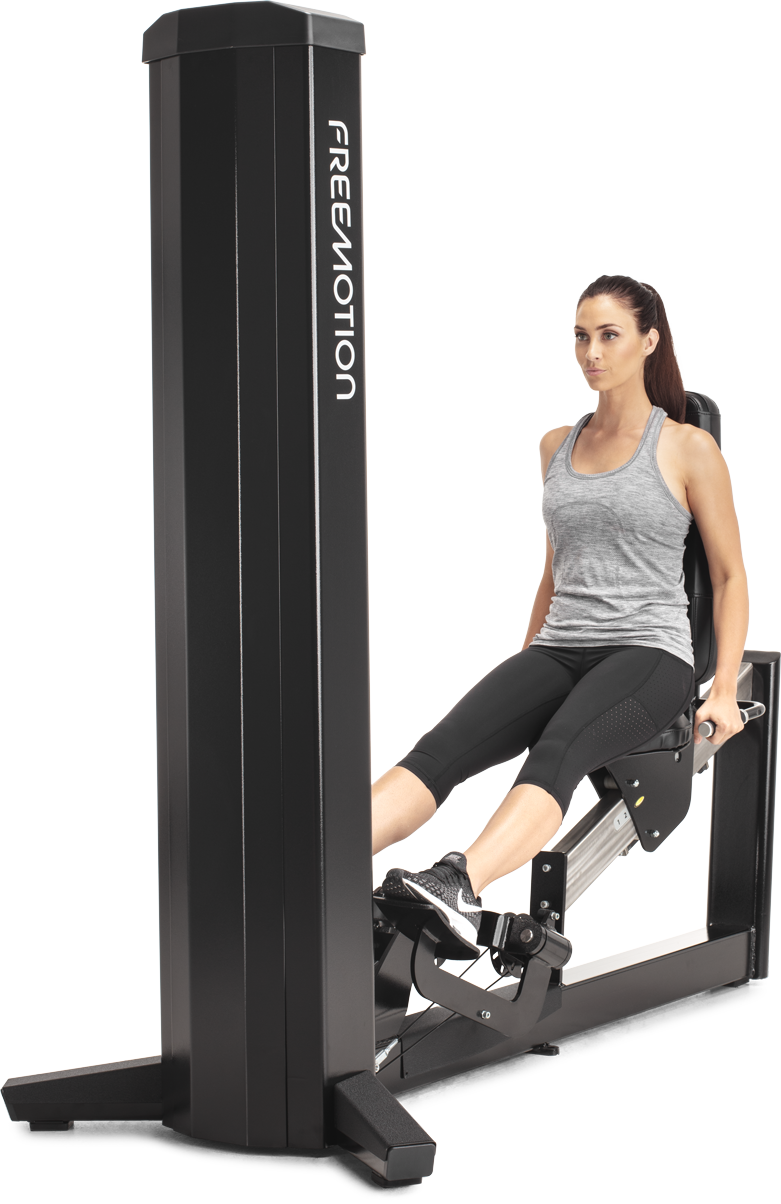

The GENESIS Multi-Plane Calf helps to build a strong foundation for the body. The feet and ankles operate in a three-dimensional world and the Calf machine’s multi-pivoting pedals move independently to simulate real-world conditions. The seat slides along an inclined tube for precise positioning to fit a wide variety of users. It’s also contoured and padded for comfort. Textured grip on the foot pedals helps to secure foot placement.
Enquire Today

Details & SPecs

Simple, Adjustable Seat

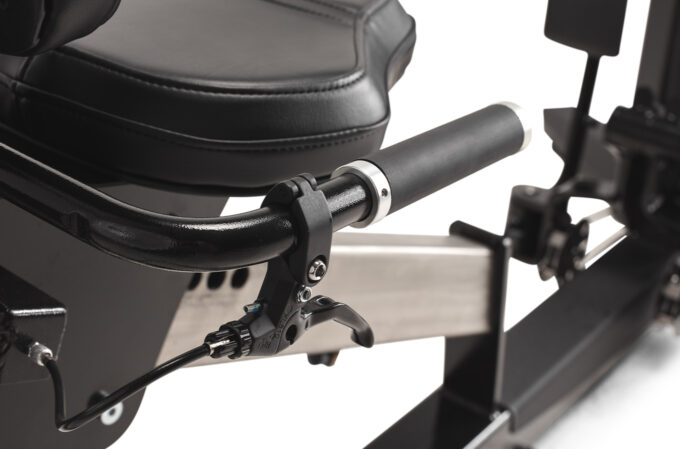

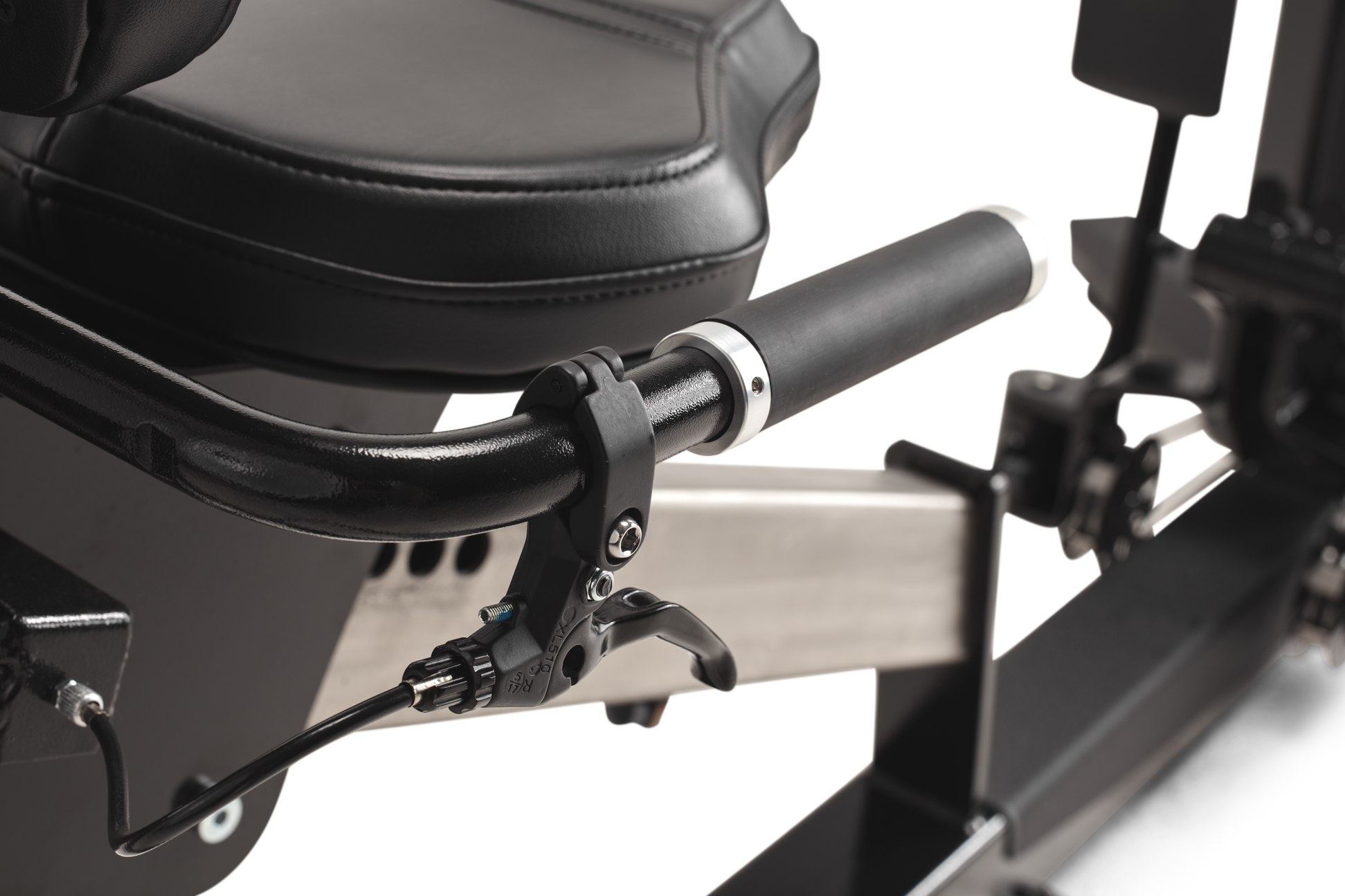

The easy-to-use hand lever to adjust the seat is conveniently located within reach.

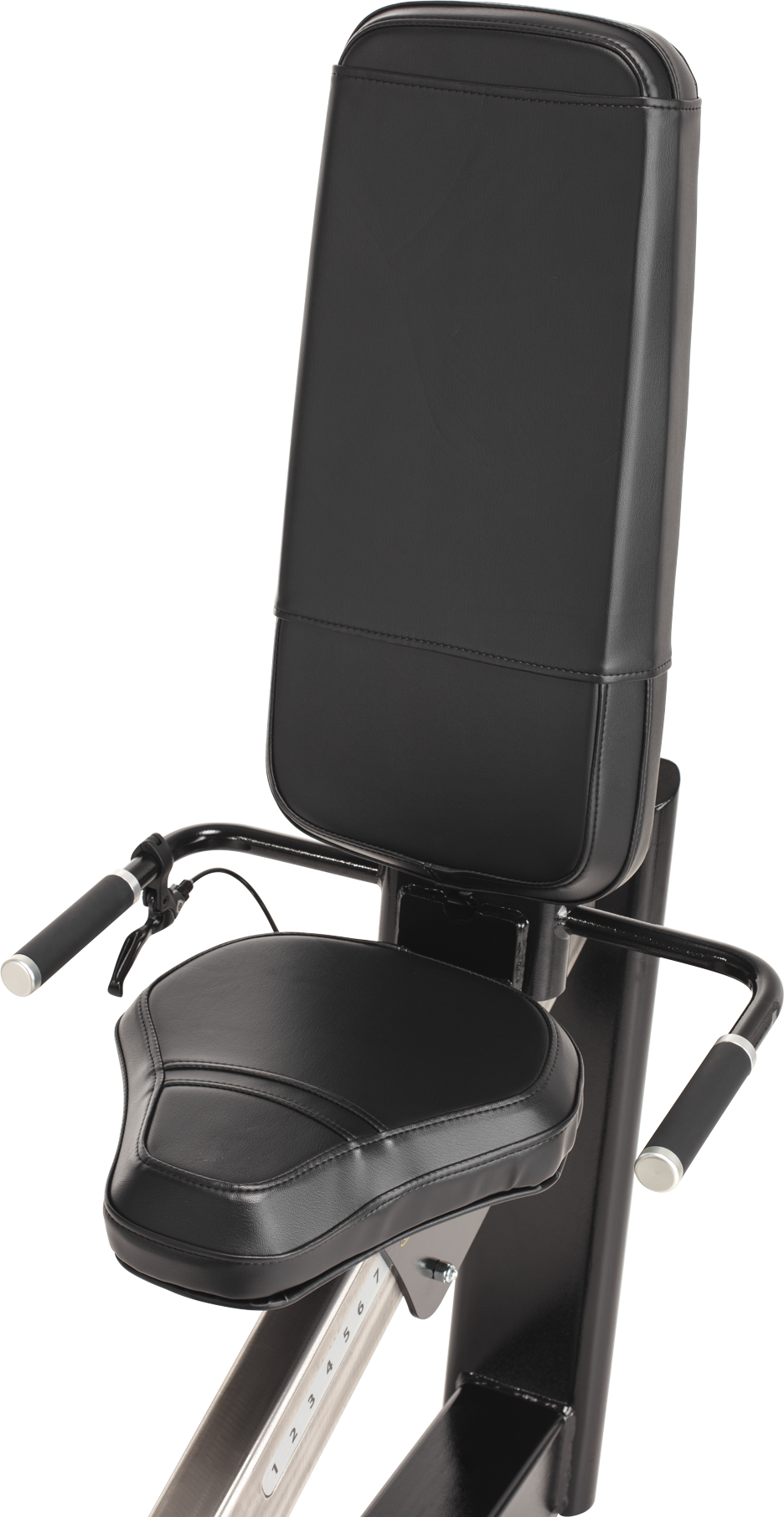

Padded, Contoured Seat

The seat features contoured padding for a comfortable fit.

Enclosed Weight Stack

The weight stack is enclosed to limit access to moving parts for safety.

Built to Last

Constructed with 11- and 7-gauge steel and electrostatically powder-coated, this machine is built to stand up to the rigors of the weight room.

Kick Plates

Large, 16-gauge, stainless steel kick plates protect the machine from wear and tear.

G607 Multi Plane Calf Footprint
Product Features

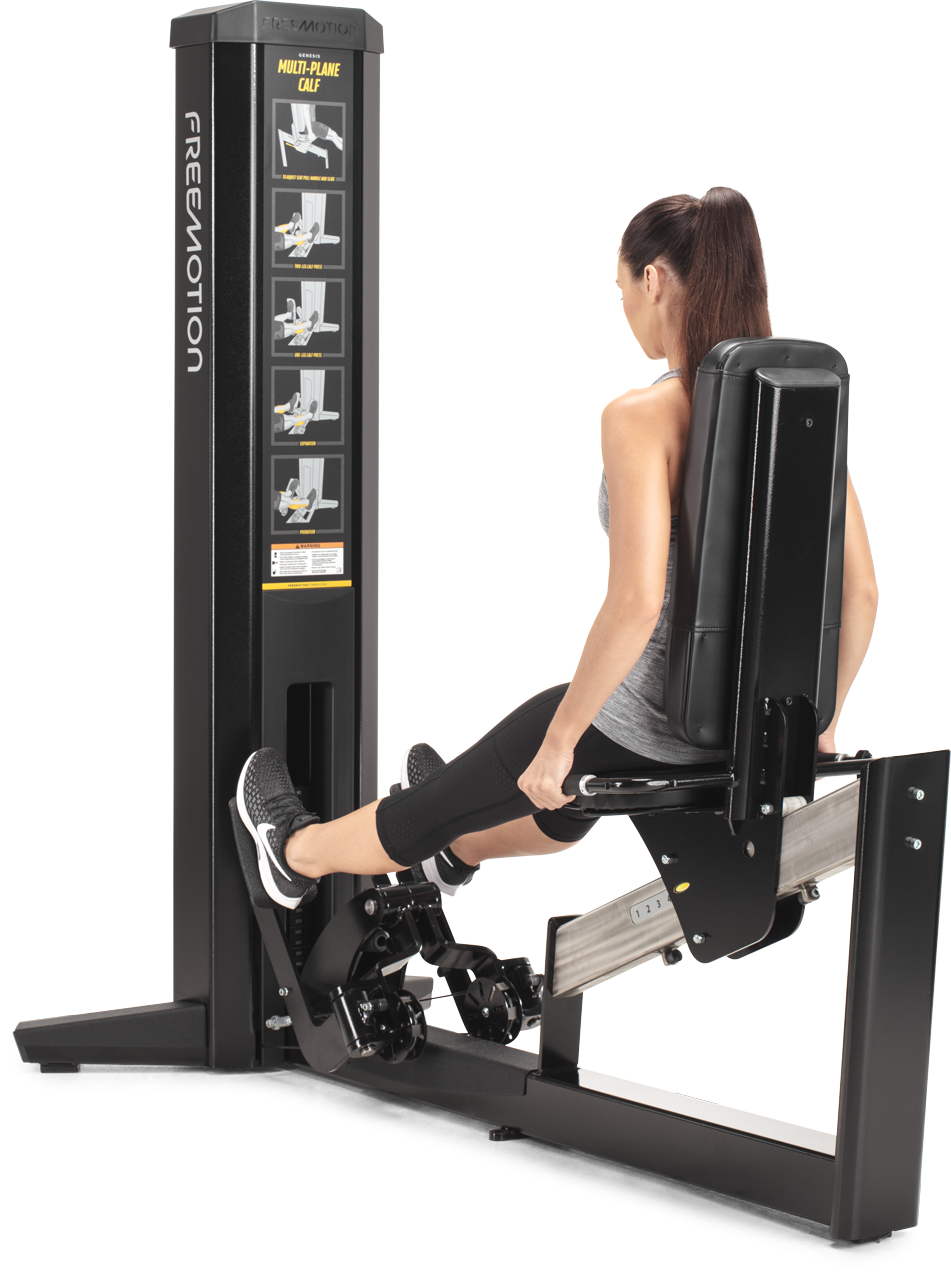

  • Instructional Placards
    Yes
  • Adjustments
    Sliding adjustable seat
  • Resistance
    1 pedal: 200 lb / 90.7 kg
    2 pedals: 400 lb / 181.4 kg
  • Seat
    Vinyl upholstery
  • Pulleys
    Advanced internal pulley system
  • Cable Travel
    N/A
  • Rubber Feet
    Molded floor protectors
  • Maximum User Weight
    350 lb / 159 kg
  • Americans with Disabilities Act (ADA)
    N/A
Product Specifications

  • Weight Stack
    200 lb / 90 kg
  • Drop Down Weight
    N/A
  • Weight Stack Configuration
    5 – 50 x 5 lb / 2.2 – 22.6 x 2.2 kg
    60 – 200 x 10 lb / 27.2 – 90.7 x 4.5 kg
  • Standard Frame Color
    Black River, Flat Black, Platinum Sparkle, White River
  • Optional Frame Color
    Custom colors available upon request
  • Plastic Color
    Ebony
  • Standard Upholstery Color
    Black, Graphite, Blue Ridge, Burgundy, American Beauty Red
  • Optional Upholstery Color
    Custom colors available upon request
Product Dimensions & Weight

  • Dimensions L x W x H
    74 x 36 x 77 in / 187.9 x 91.4 x 195.5 cm
  • Footprint
    74 x 36 in / 187.9 x 91.4 cm
  • Weight
    300 lb / 136 kg
  • Shipping Dimensions
    71 x 33.5 x 13.7 in / 180.3 x 85 x 34.7 cm
  • Shipping Weight
    431 lb / 195.4 kg
Certifications

  • EN957, CE
Warranty (US & Canada)

  • Frame
    10 Years
  • Parts
    3 Years
  • Cables & Labor
    1 Year
  • Cosmetic & Wear Items
    6 Months
  • Upholstery & Padding
    120 Days
Warranty (International)

  • Frame
    10 Years
  • Parts
    3 Years
  • Cables & Labor
    1 Year
  • Cosmetic & Wear Items
    6 Months
  • Upholstery & Padding
    120 Days
Enquire Today

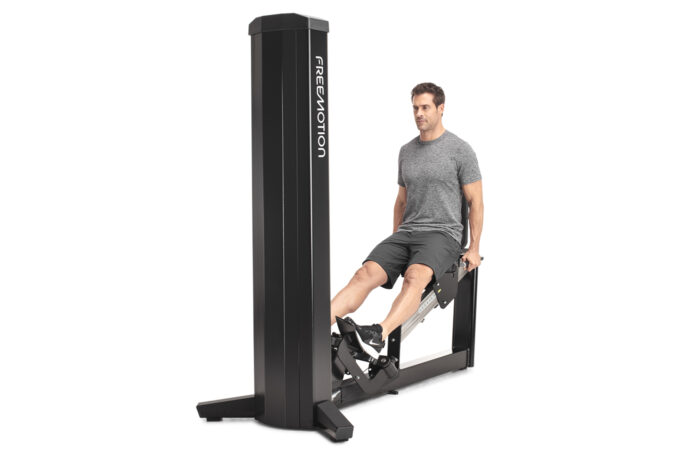

Real-world Training

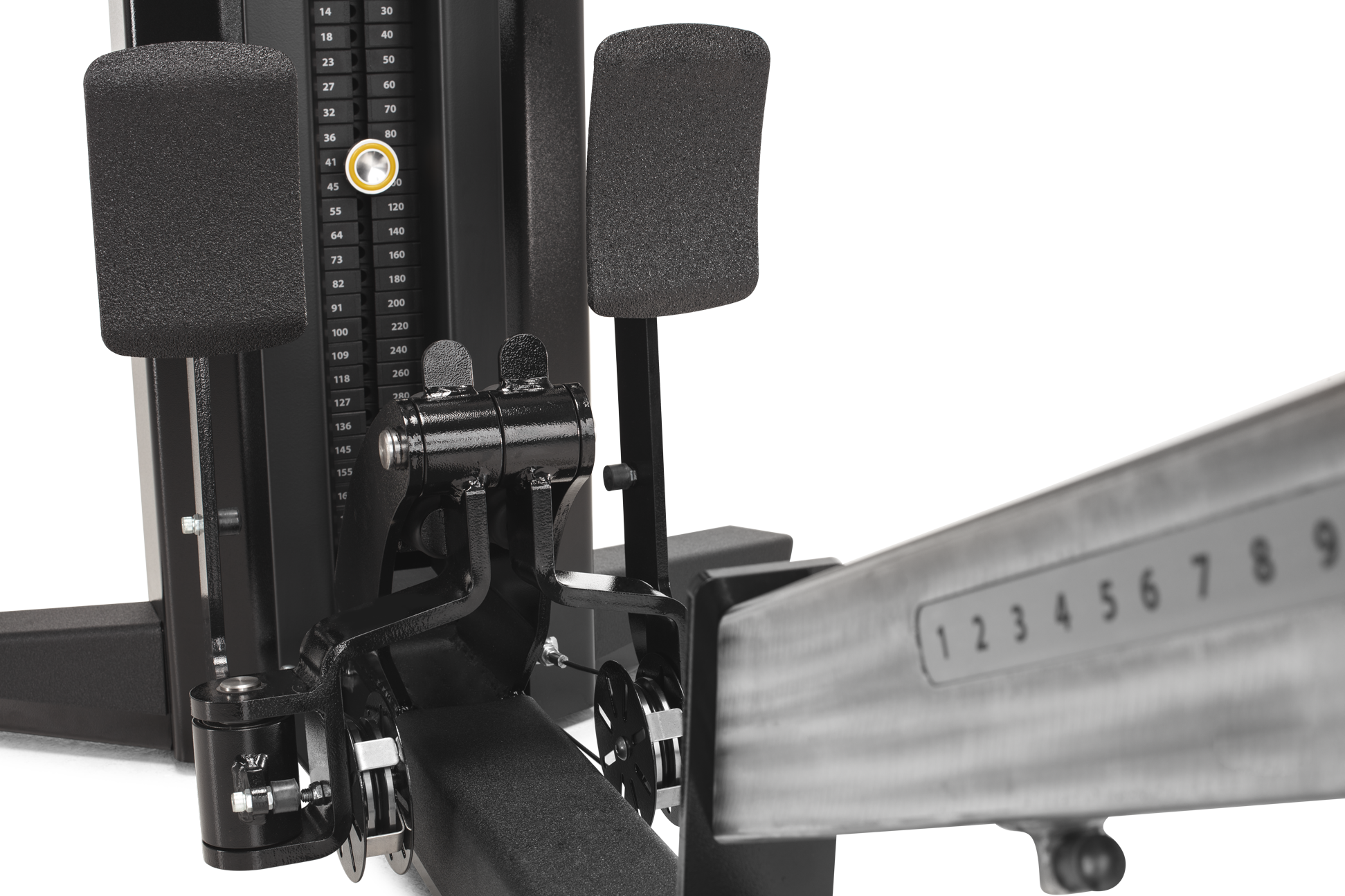

Pedals can move through flexion/extension and inversion/eversion to train movements encountered in daily living.

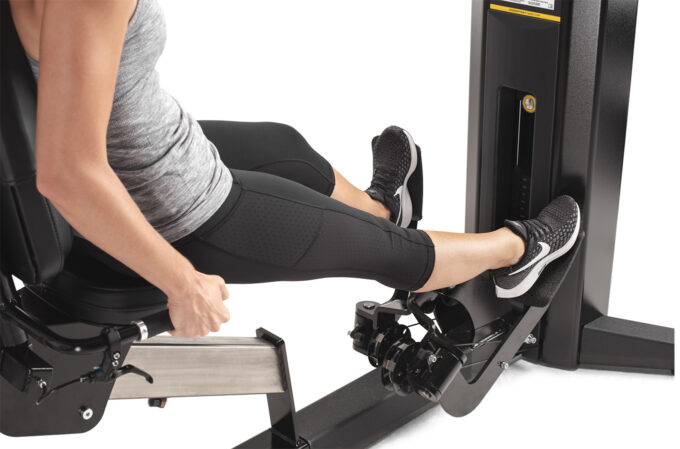

Sure Footing

Textured pedals help ensure secure foot placement even under heavy loads.

Movement Variety

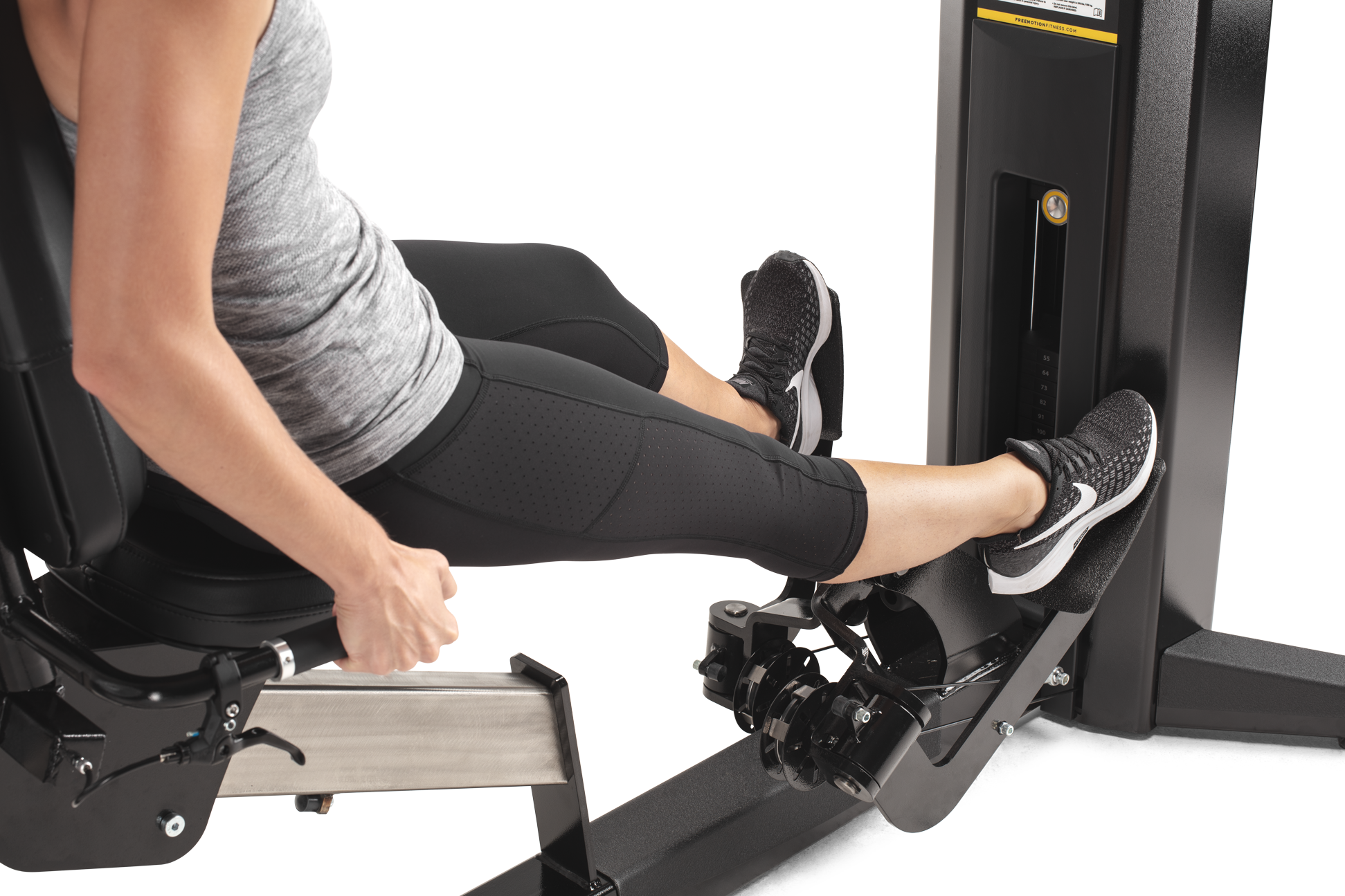

Foot pedals move independently for single and alternating lower leg exercises.

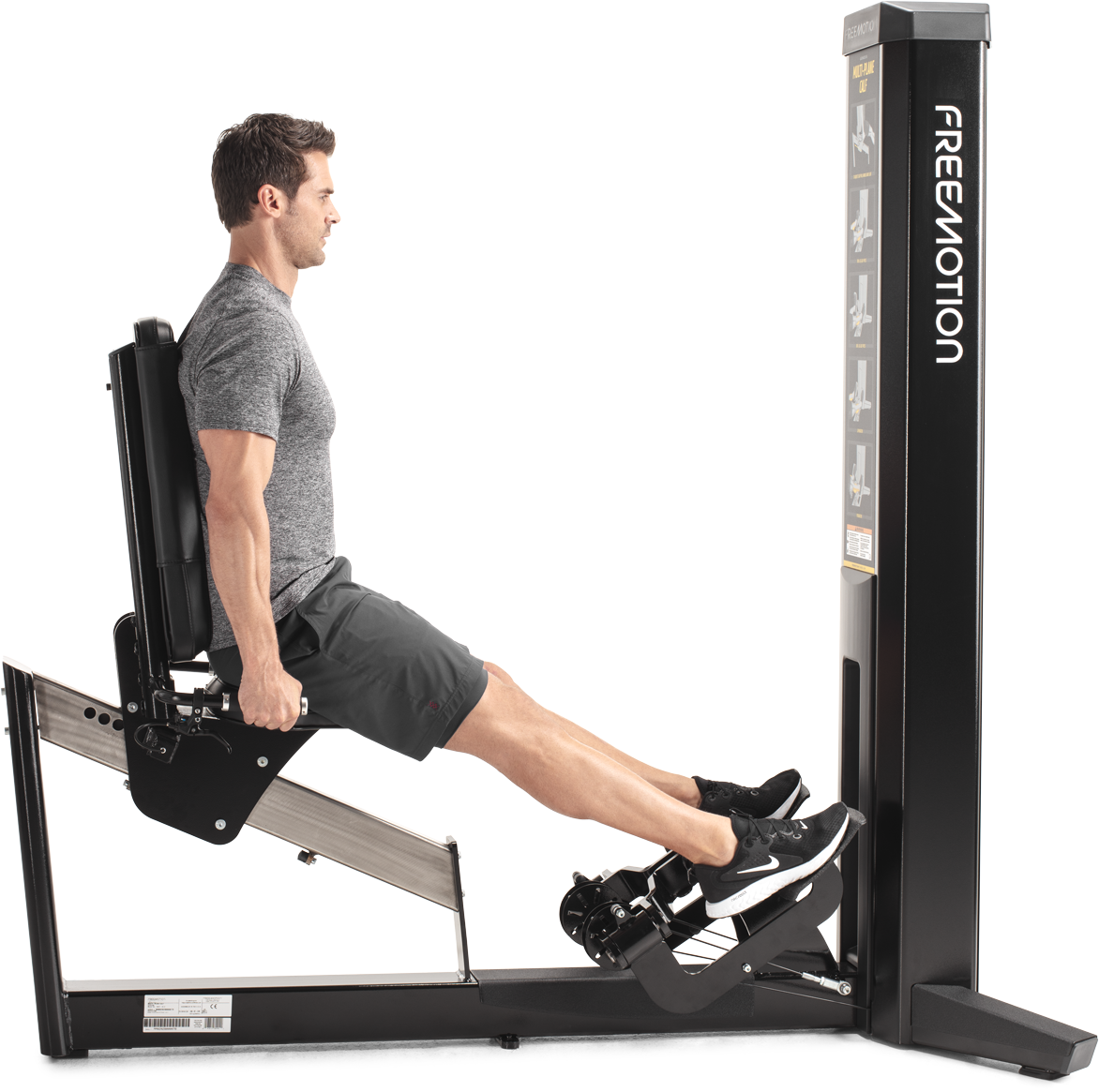

Comfortable Fit

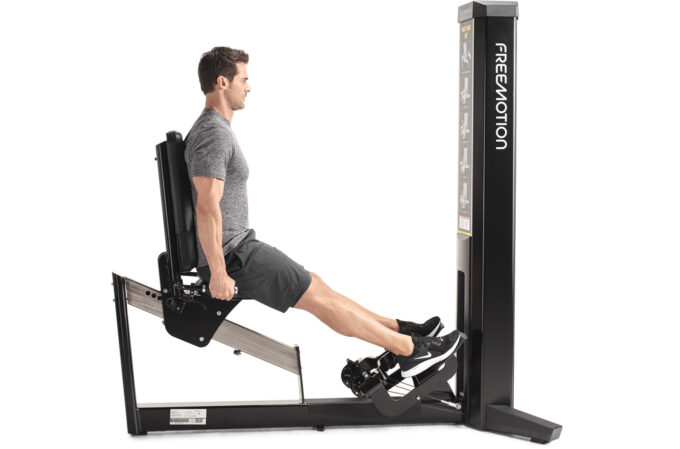

Seat slides along an incline rail to precisely fit users of a varying height.
