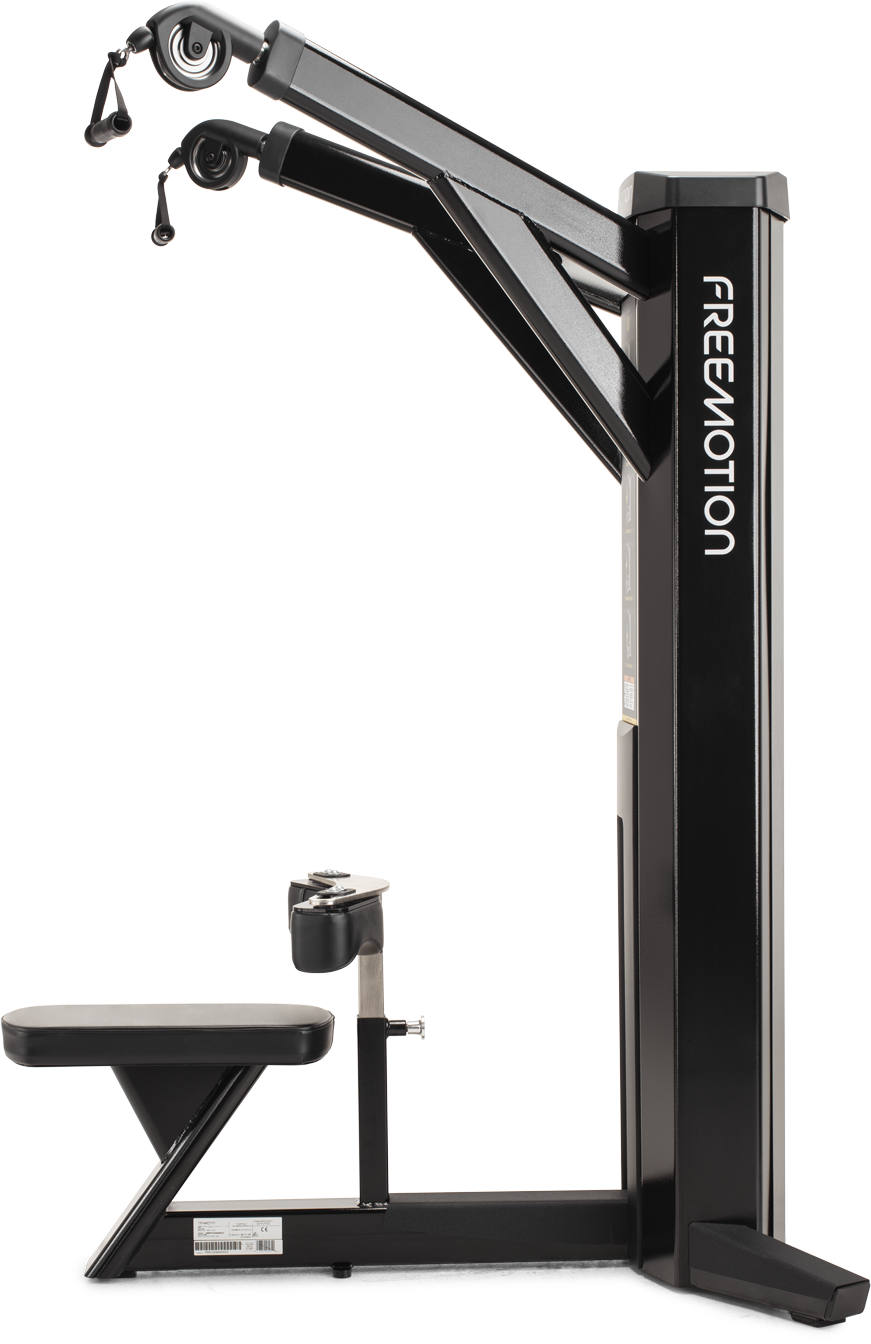

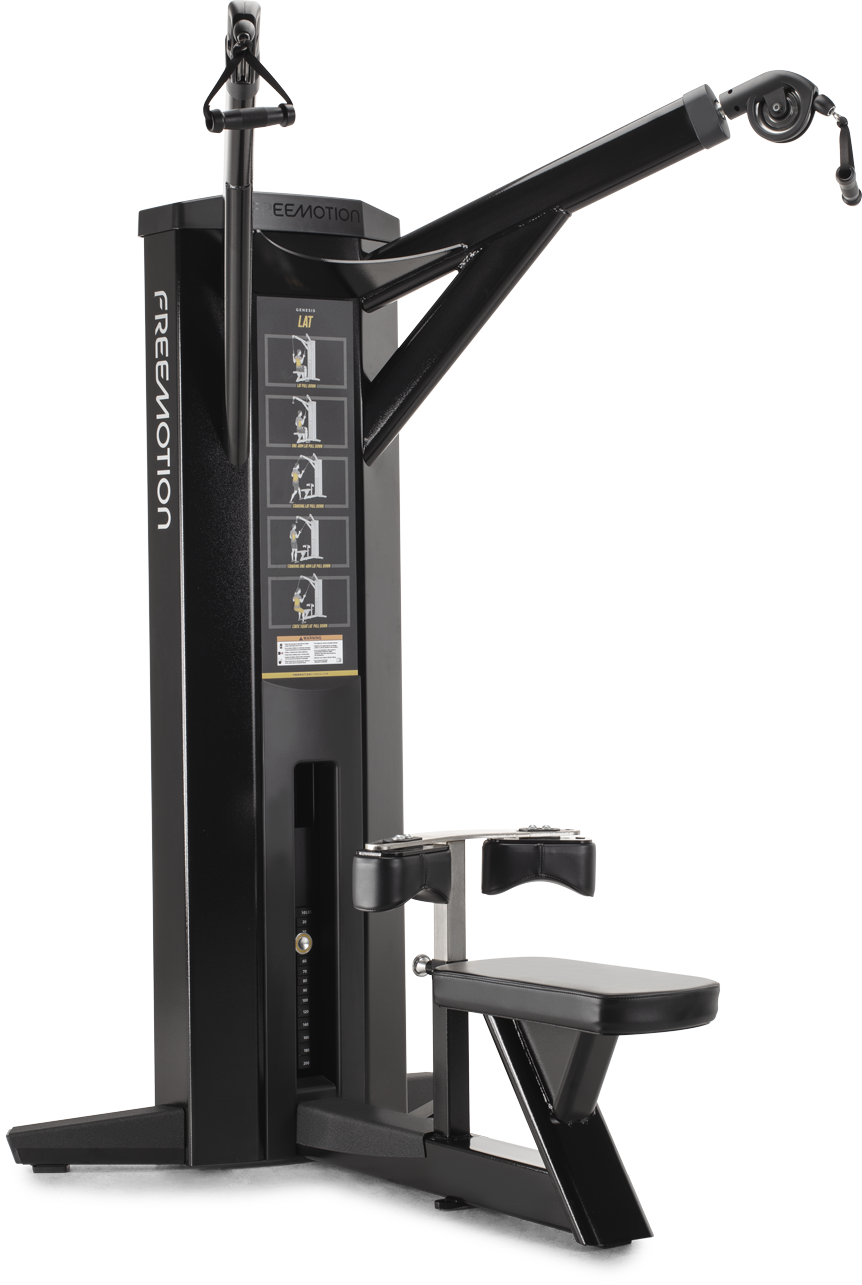

G620

LAT

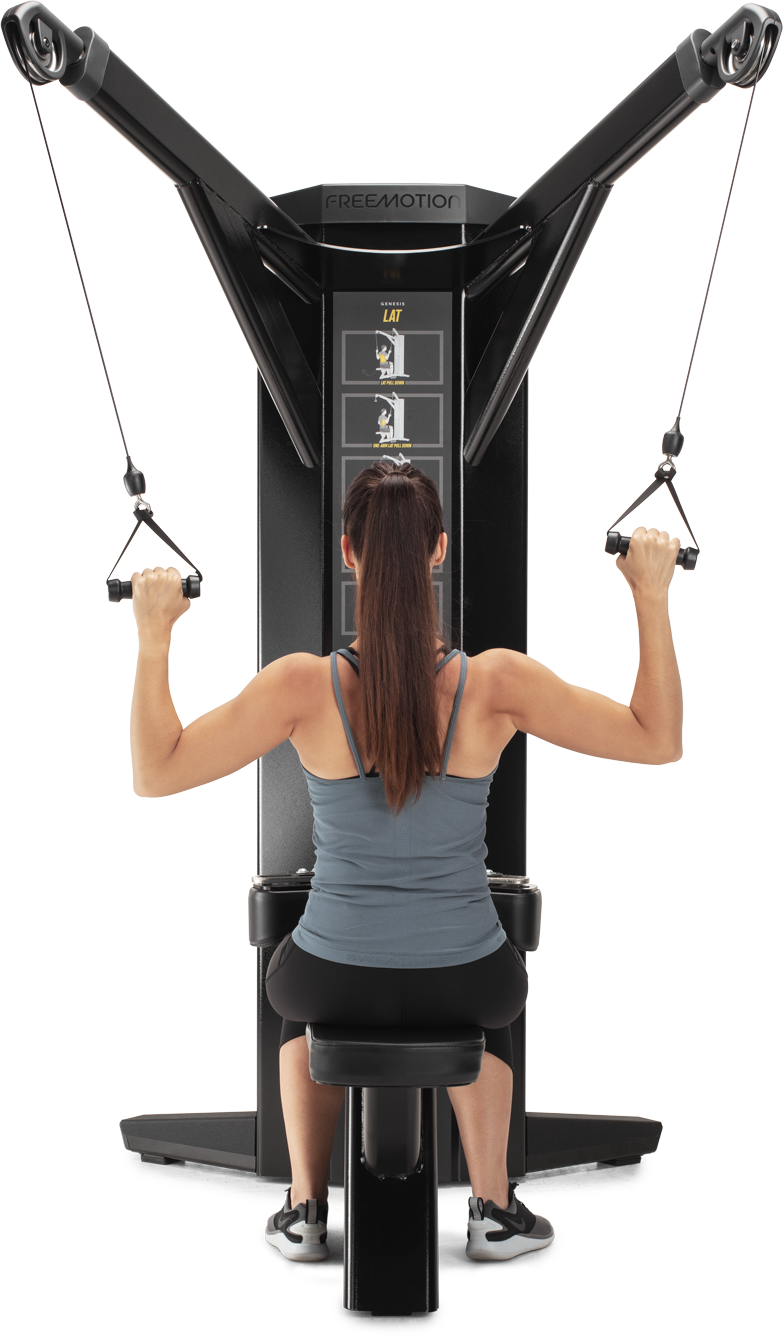

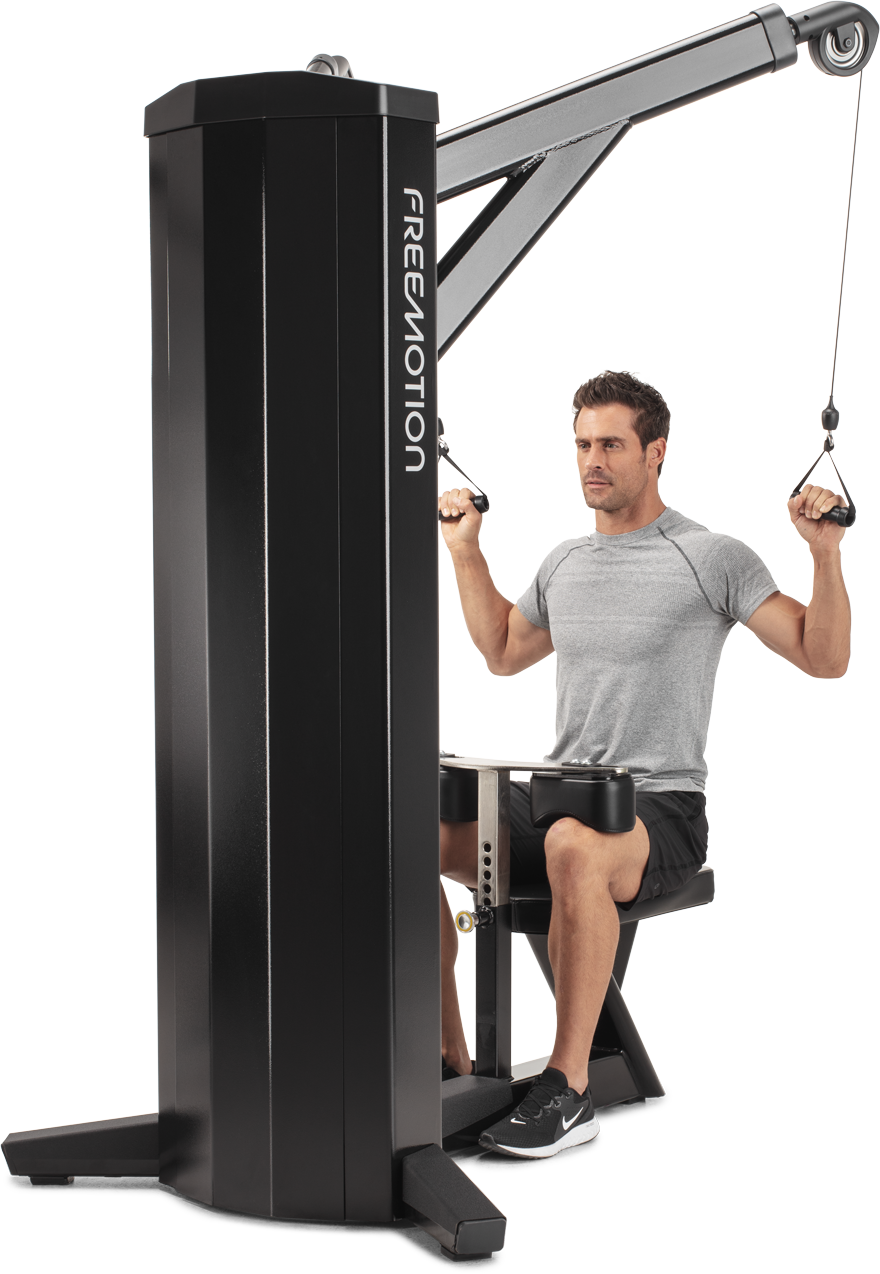

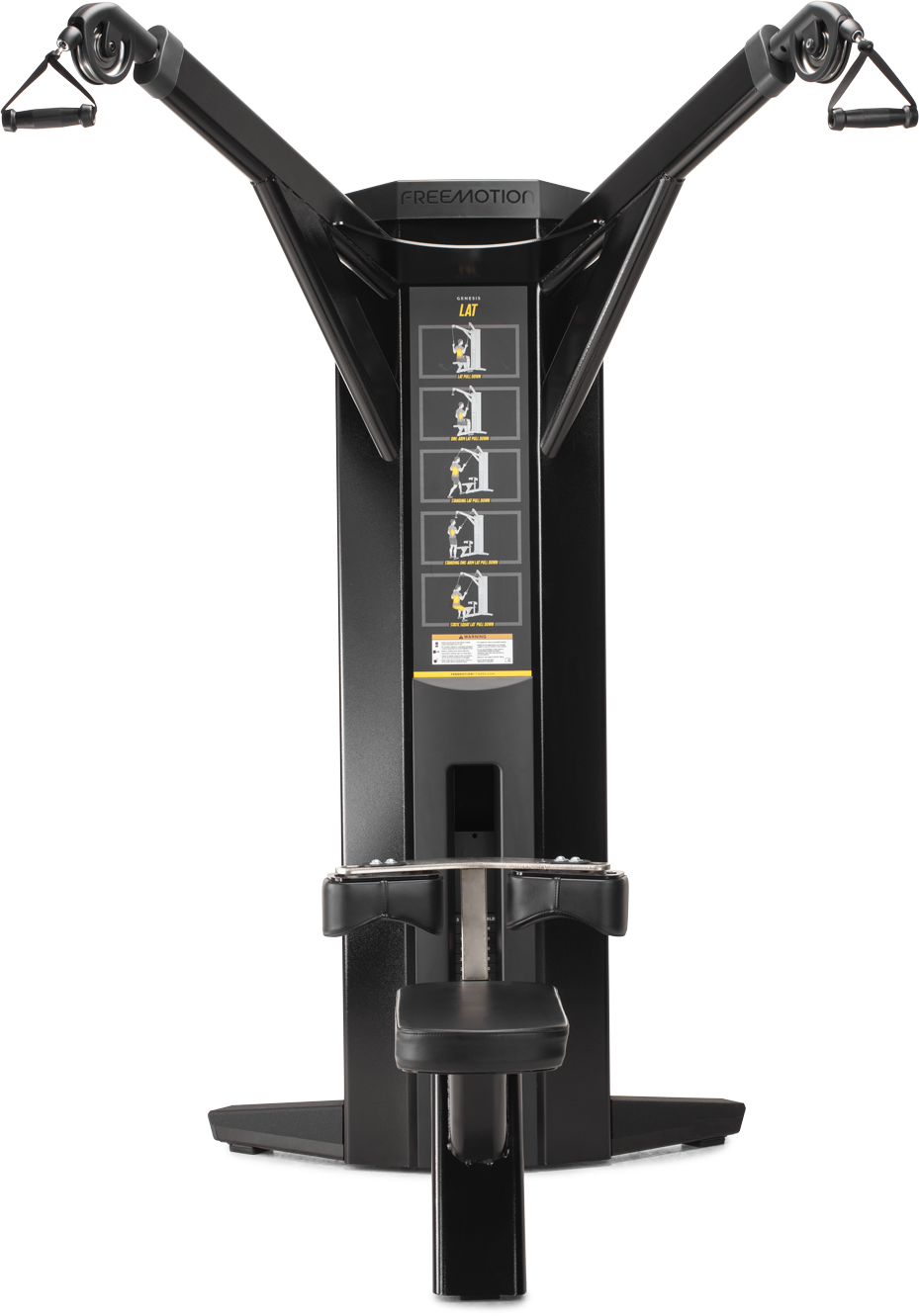

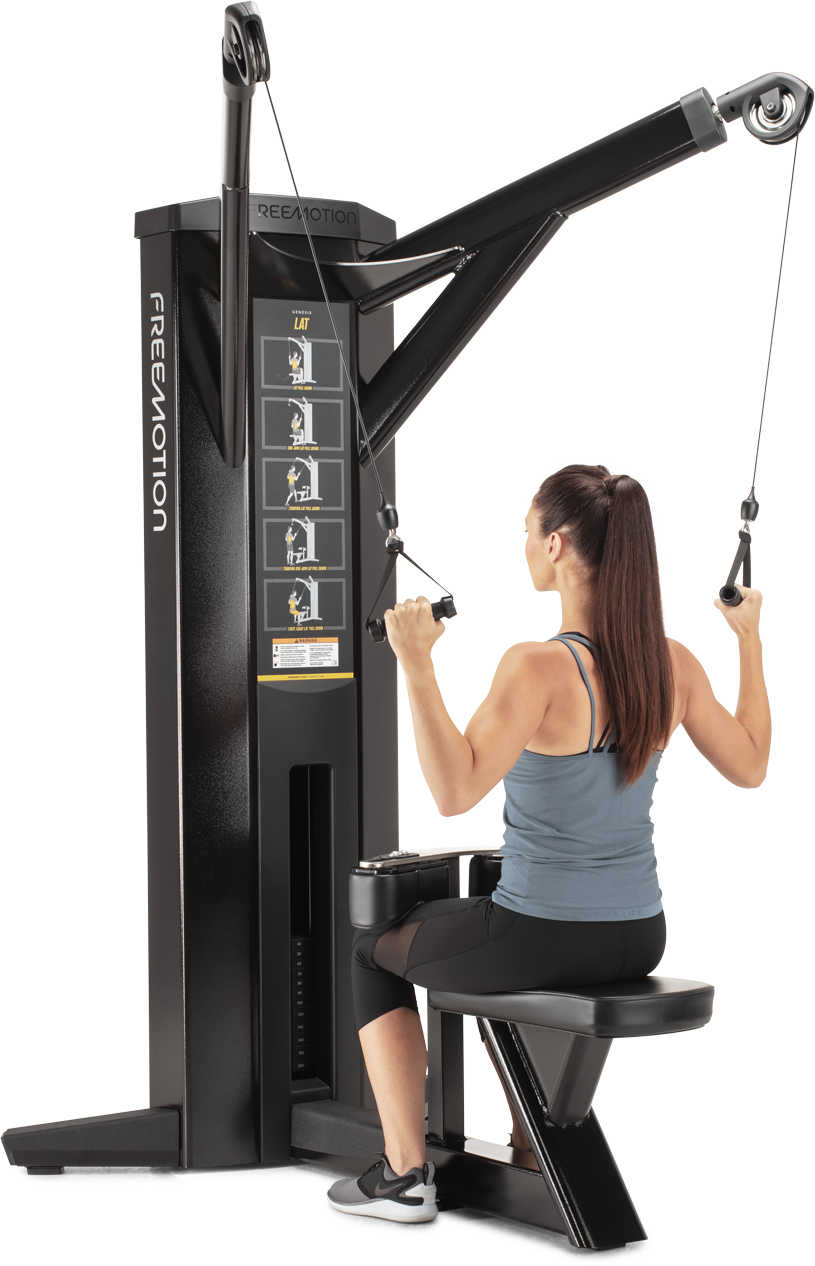

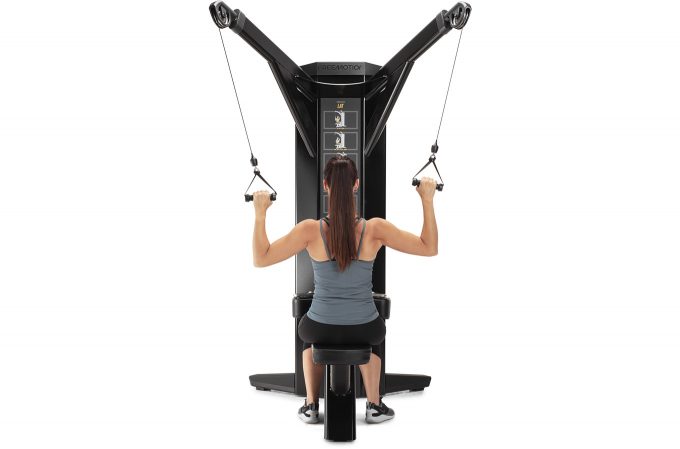

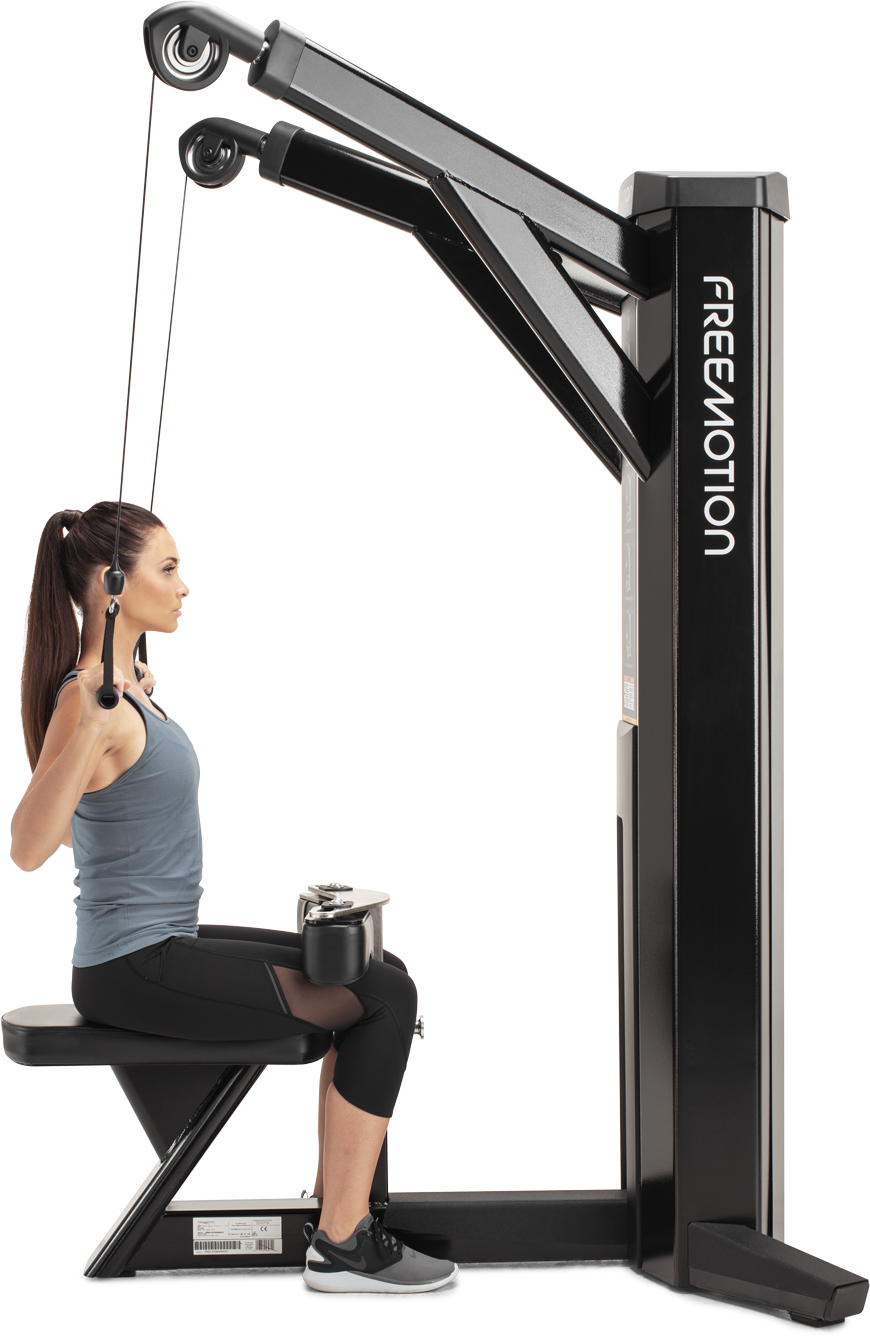

To optimize calorie burn, it’s important to build lean mass in the large muscle groups like the lats. The GENESIS™ Lat features an adjustable thigh pad that is contoured and swivels for a comfortable fit to isolate the lower body. The signature swivel pulleys with extensive cable travel give users the range of motion to perform seated, standing and dynamic pulldown movements.
Enquire Today

Details & SPecs

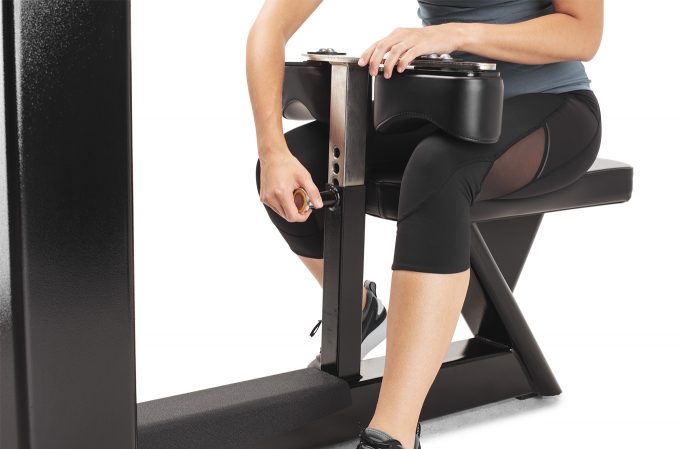

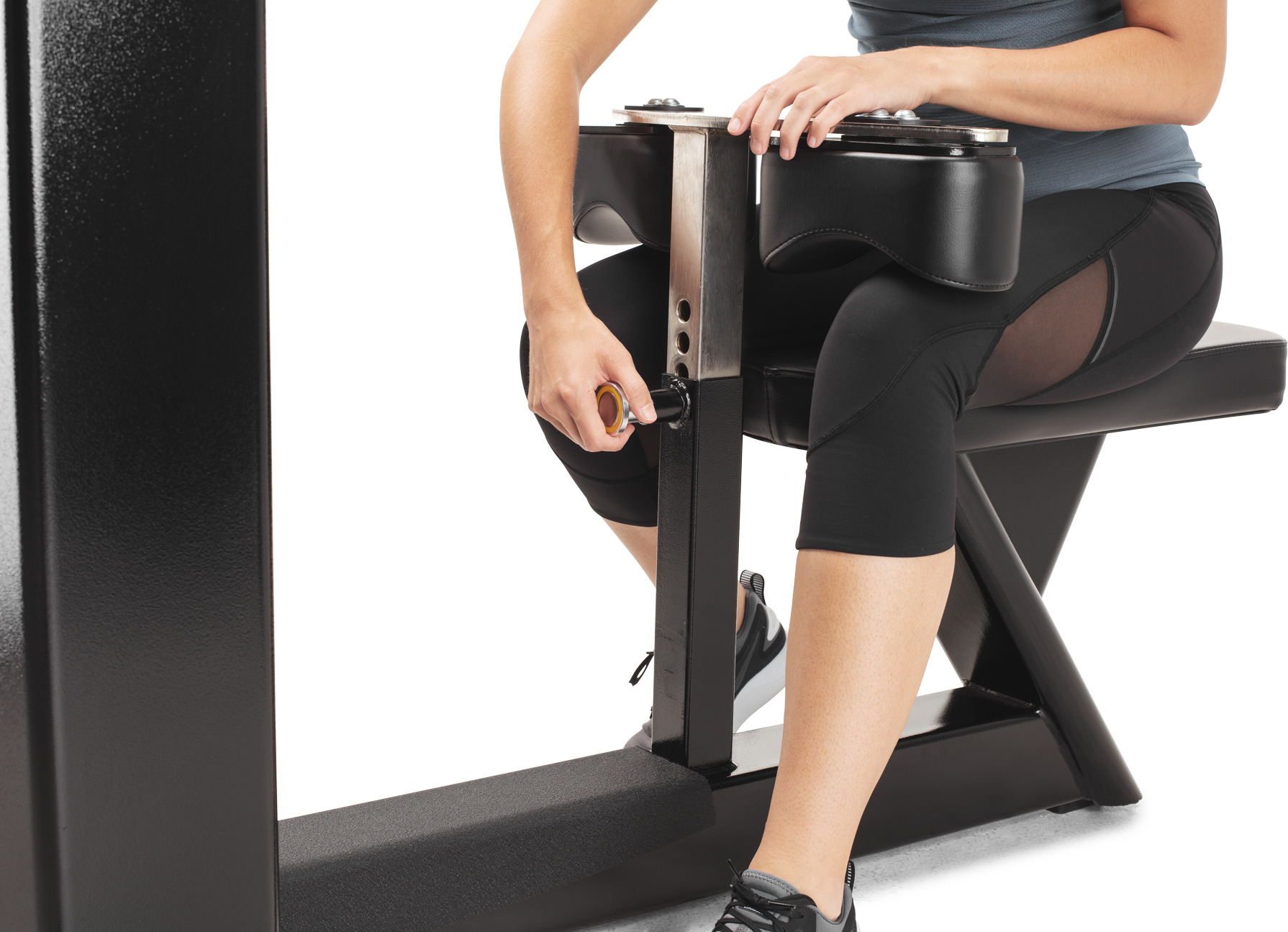

Padded Seat and Thigh Pads

Thigh pads are contoured and swivel to comfortably isolate the legs. Seat bottom is also padded for fit and comfort.

Extensive Cable Travel

Cable length allows for full flexion and extension. Single arm: 76 in / 193 cm, two arms: 38 in / 96.5 cm.

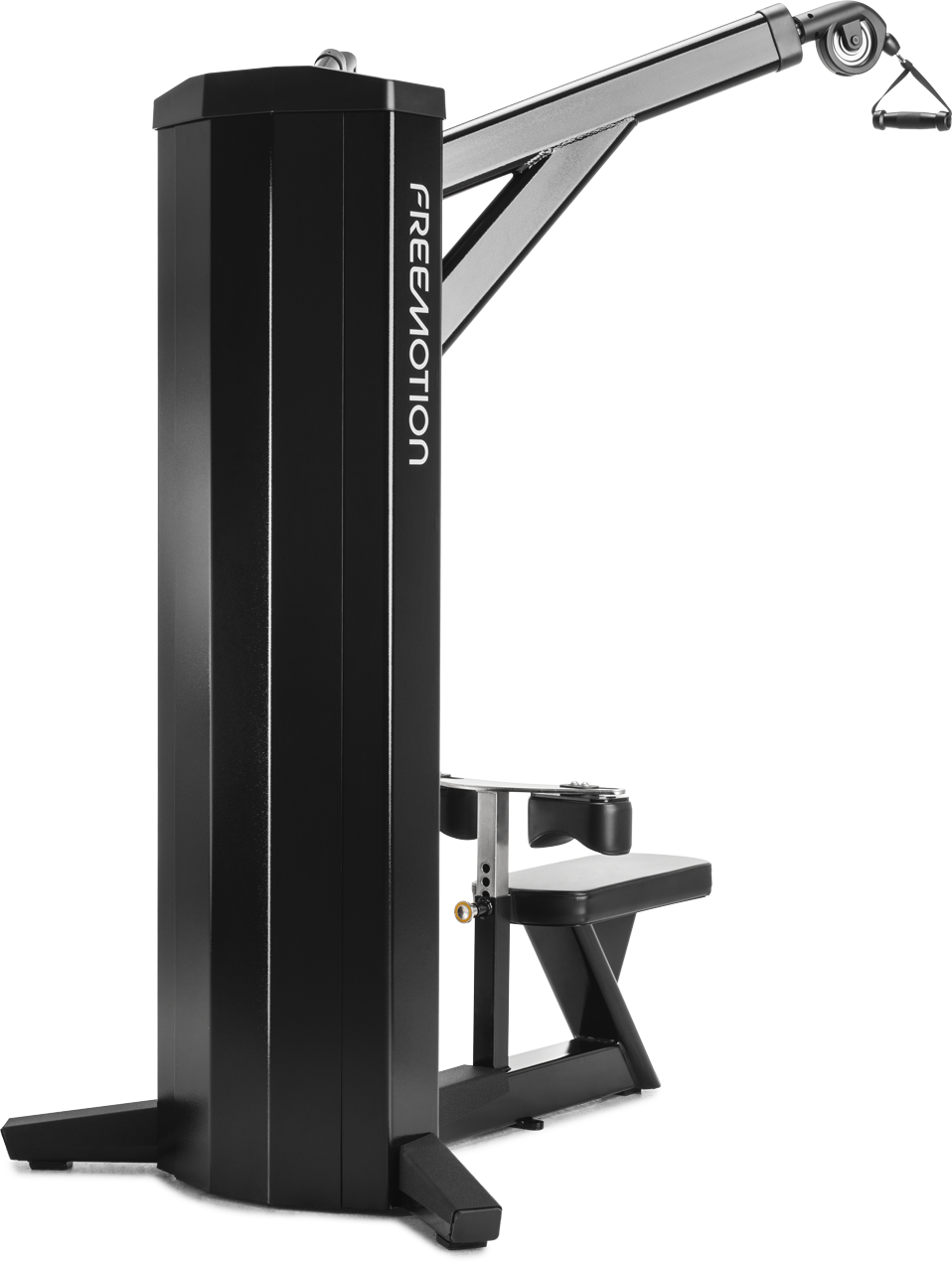

Enclosed Weight Stack

The weight stack is enclosed to limit access to moving parts for safety.

Built to Last

Constructed with 11- and 7-gauge steel and electrostatically powder-coated, this machine is built to stand up to the rigors of the weight room.

Kick Plates

Large, 16-gauge, stainless steel kick plates protect the machine from wear and tear.

G620 Lat Footprint
Product Features

  • Instructional Placards
    Yes
  • Adjustments
    Adjustable thigh pads
  • Resistance
    1 arm: 100 lb / 45.3 kg
    2 arms: 200 lb / 90.7 kg
  • Seat
    1.5 in thick foam / Molded vinyl
  • Pulleys
    Swivel pulleys
  • Cable Travel
    85 in / 215.9 cm
  • Rubber Feet
    Molded floor protectors
  • Maximum User Weight
    350 lb / 159 kg
  • Americans with Disabilities Act (ADA)
    N/A
Product Specifications

  • Weight Stack
    200 lb / 90 kg
  • Drop Down Weight
    N/A
  • Weight Stack Configuration
    5 – 50 x 5 lb / 2.2 – 22.6 x 2.2 kg
    60 – 200 x 10 lb / 27.2 – 90.7 x 4.5 kg
  • Standard Frame Color
    Black River, Flat Black, Platinum Sparkle, White River
  • Optional Frame Color
    Custom colors available upon request
  • Plastic Color
    Ebony
  • Standard Upholstery Color
    Black, Graphite, Blue Ridge, Burgundy, American Beauty Red
  • Optional Upholstery Color
    Custom colors available upon request
Product Dimensions & Weight

  • Dimensions L x W x H
    56 x 52 x 87 in / 142.2 x 132 x 220.9 cm
  • Footprint
    56 x 52 in / 142.2 x 132 cm
  • Weight
    648 lb / 293.2 kg
  • Shipping Dimensions
    65 x 56 x 85 in / 165.1 x 142.2 x 215.9 cm
  • Shipping Weight
    485 lb / 219.9 kg
Certifications

  • EN957, CE
Warranty (US & Canada)

  • Frame
    10 Years
  • Parts
    3 Years
  • Cables & Labor
    1 Year
  • Cosmetic & Wear Items
    6 Months
  • Upholstery & Padding
    120 Days
Warranty (International)

  • Frame
    10 Years
  • Parts
    3 Years
  • Cables & Labor
    1 Year
  • Cosmetic & Wear Items
    6 Months
  • Upholstery & Padding
    120 Days
Enquire Today

Isolation to Integration

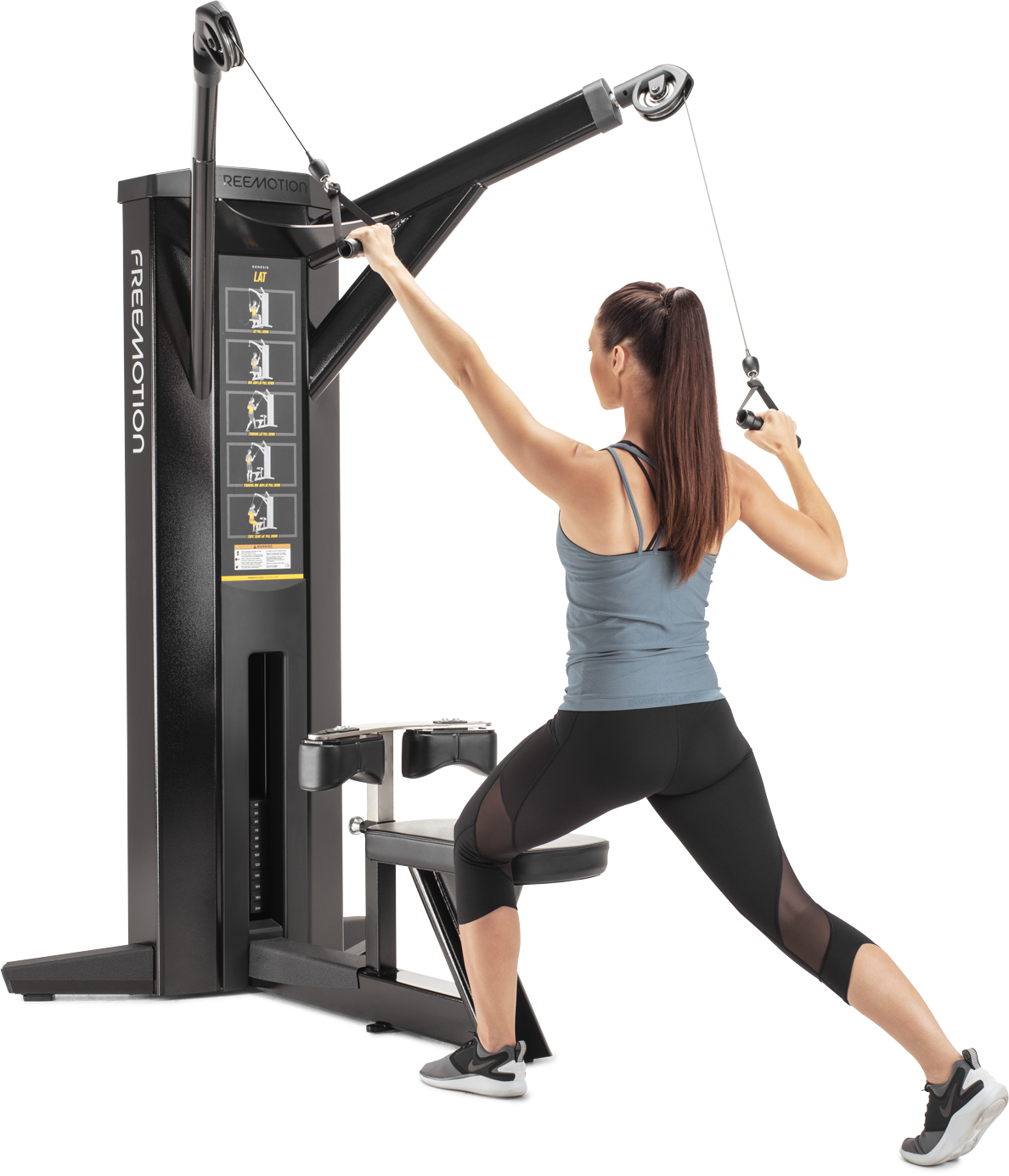

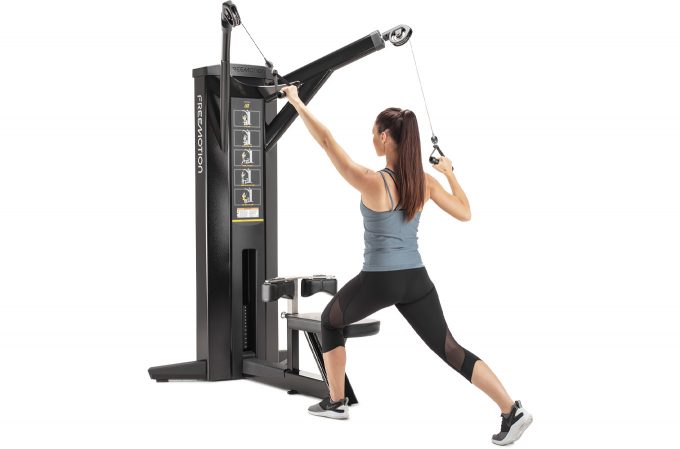

The seat features adjustable thigh pads to isolate the lower body. Users can simply stand to work out unsupported and integrate more muscle groups.

Freedom to Move

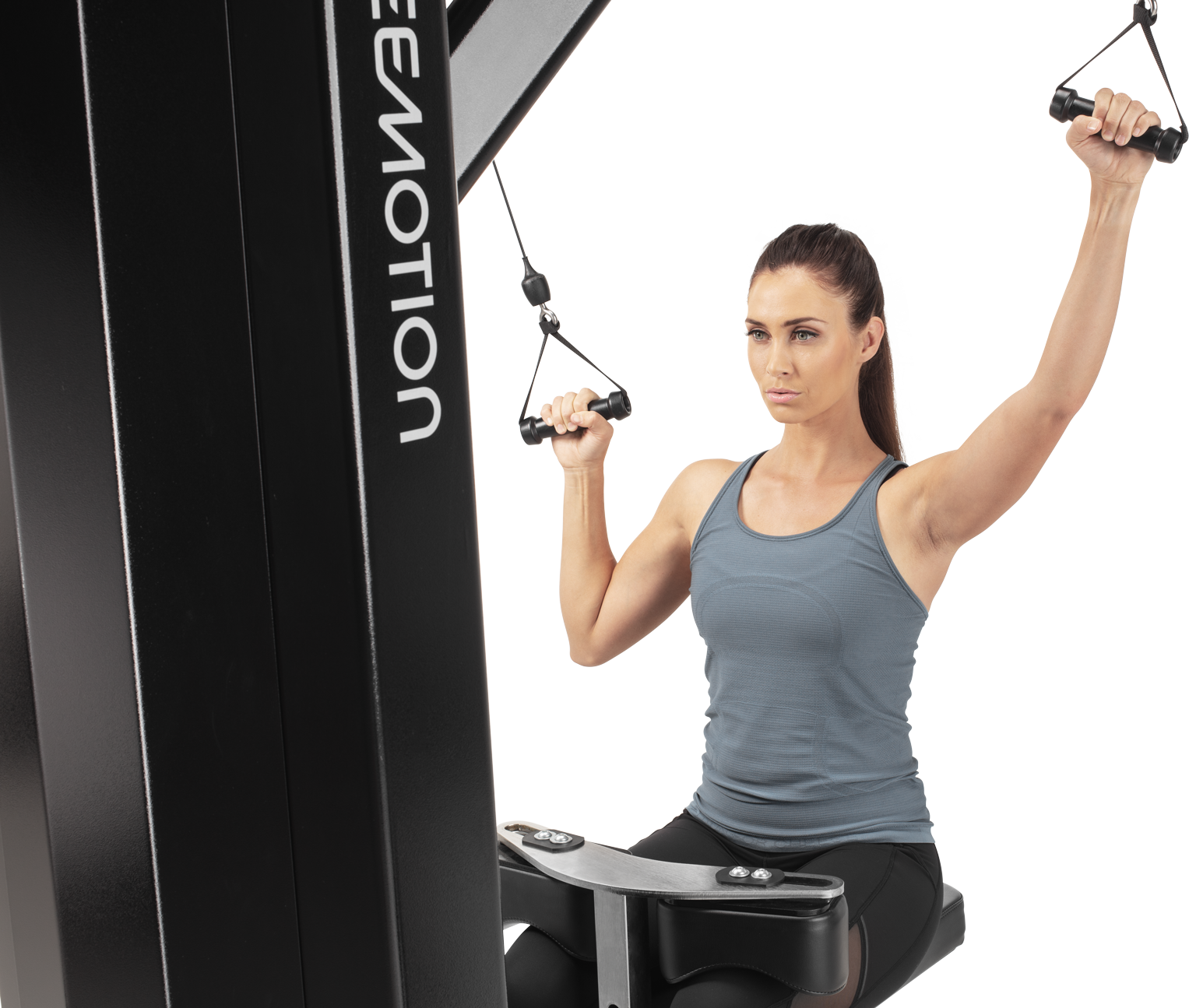

The swivel pulley design combined with the extensive cable travel allows users a wide, fluid range of motion.

Movement Variety

Handles move independently for single and alternating arm exercises.
