G624

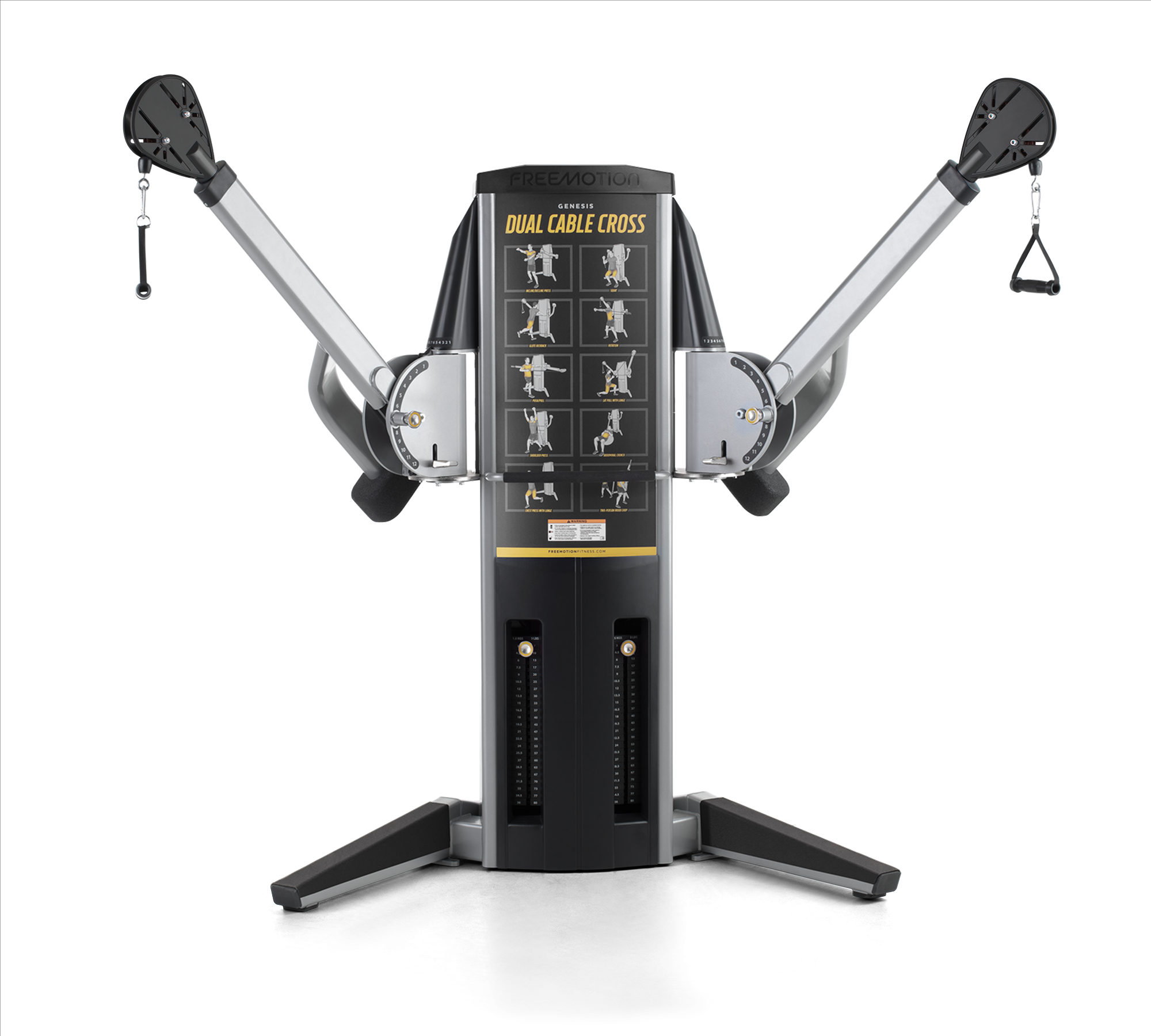

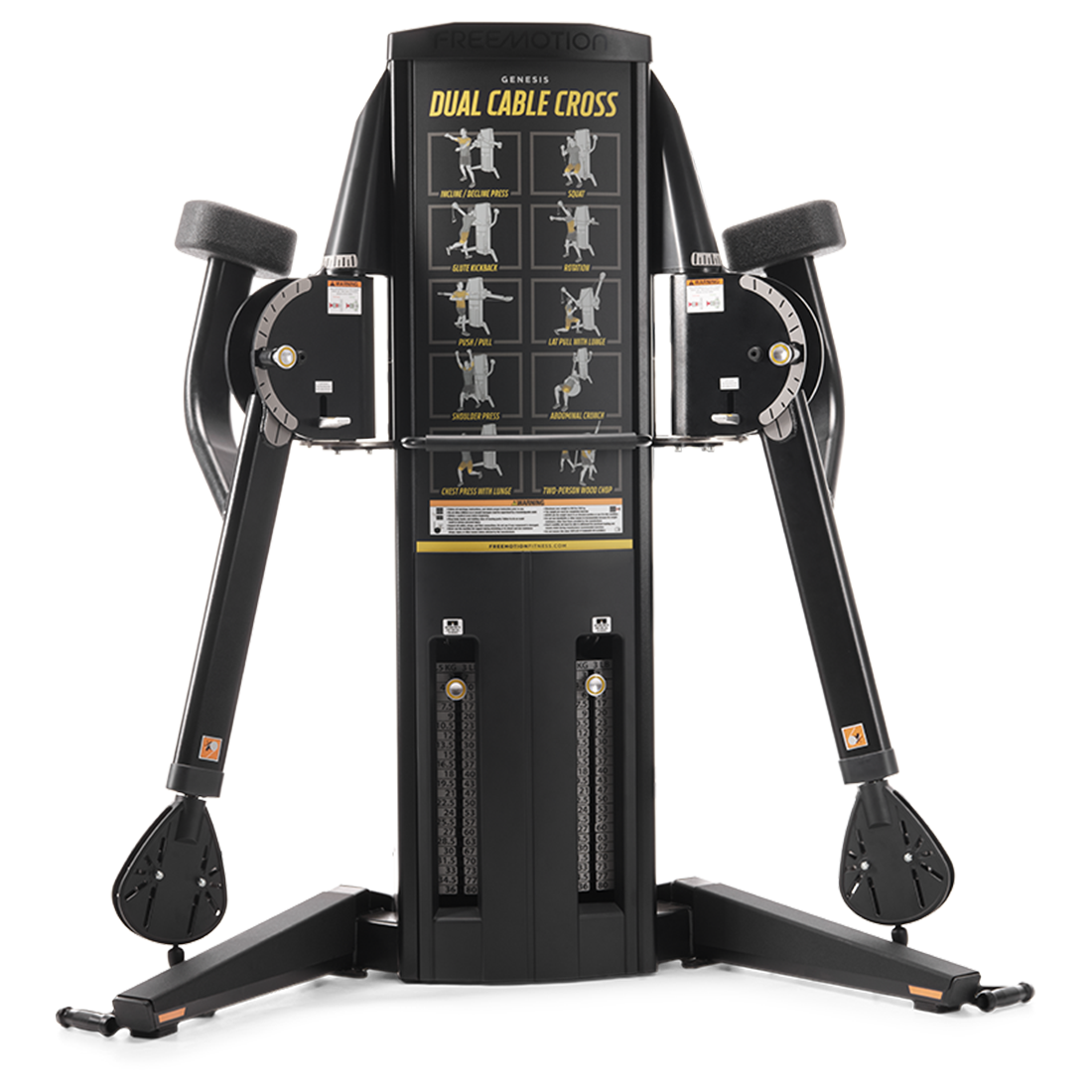

DUAL CABLE CROSS

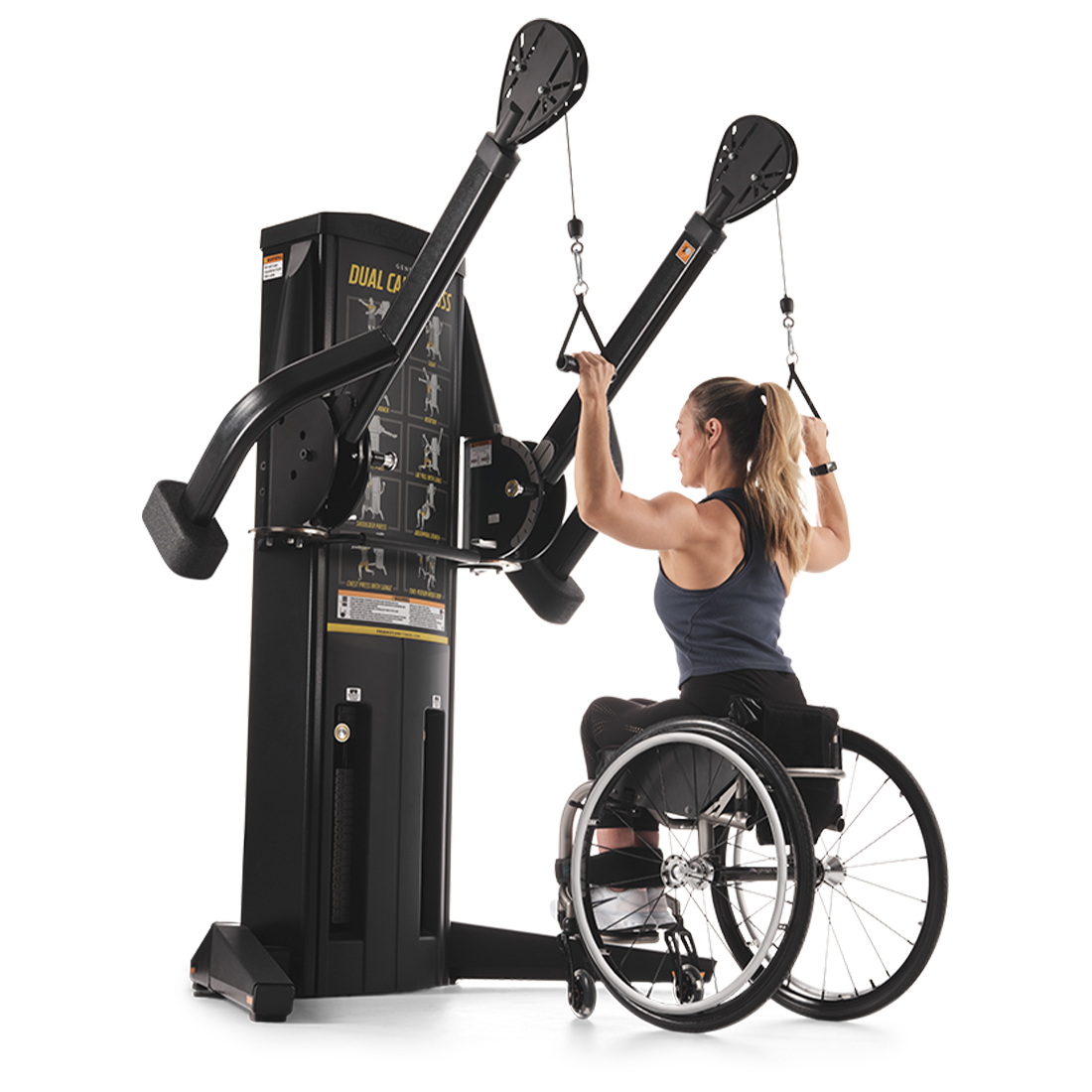

Offering a large variety of functional exercise options with the simple and unique ability to precisely position angles, the GENESIS Dual Cable Cross can simulate a multitude of movements from life and sport. Each arm rotates vertically and horizontally, independently of one another.
Enquire Today

Details & SPecs

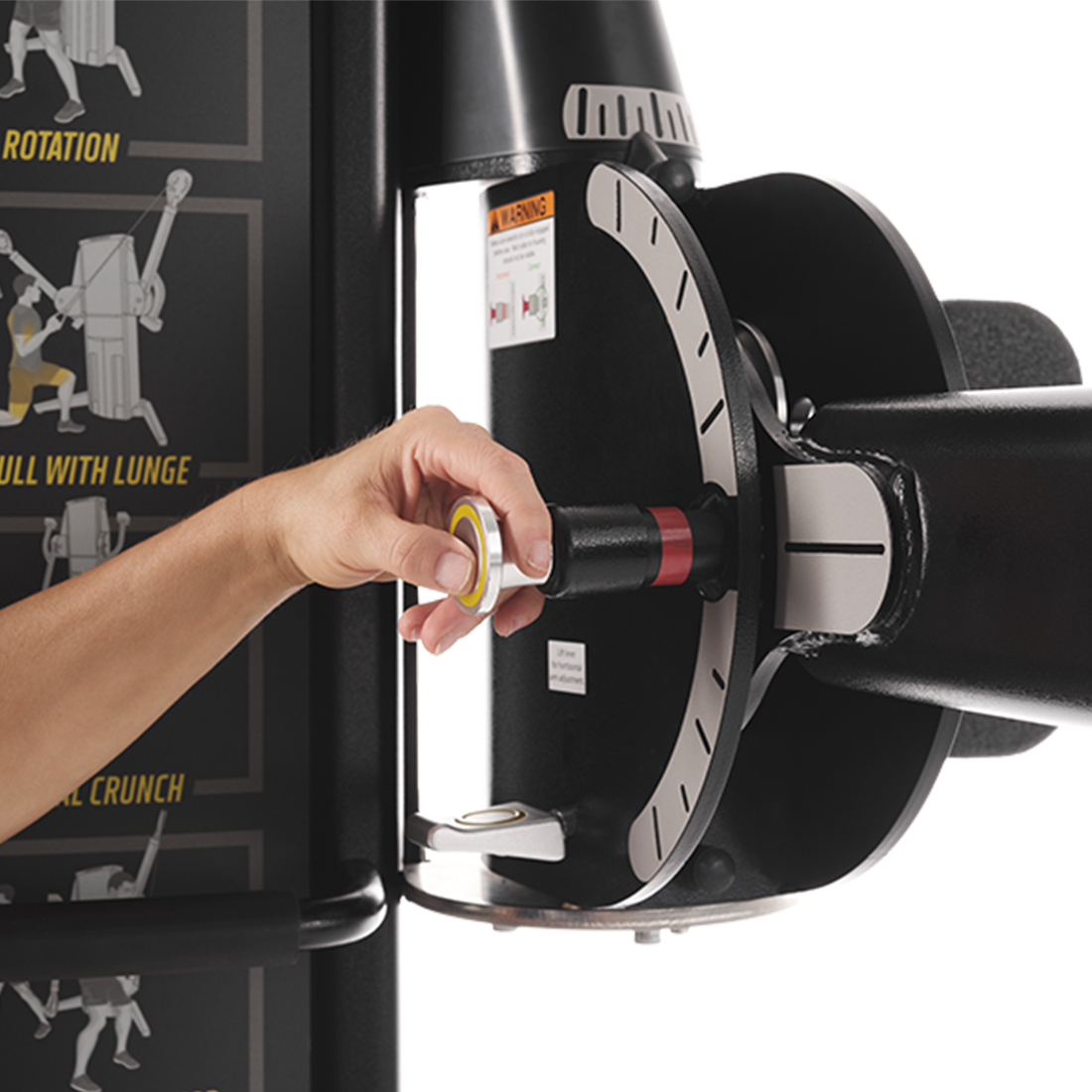

Tactile Adjustment Markings

While adjusting the machine, users easily find the exact position they want through the use of touch.

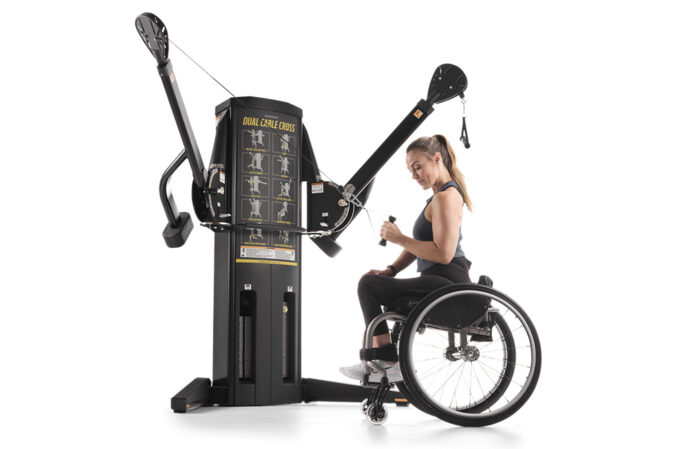

Designed For Users of All Levels

Every detail of this machine has been thoughtfully designed to deliver a personalized strength workout.

Extensive Cable Travel

Cable length allows for full flexion and extension. 97 in / 246.4 cm per side.

Enclosed Weight Stacks

The weight stacks are enclosed to limit access to moving parts for safety.

Built to Last

Constructed with 11- and seven-gauge steel and electrostatically powder-coated, this machine is built to stand up to the rigors of the weight room.

Kick Plates

Large, 16-gauge, powder-coated steel kick plates protect the machine from wear and tear.

G624 IU Specifications

Product Features

  • Instructional Placards
    Yes
  • Adjustments
    Vertical and horizontal arm rotation adjustments
  • Resistance
    80 lb / 36.3 kg each stack
  • Pulleys
    Dual swivel pulleys
  • Cable Travel
    97 in / 246.4 cm per side
  • Rubber Feet
    Molded floor protectors

Product Specifications

  • Dual Weight Stacks
    Dual Weight Stacks
    Stack 1: 240 lb / 108.9 kg
    Stack 2: 240 lb / 108.9 kg
  • Weight Stack Configuration
    3.3 – 80 lb / 1.5 – 36.3 kg each

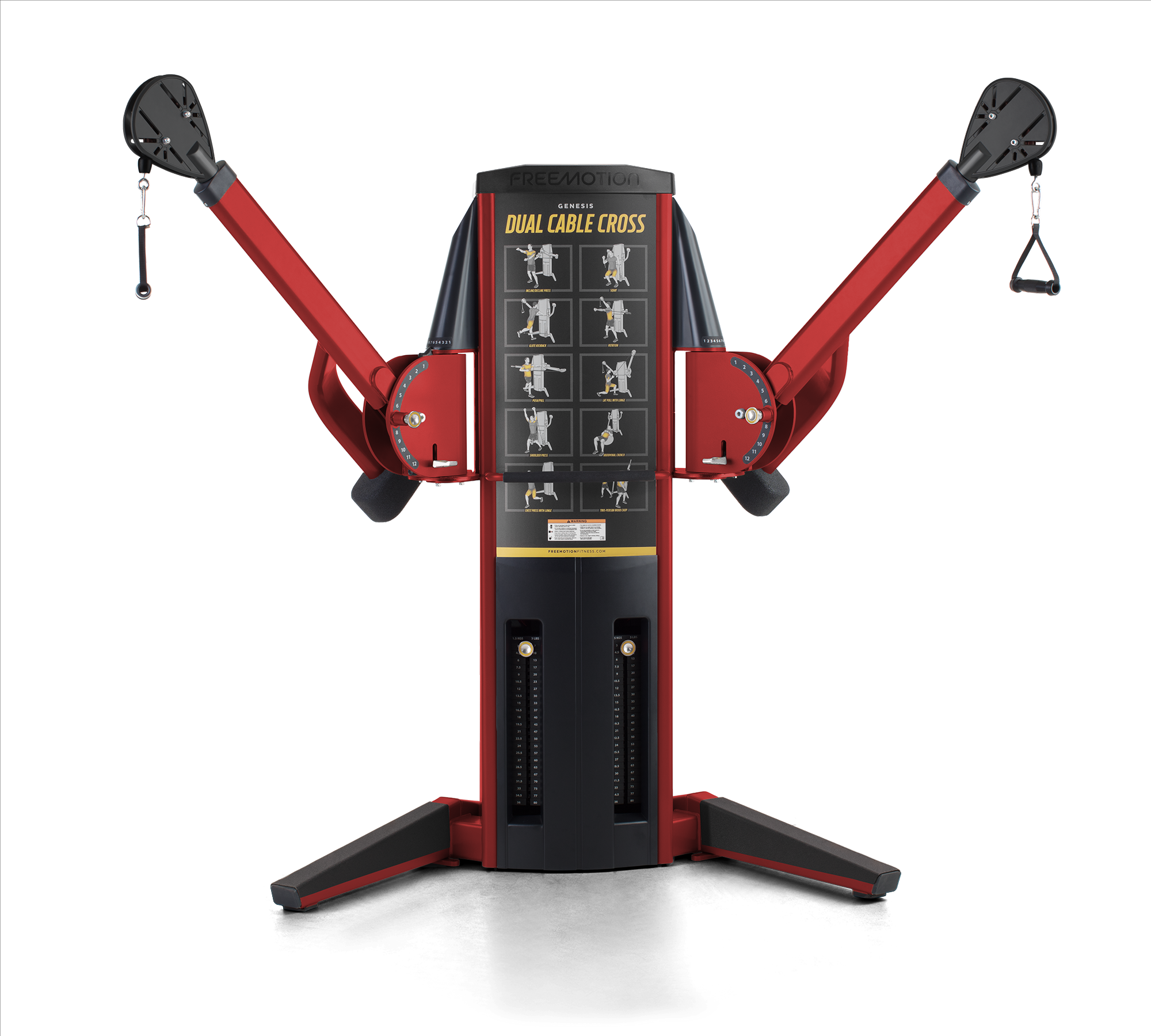

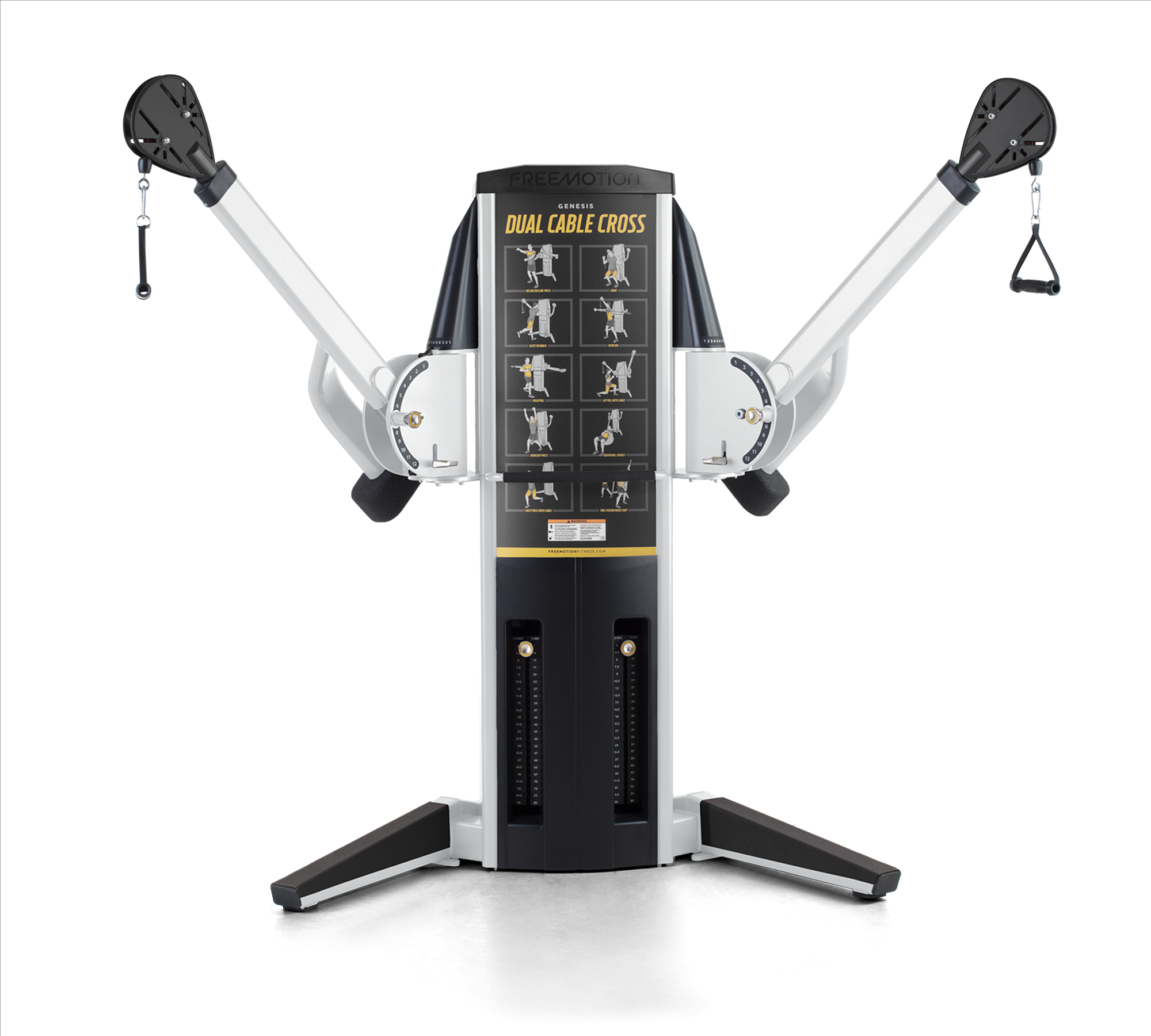

  • Standard Frame Color
    Black River, Flat Black, Platinum Sparkle, White River
  • Optional Frame Color
    Custom colors available upon request
  • Plastic Color
    Ebony

Product Dimensions & Weight

  • Dimensions L x W x H
    70 x 122 x 92 in / 177.8 x 309.9 x 233.7 cm
  • Footprint
    70 x 122 in / 177.8 x 309.9 cm
  • Weight
    1,246 lb / 565.2 kg
  • Shipping Dimensions
    62 x 42 x 76 in / 157.5 x 106.7 x 193 cm
  • Shipping Weight
    1,262 lb / 572.4 kg

Certifications

  • EN957, CE

Warranty (US & Canada)

  • Frame
    10 Years
  • Parts
    3 Years
  • Cables & Labor
    1 Year
  • Cosmetic & Wear Items
    6 Months
  • Upholstery & Padding
    120 Days

Warranty (International)

  • Frame
    10 Years
  • Parts
    3 Years
  • Cables & Labor
    1 Year
  • Cosmetic & Wear Items
    6 Months
  • Upholstery & Padding
    120 Days
Enquire Today

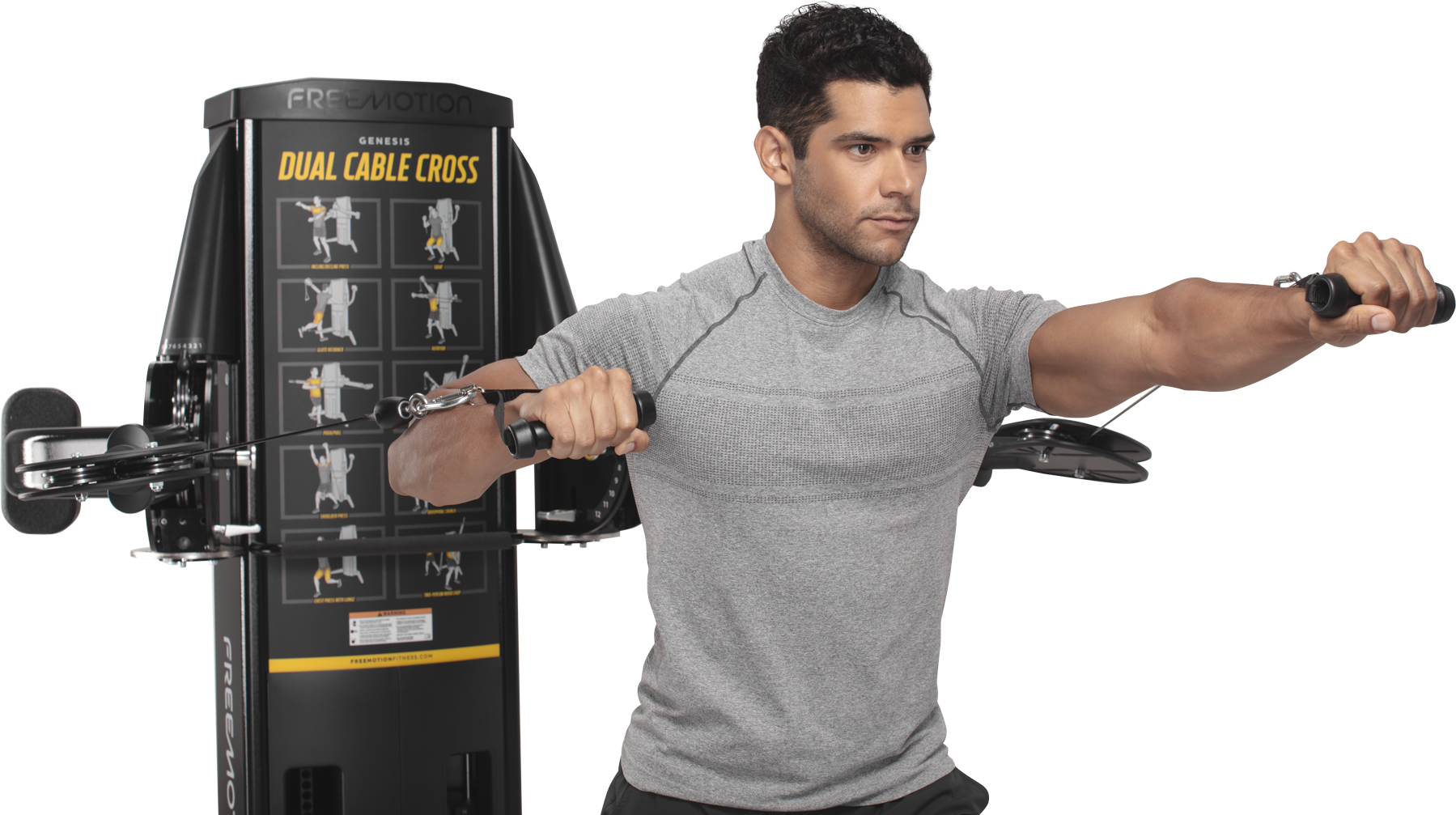

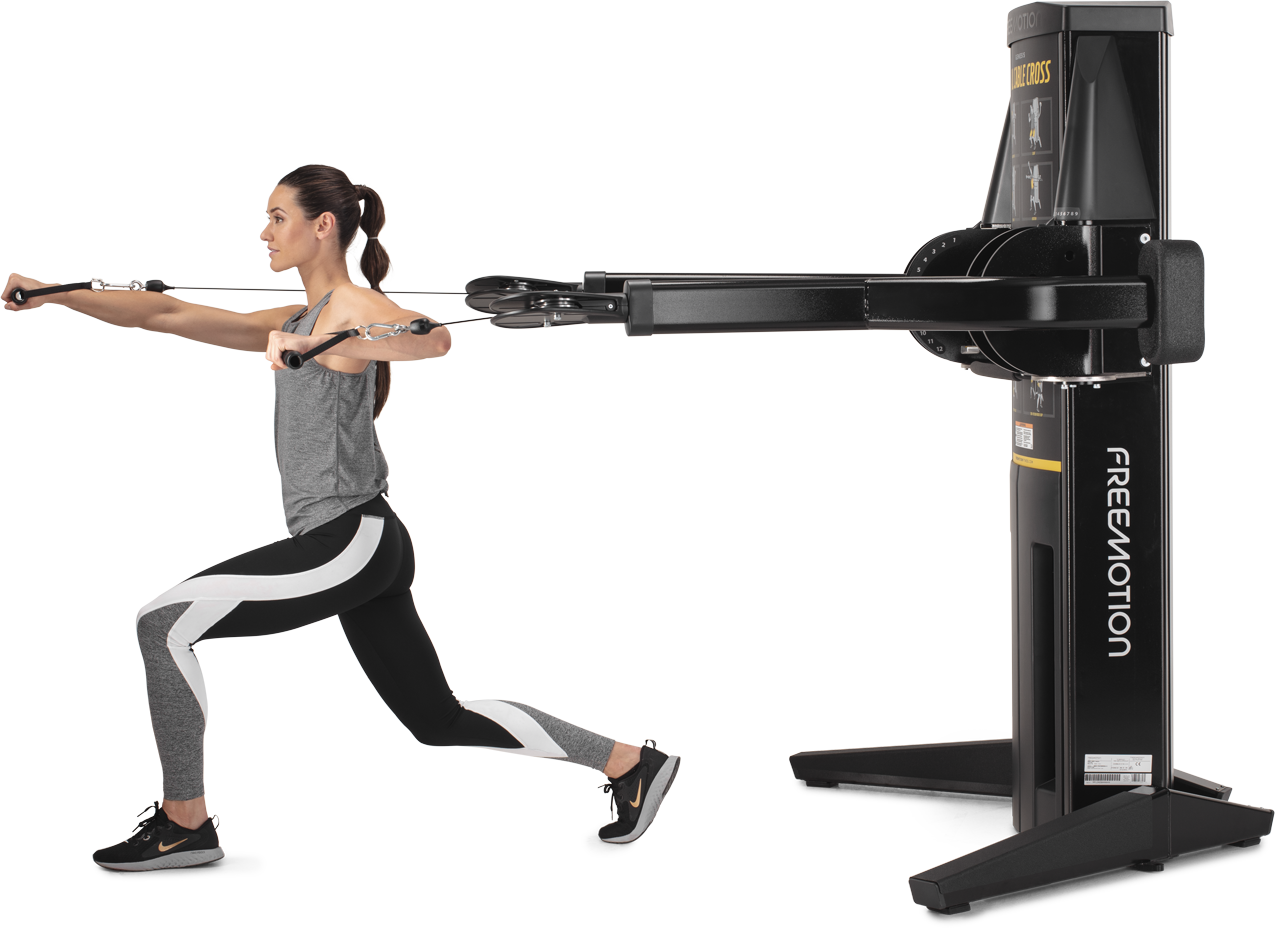

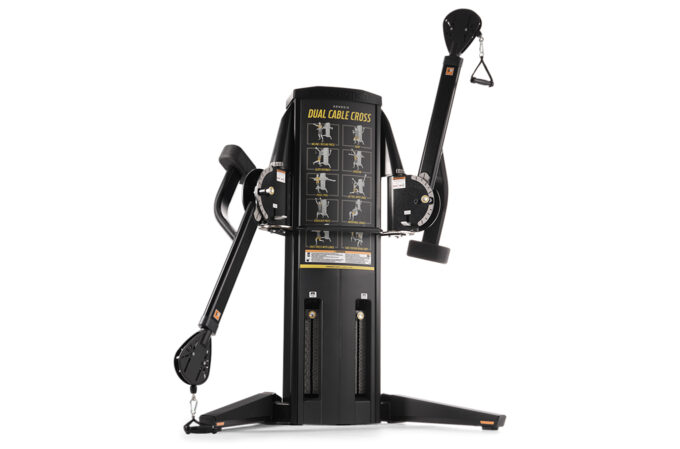

Freedom to Move

The swivel pulley design combined with the extensive cable travel allows users a wide, fluid range of motion.

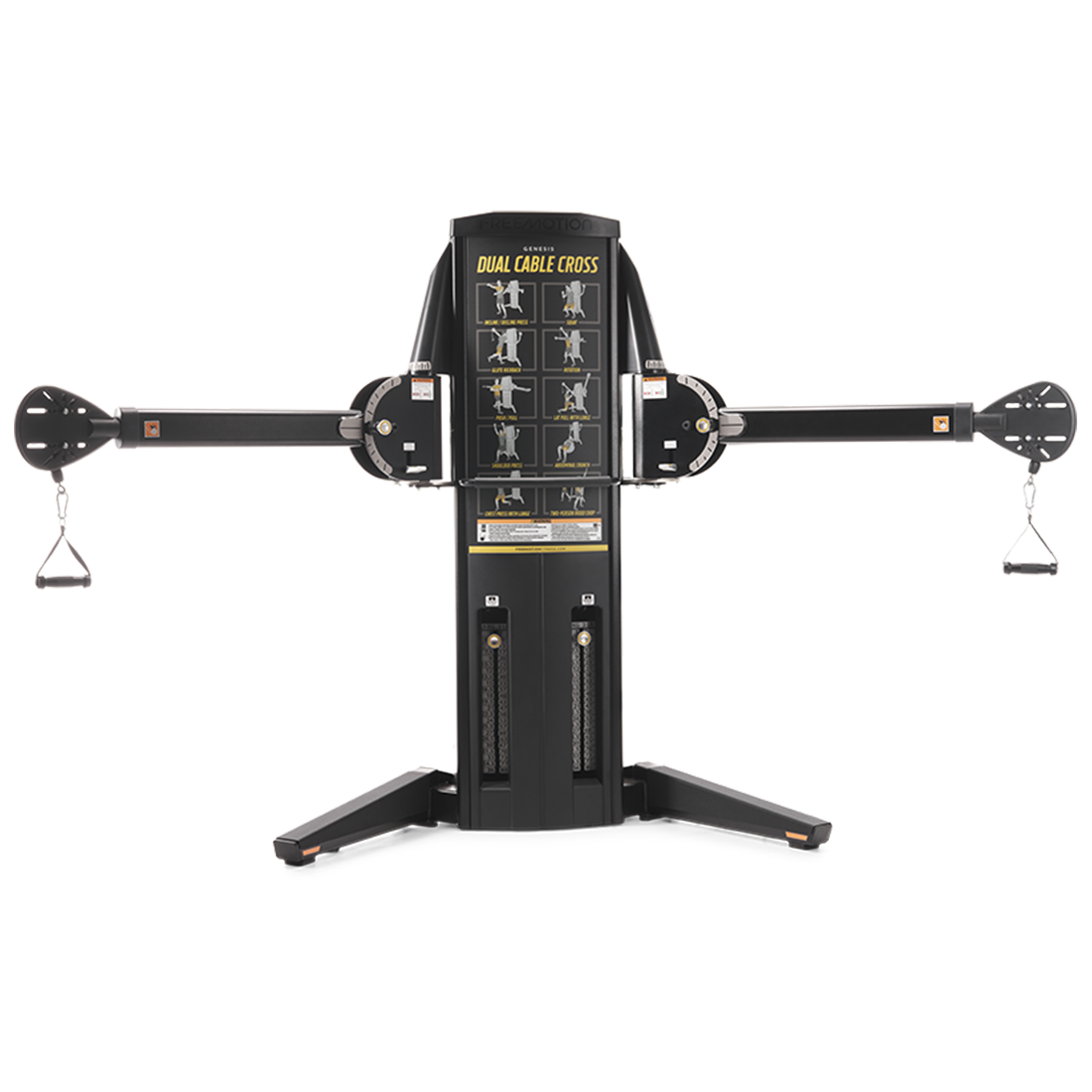

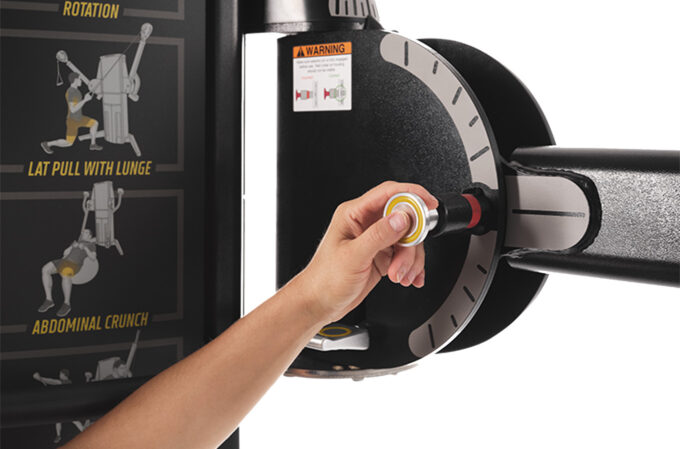

Fine-tune Range of Motion

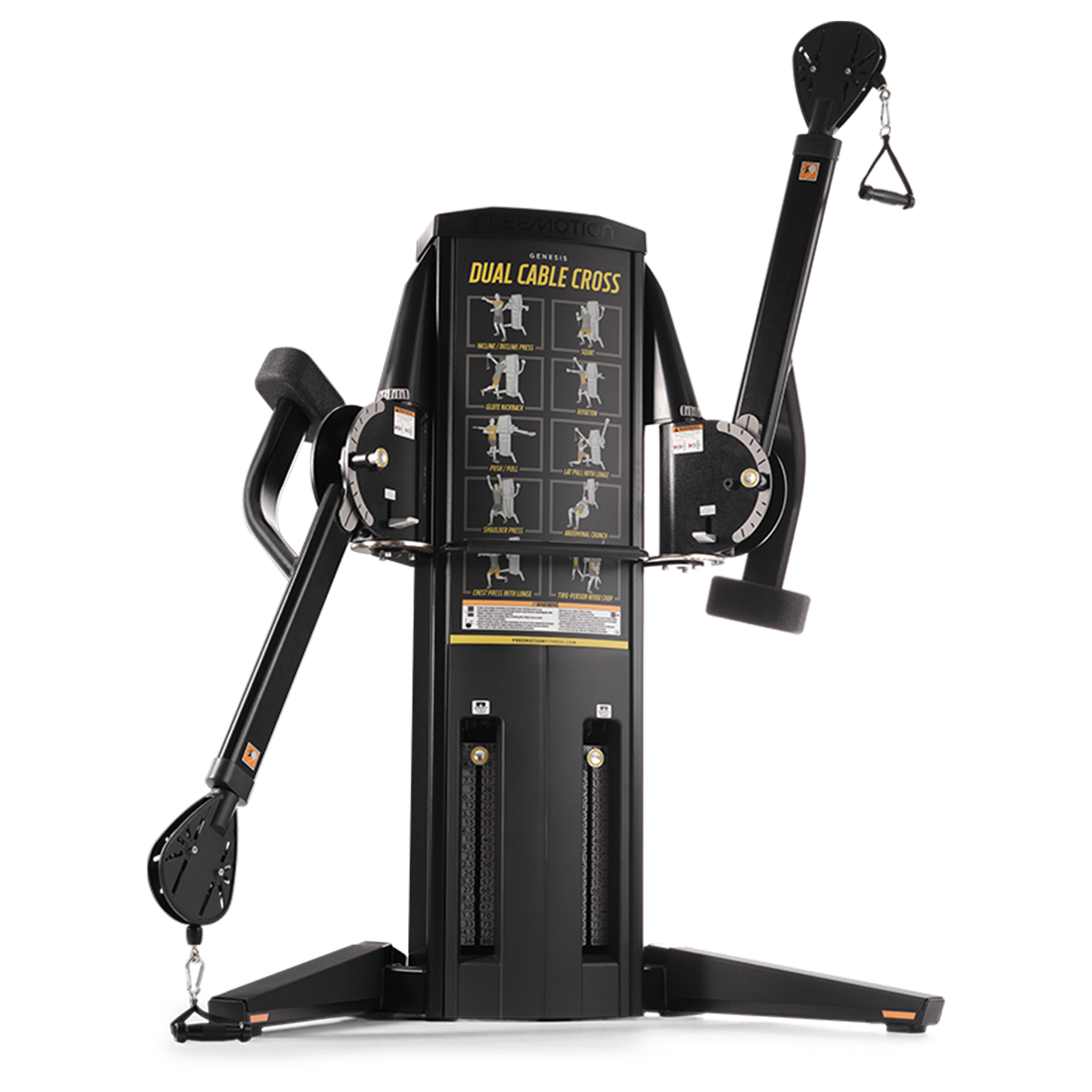

Arms adjust both vertically and horizontally. This ability to precisely position the handles allows users of all fitness levels to mimic nearly any movement in life or sport.

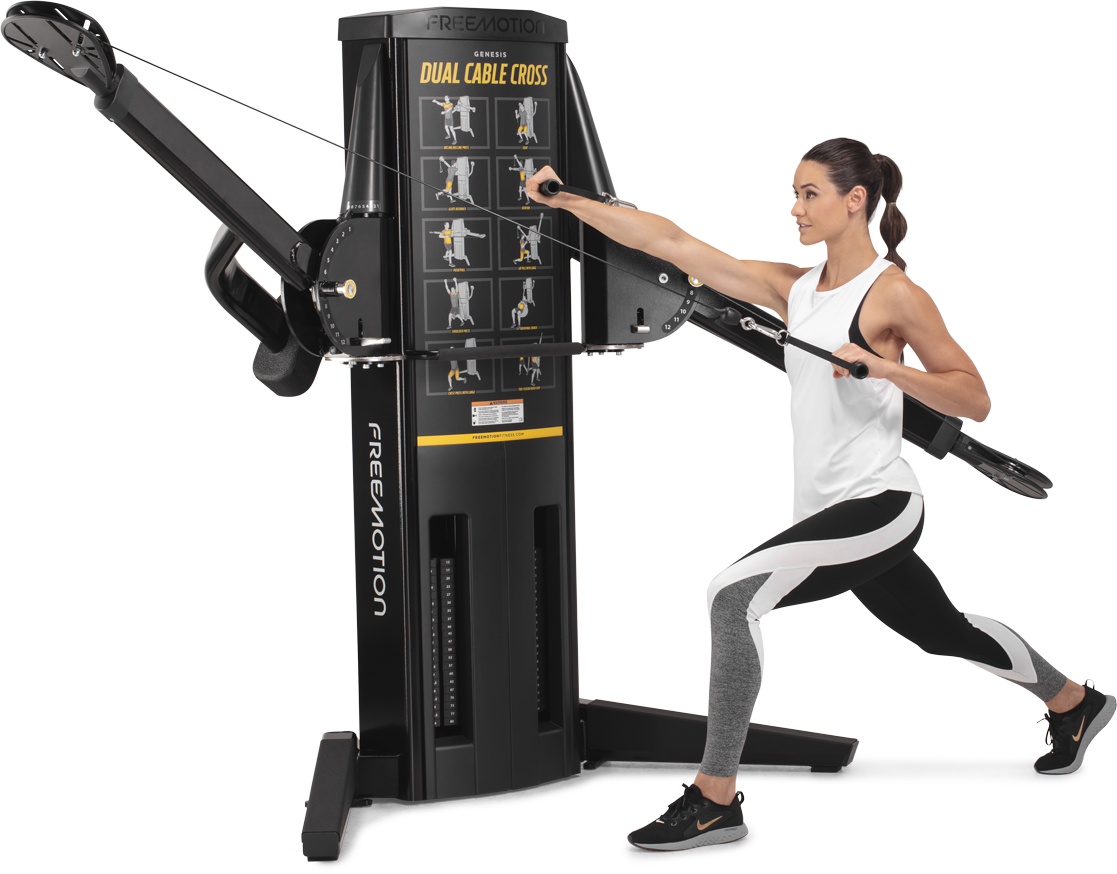

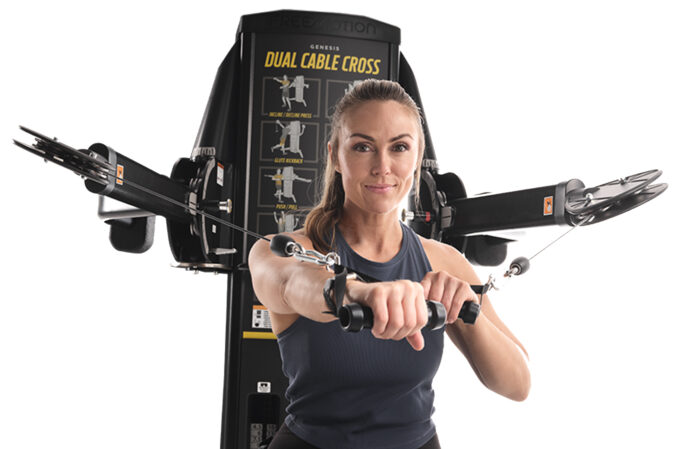

Movement Variety

Handles move independently of each other for single and alternating exercises.

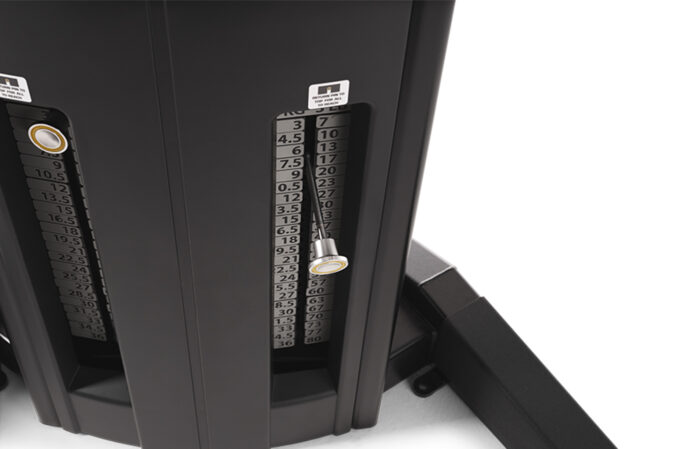

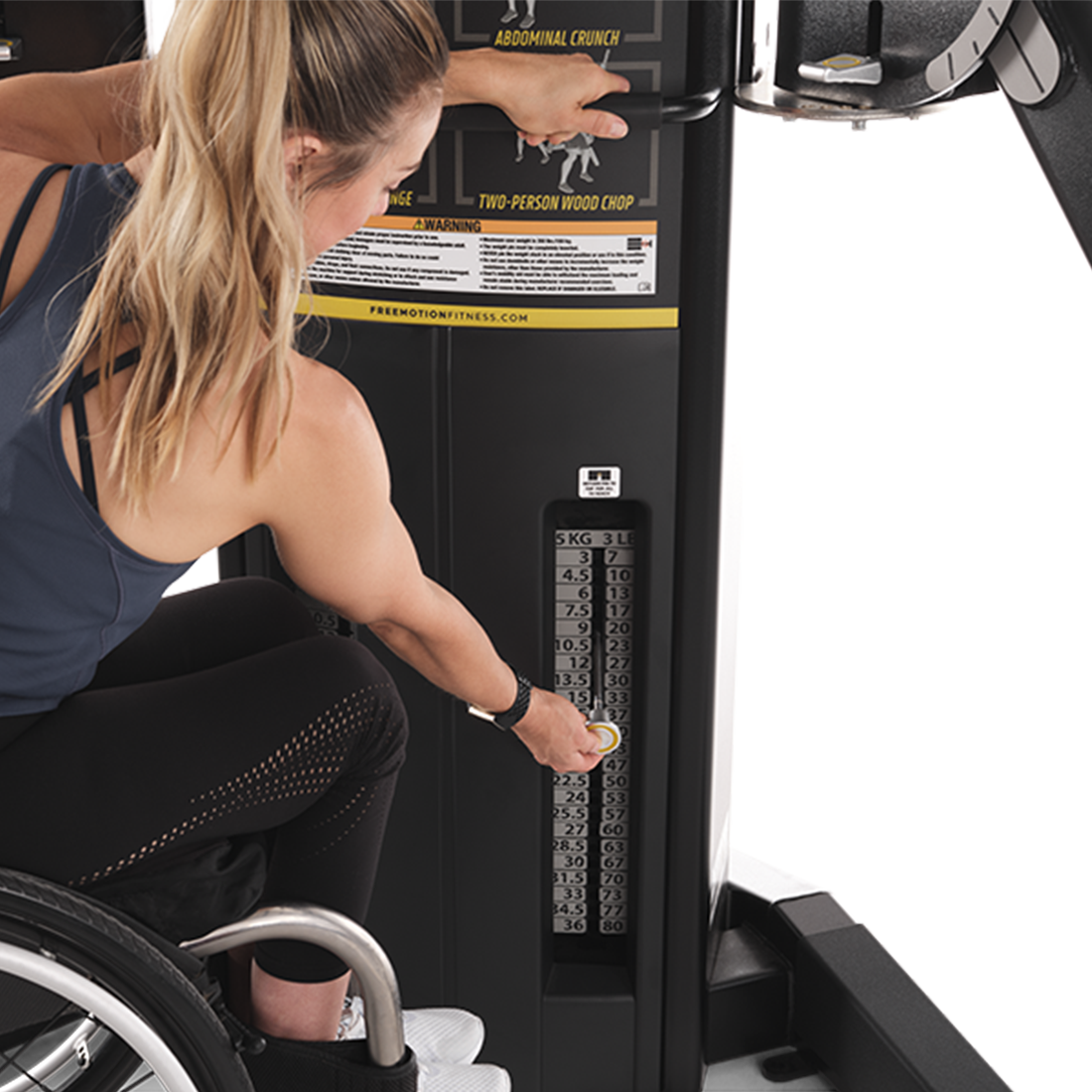

Specify the Intensity

Whether rehabbing an injury or training opposing actions, each handle is tethered to its own weight stack to dial in the resistance.

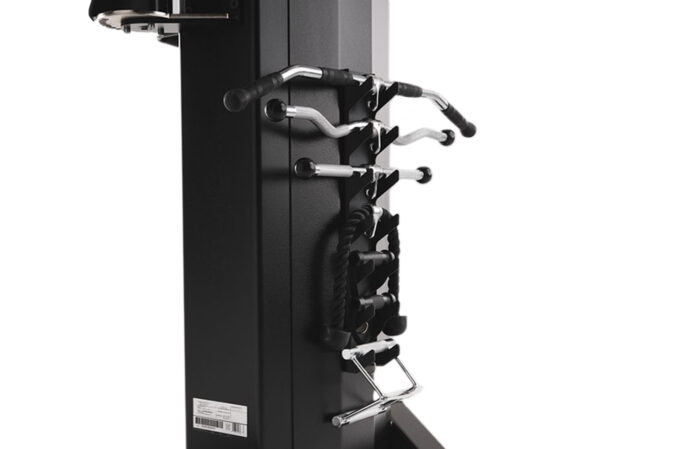

Stay Organized

Discreetly and conveniently located on the back of the Dual Cable Cross weight stack, the optional accessory holder provides off-the-floor storage for bars and handles. Dimensions: (L x W x H) 3.0 x 4.2 x 25.8 in / . Weight: 5.9 lb. To order the accessory holder, reference G24AH.
