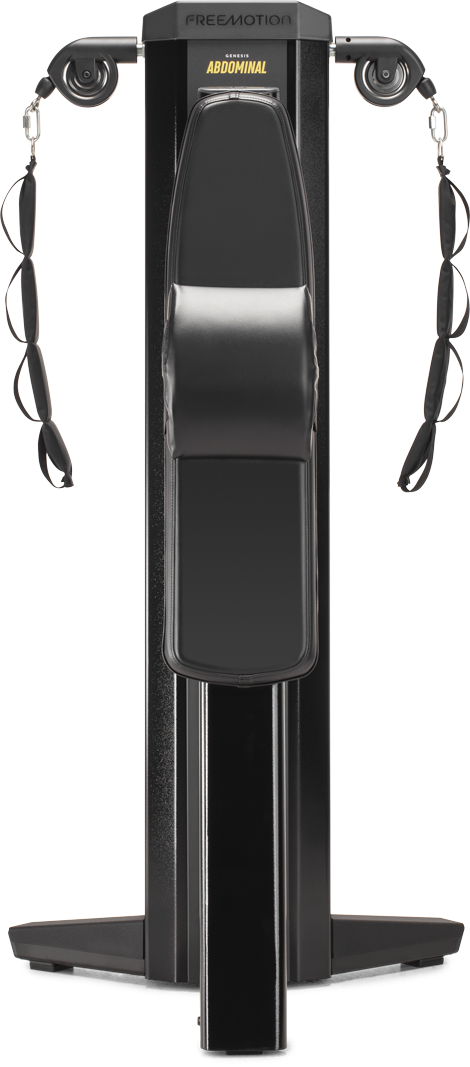

G611

ABDOMINAL

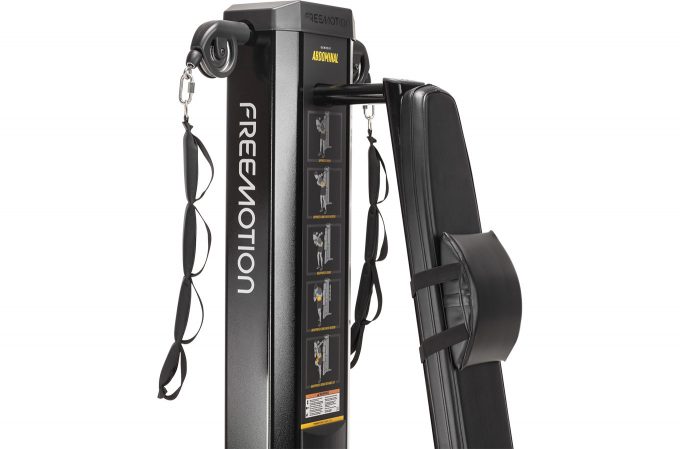

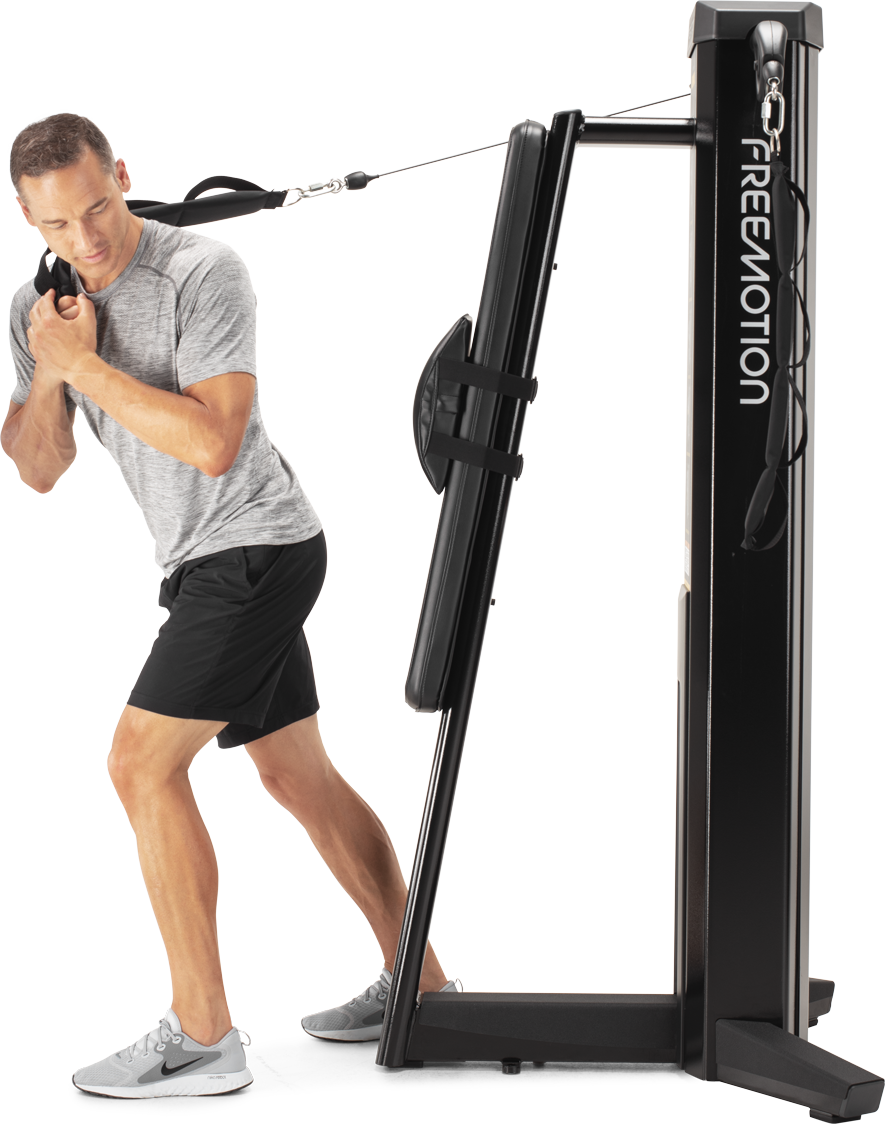

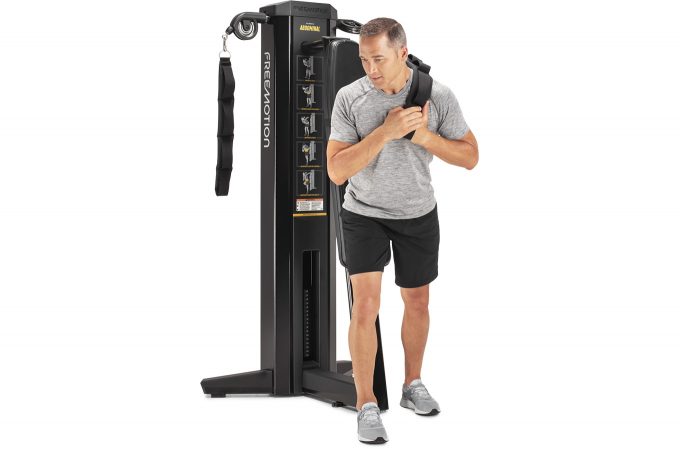

Swiveling pulleys and cable-based design gives users the freedom to move through their full range of motion. Arm straps move independently for unrestricted oblique and rotational movements and are padded for comfort under even heavy loads. The GENESIS™ Abdominal’s simple, standing design provides nearly unlimited options for multi-planar core work.
Enquire Today

Details & SPecs

Extensive Cable Travel

Cable length allows for full flexion and extension. Single arm: 76 in / 193 cm, two arms: 38 in / 96.5 cm.

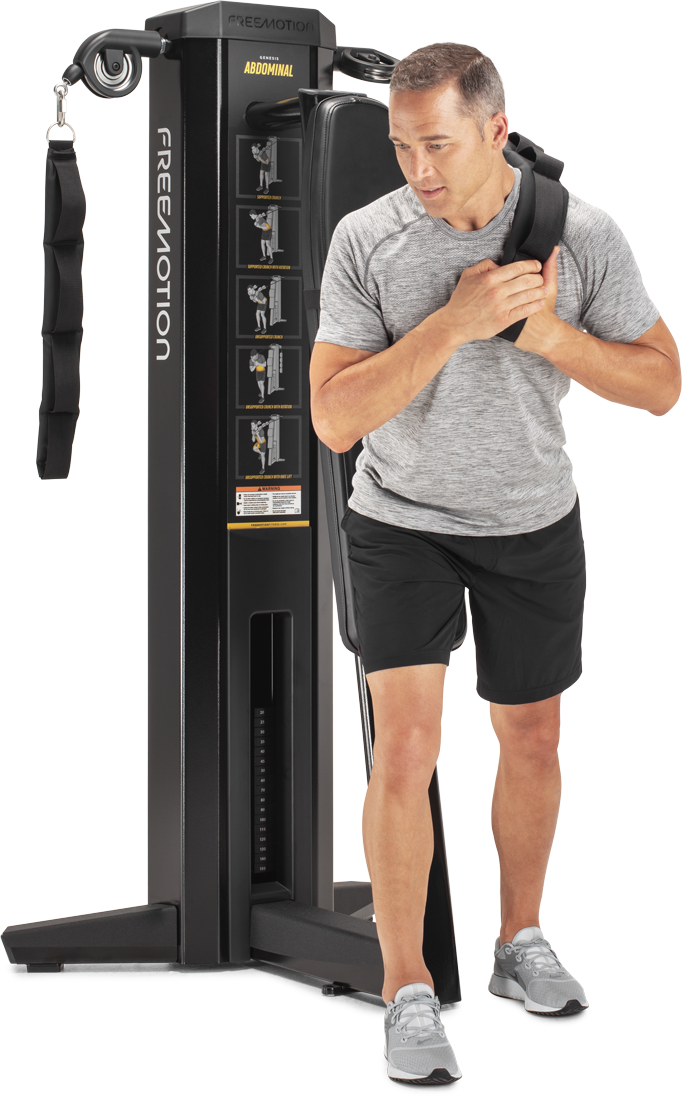

Movement Variety

Handles move independently for single and alternating side exercises.

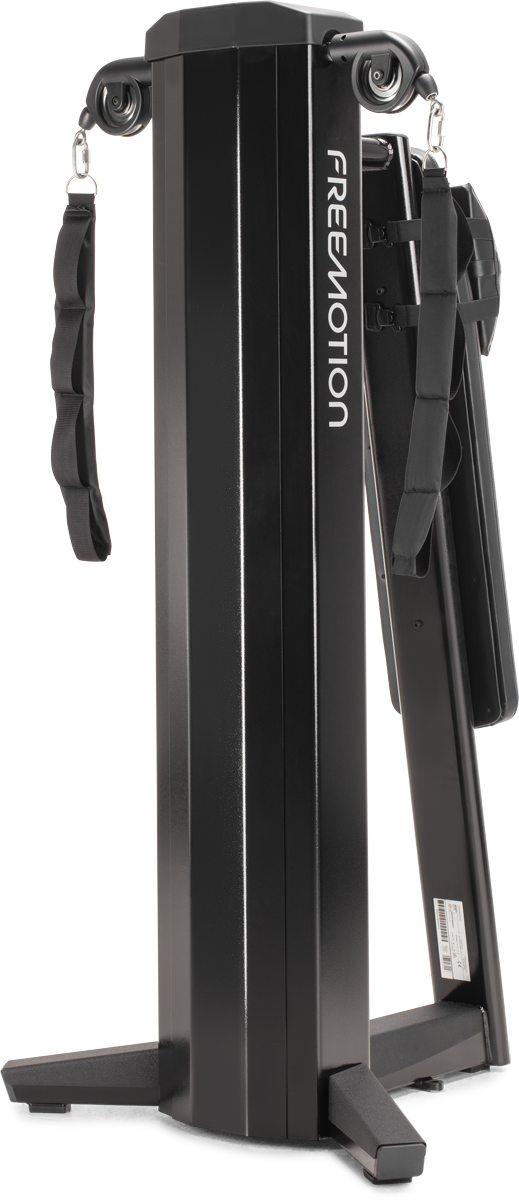

Enclosed Weight Stack

The weight stack is enclosed to limit access to moving parts for safety.

Built to Last

Constructed with 11- and 7-gauge steel and electrostatically powder-coated, this machine is built to stand up to the rigors of the weight room.

Kick Plates

Large, 16-gauge, stainless steel kick plates protect the machine from wear and tear.

G611 Abdominal Footprint
Product Features

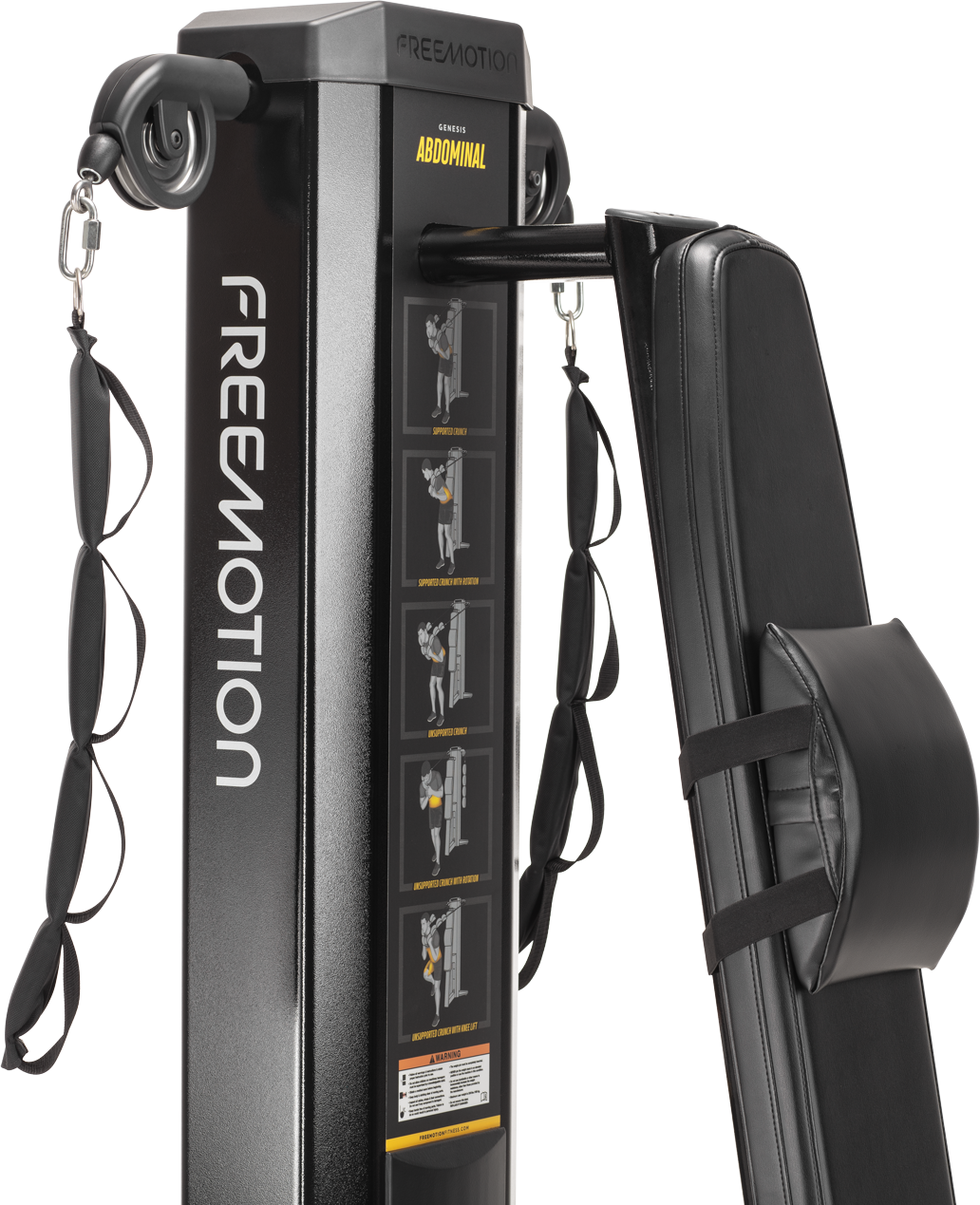

  • Instructional Placards
    Yes
  • Adjustments
    Lumbar Support
  • Resistance
    1 arm: 75 lb / 34 kg
    2 arms: 150 lb / 68 kg
  • Seat
    1.5 in thick foam / Vinyl
  • Pulleys
    Swivel pulleys
  • Cable Travel
    2 arms: 42 in (106.6 cm)
  • Rubber Feet
    Molded floor protectors
  • Maximum User Weight
    350 lb / 159 kg
  • Americans with Disabilities Act (ADA)
    Wheelchair Accessible
Product Specifications

  • Weight Stack
    150 lb / 68 kg
  • Drop Down Weight
    N/A
  • Weight Stack Configuration
    5 – 50 x 5 lb / 2.2 – 22.6 x 2.2 kg
    60 – 150 x 10 lb / 27.2 – 68 x 4.5 kg
  • Standard Frame Color
    Black River, Flat Black, Platinum Sparkle, White River
  • Optional Frame Color
    Custom colors available upon request
  • Plastic Color
    Ebony
  • Standard Upholstery Color
    Black, Graphite, Blue Ridge, Burgundy, American Beauty Red
  • Optional Upholstery Color
    Custom colors available upon request
Product Dimensions & Weight

  • Dimensions L x W x H
    34 x 36 x 77 in / 86.3 x 91.4 x 195.5 cm
  • Footprint
    34 x 36 in / 86.3 x 91.4 cm
  • Weight
    423 lb / 191.8 kg
  • Shipping Dimensions
    36 x 34 x 75 in / 91.4 x 86.3 x 190.5 cm
  • Shipping Weight
    431 lb / 195.4 kg
Certifications

  • EN957, CE
Warranty (US & Canada)

  • Frame
    10 Years
  • Parts
    3 Years
  • Cables & Labor
    1 Year
  • Cosmetic & Wear Items
    6 Months
  • Upholstery & Padding
    120 Days
Warranty (International)

  • Frame
    10 Years
  • Parts
    3 Years
  • Cables & Labor
    1 Year
  • Cosmetic & Wear Items
    6 Months
  • Upholstery & Padding
    120 Days
Enquire Today

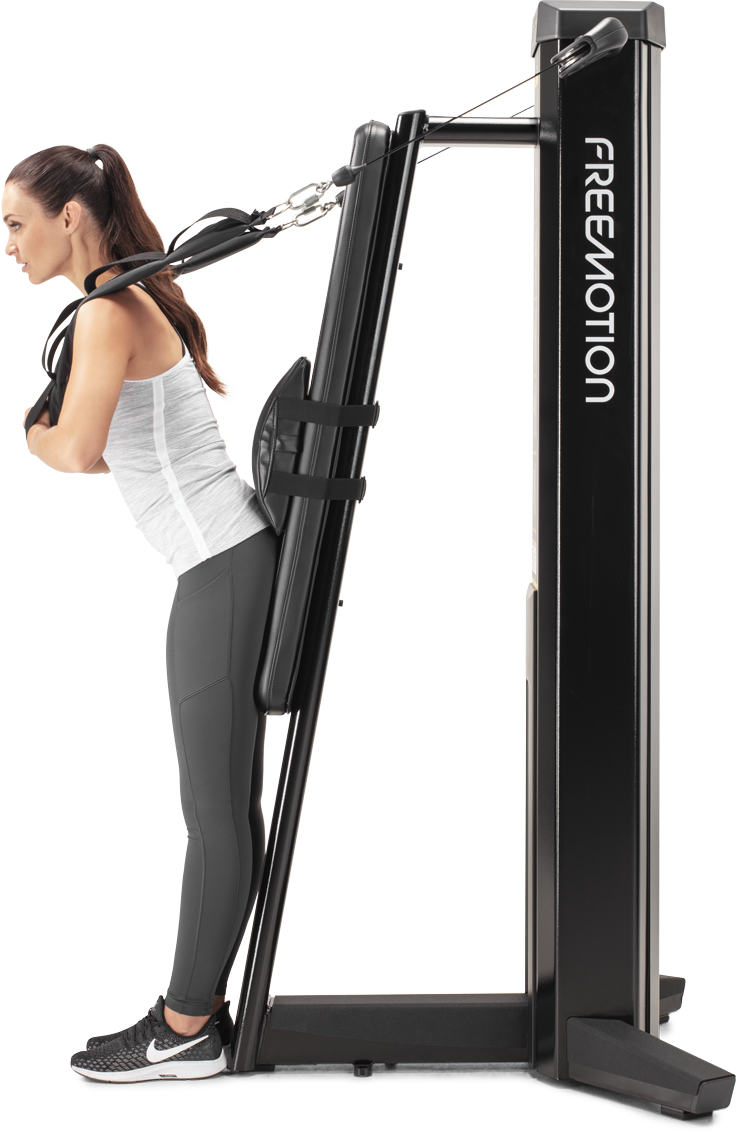

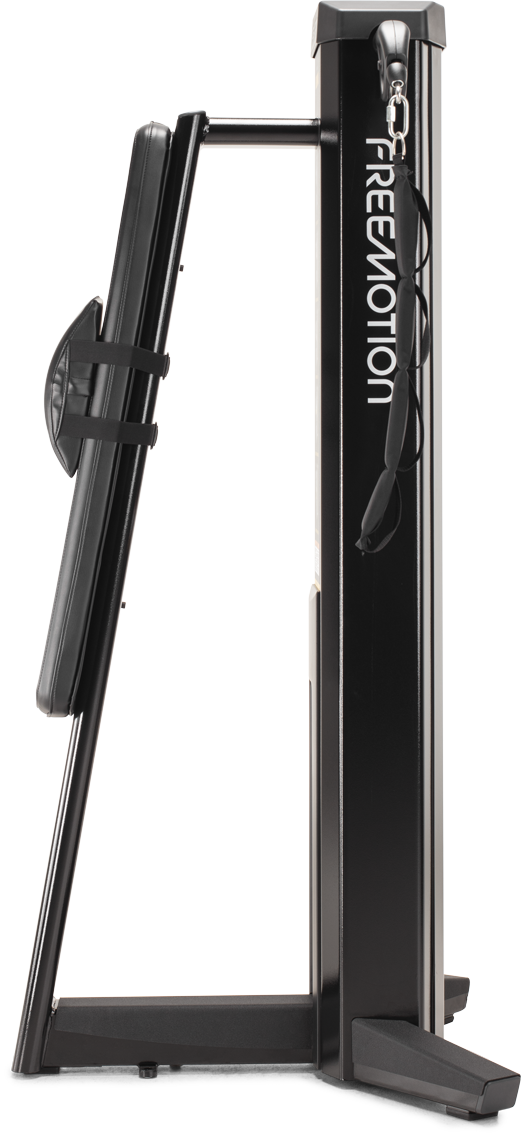

Go Vertical

In addition to being a space saver, the standing design functionality builds core strength.

Comfortable by Design

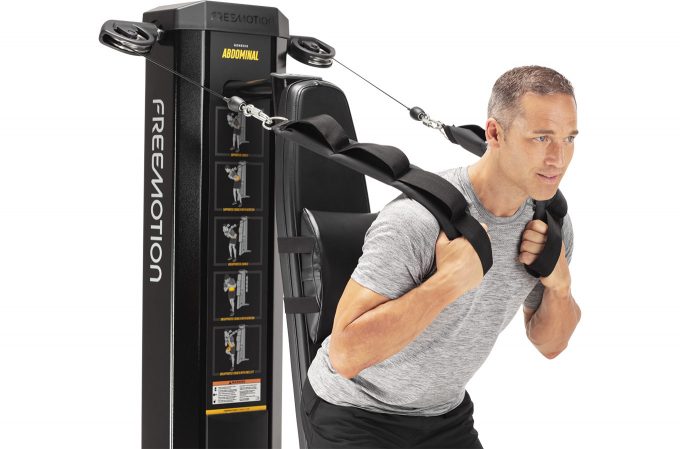

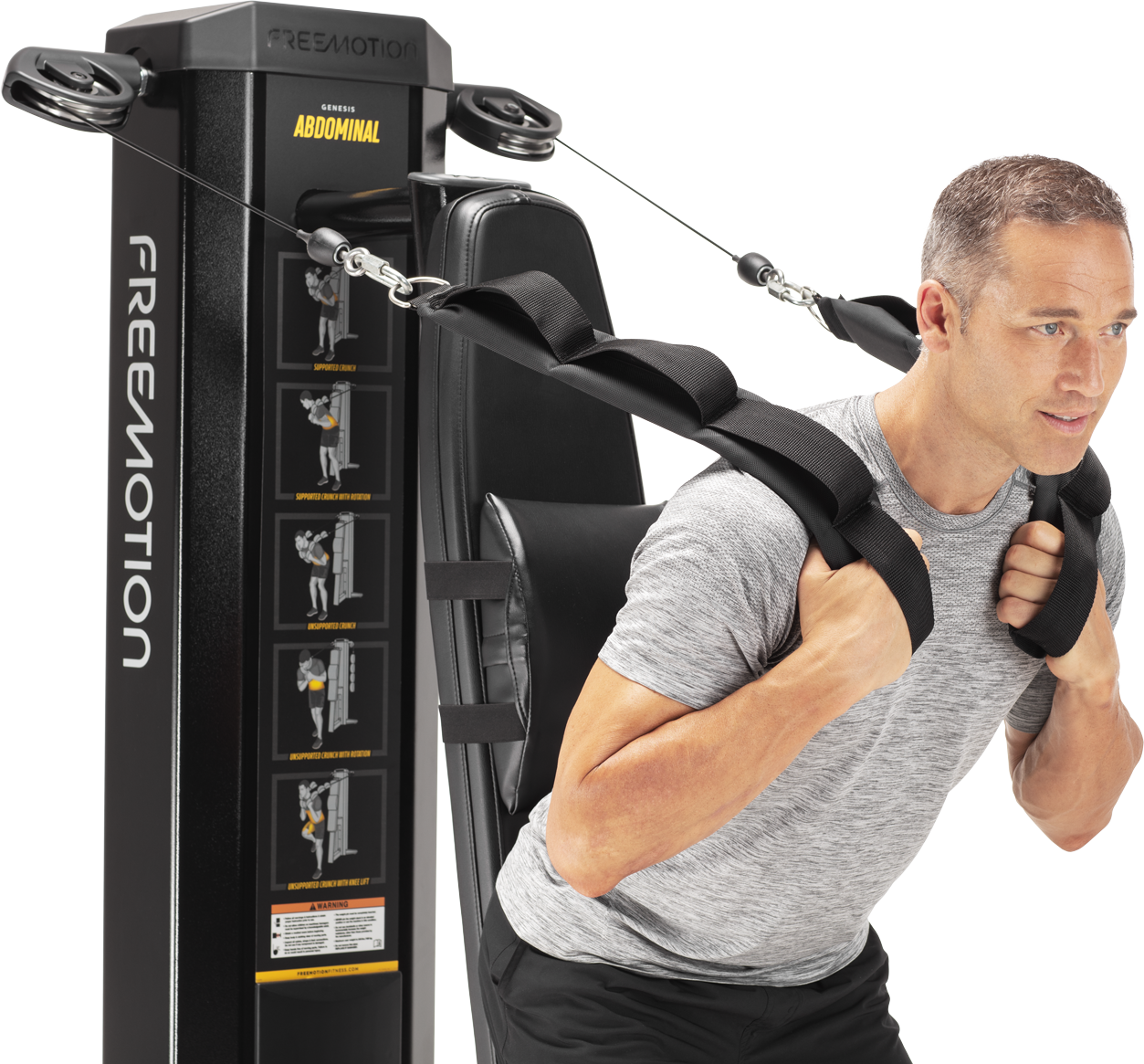

The backpad, lumbar support and handle straps are padded for comfort even under heavy loads.

Freedom to Move

The swivel pulley design combined with the extensive cable travel allows users a wide, fluid range of motion.
