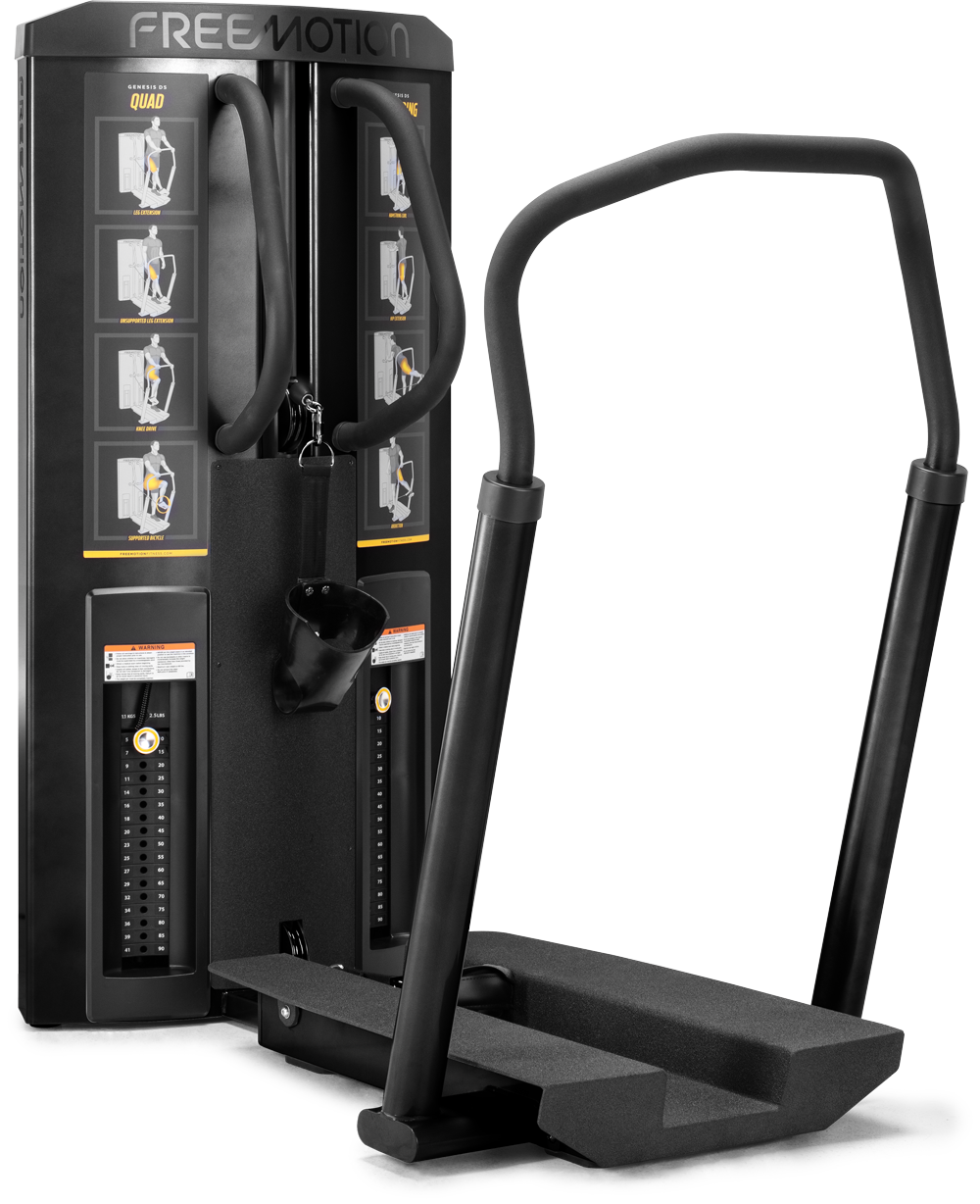

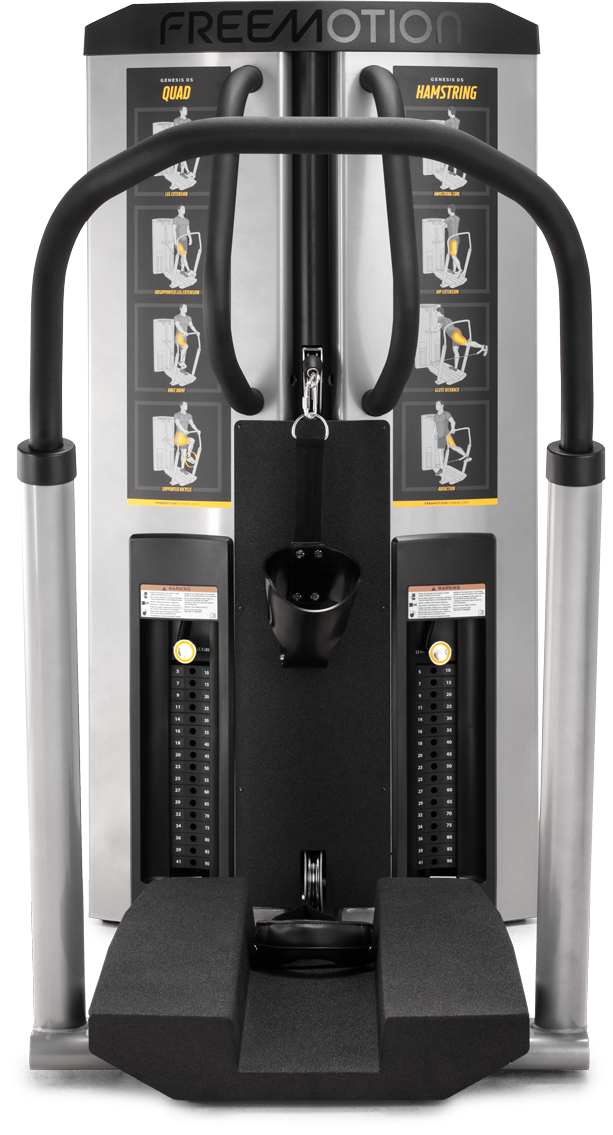

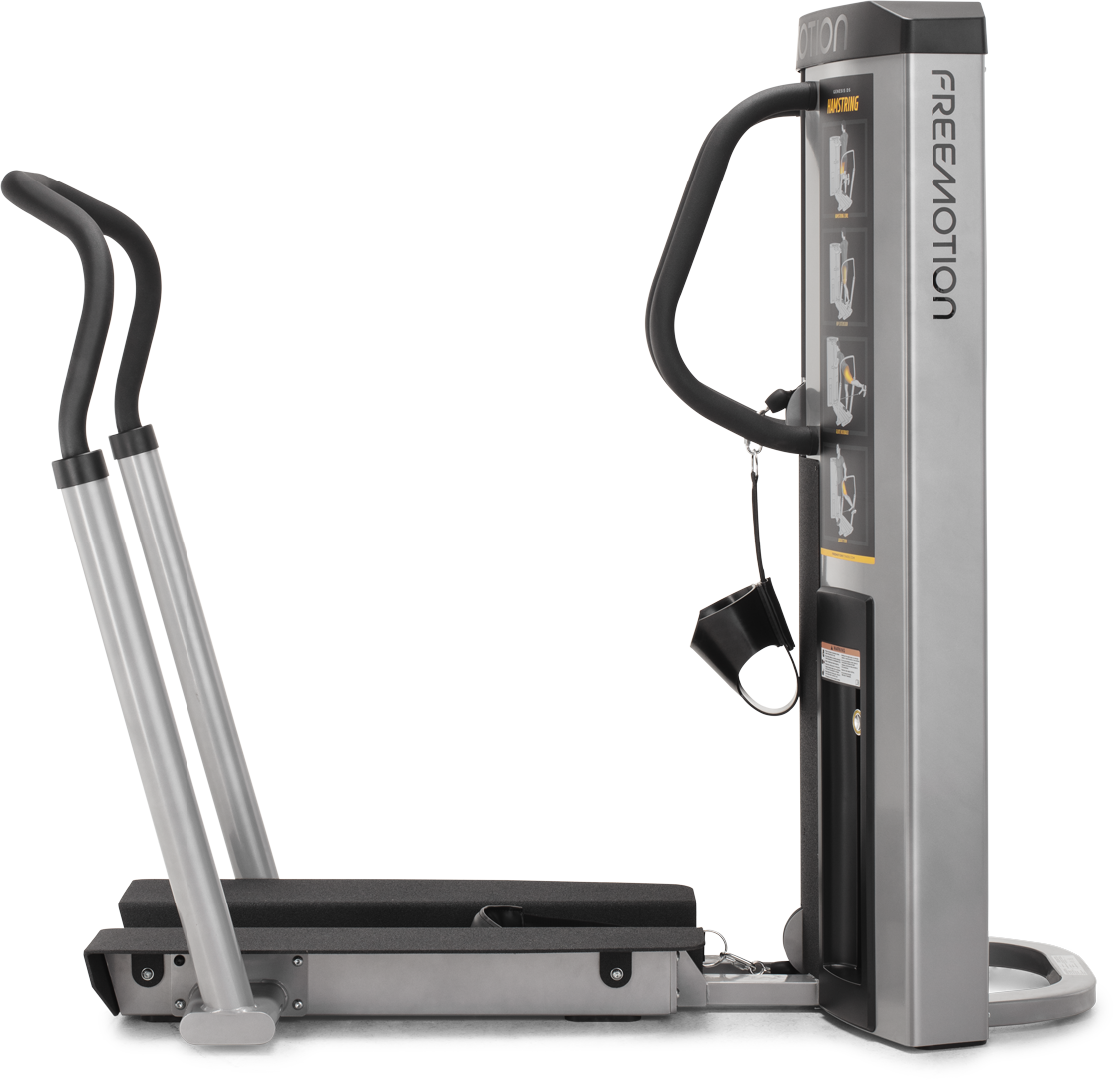

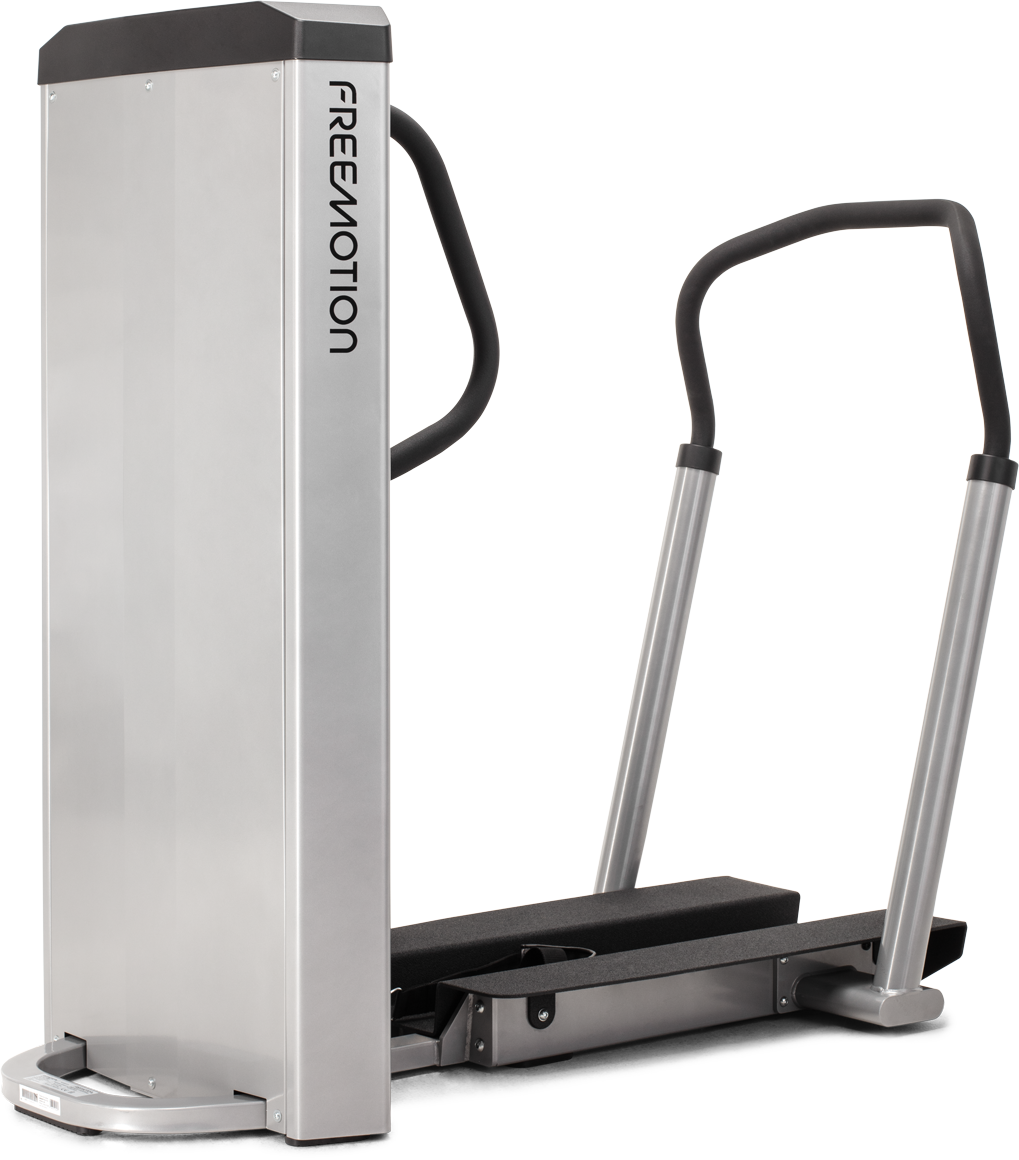

GD503

QUAD / HAMSTRING

This machine functionally trains all of the leg muscles to work together for sports or engaging in activities of daily living. The DS Quad/Hamstring machine uses the GENESIS™ swiveling pulleys and extensive cable travel to offer fluid motion whether performing a standing curl or dynamic soccer kick. The ability to train the entire lower body on one unit saves valuable floor space in the weight room.
Enquire Today

Details & SPecs

Walk Up and Work Out

With no required adjustments, users can simply walk up, put on the foot harness and start moving.

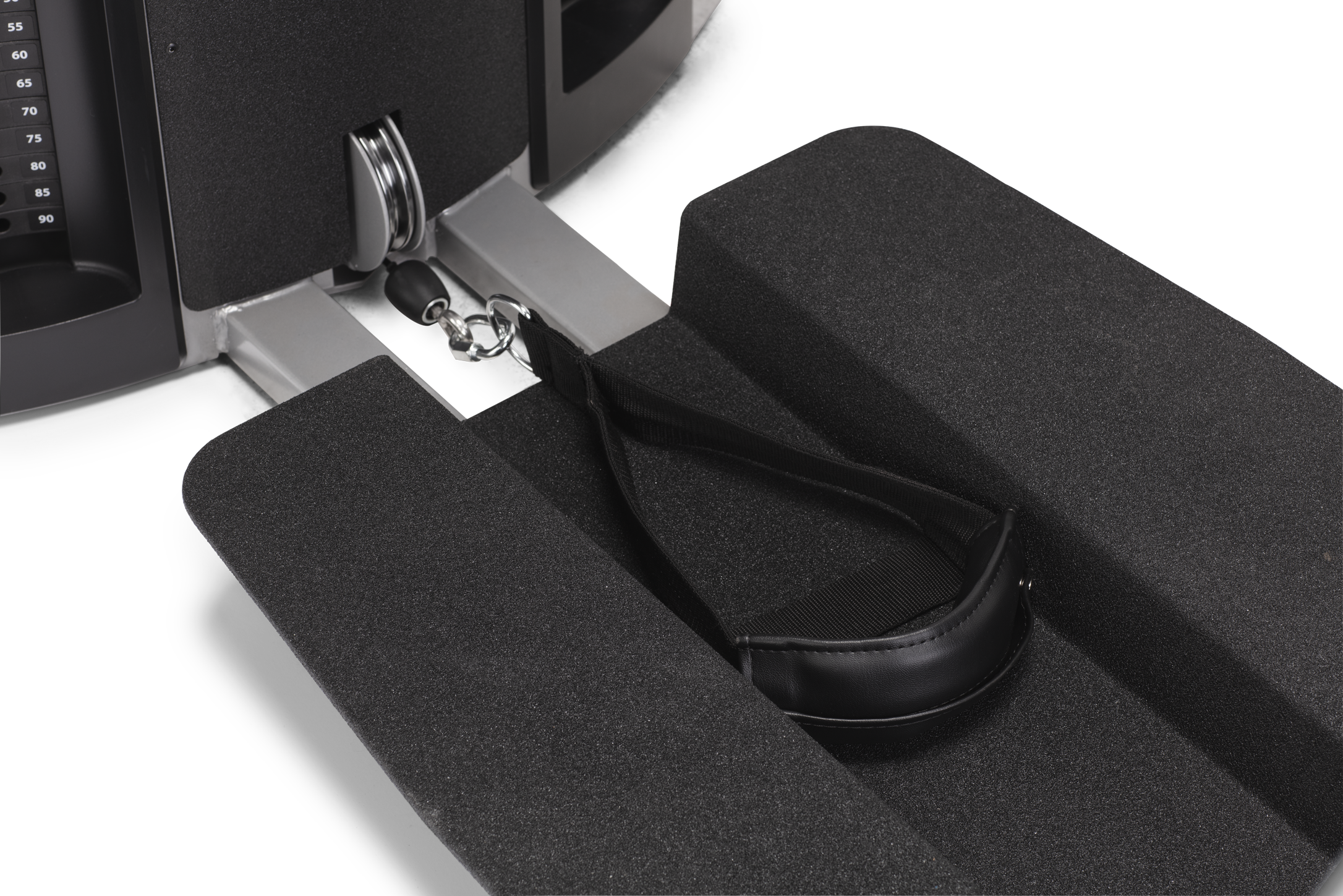

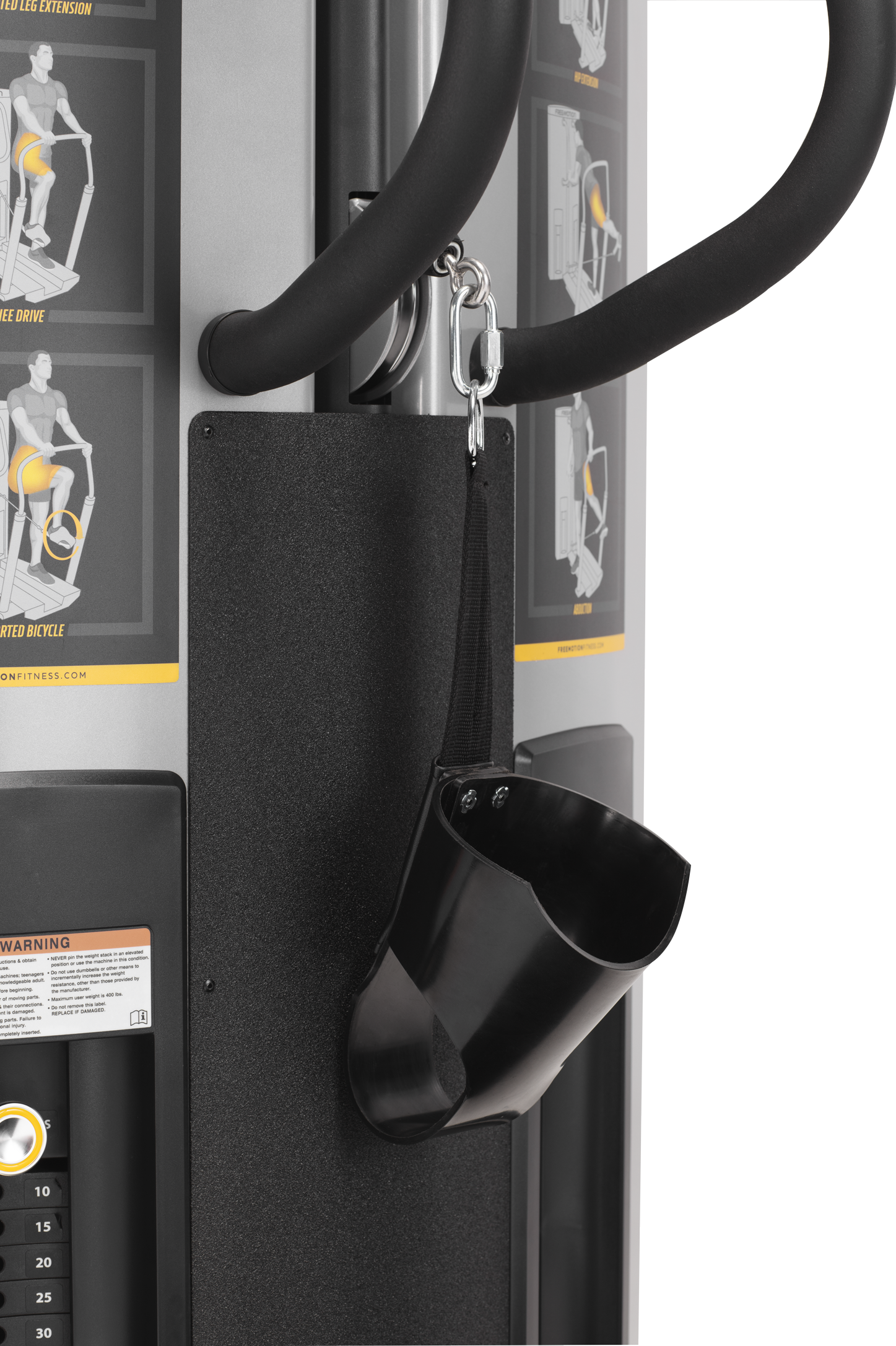

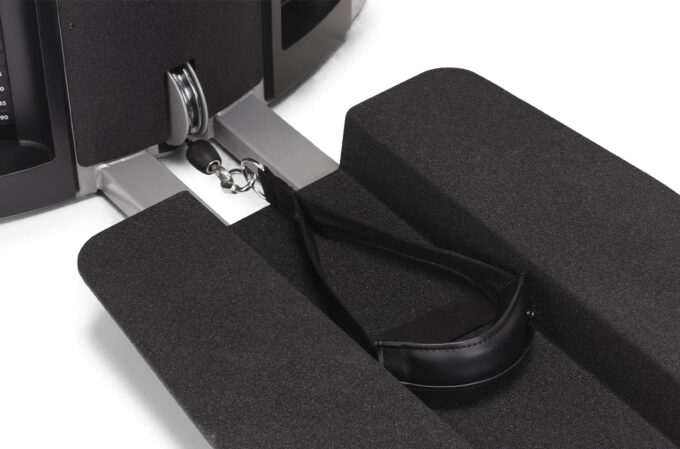

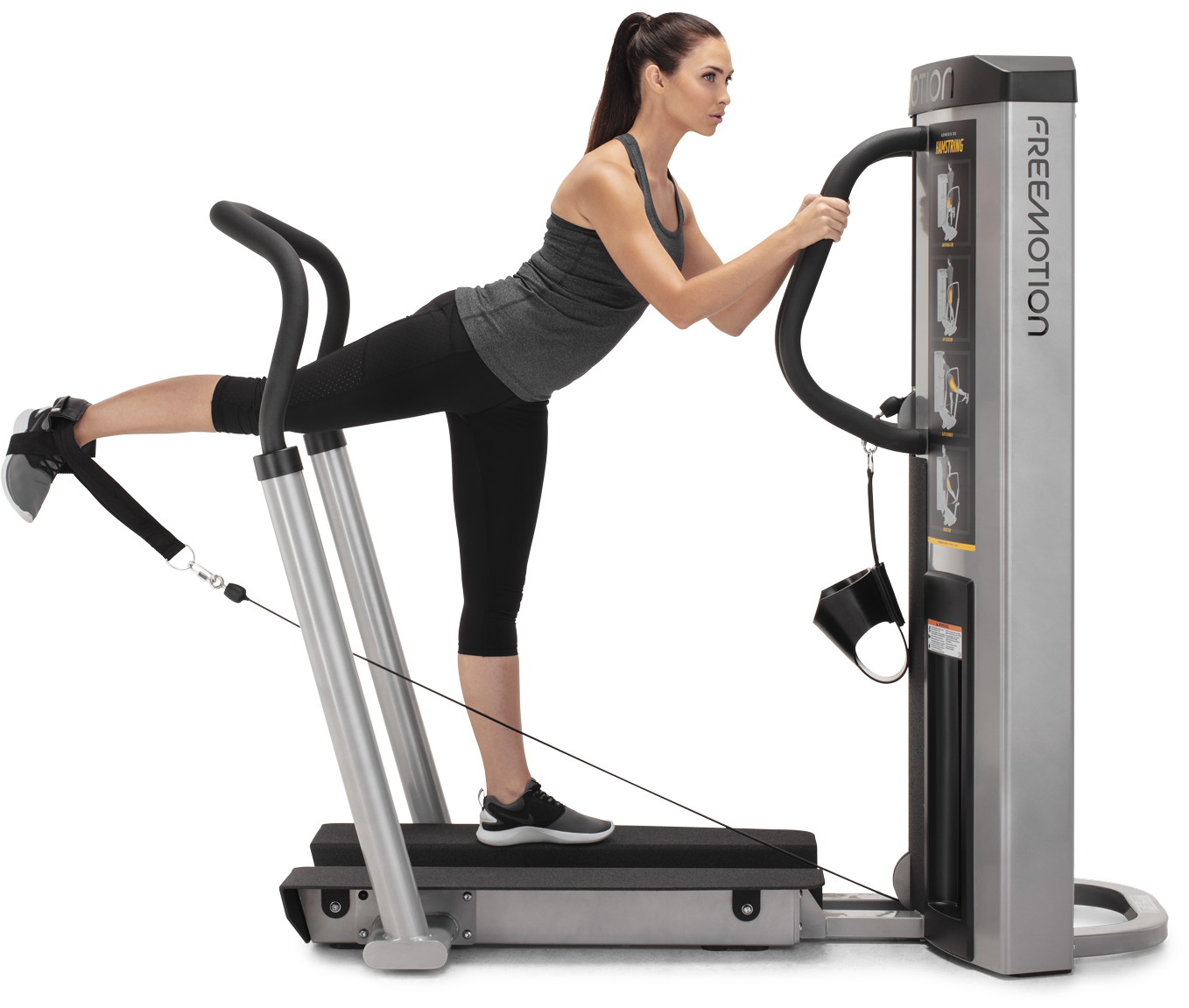

Foot Harnesses

Specially designed foot harnesses help to keep feet secure throughout the movement.

Extensive Cable Travel

Cable length allows for full flexion and extension: 37 in / 93.9 cm.

Enclosed Weight Stacks

The weight stacks are enclosed to limit access to moving parts for safety.

Built to Last

Constructed with 11- and 7-gauge steel and electrostatically powder-coated, this machine is built to stand up to the rigors of the weight room.

Kick Plates

Large, 16-gauge, stainless steel kick plates protect the machine from wear and tear.

Product Features

  • Instructional Placards
    Yes
  • Adjustments
    N/A
  • Resistance
    1 arm: 90 lb / 40.8 kg
    2 arms: 180 lb / 81.6 kg
  • Seat
    N/A
  • Pulleys
    Aluminum swivel pulleys
  • Cable Travel
    72 in / 182.8 cm per arm
  • Rubber Feet
    Soft PVC
  • Maximum User Weight
    400 lb / 181.4 kg
  • Americans with Disabilities Act (ADA)
    N/A
Product Specifications

  • Weight Stack
    QTY 2 – 180 lb / 81.6 kg weight stacks
  • Drop Down Weight
    N/A
  • Weight Stack Configuration
    2 – 10 lb top plates, 34 – 10 lb plates
    2 – 4.5 kg top plates, 34 – 4.5 kg plates
  • Standard Frame Color
    Black River, Platinum Sparkle
  • Optional Frame Color
    N/A
  • Plastic Color
    Ebony
  • Standard Upholstery Color
    N/A
  • Optional Upholstery Color
    N/A
Product Dimensions & Weight

  • Dimensions L x W x H
    70 x 32 x 64 in / 177.8 x 81.2 x 162.5 cm
  • Footprint
    70 x 32 in / 177.8 x 81.2 cm
  • Weight
    615 lb / 279 kg
  • Shipping Dimensions
    74.8 x 39.9 x 34.7 in / 198.9 x 99 x 88.1 cm
  • Shipping Weight
    866.4 lb / 393 kg
Certifications

  • EN957,CE
Warranty (US & Canada)

  • Frame
    10 Years
  • Parts
    3 Years
  • Cables & Labor
    1 Year
  • Cosmetic & Wear Items
    6 Months
  • Upholstery & Padding
    120 Days
Warranty (International)

  • Frame
    10 Years
  • Parts
    3 Years
  • Cables & Labor
    1 Year
  • Cosmetic & Wear Items
    6 Months
  • Upholstery & Padding
    120 Days
Enquire Today

Dual Stations

Training two body parts on the same machine saves valuable floor space. Users can quickly transition to different exercises for metabolic training.

Sure Footing

Textured platform helps ensure secure foot placement even under heavy loads.

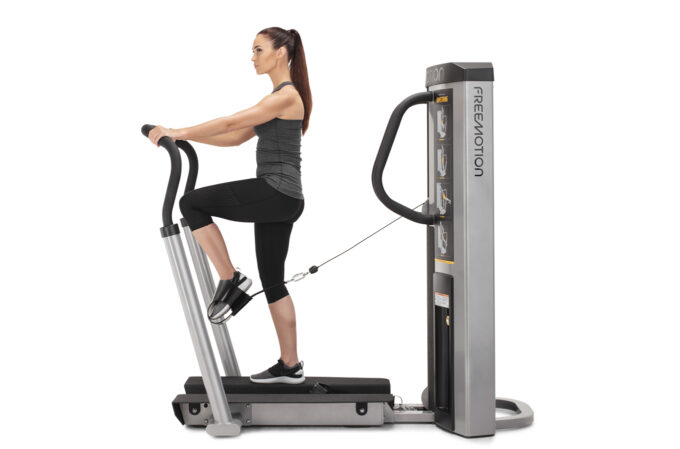

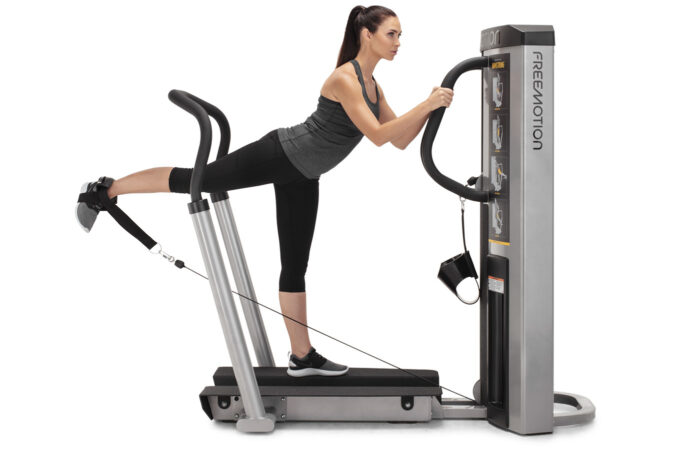

Freedom to Move

The swivel pulley design combined with the extensive cable travel allows users a wide, fluid range of motion.

Isolation to Integration

The machine features a multi-grip handles for balance and to isolate the upper body. Users can simply let go to work out unsupported and integrate more muscle groups.
