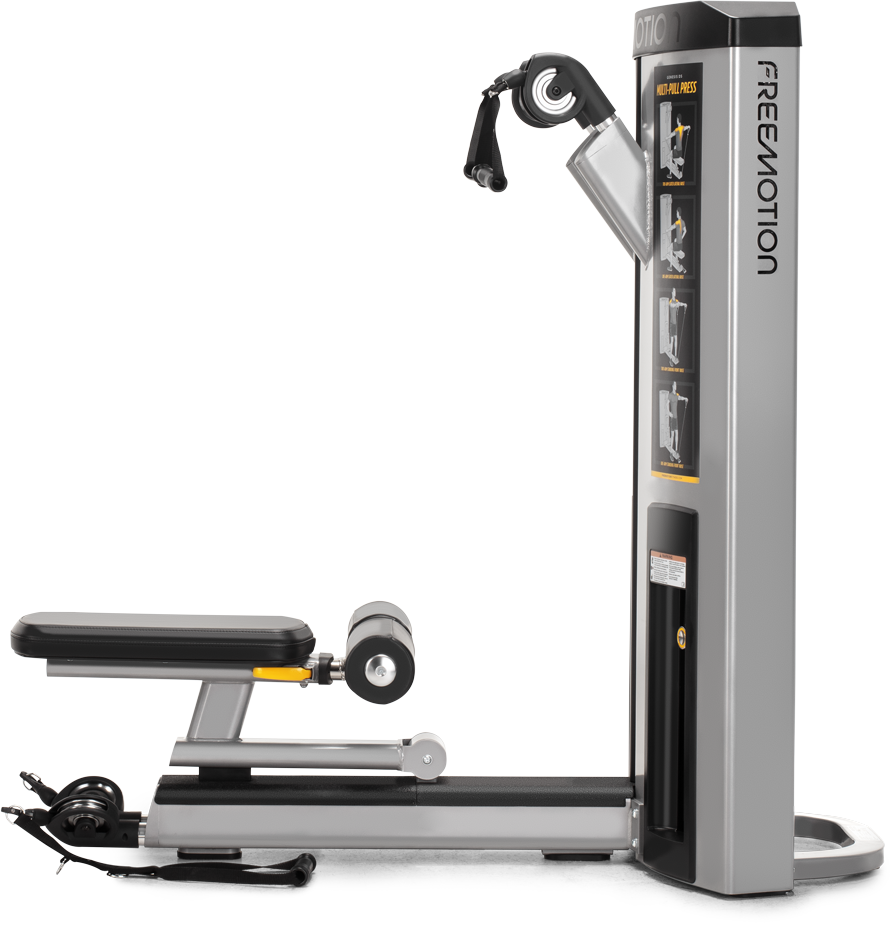

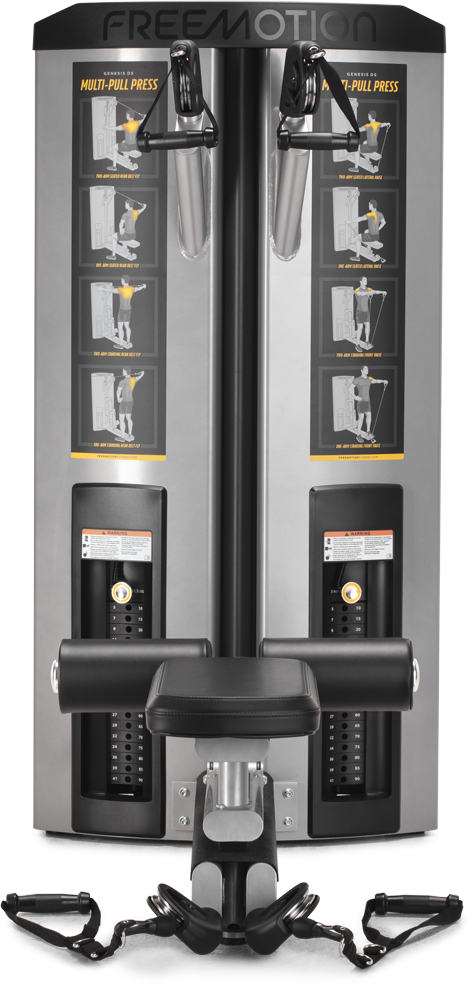

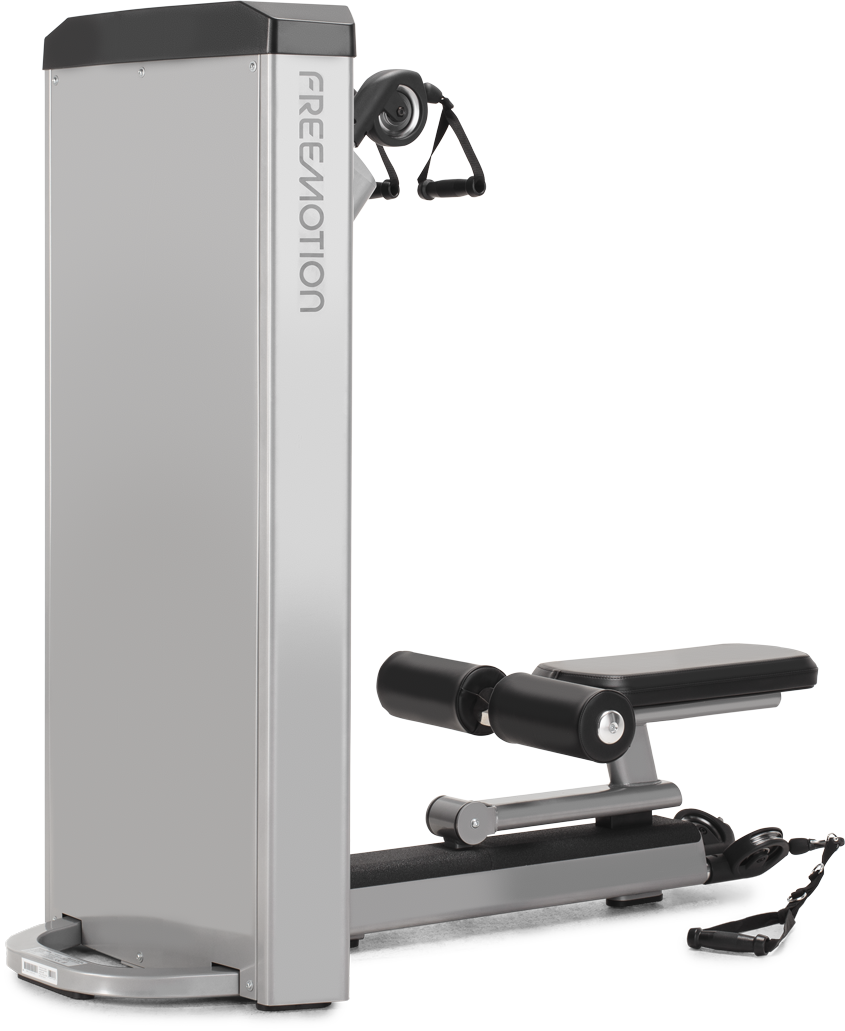

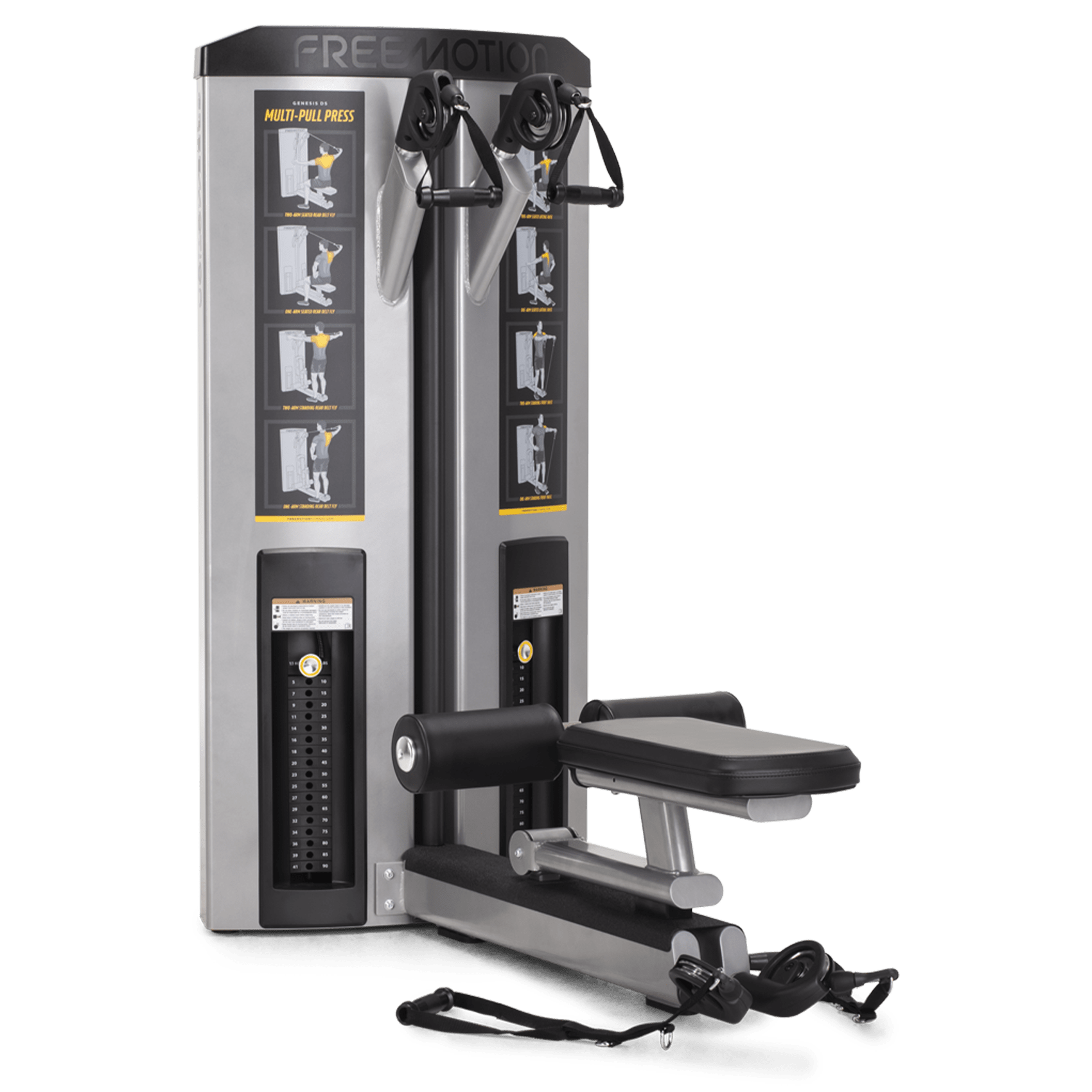

GD505

MULTI-PULL PRESS

Facility owners will love the space-saving design. Trainers will love the versatility. And users will love its intuitive function. Constructed with heavy-duty steel with an electrostatic powder coating makes this machine durable to live up to its popularity on the strength floor. The GENESIS DS™ Multi-Pull Press gives trainers and users the freedom to add challenges to their workout without sacrificing function.
Enquire Today

Details & SPecs

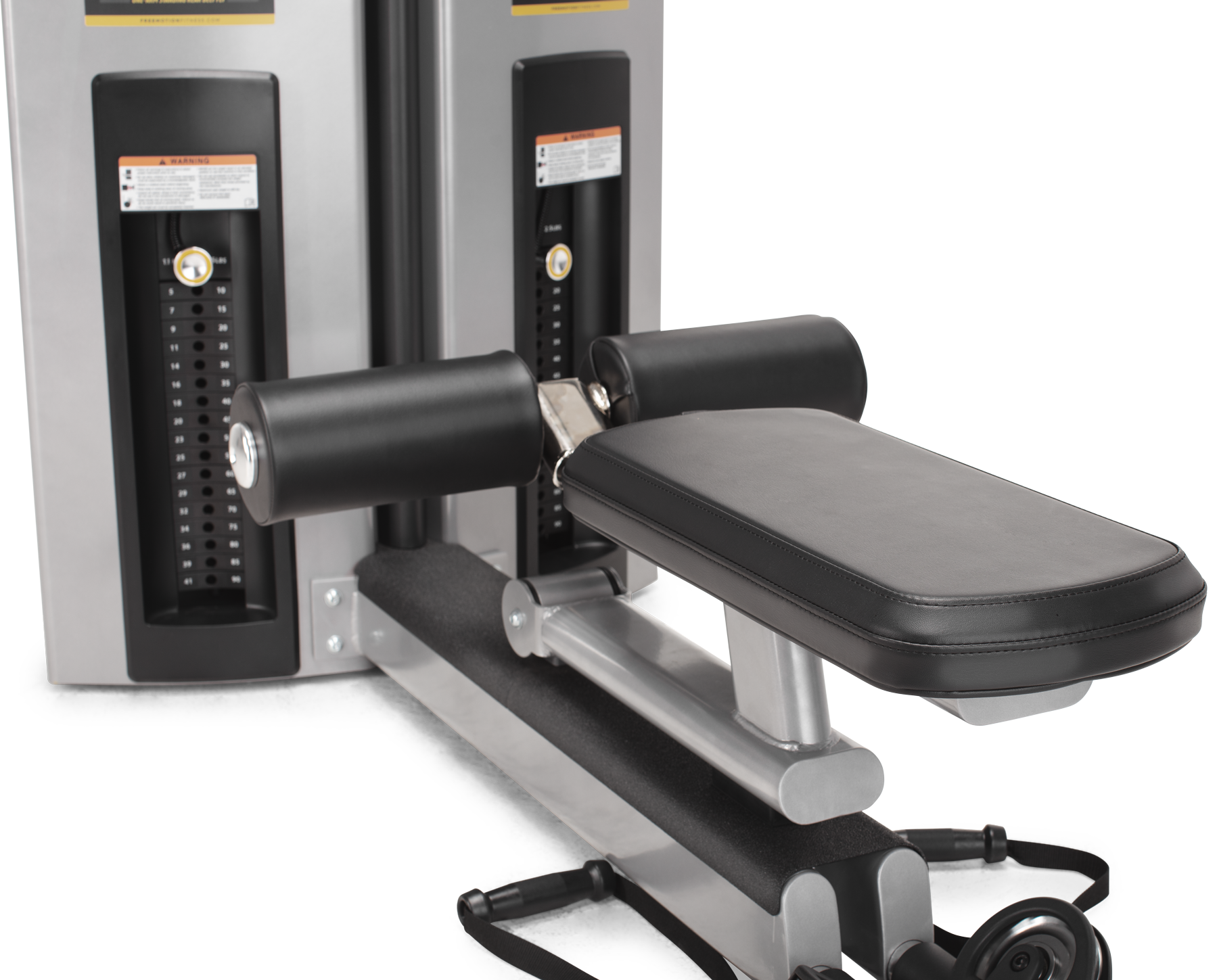

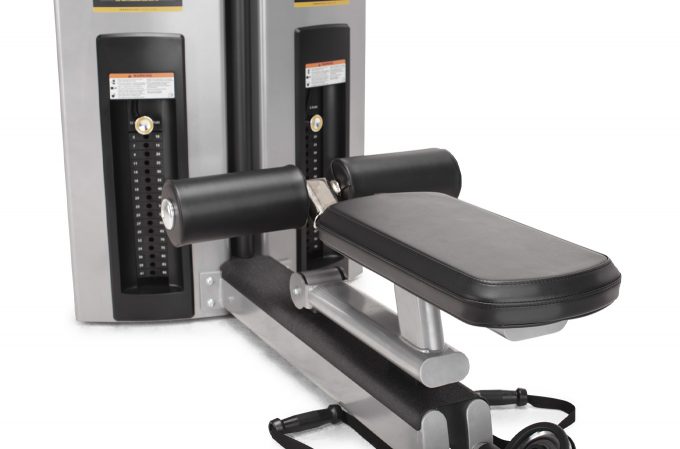

Padded Seat and Thigh Pads

Rolled thigh pads swivel to comfortably isolate the legs. Seat bottom is also padded for fit and comfort.

Extensive Cable Travel

Cable length allows for full flexion and extension. Single arm: 76 in / 193 cm, two arms: 38 in / 96.5 cm.

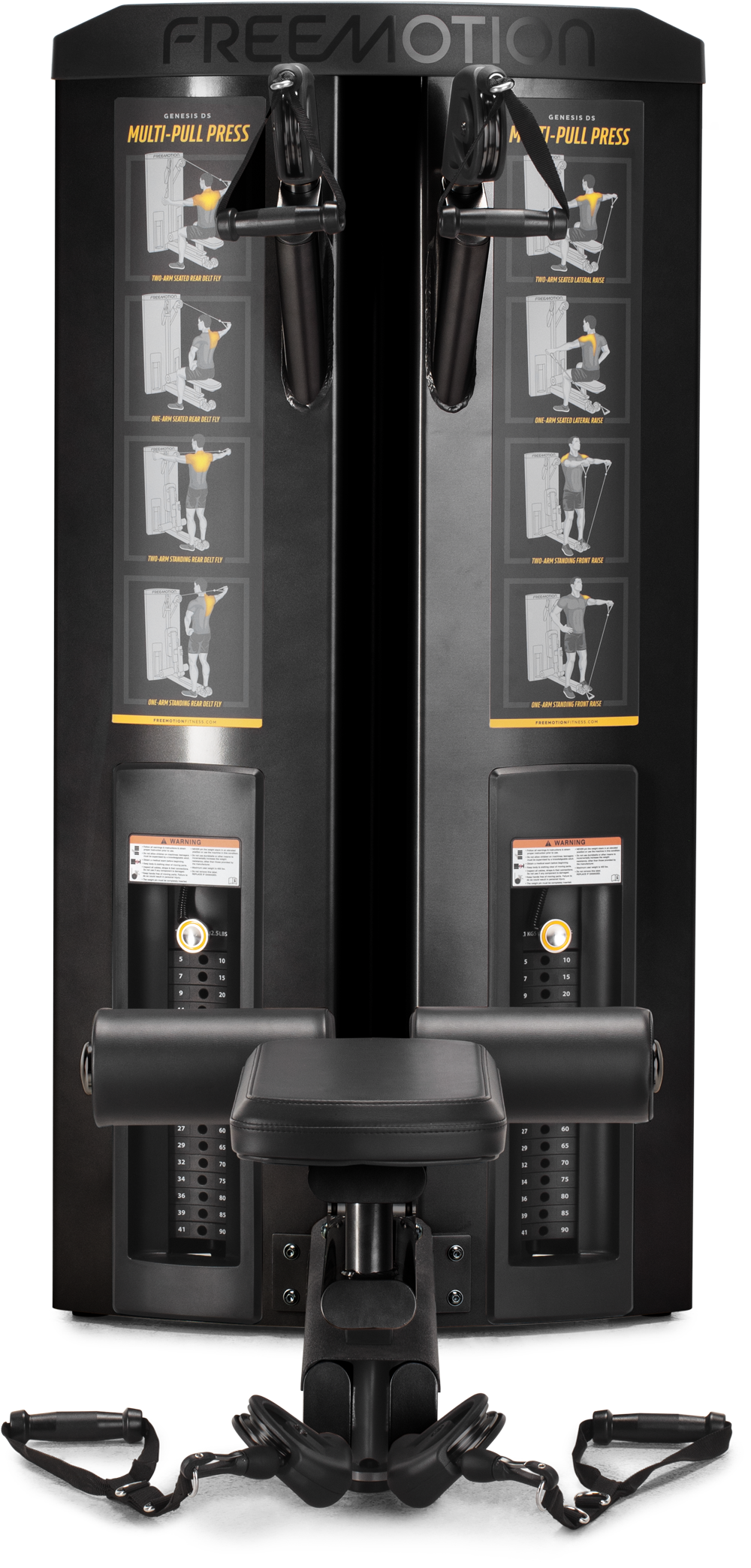

Enclosed Weight Stacks

The weight stacks are enclosed to limit access to moving parts for safety.

Built to Last

Constructed with 11- and 7-gauge steel and electrostatically powder-coated, this machine is built to stand up to the rigors of the weight room.

Kick Plates

Large, 16-gauge, stainless steel kick plates protect the machine from wear and tear.

Product Features

  • Instructional Placards
    Yes
  • Adjustments
    Pivot seat/thigh pad for standing movements
  • Resistance
    1 arm: 90 lb / 40.8 kg
    2 arms: 180 lb / 81.6 kg
  • Seat
    Vinyl with 2 in / 5 cm thick foam
  • Pulleys
    Aluminum swivel pulleys
  • Cable Travel in (cm)
    72 in / 182.8 cm per arm
  • Rubber Feet
    Soft PVC
  • Maximum User Weight
    400 lb / 181.4 kg
  • Americans with Disabilities Act (ADA)
    Wheelchair Accessible
Product Specifications

  • Weight Stack
    QTY 2 – 180 lb / 81.6 kg weight stacks
  • Drop Down Weight
    N/A
  • Weight Stack Configuration
    2 – 10 lb top plates, 34 – 10 lb plates
    (2 – 4.5 kg top plates, 34 – 4.5 kg plates)

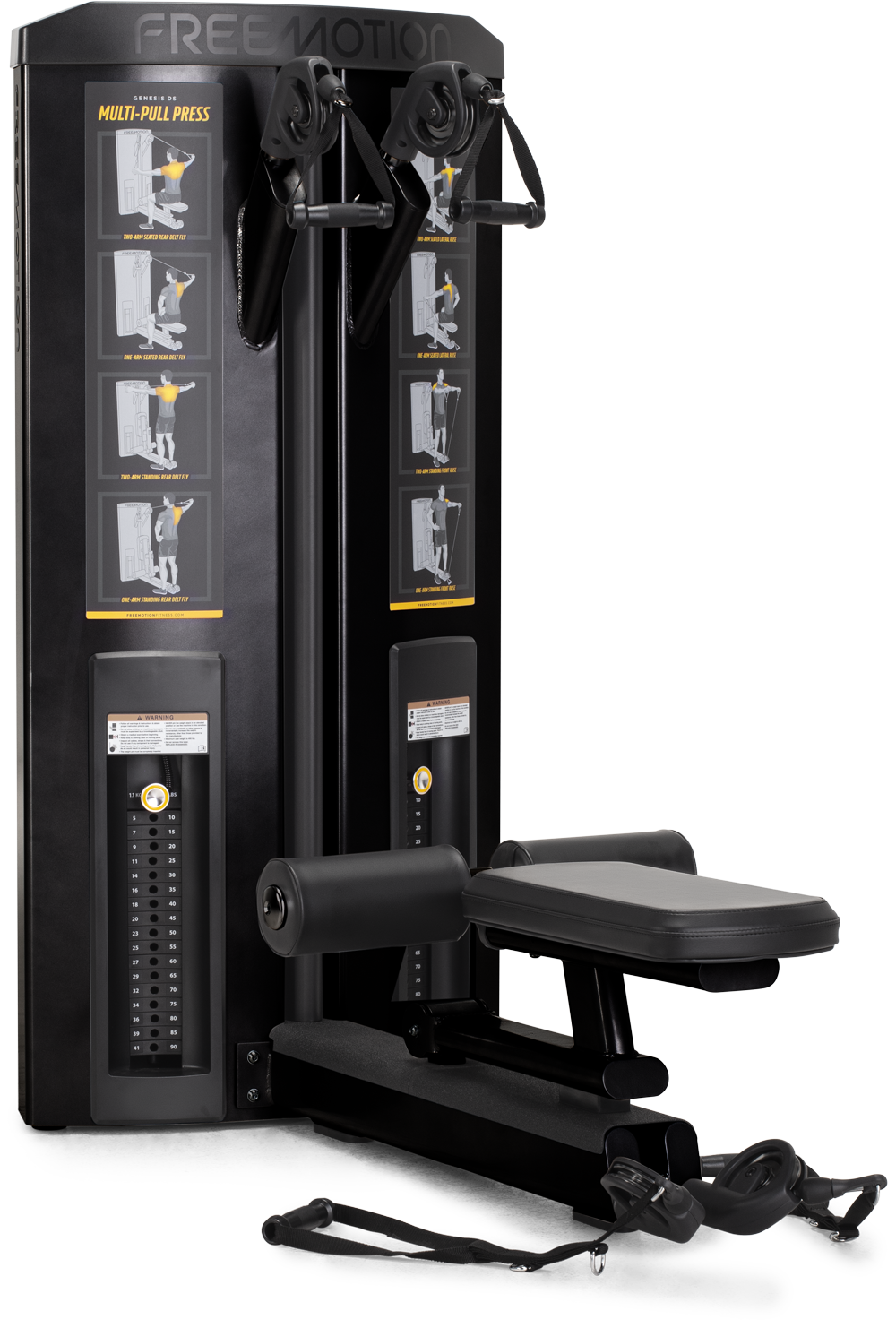

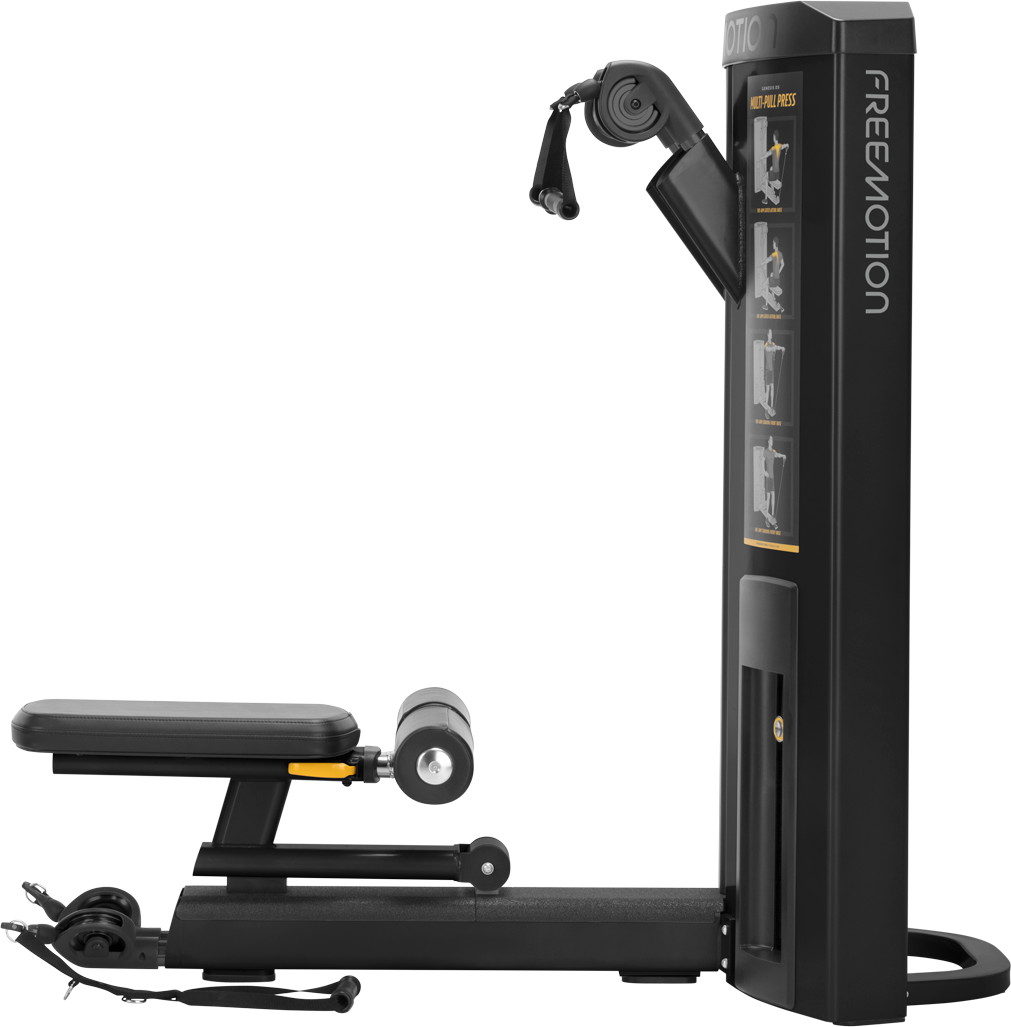

  • Standard Frame Color
    Black River, Platinum Sparkle
  • Optional Frame Color
    N/A
  • Plastic Color
    Ebony
  • Standard Upholstery Color
    Black, Graphite, Blue Ridge, Burgundy, American Beauty Red
  • Optional Upholstery Color
    Custom colors available upon request
Product Dimensions & Weight

  • Dimensions L x W x H
    66 x 31 x 64 in / 167.6 x 78.7 x 162.5 cm
  • Footprint
    66 x 31 in / 167.6 x 78.7 cm
  • Shipping Dimensions
    74.8 x 38.9 x 33.5 in / 189.9 x 99 x 85.1 cm
  • Shipping Weight
    764.7 lb / 346.9 kg
Certifications

  • EN957,CE
Warranty (US & Canada)

  • Frame
    10 Years
  • Parts
    3 Years
  • Cables & Labor
    1 Year
  • Cosmetic & Wear Items
    6 Months
  • Upholstery & Padding
    120 Days
Warranty (International)

  • Frame
    10 Years
  • Parts
    3 Years
  • Cables & Labor
    1 Year
  • Cosmetic & Wear Items
    6 Months
  • Upholstery & Padding
    120 Days
Enquire Today

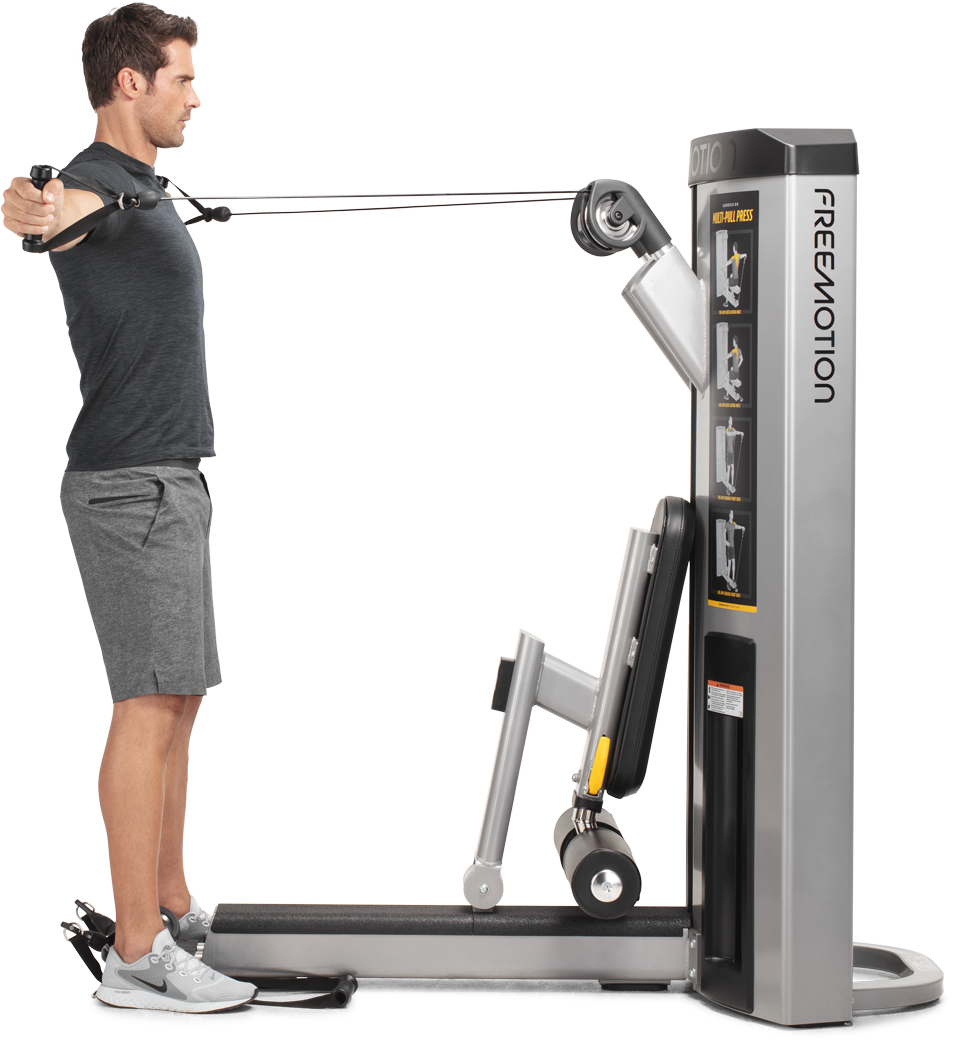

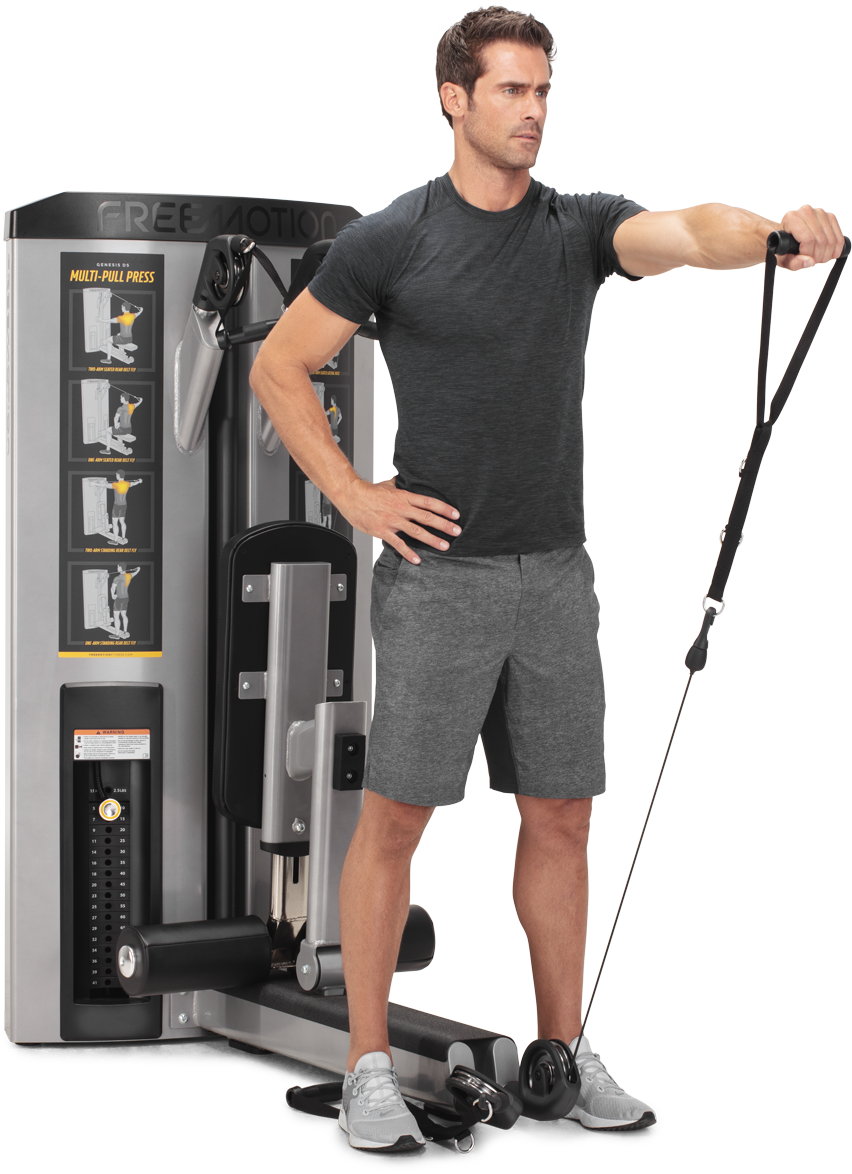

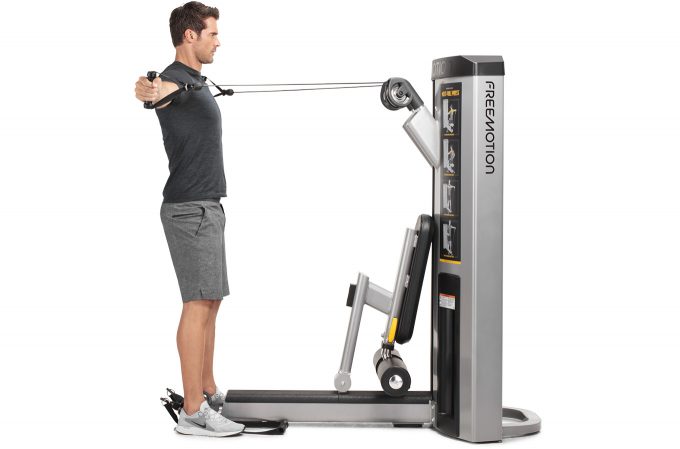

High/Low Pulley Exercise Options

The versatility in exercise options are only limited by imagination. High and low pulley options allow users to train virtually any muscle group.

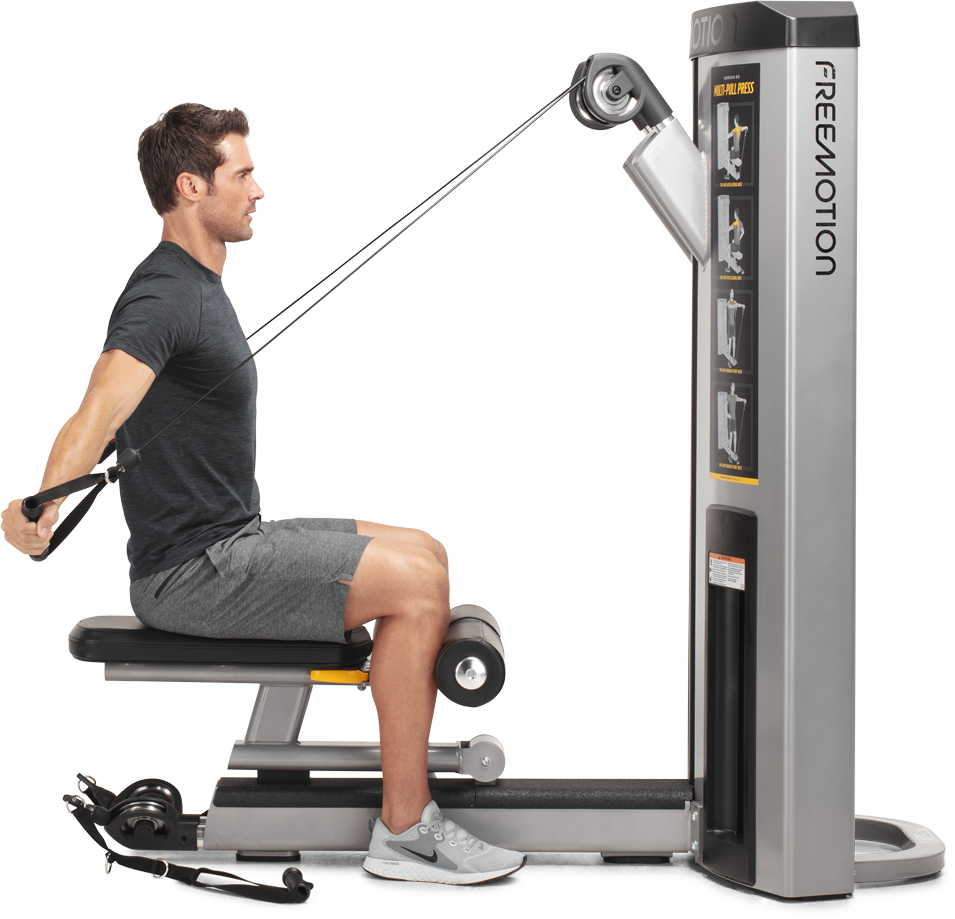

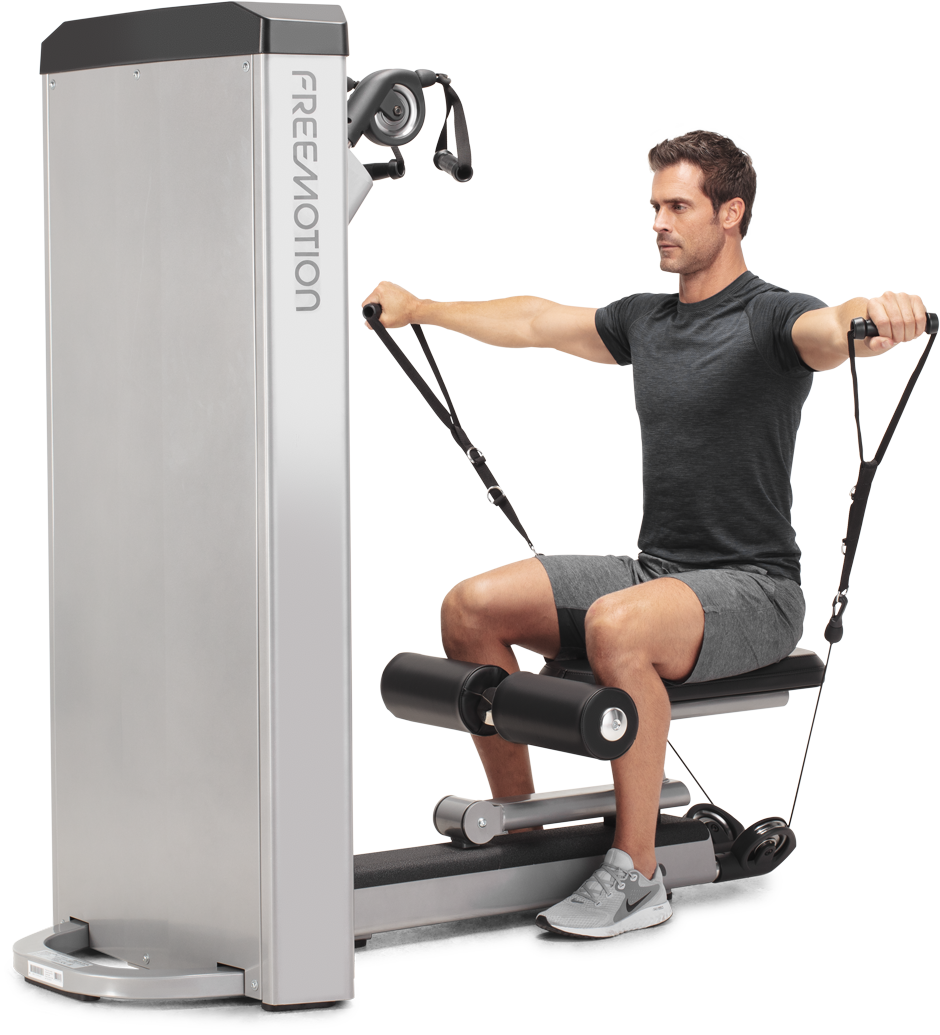

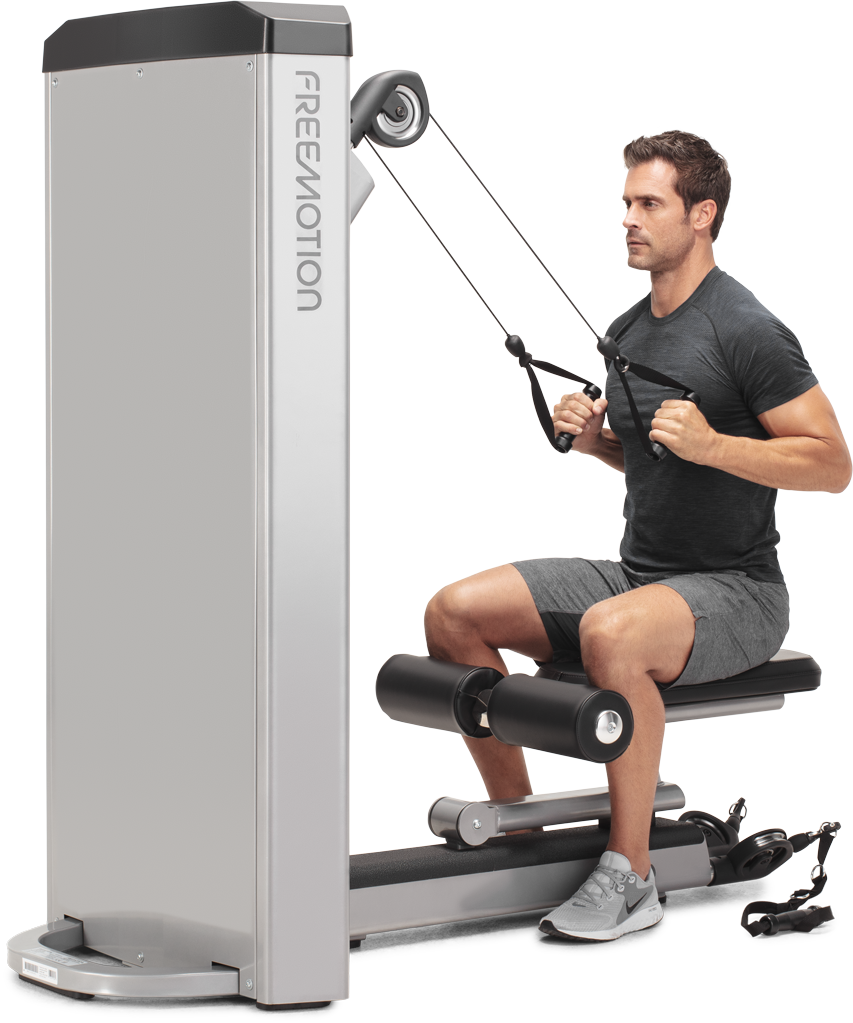

Isolation to Integration

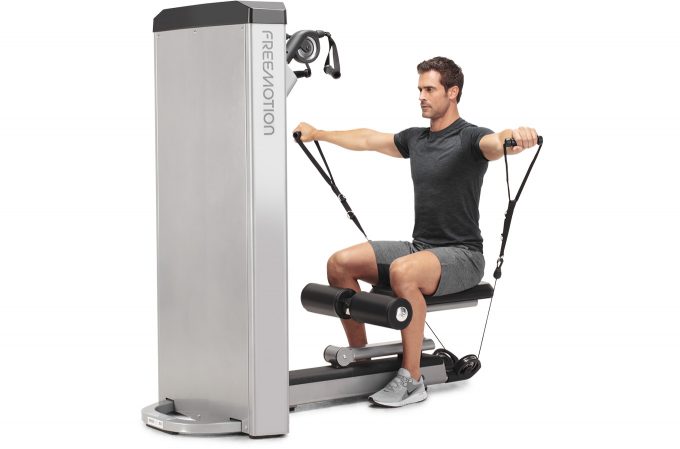

The machine features a seat and adjustable thigh pads to isolate the lower body. Users can simply fold the seat away to work out unsupported and integrate more muscle groups.

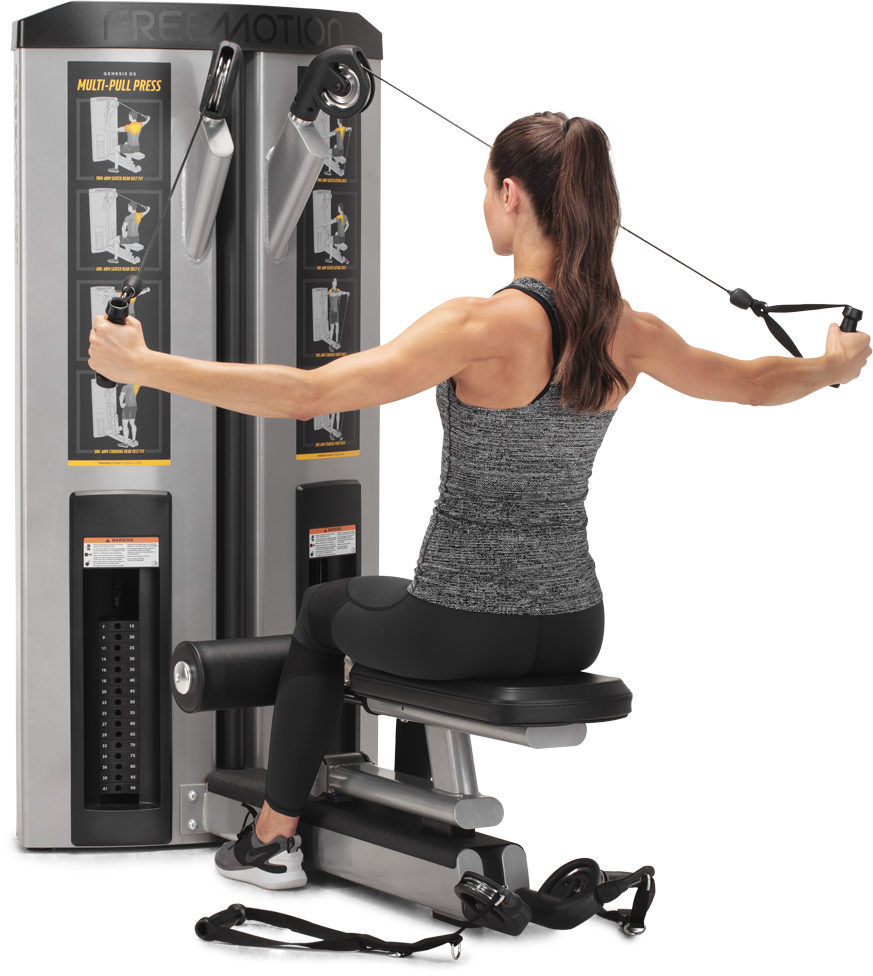

Freedom to Move

The swivel pulley design combined with the extensive cable travel allows users a wide, fluid range of motion.
