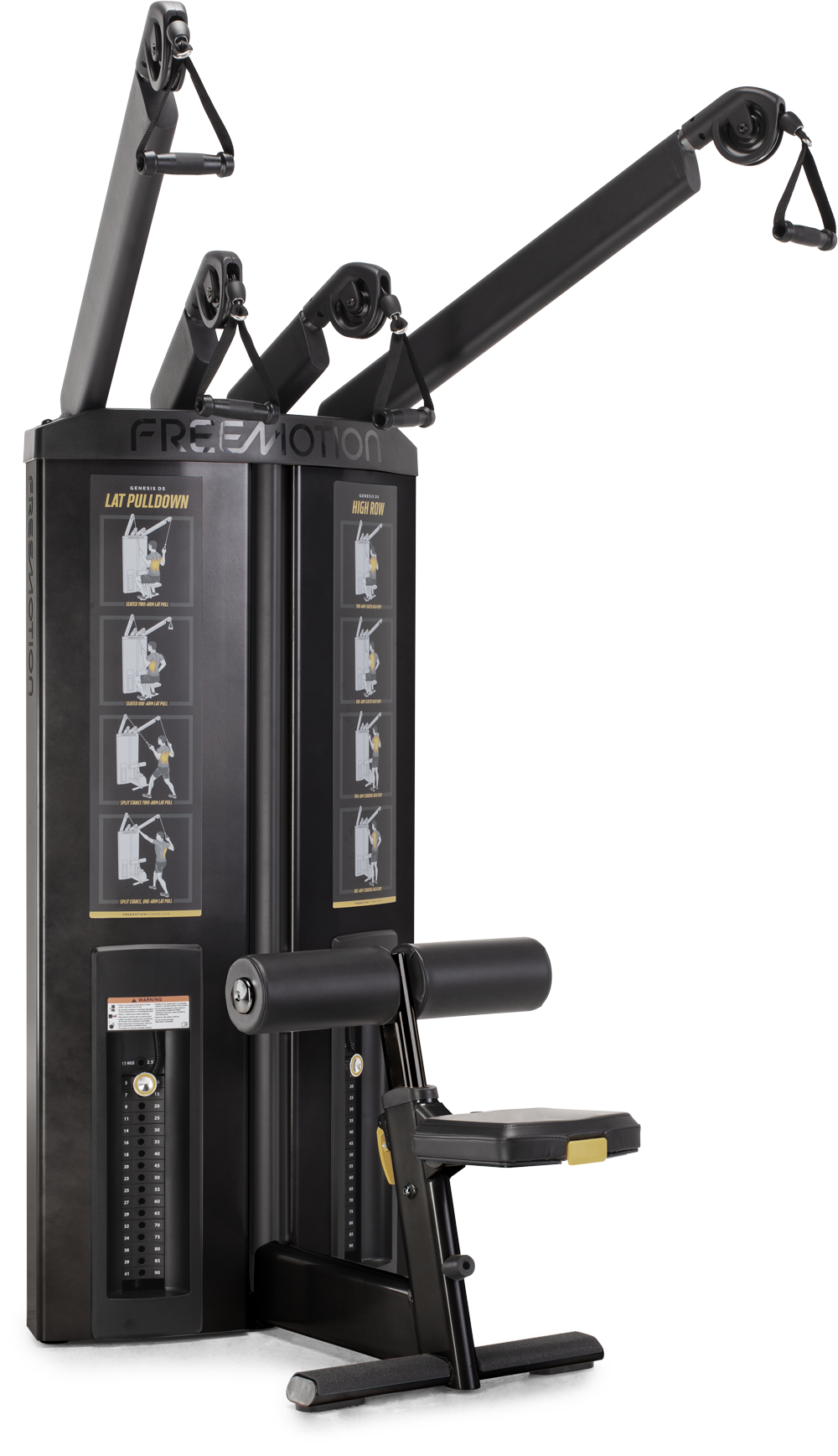

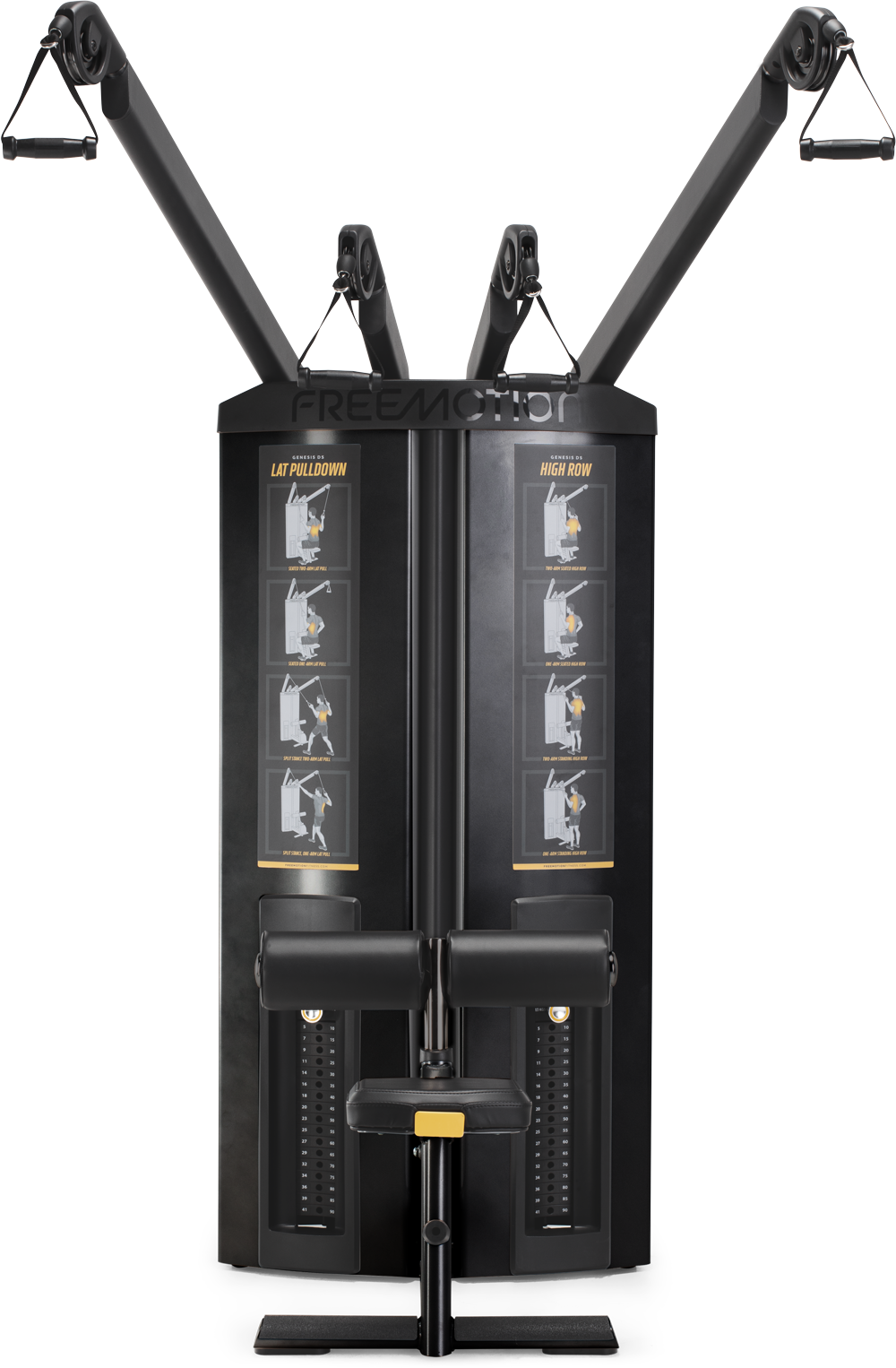

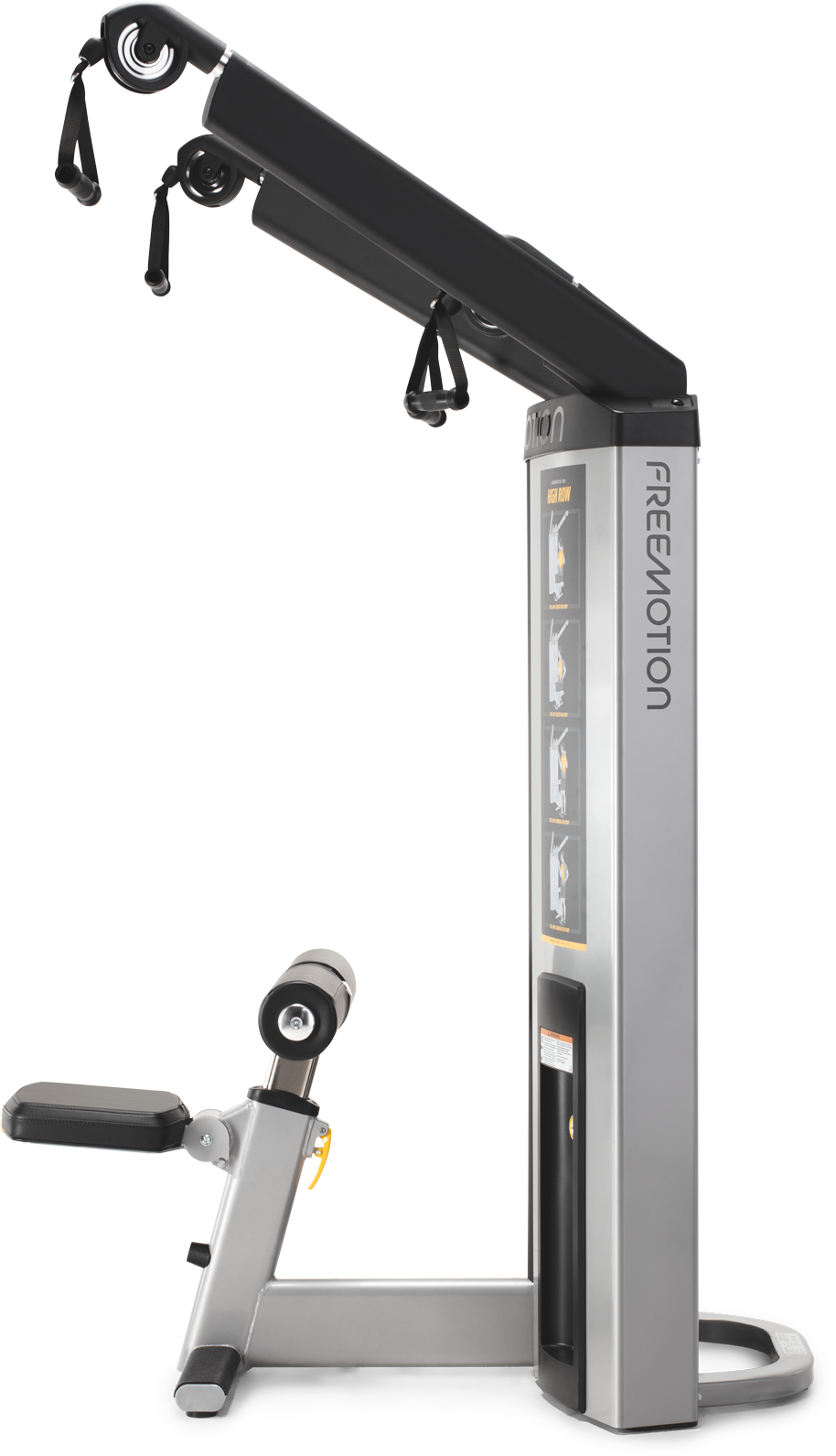

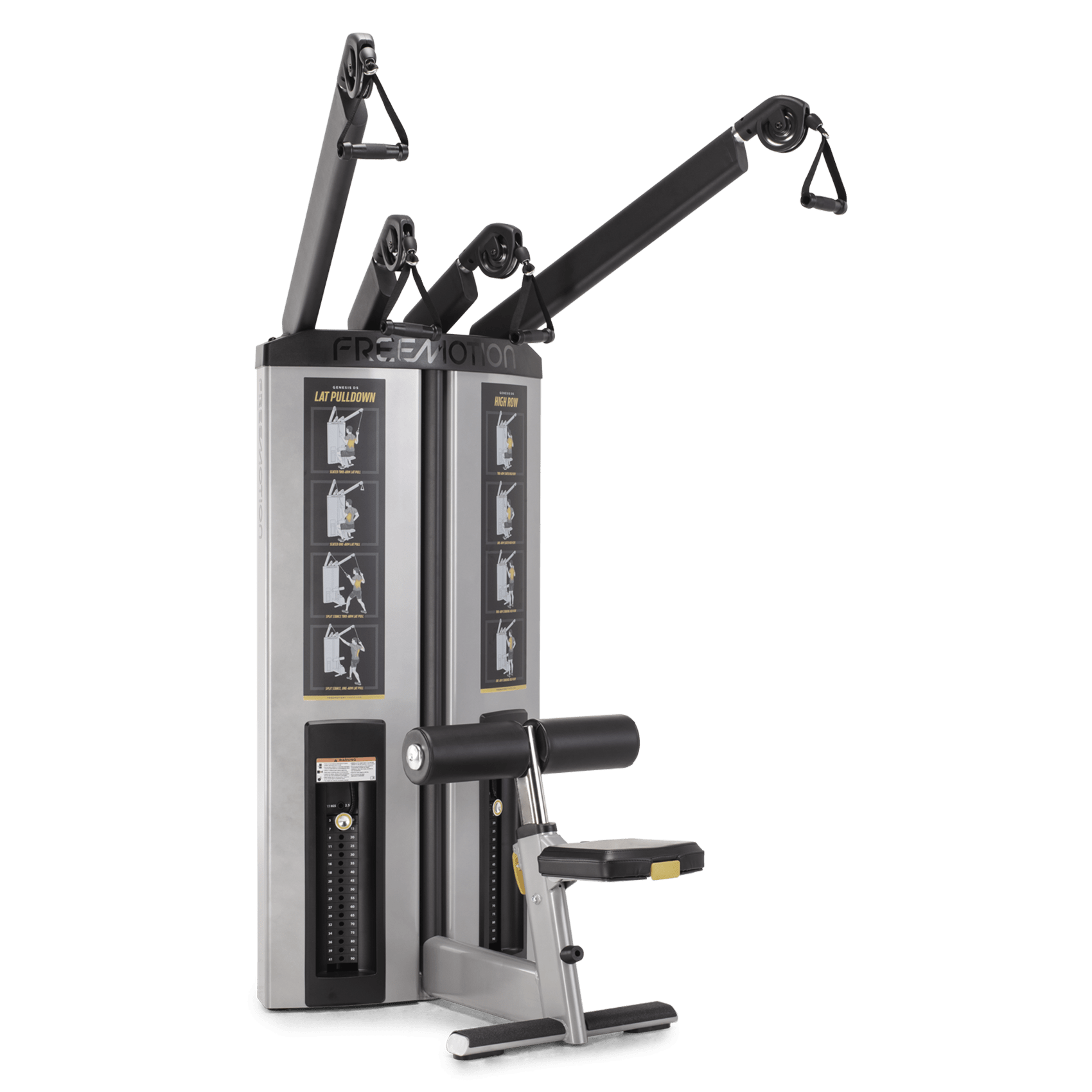

GD502

LAT PULLDOWN / HIGH ROW

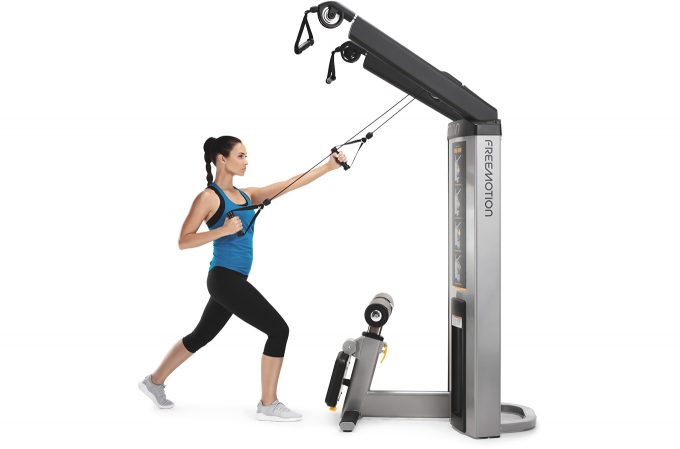

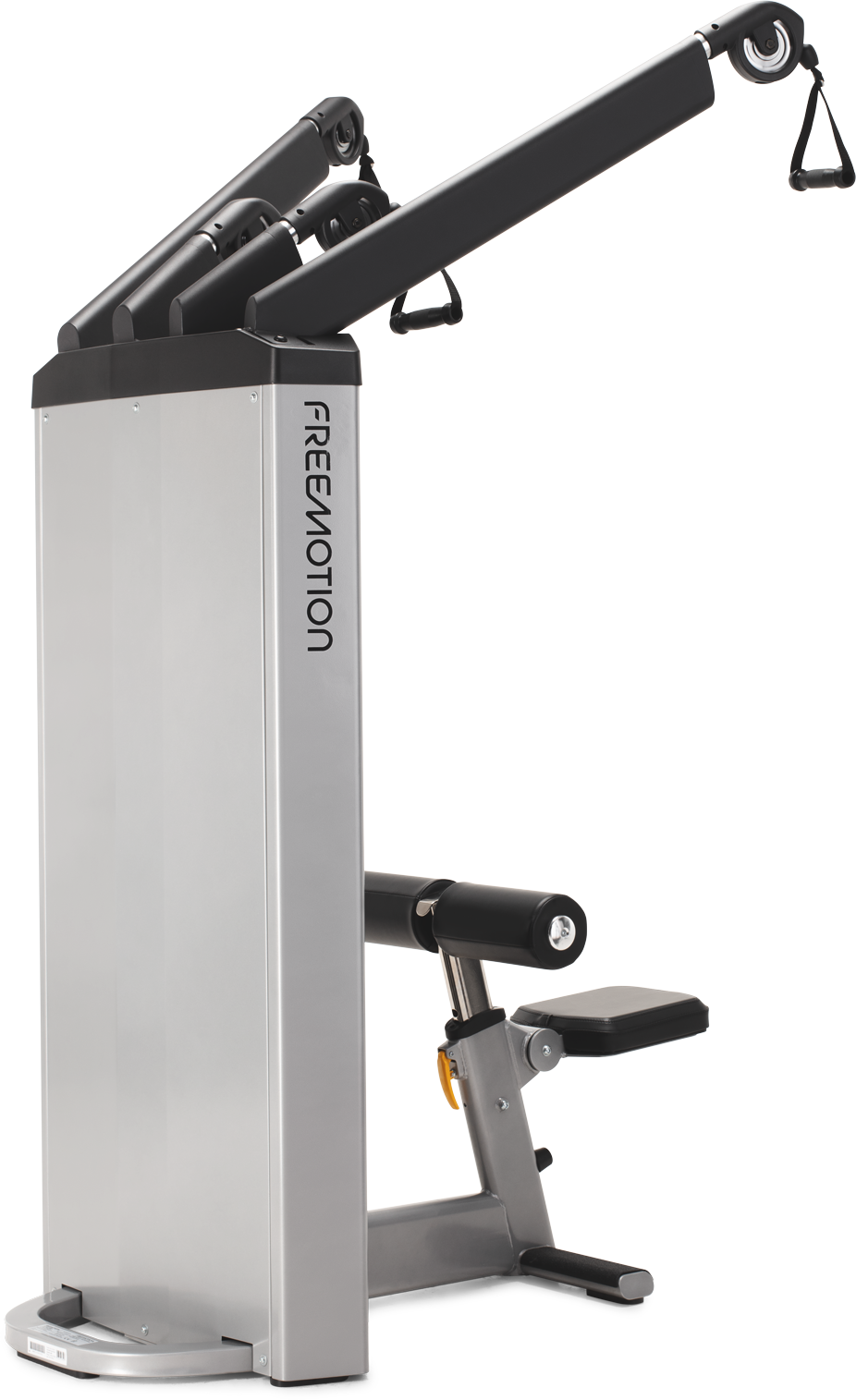

The GENESIS DS™ Lat Pulldown/High Row engages the arms, shoulders, back and stabilizer muscles to improve overall core strength and balance. The adjustable thigh pads roll for comfort and moves vertically to secure the lower body to focus on the back. Padded seat pivots out of the way to quickly transition to standing exercises. With the seat folded, the machine becomes wheelchair accessible.
Enquire Today

Details & SPecs

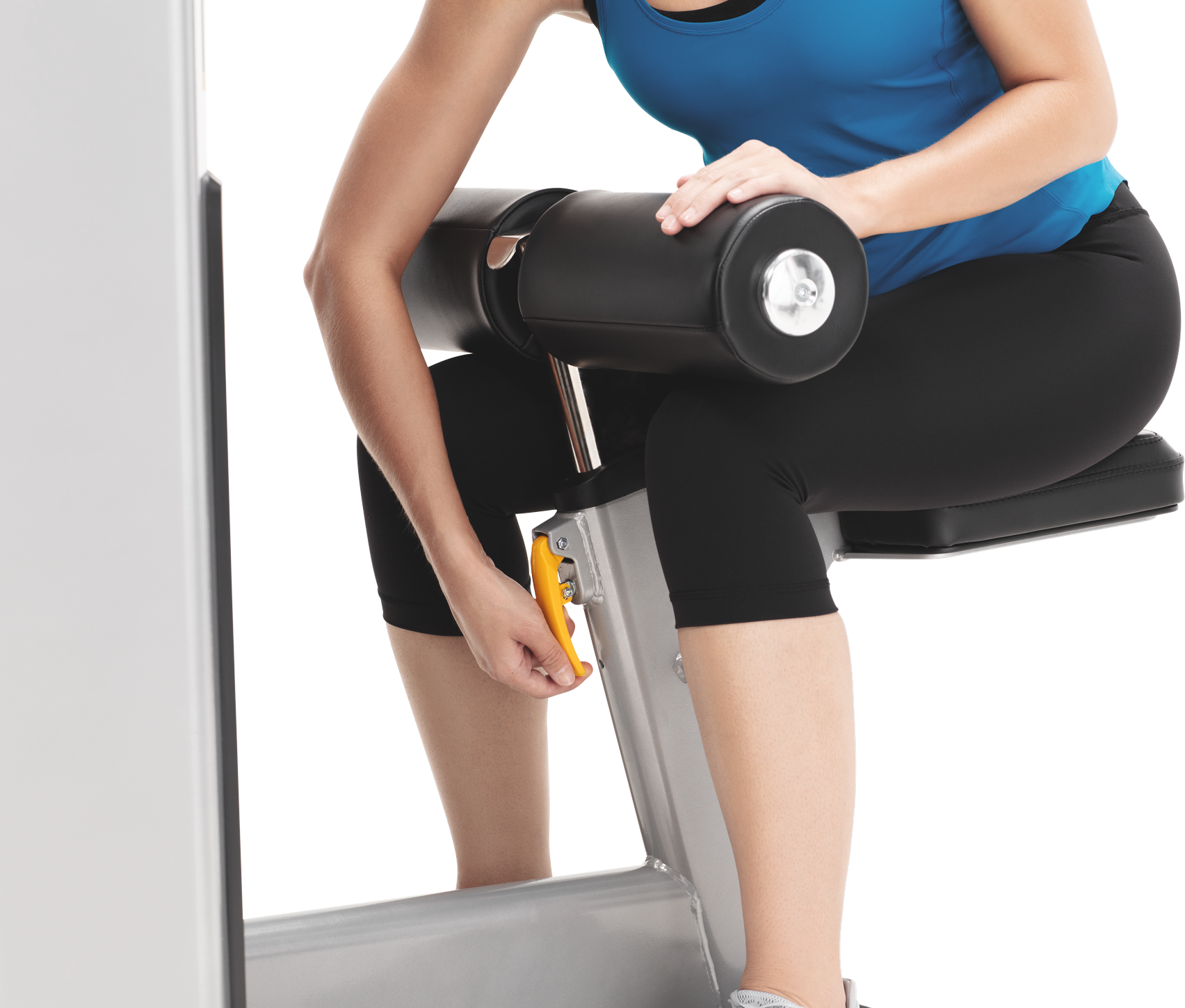

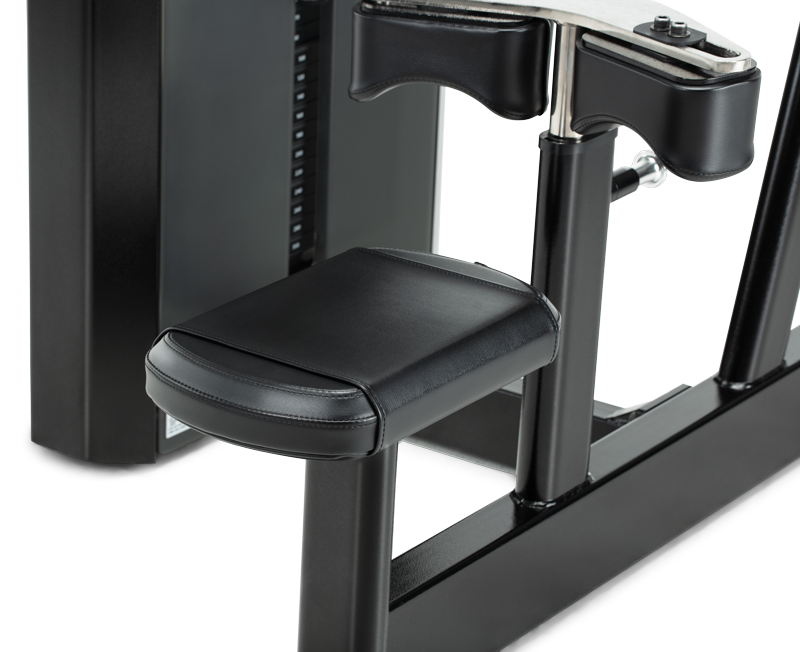

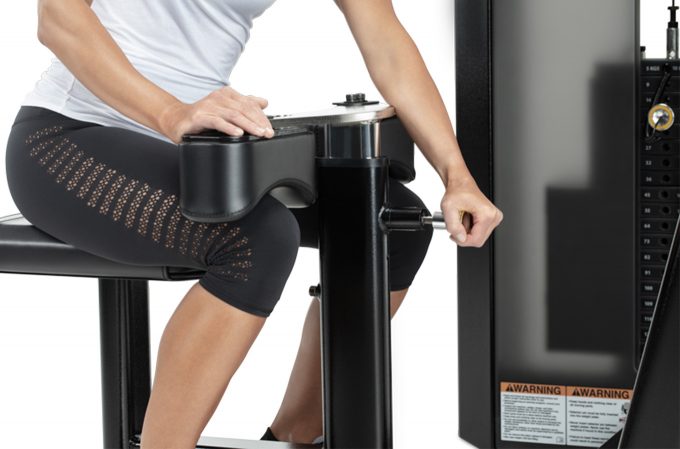

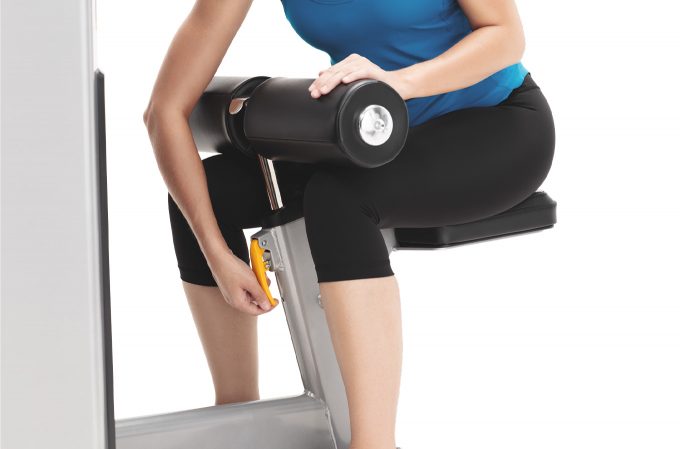

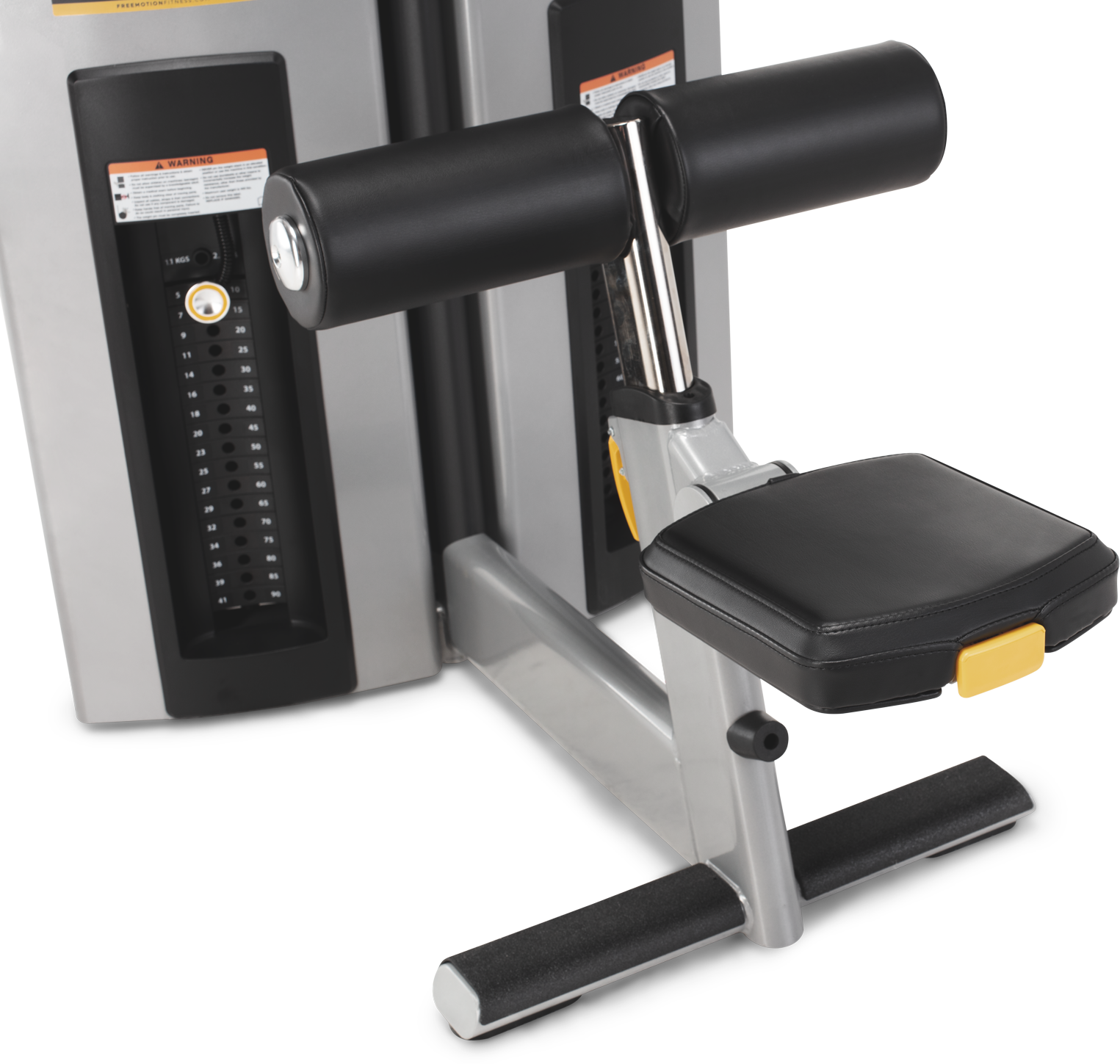

Padded Seat and Thigh Pads

Thigh pads are contoured and swivel to comfortably isolate the legs. Seat bottom is also padded for fit and comfort.

Extensive Cable Travel

Cable length allows for full flexion and extension. Single arm: 76 in / 193 cm, two arms: 38 in / 96.5 cm.

Enclosed Weight Stacks

The weight stacks are enclosed to limit access to moving parts for safety.

Built to Last

Constructed with 11- and 7-gauge steel and electrostatically powder-coated, this machine is built to stand up to the rigors of the weight room.

Kick Plates

Large, 16-gauge, stainless steel kick plates protect the machine from wear and tear.

Product Features

  • Instructional Placards
    Yes

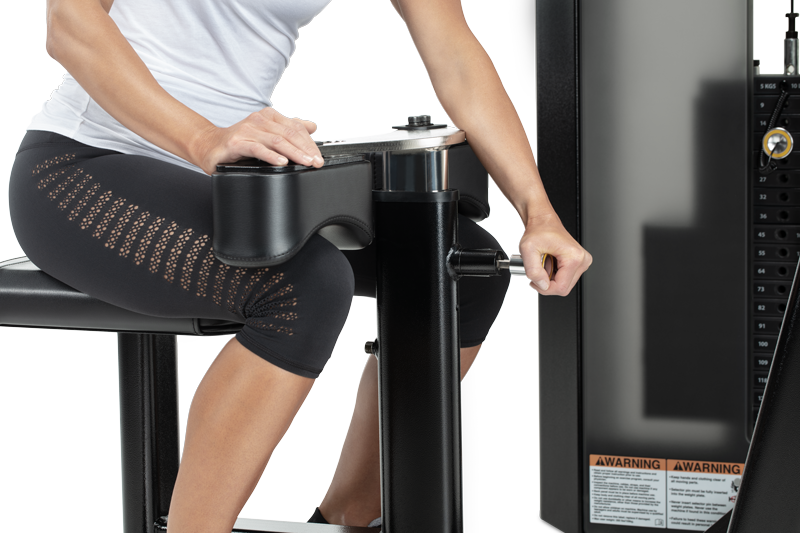

  • Adjustments
    Pivot seat pad for standing lat and row movements
  • Resistance
    1 arm: 90 lb / 40.8 kg
    2 arms: 180 lb / 81.6 kg
  • Seat
    Vinyl with 2 in / 5 cm thick foam
  • Pulleys
    Aluminum swivel pulleys
  • Cable Travel in (cm)
    72 in (182.8 cm) per arm
  • Rubber Feet
    Soft PVC
  • Maximum User Weight
    400 lb / 181.4 kg
  • ADA Compliant
    Wheelchair Accessible
Product Specifications

  • Weight Stack
    QTY 2 – 180 lb / 81.6 kg weight stacks
  • Drop Down Weight
    N/A
  • Weight Stack Configuration
    2 – 10 lb top plates, 34 – 10 lb plates
    2 – 4.5 kg top plates, 34 – 4.5 kg plates
  • Standard Frame Color
    Black River, Platinum Sparkle
  • Optional Frame Color
    N/A
  • Plastic Color
    Ebony
  • Standard Upholstery Color
    Black, Graphite, Blue Ridge, Burgundy, American Beauty Red
  • Optional Upholstery Color
    Custom colors available upon request
Product Dimensions & Weight

  • Dimensions L x W x H
    54 x 48 x 84 in / 137.1 x 121.9 x 213.3 cm
  • Footprint
    54 x 48 in / 137.1 x 121.9 cm
  • Weight
    709.8 lb / 322 kg
  • Shipping Dimensions
    Box 1: 74.8 x 38.9 x 47.5 in / 198.9 x 99 x 120.7 cm
    Box 2: 38.9 x 11.8 x 5.1 in / 99 x 29.9 x 13 cm
  • Shipping Weight
    830 lb / 376.6 kg
Certifications

  • EN957,CE
Warranty (US & Canada)

  • Frame
    10 Years
  • Parts
    3 Years
  • Cables & Labor
    1 Year
  • Cosmetic & Wear Items
    6 Months
  • Upholstery & Padding
    120 Days
Warranty (International)

  • Frame
    10 Years
  • Parts
    3 Years
  • Cables & Labor
    1 Year
  • Cosmetic & Wear Items
    6 Months
  • Upholstery & Padding
    120 Days
Enquire Today

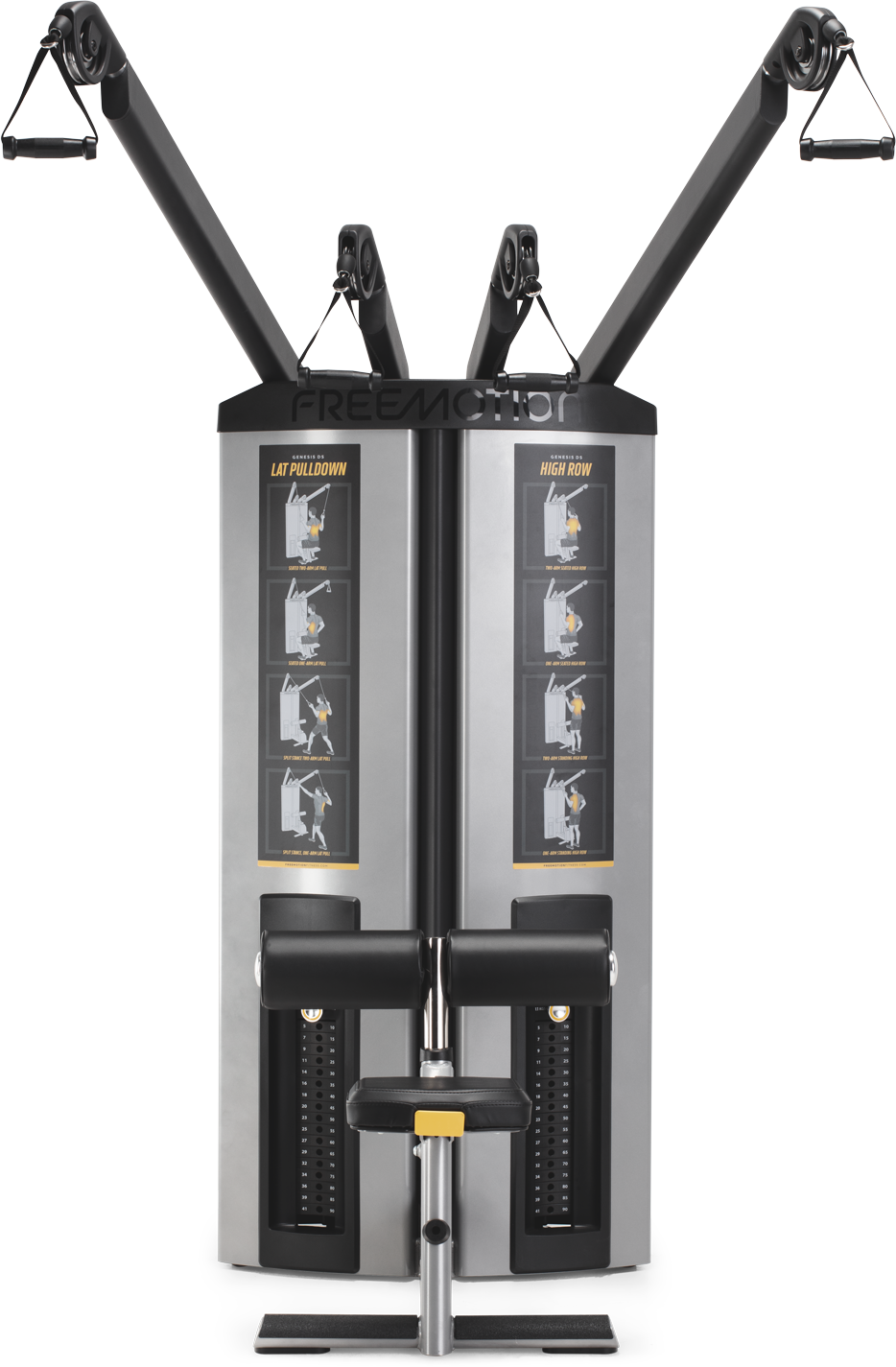

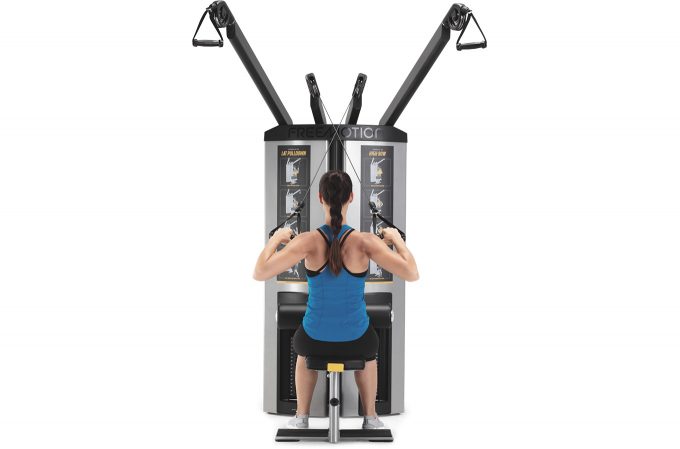

Dual Stations

Training two body parts on the same machine saves valuable floor space. Users can quickly transition to different exercises for metabolic training.

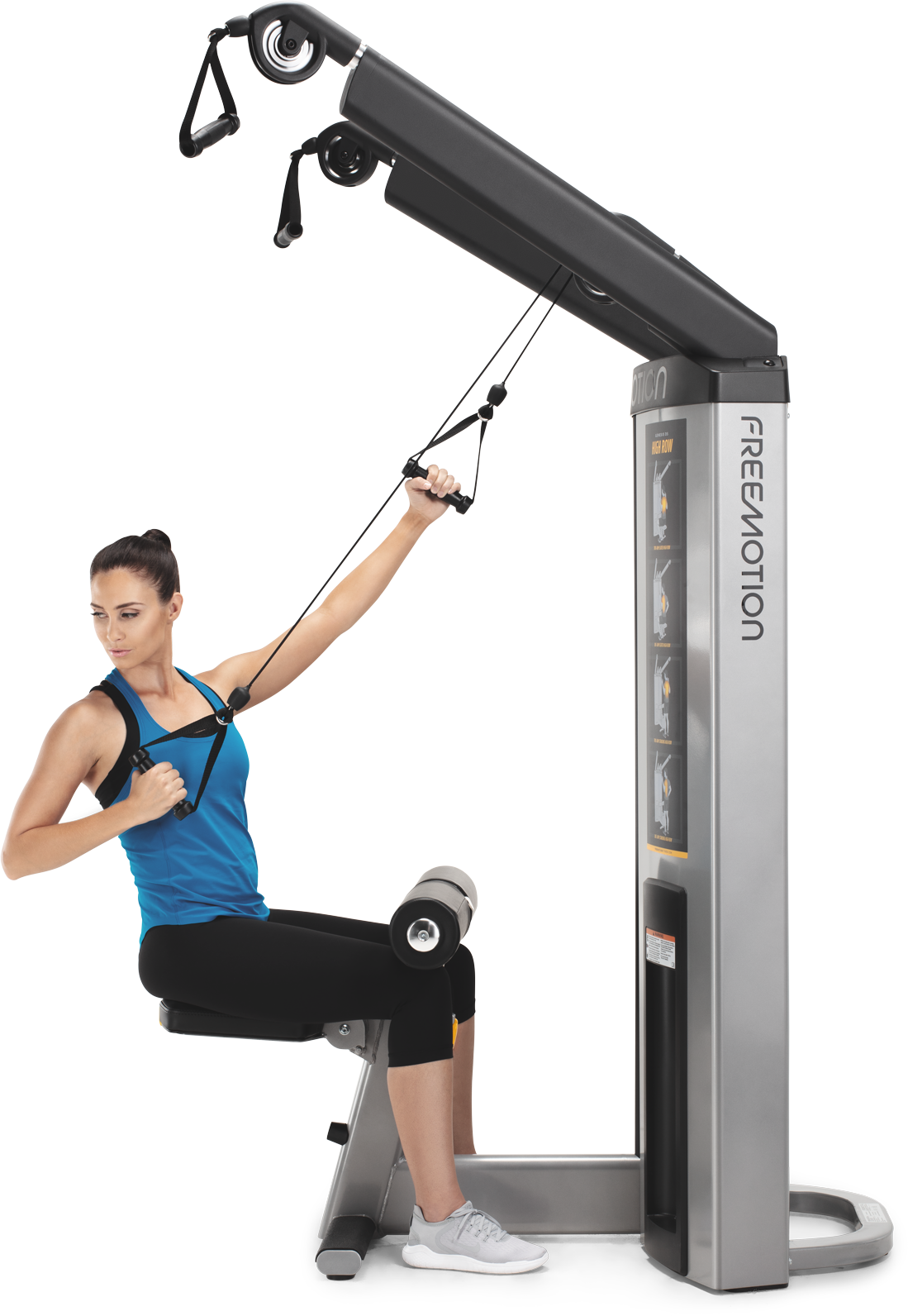

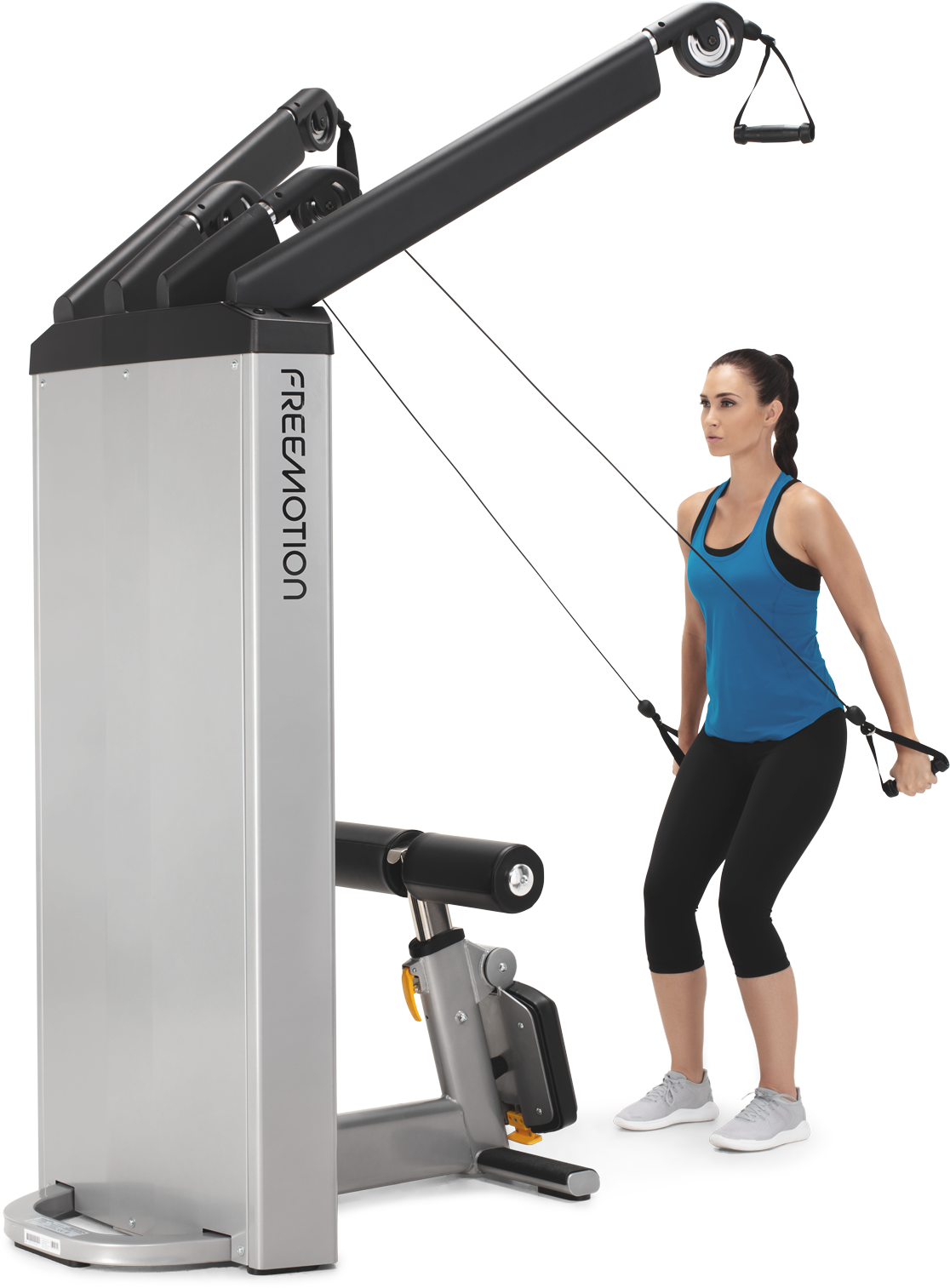

Isolation to Integration

The seat features adjustable thigh pads to isolate the lower body. Users can simply fold the seat away to work out unsupported and integrate more muscle groups.

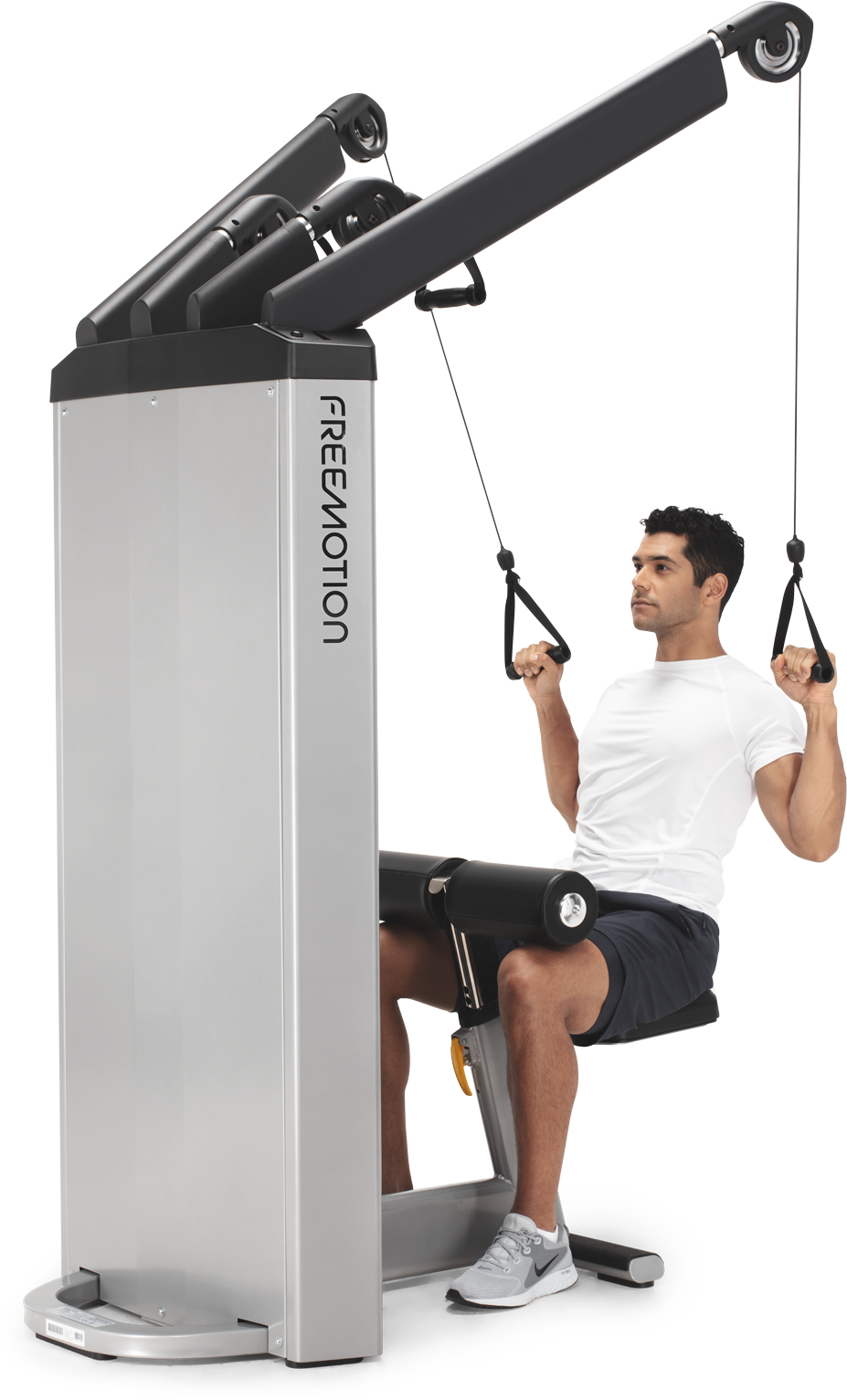

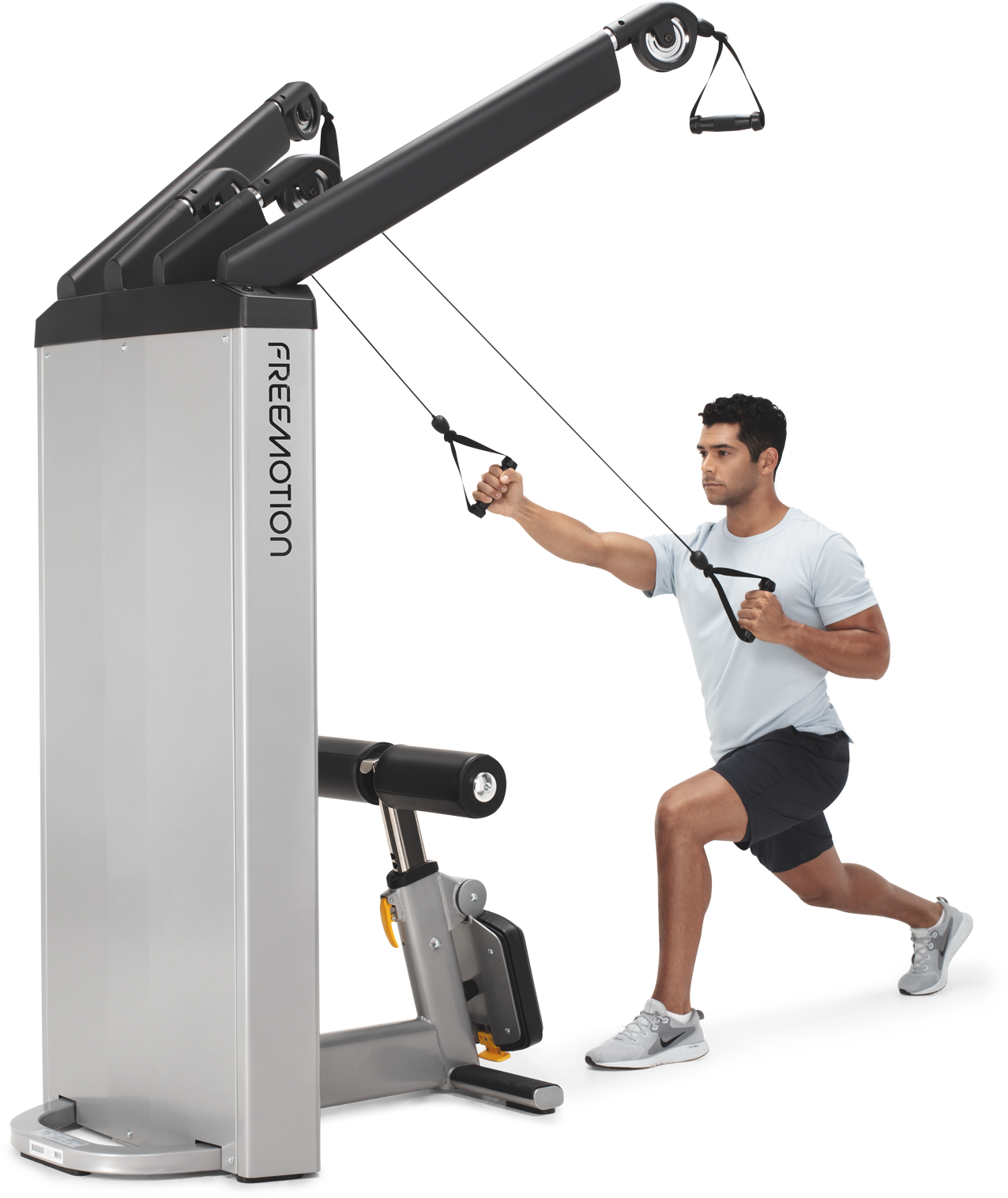

Freedom to Move

The swivel pulley design combined with the extensive cable travel allows users a wide, fluid range of motion.

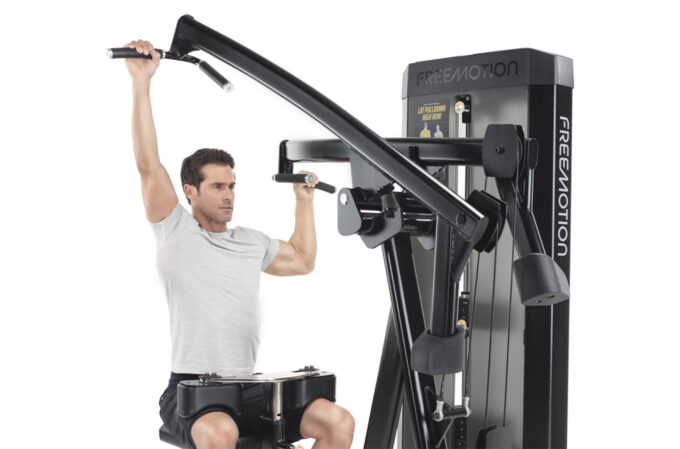

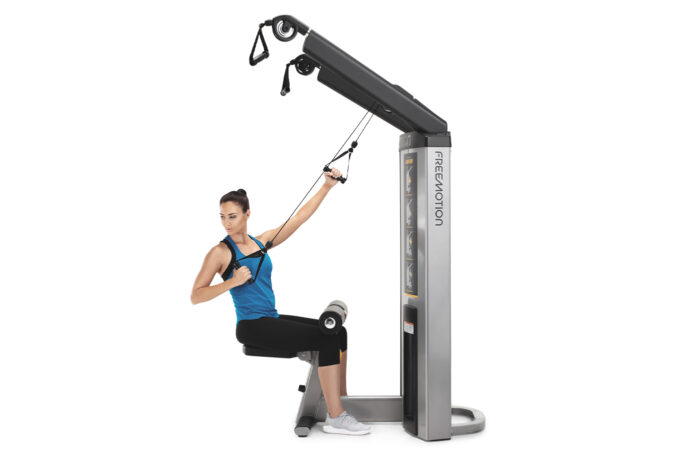

Movement Variety

Handles move independently for single and alternating arm exercises.
