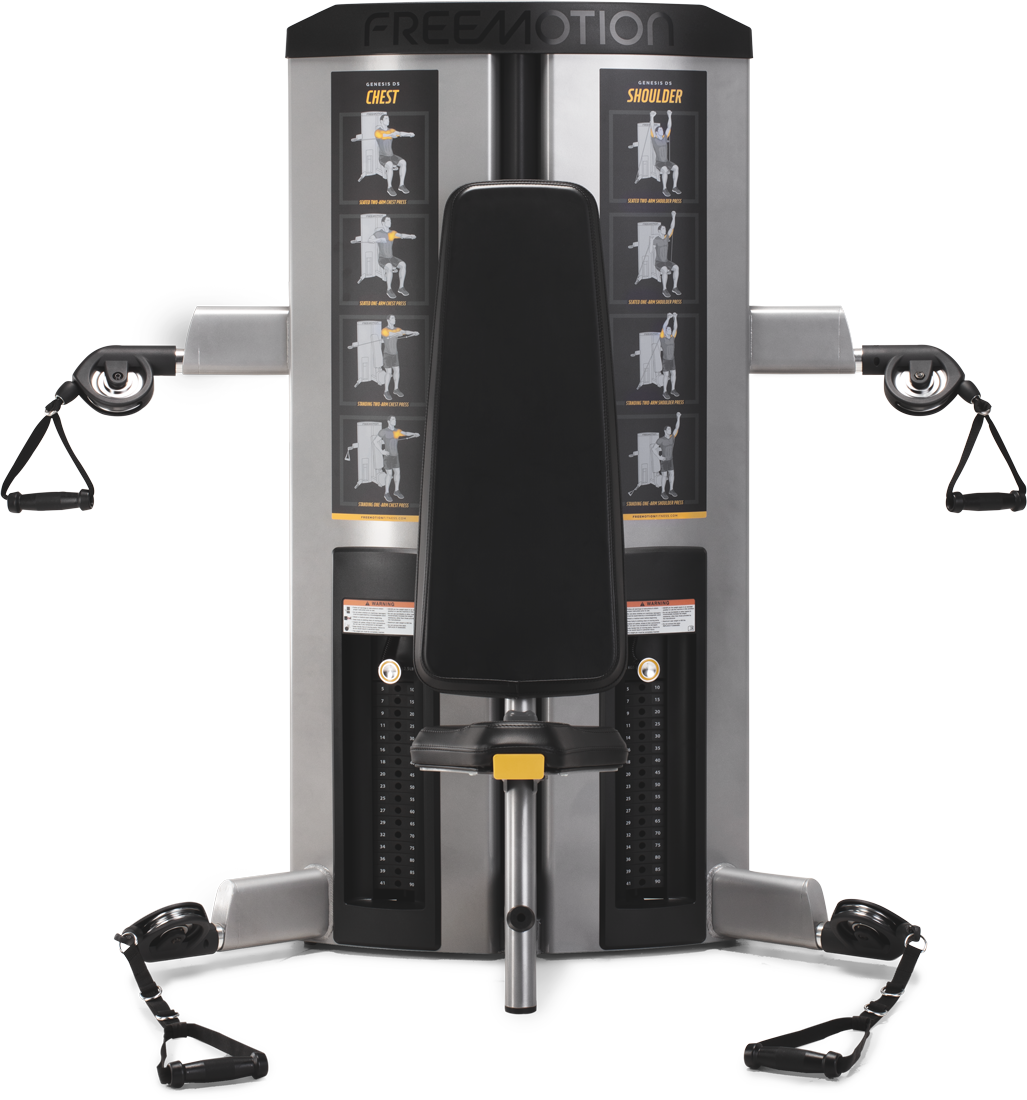

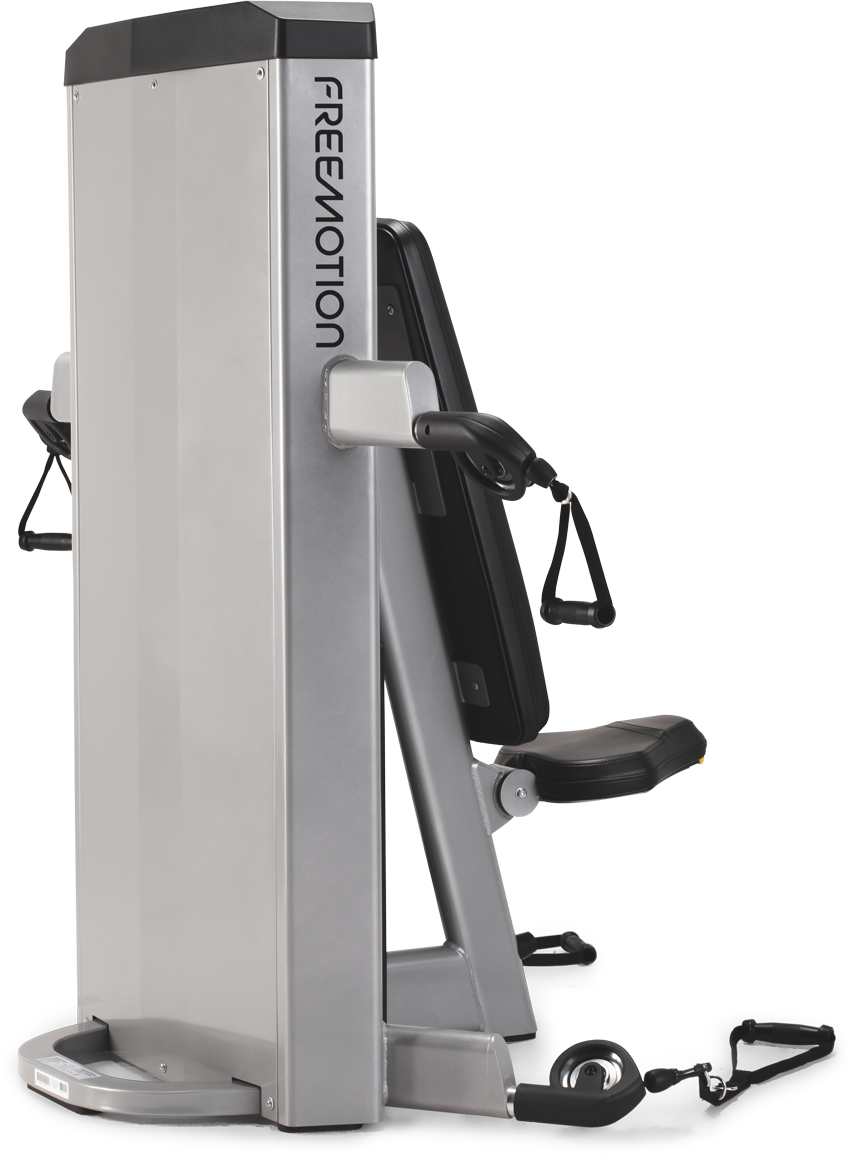

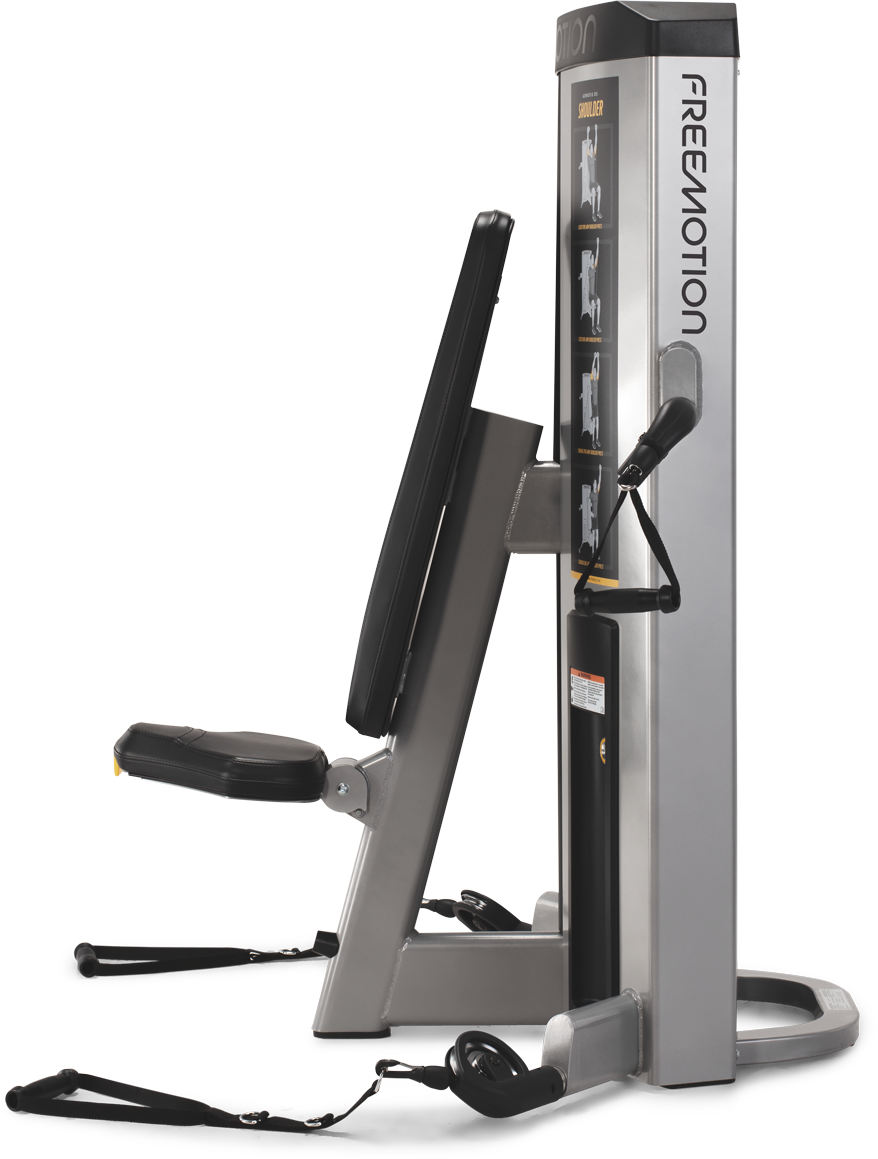

GD500

CHEST / SHOULDER

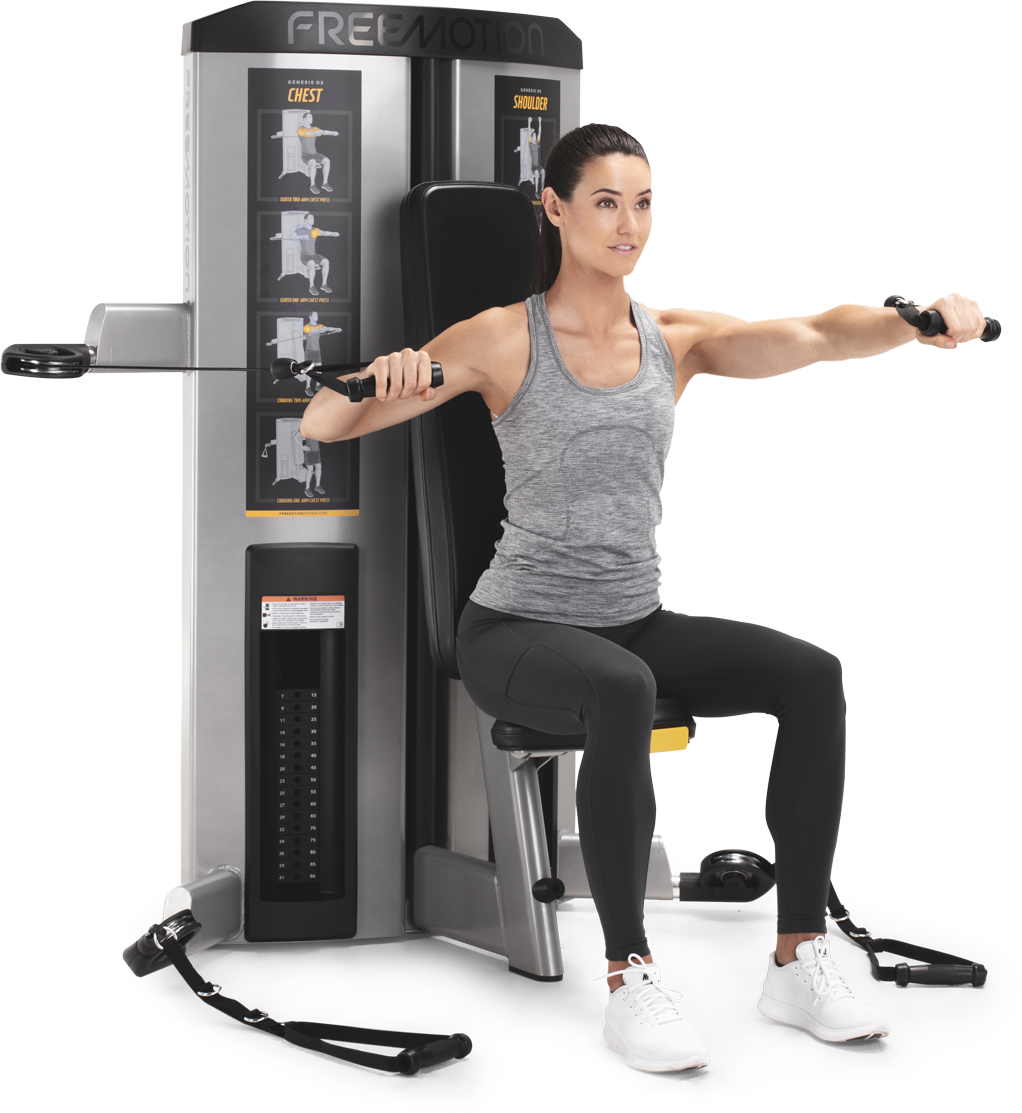

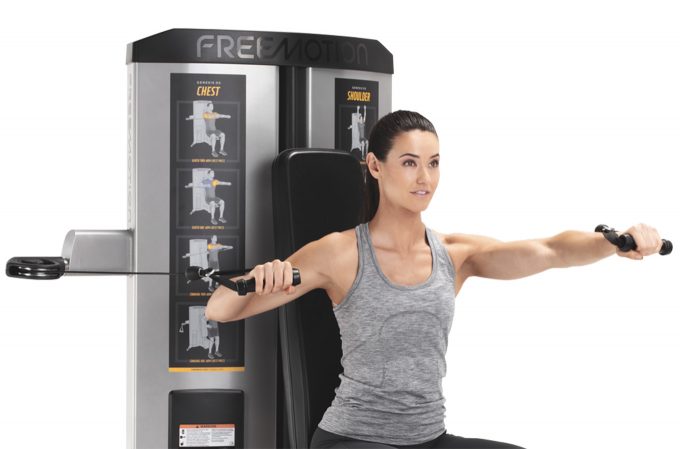

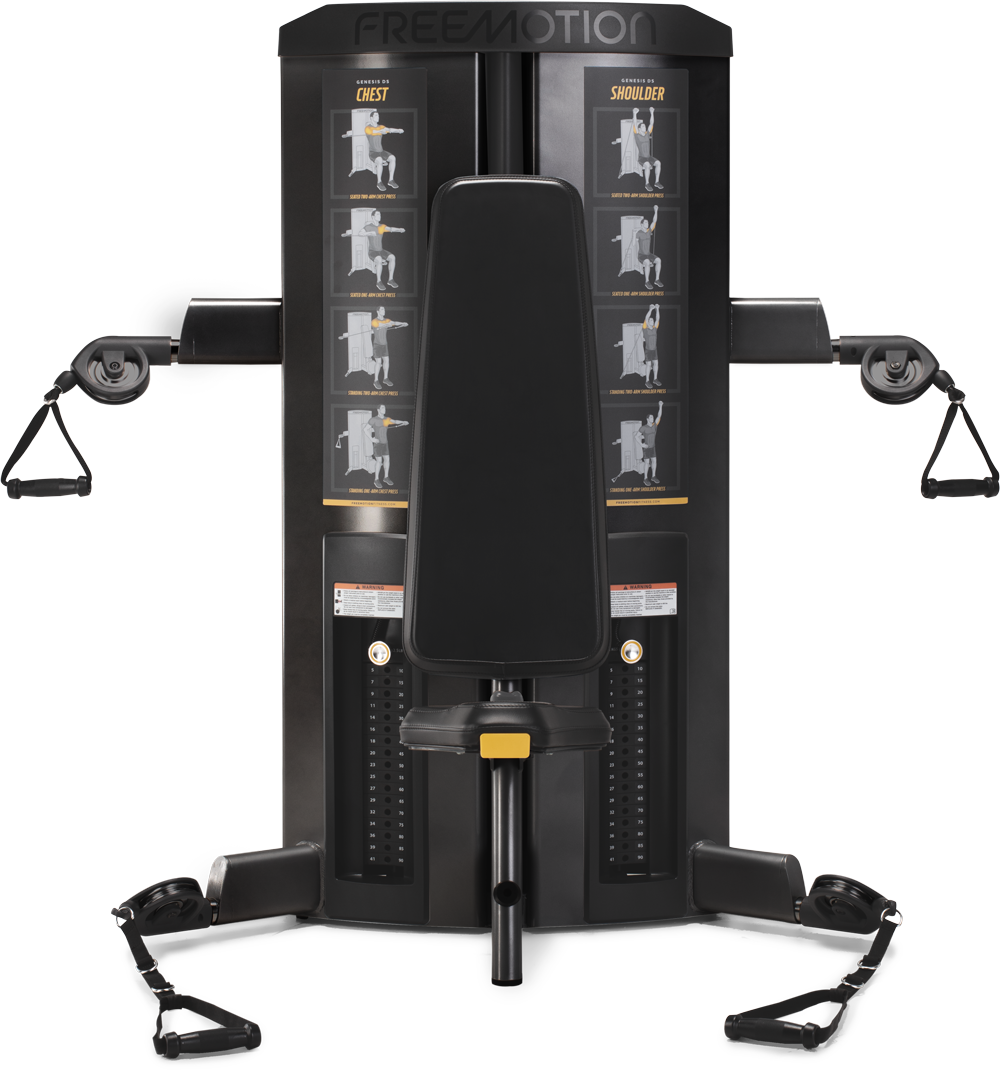

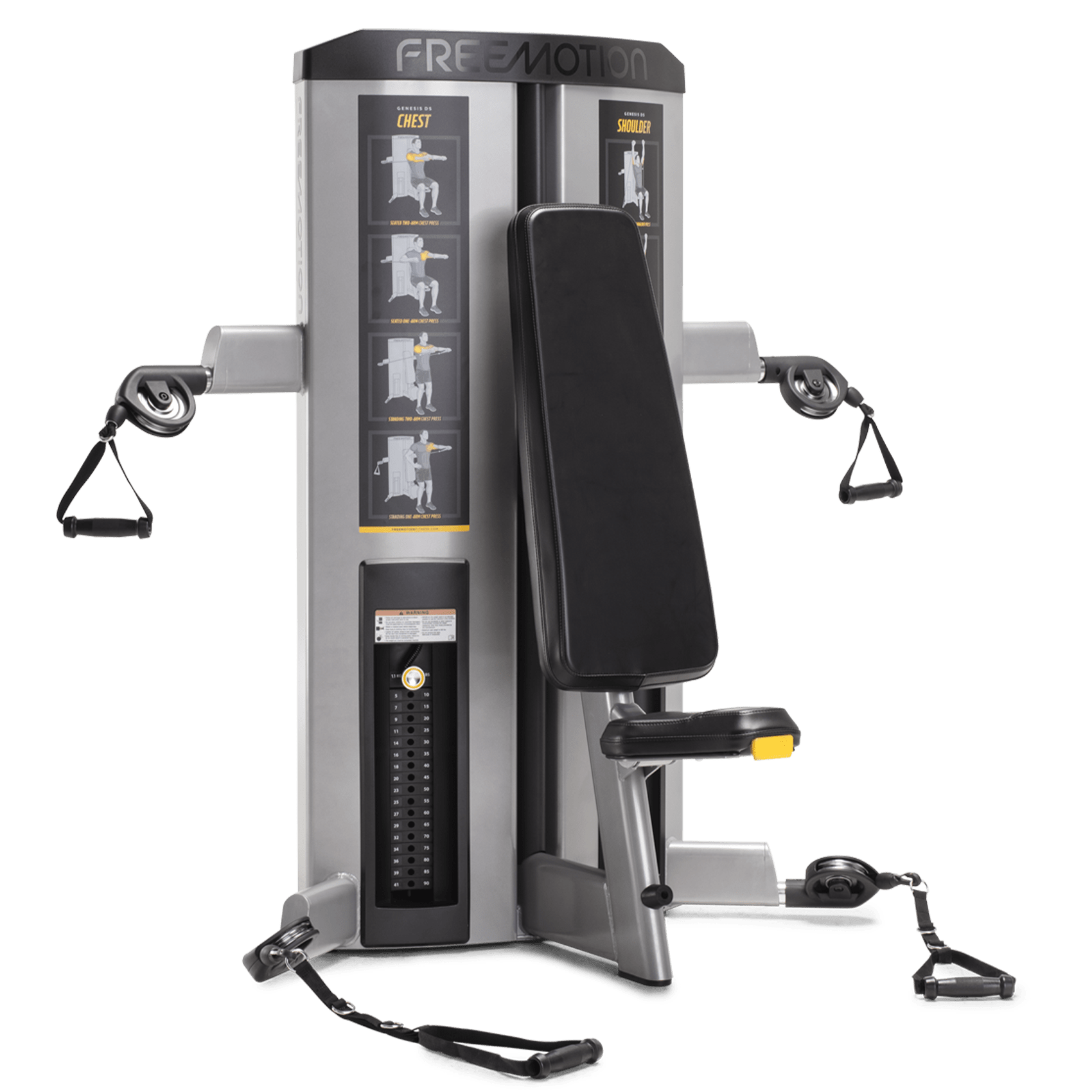

The GENESIS DS™ Chest/Shoulder optimizes a facility’s floorspace by offering two exercise options in one machine. The Chest/Shoulder machine is built with an elegant design making transitioning to different exercises a breeze. Dual weight stacks and handles that move independently allow for single and alternating arm exercises while the swiveling pulleys provide fluid cable travel.
Enquire Today

Details & SPecs

Specify the Intensity

Whether rehabbing an injury or training opposing actions, each handle is tethered to its own weight stack to dial in the resistance.

Enclosed Weight Stacks

The weight stacks are enclosed to limit access to moving parts for safety.

Extensive Cable Travel

Cable length allows for full flexion and extension. Single arm: 76 in / 193 cm, two arms: 38 in / 96.5 cm.

Padded, Contoured Seat

The seat features contoured padding for a comfortable fit.

Built to Last

Constructed with 11- and 7-gauge steel and electrostatically powder-coated, this machine is built to stand up to the rigors of the weight room.

Kick Plates

Large, 16-gauge, stainless steel kick plates protect the machine from wear and tear.

Product Features

  • Instructional Placards
    Yes
  • Adjustments
    Pivot seat pad for standing chest/shoulder movements
  • Resistance
    1 arm: 90 lb / 40.8 kg
    2 arms: 180 lb / 81.6 kg
  • Seat
    Vinyl with 2 in / 5 cm thick foam
  • Pulleys
    Aluminum swivel pulleys
  • Cable Travel
    72 in / 182.8 cm per arm
  • Rubber Feet
    Soft PVC
  • Maximum User Weight
    400 lb / 181.4 kg
  • Americans with Disabilities Act (ADA)
    Wheelchair Accessible
Product Specifications

  • Weight Stack
    QTY 2 – 180 lb / 81.6 kg weight stacks
  • Drop Down Weight
    N/A
  • Weight Stack Configuration
    2 – 10 lb top plates, 34 – 10 lb plates
    2 – 4.5 kg top plates, 34 – 4.5 kg plates
  • Standard Frame Color
    Black River, Platinum Sparkle
  • Optional Frame Color
    N/A
  • Plastic Color
    Ebony
  • Standard Upholstery Color
    Black, Graphite, Blue Ridge, Burgundy, American Beauty Red
  • Optional Upholstery Color
    Custom colors available upon request
Product Dimensions & Weight

  • Dimensions L x W x H
    47 x 64 x 64 in / 119.3 x 162.5 x 162.5 cm
  • Weight
    609.5 lb / 276.5 kg
  • Shipping Dimensions
    Box 1: 51.9 x 36.2 x 75.6 in / 132 x 91.9 x 192.2 cm
    Box 2: 48.8 x 14.9 x 3.9 in / 124 x 37.9 x 10 cm
  • Shipping Weight
    734.3 lb / 337.2 kg
Certifications

  • EN957,CE
Warranty (US & Canada)

  • Frame
    10 Years
  • Parts
    3 Years
  • Cables & Labor
    1 Year
  • Cosmetic & Wear Items
    6 Months
  • Upholstery & Padding
    120 Days
Warranty (International)

  • Frame
    10 Years
  • Parts
    3 Years
  • Cables & Labor
    1 Year
  • Cosmetic & Wear Items
    6 Months
  • Upholstery & Padding
    120 Days
Enquire Today

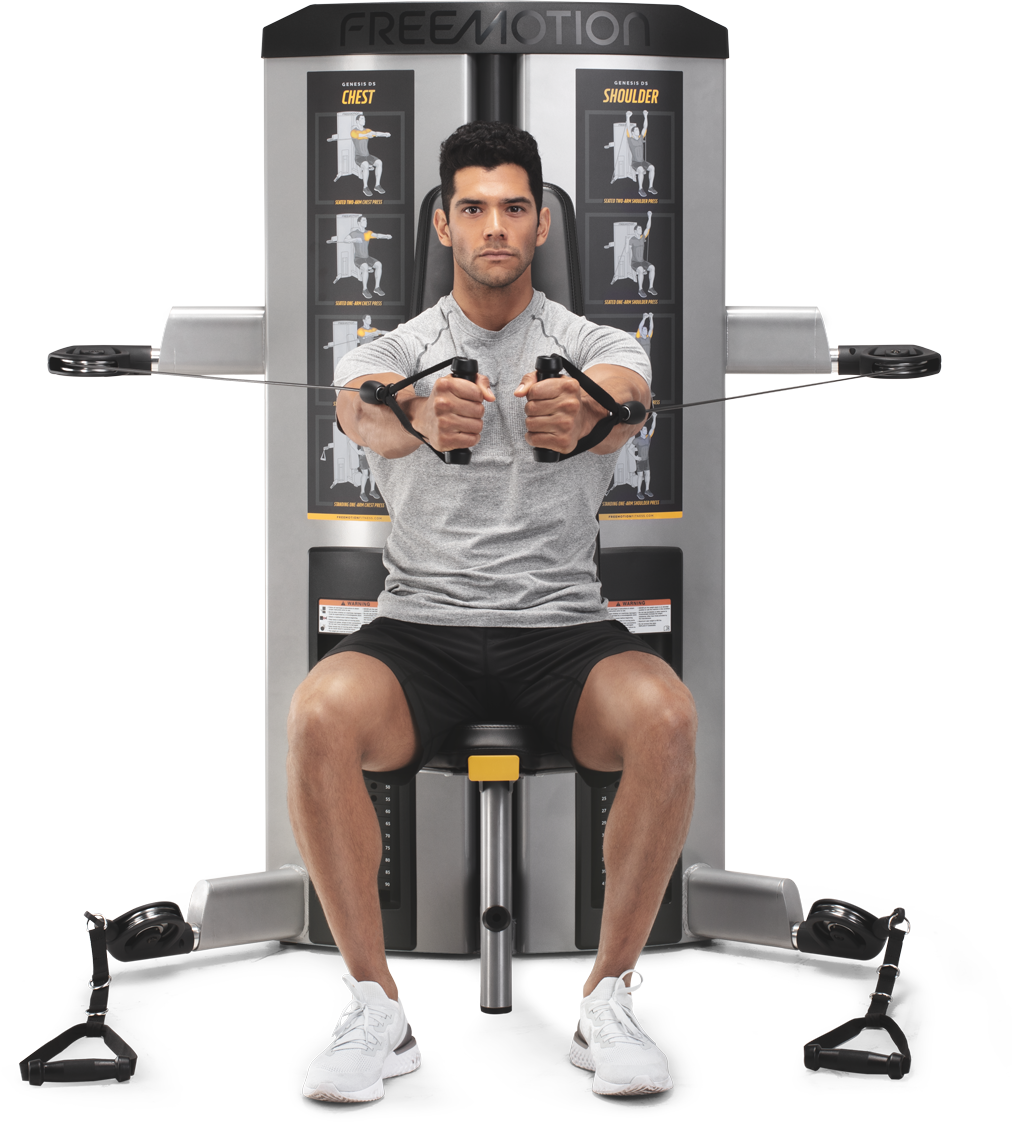

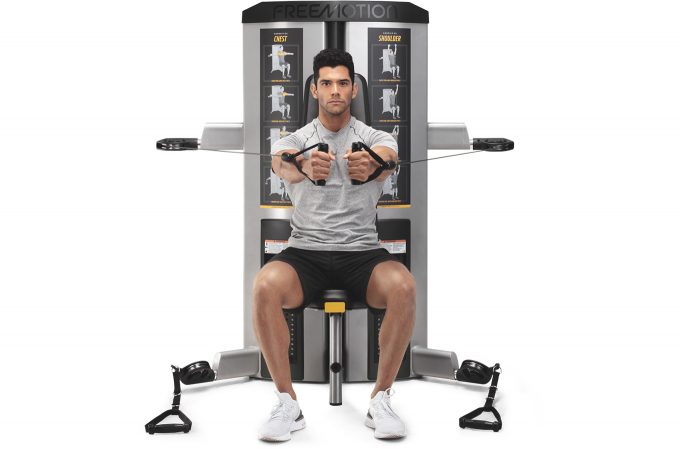

Dual Stations

Training two body parts on the same machine saves valuable floor space. Users can quickly transition to different exercises for metabolic training.

Movement Variety

Handles move independently for single and alternating arm exercises.

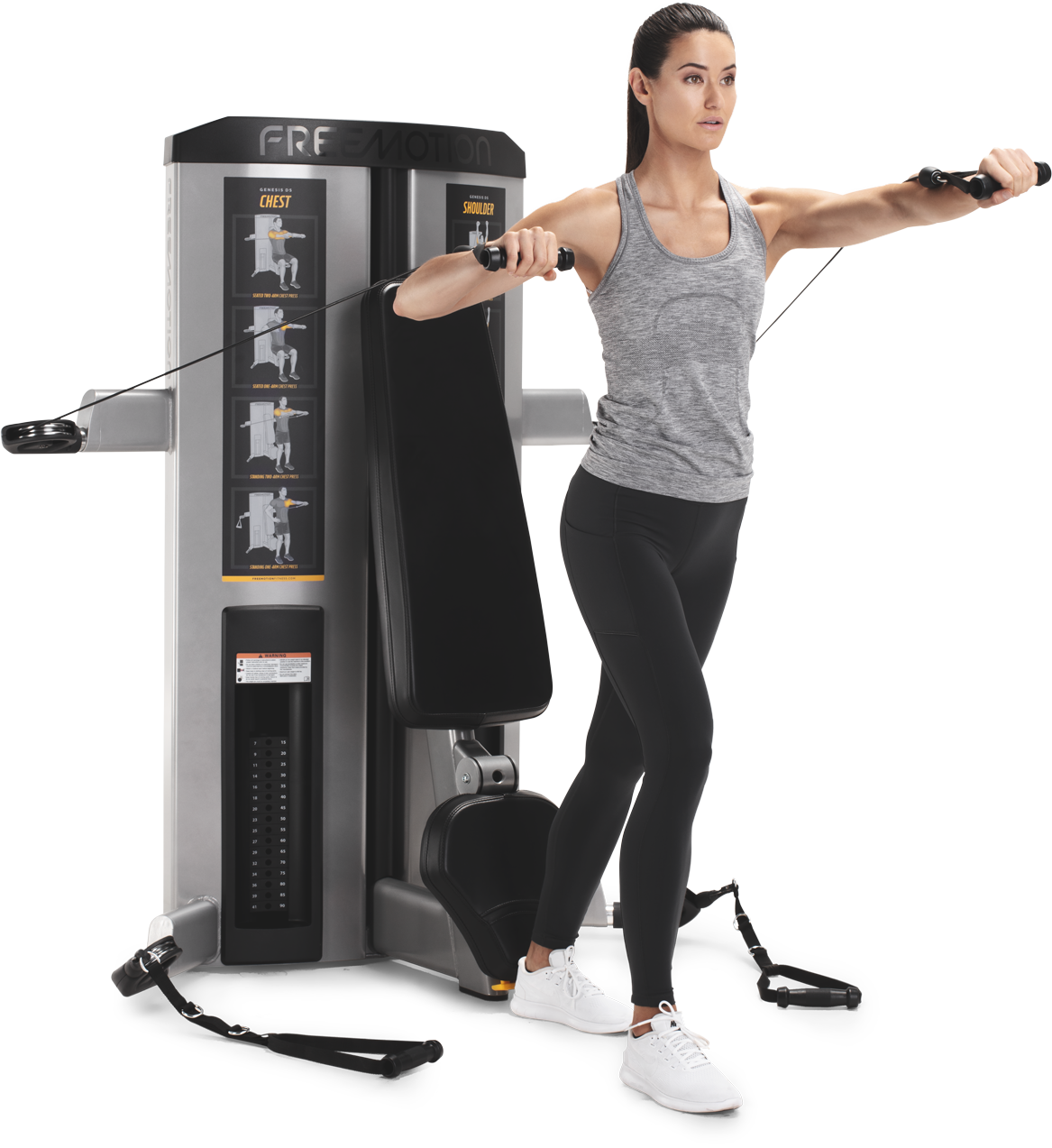

Isolation to Integration

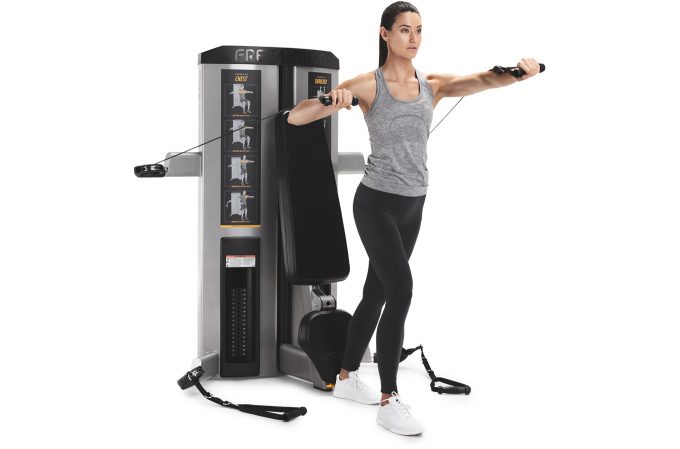

Users have the option to keep the seat engaged to isolate the lower body. Simply fold the seat away to integrate more muscle groups while standing.
