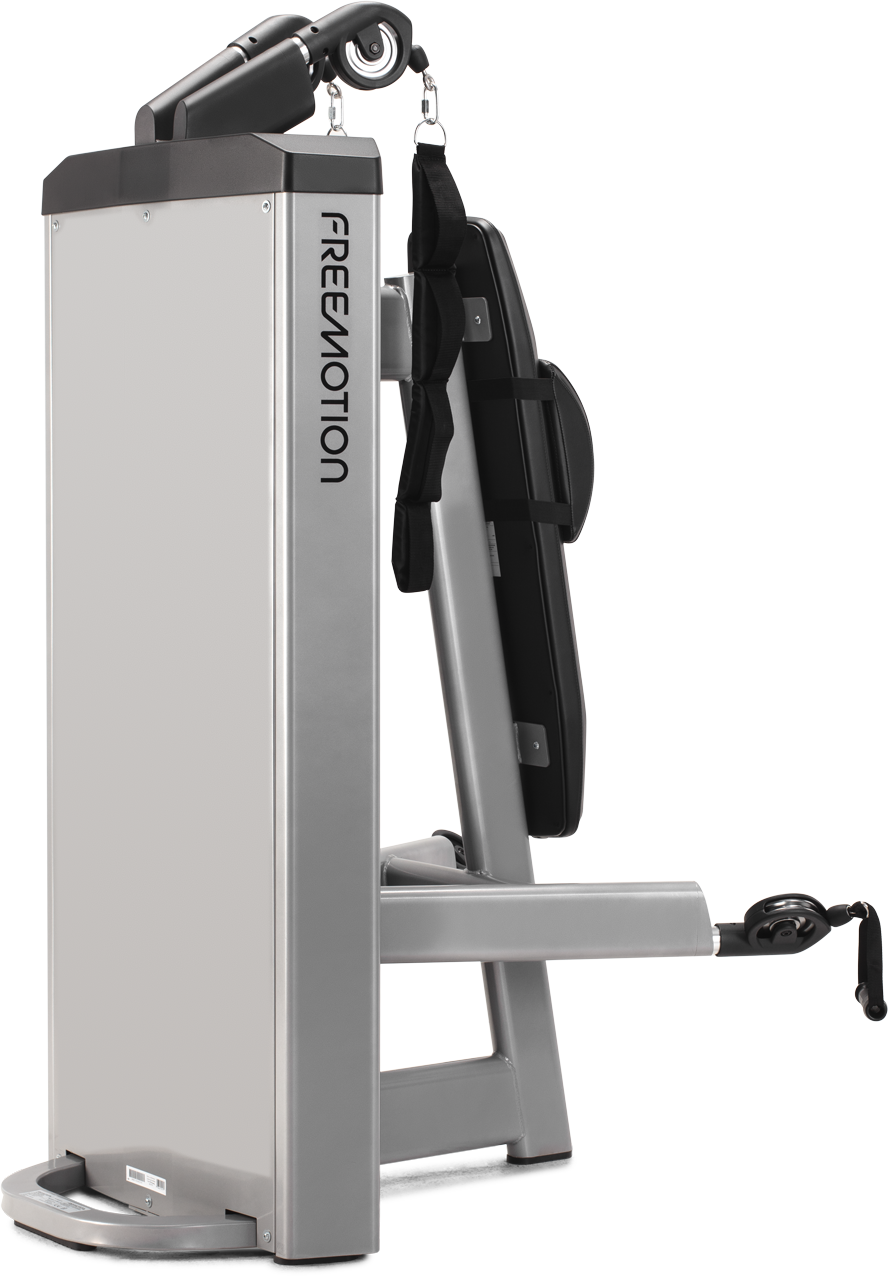

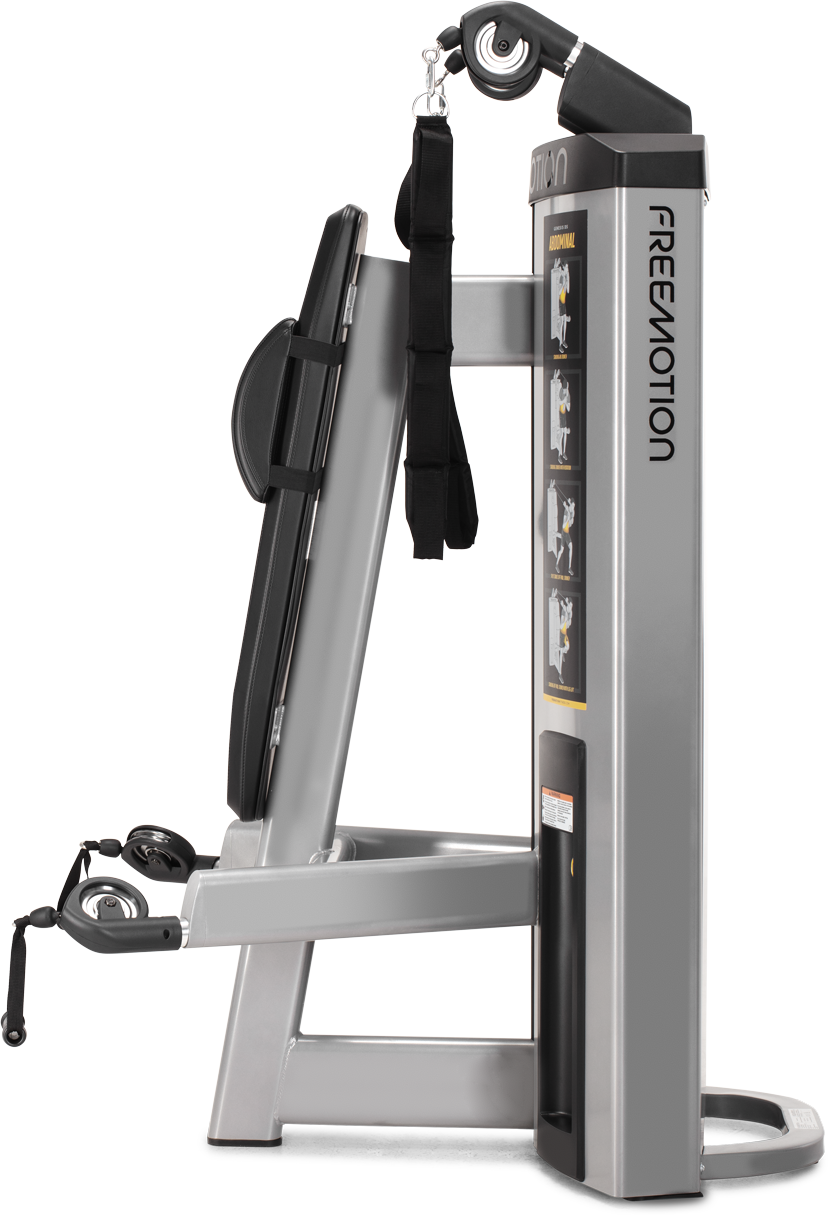

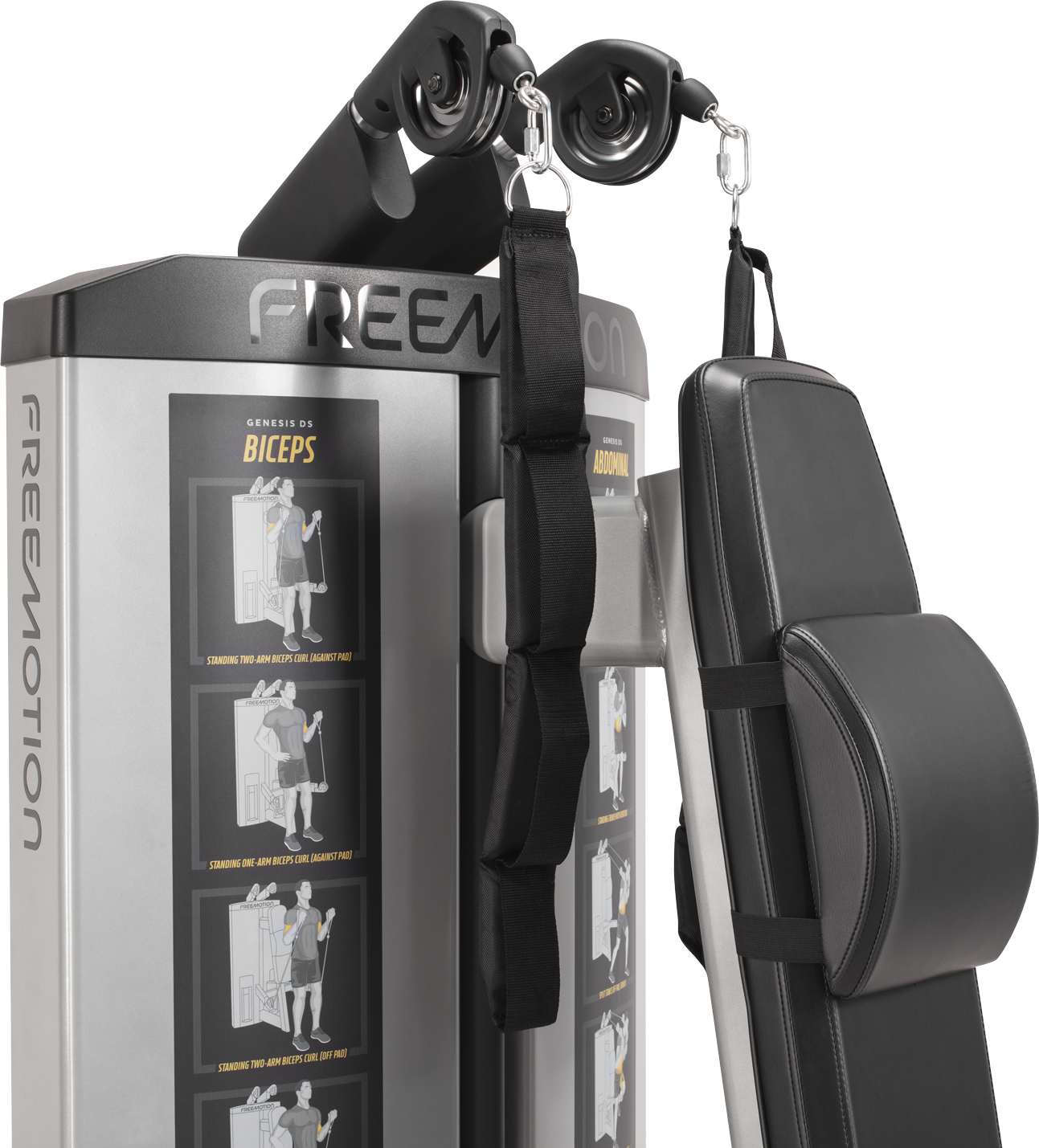

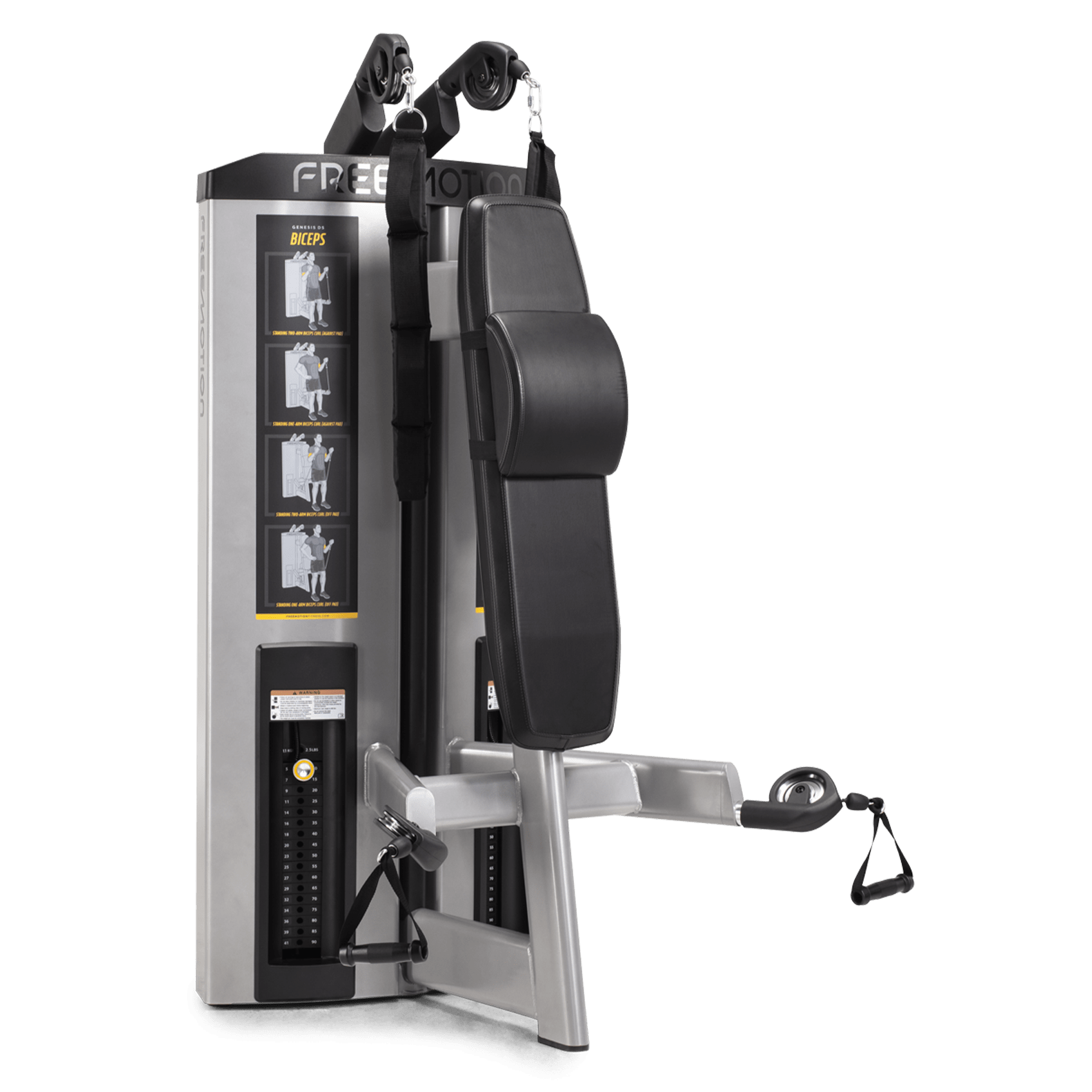

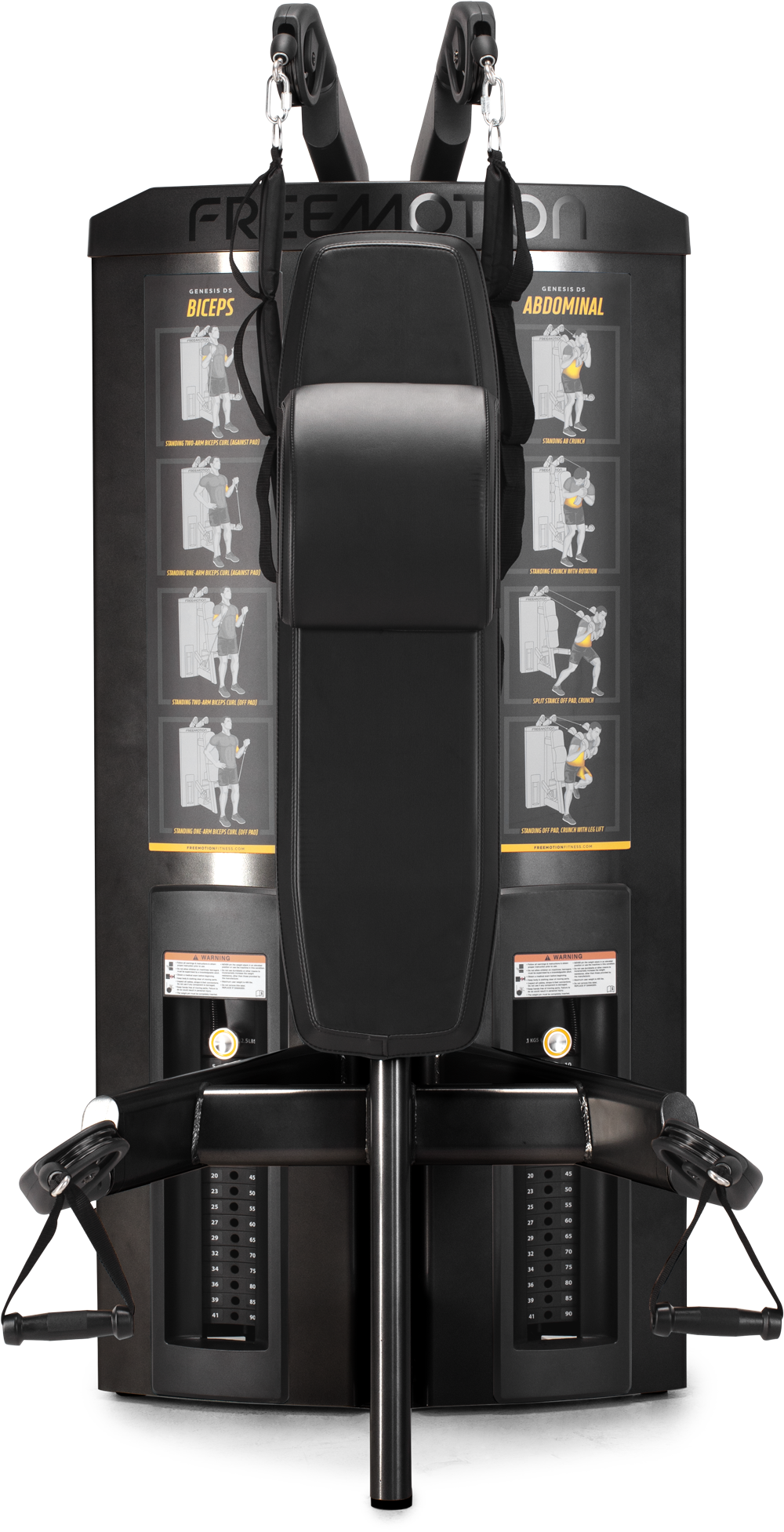

GD501

ABDOMINAL / BICEPS

Combining two exercises in one machine allows the user to superset different exercises and move through quick transitions for metabolic training. Facility owners can optimize their workout space with the GENESIS DS™ Abdominal/Biceps’ compact footprint. It is constructed with 11- and 7-gauge steel and has a powder-coated finish for extreme durability. Adjustable lumbar pad and backpad are cushioned for comfort.
Enquire Today

Details & SPecs

Extensive Cable Travel

Cable length allows for full flexion and extension. Single arm: 76 in / 193 cm, two arms: 38 in / 96.5 cm.

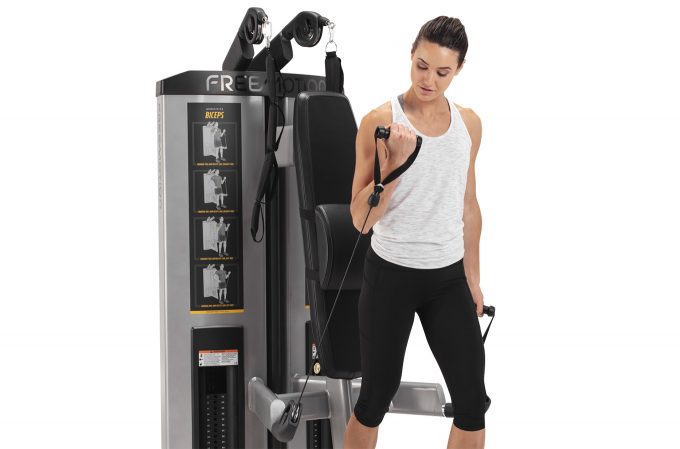

Movement Variety

Handles move independently for single and alternating side exercises.

Enclosed Weight Stacks

The weight stacks are enclosed to limit access to moving parts for safety.

Built to Last

Constructed with 11- and 7-gauge steel and electrostatically powder-coated, this machine is built to stand up to the rigors of the weight room.

Kick Plates

Large, 16-gauge, stainless steel kick plates protect the machine from wear and tear.

Product Features

  • Instructional Placards
    Yes
  • Adjustments
    Lumbar Support
  • Resistance
    1 arm: 90 lb / 40.8 kg
    2 arms: 180 lb / 81.6 kg
  • Seat
    N/A
  • Pulleys
    Aluminum swivel pulleys
  • Cable Travel
    72 in / 182.8 cm per arm
  • Rubber Feet
    Soft PVC
  • Maximum User Weight
    400 lb / 181.4 kg
  • Americans with Disabilities Act (ADA)
    Wheelchair Accessible
Product Specifications

  • Weight Stack
    QTY 2 – 180 lb / 81.6 kg weight stacks
  • Drop Down Weight
    N/A
  • Weight Stack Configuration
    2 – 10 lb top plates, 34 – 10 lb plates
    2 – 4.5 kg top plates, 34 – 4.5 kg plates
  • Standard Frame Color
    Black River, Platinum Sparkle
  • Optional Frame Color
    N/A
  • Plastic Color
    Ebony
  • Standard Upholstery Color
    Black, Graphite, Blue Ridge, Burgundy, American Beauty Red
  • Optional Upholstery Color
    Custom colors available upon request
Product Dimensions & Weight

  • Dimensions L x W x H
    51 x 37 x 72 in / 129.5 x 93.9 x 182.8 cm
  • Footprint
    51 x 37 in / 129.5 x 93.9 cm
  • Weight
    608.6 lb / 276.1 kg
  • Shipping Dimensions
    Box 1: 74.8 x 38.9 x 47.5 in / 198.9 x 99 x 120.7 cm
    Box 2: 38.9 x 11.8 x 5.1 in / 99 x 29.9 x 13 cm
  • Shipping Weight
    731.9 lb / 332 kg
Certifications

  • EN957,CE
Warranty (US & Canada)

  • Frame
    10 Years
  • Parts
    3 Years
  • Cables & Labor
    1 Year
  • Cosmetic & Wear Items
    6 Months
  • Upholstery & Padding
    120 Days
Warranty (International)

  • Frame
    10 Years
  • Parts
    3 Years
  • Cables & Labor
    1 Year
  • Cosmetic & Wear Items
    6 Months
  • Upholstery & Padding
    120 Days
Enquire Today

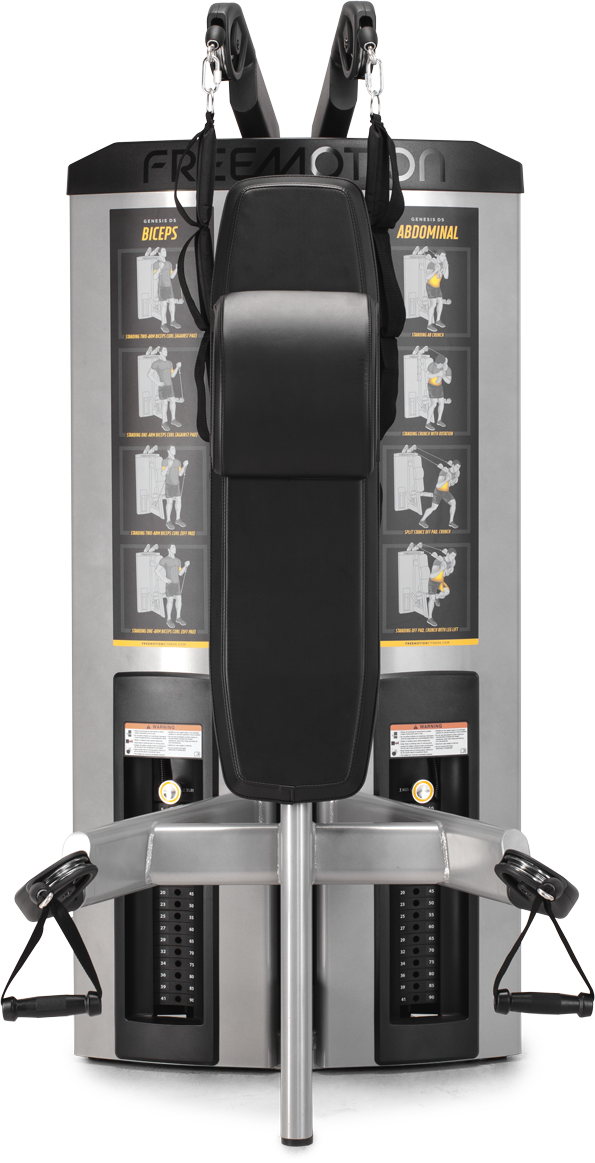

Dual Stations

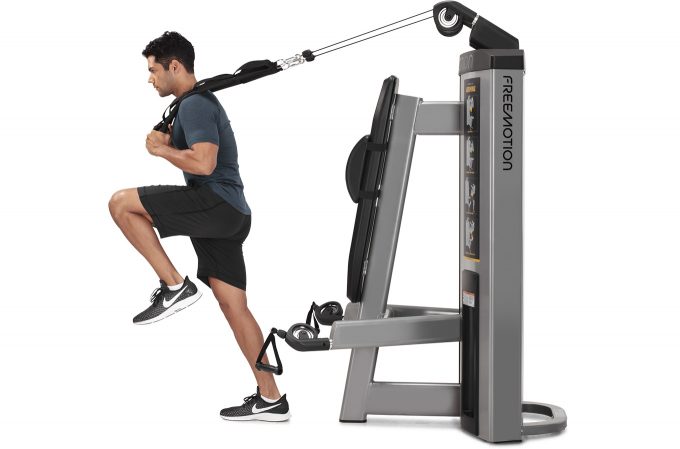

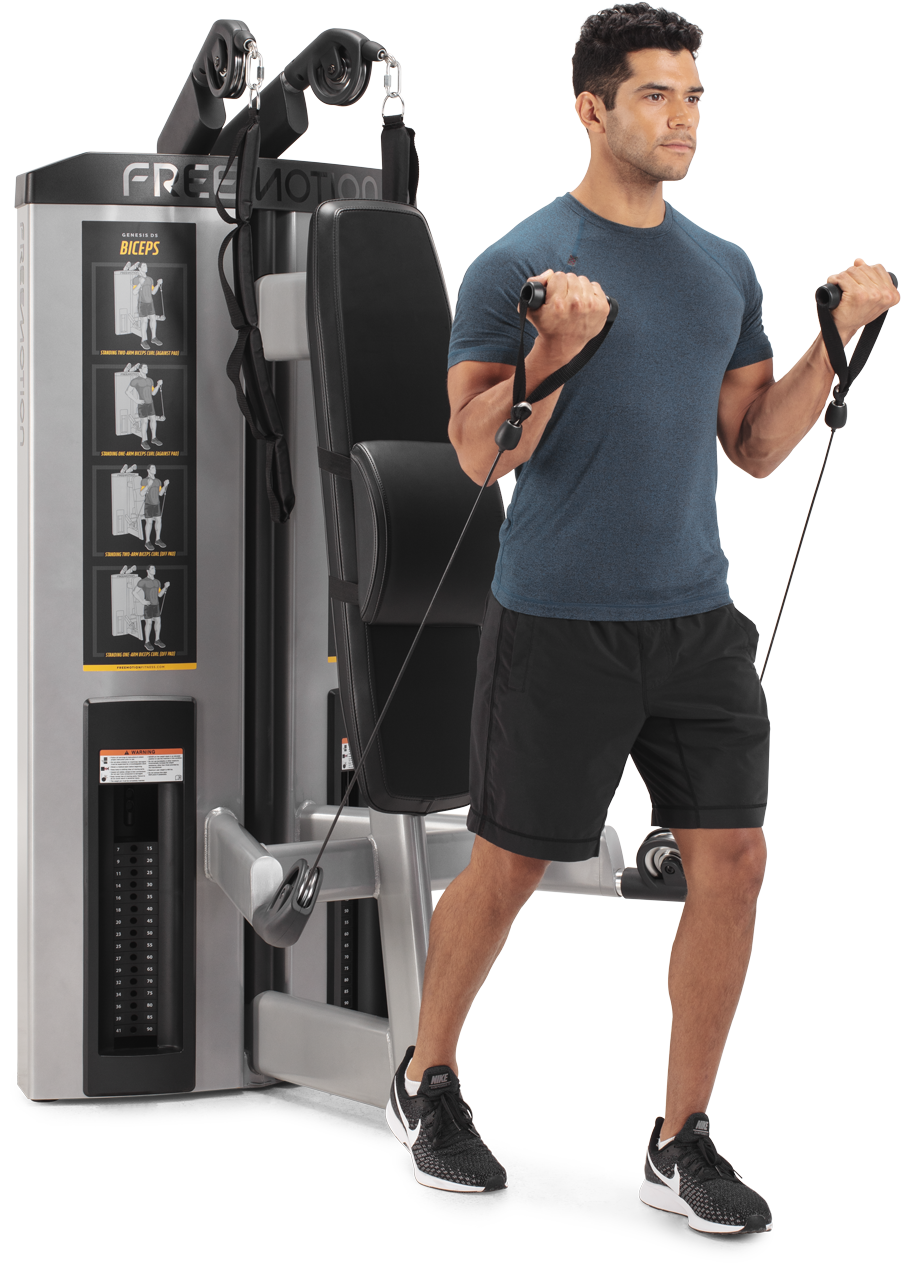

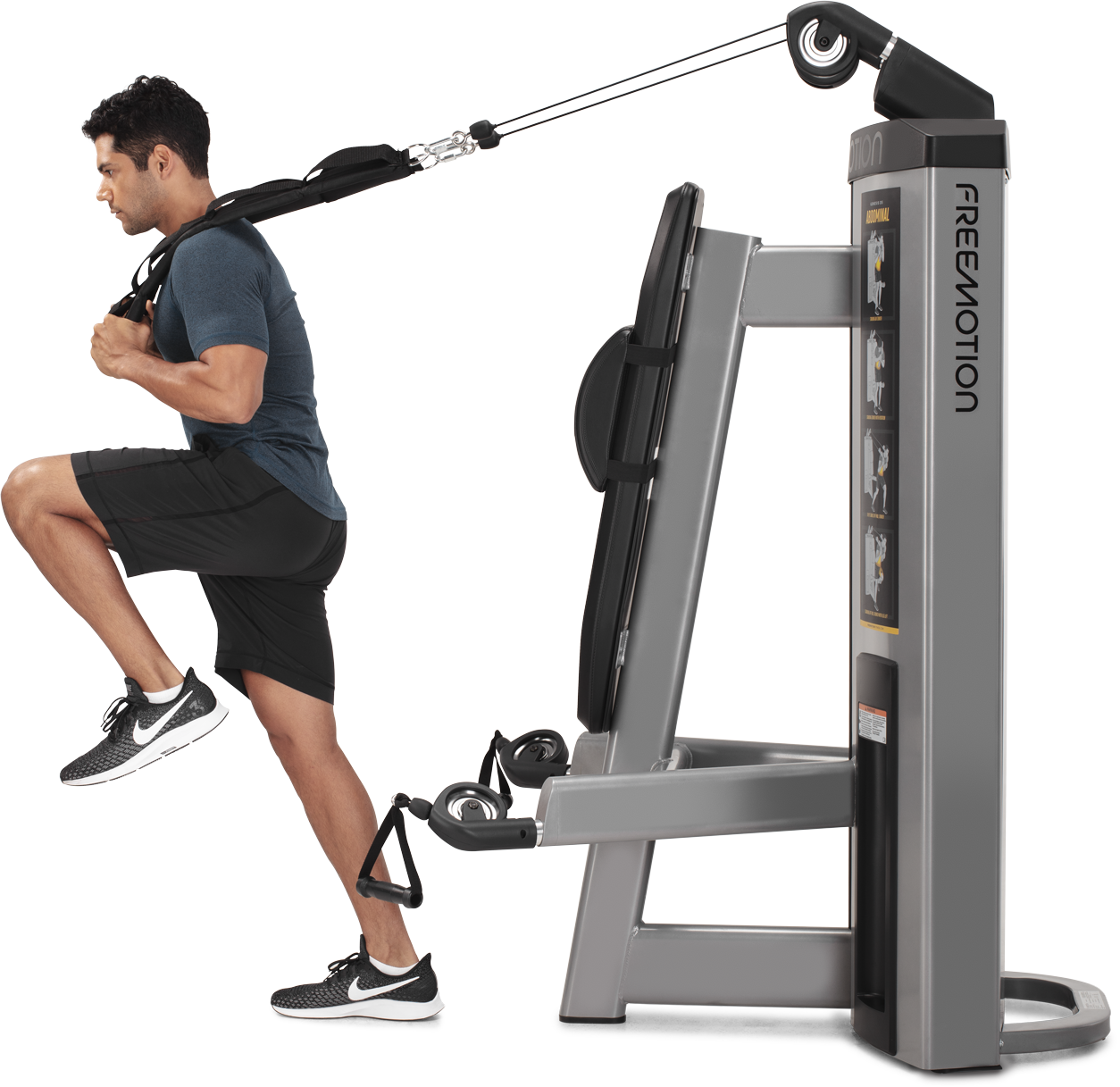

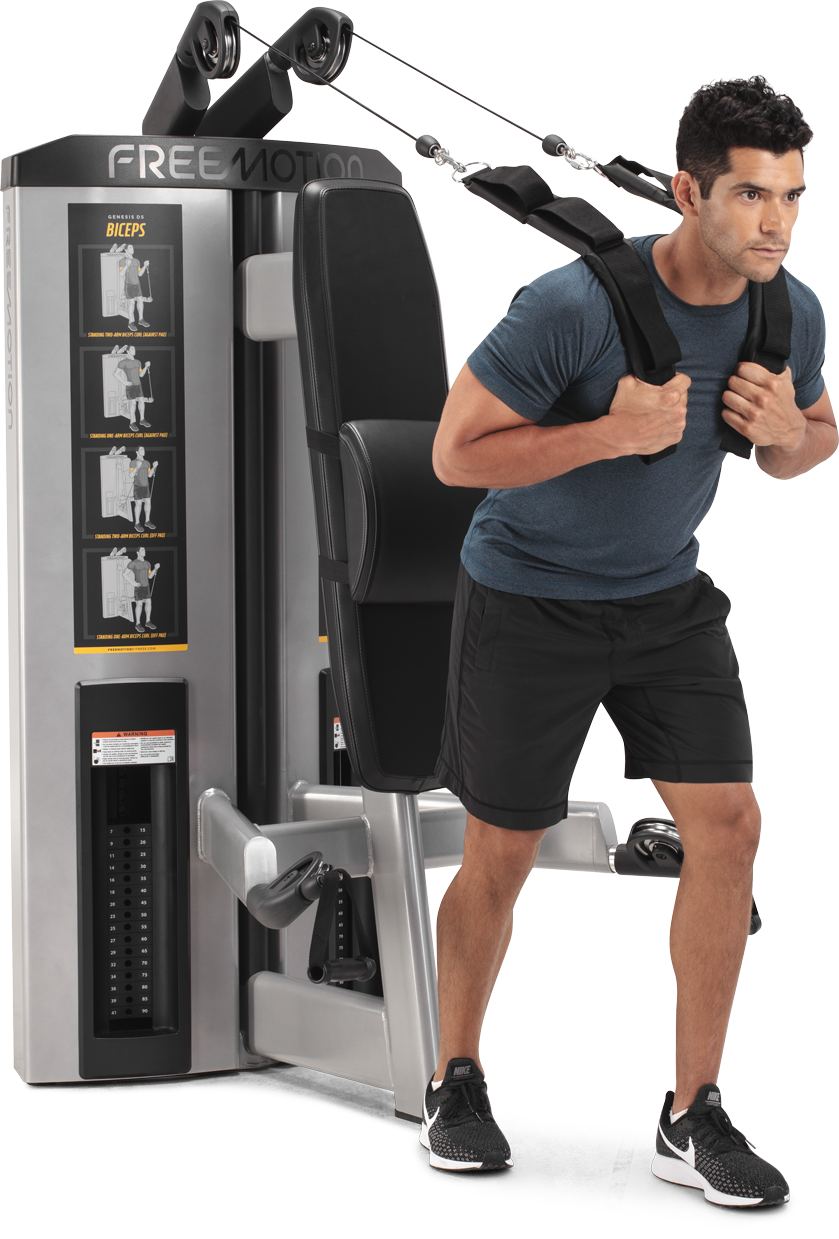

Training two body parts on the same machine saves valuable floor space. Users can quickly transition to different exercises for metabolic training.

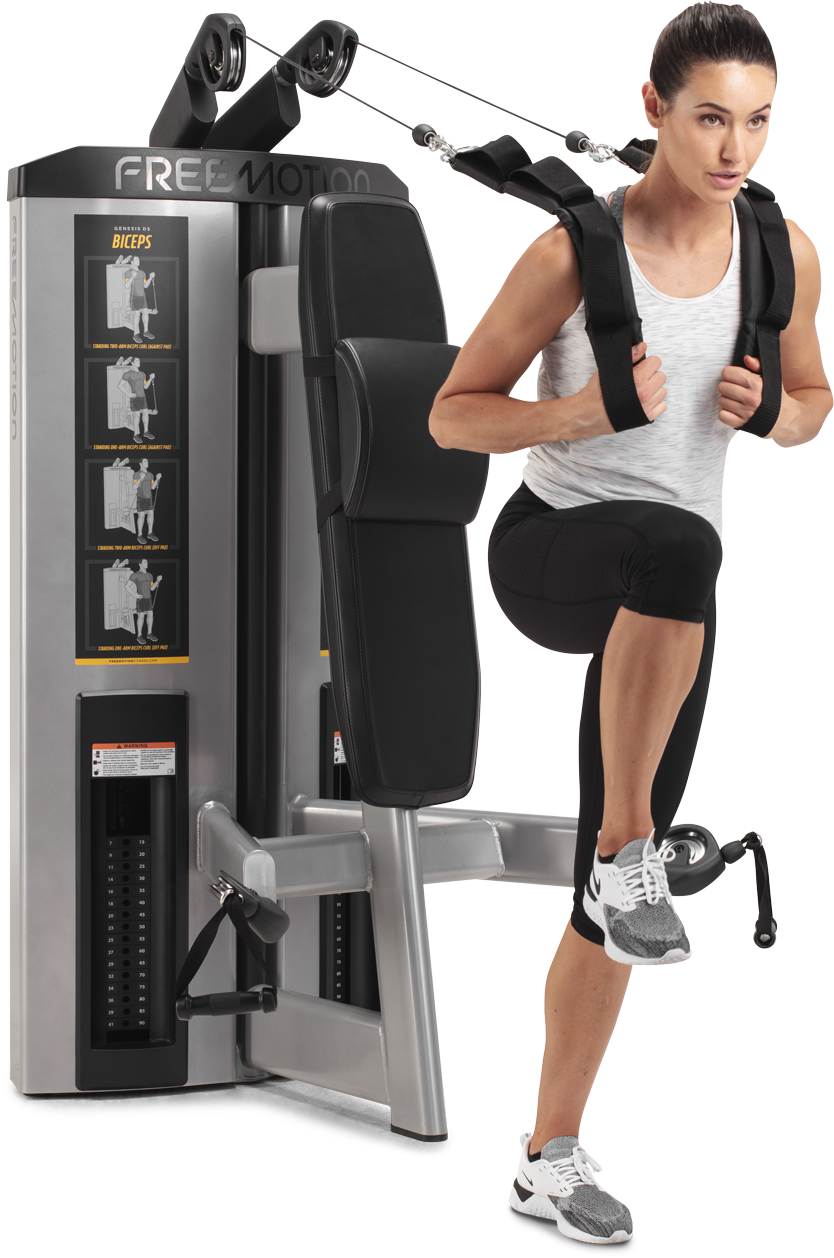

Go Vertical

In addition to being a space saver, the standing design functional builds core strength.

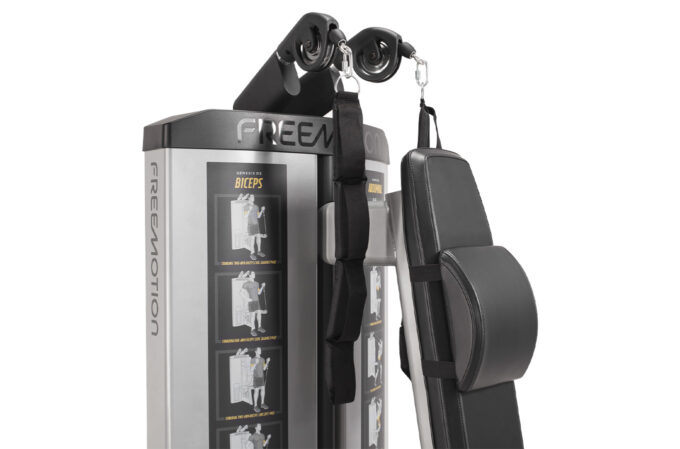

Comfortable by Design

The backpad, lumbar support and handle straps are padded for comfort even under heavy loads.

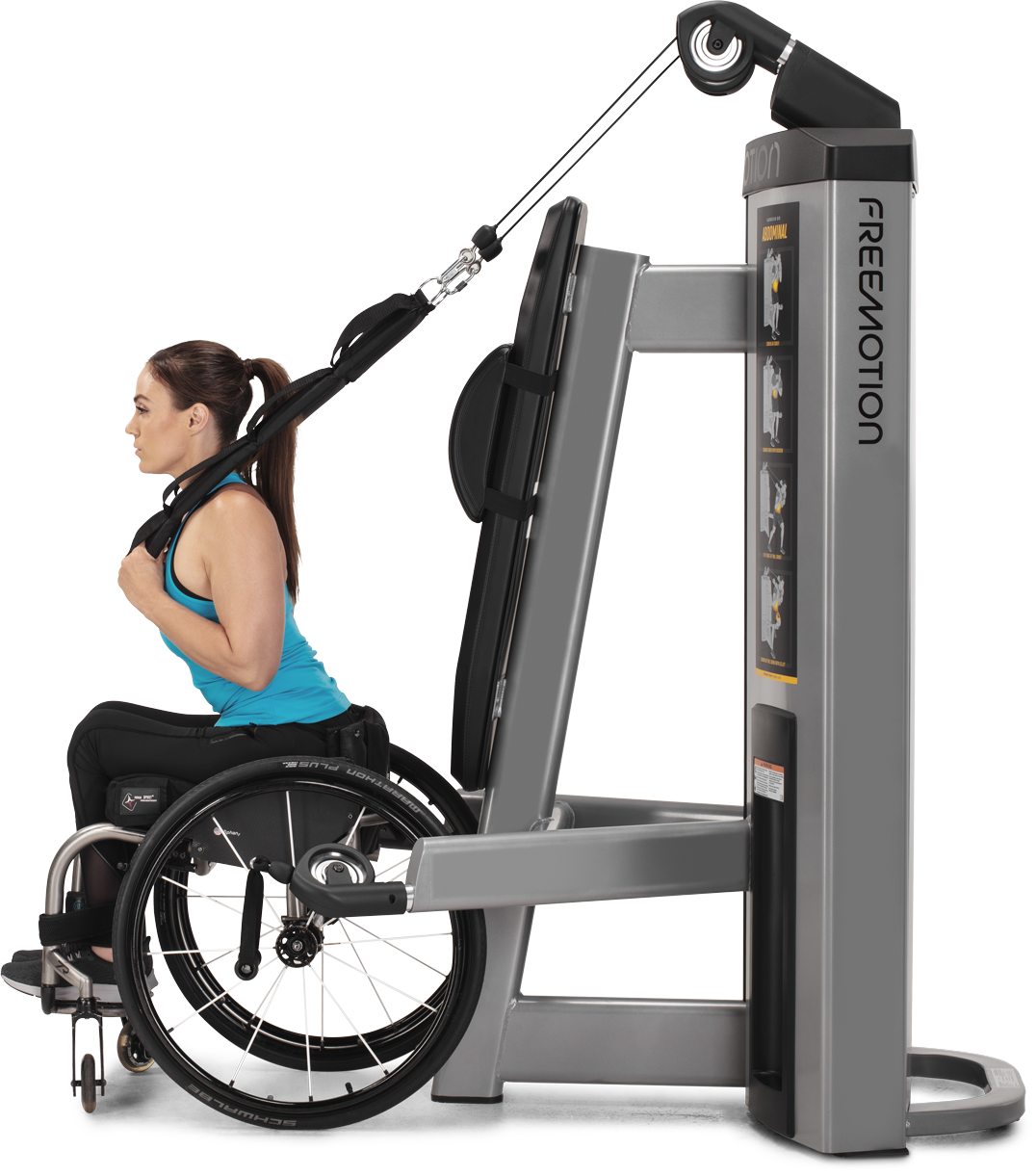

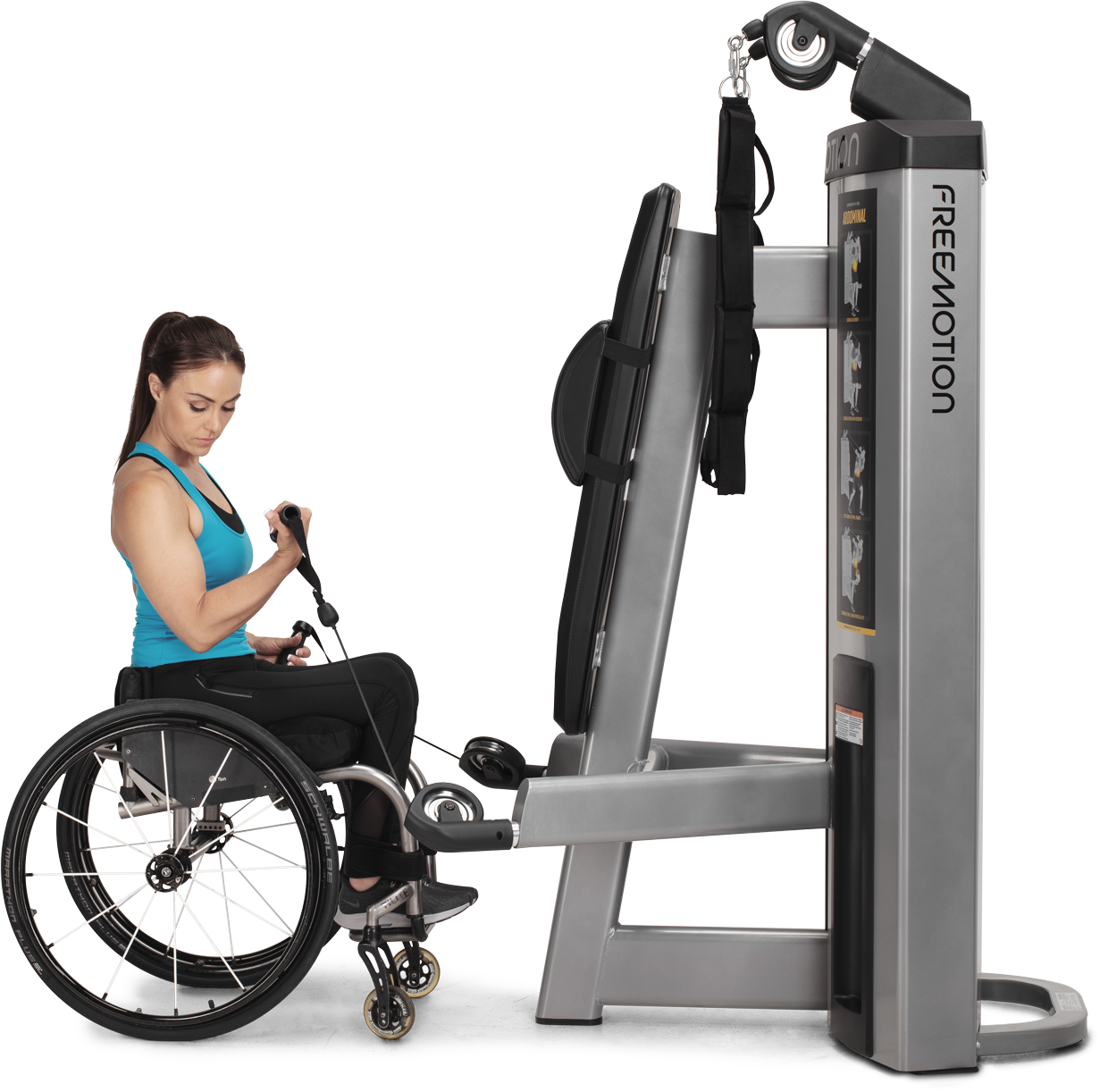

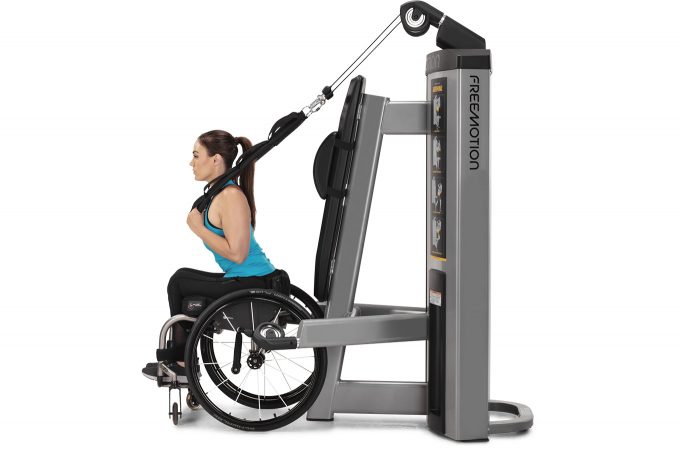

Wheelchair Accessibility

The open design makes it wheelchair accessible, welcoming to users of all abilities.
