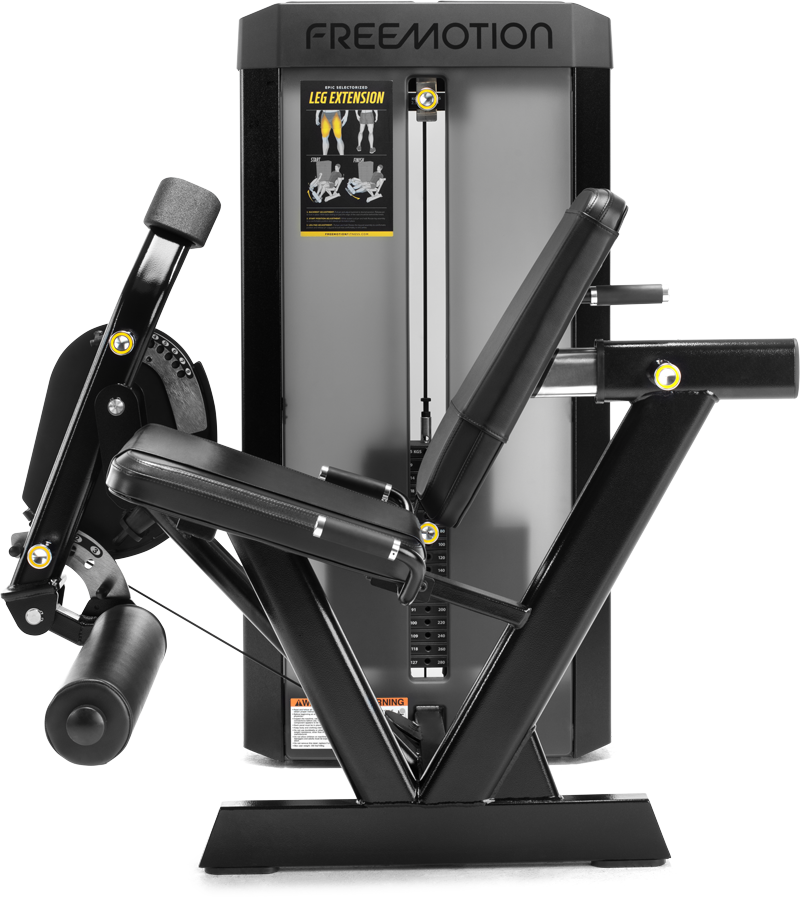

ES801

LEG EXTENSION

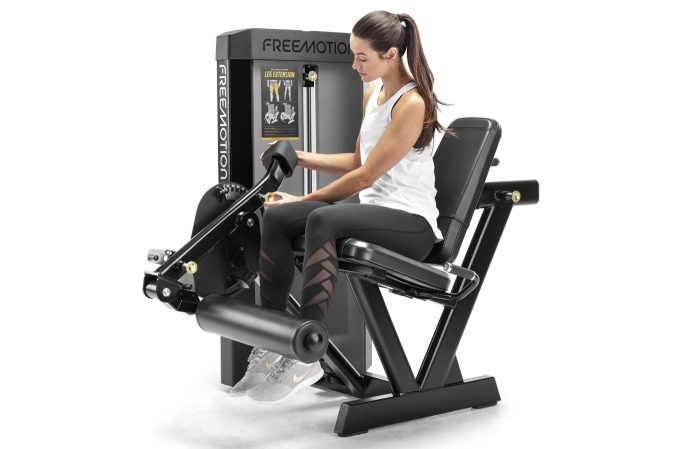

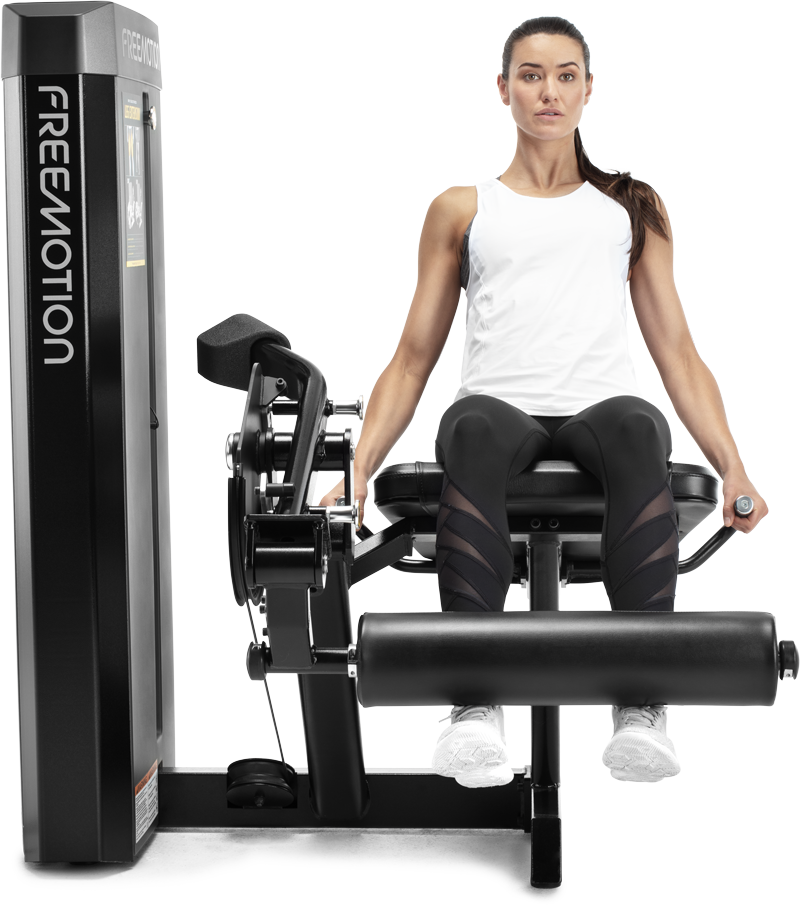

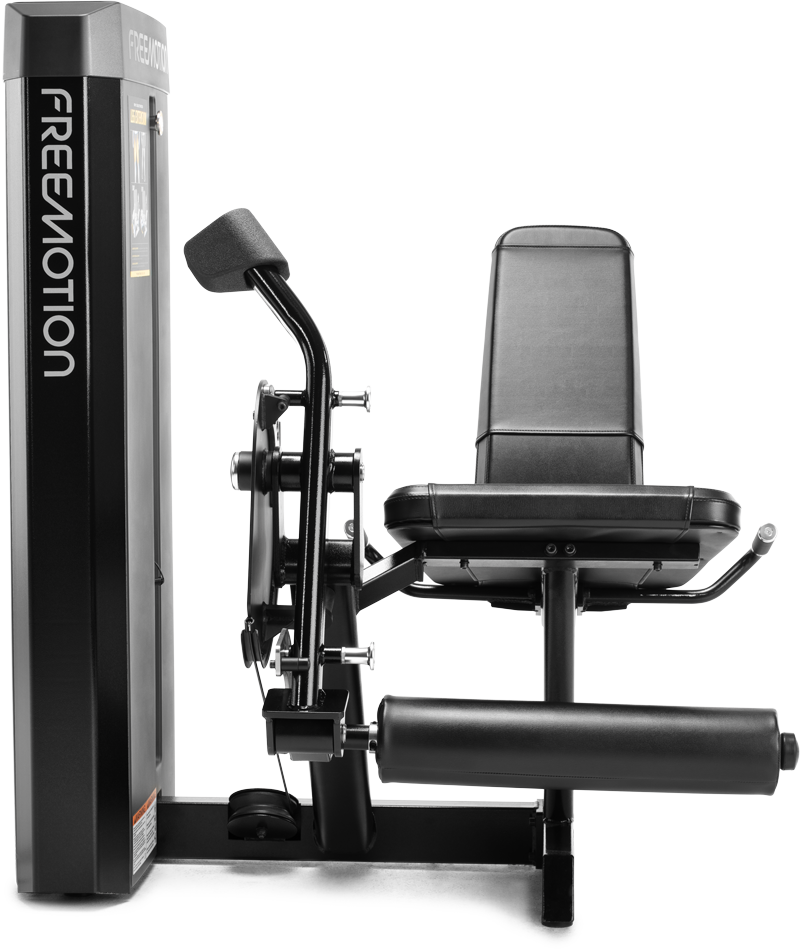

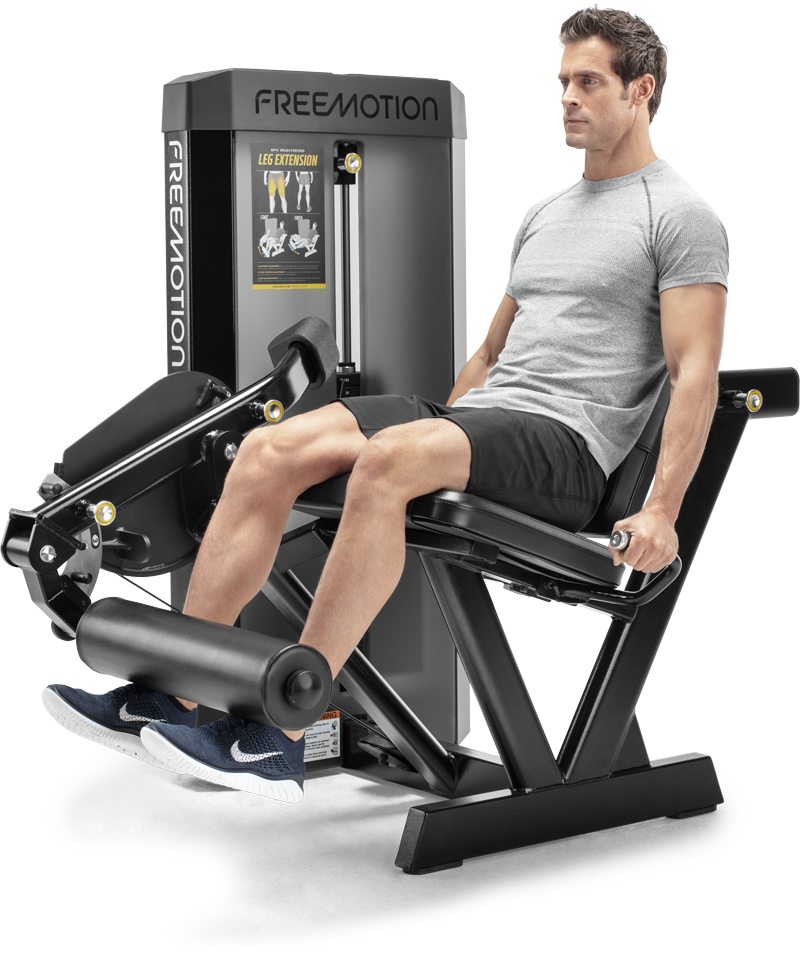

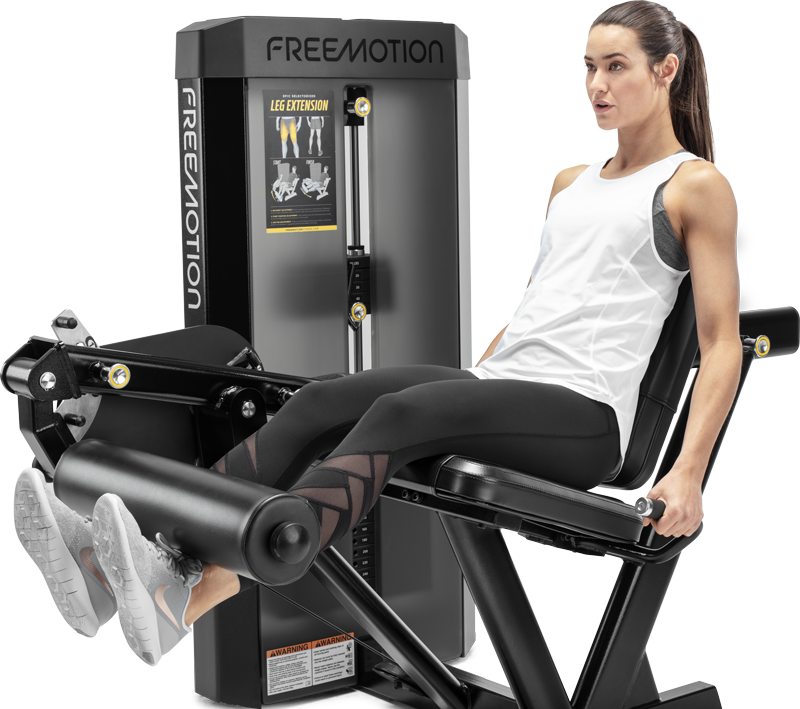

Whether your members are looking to isolate the quads to build muscle mass or rehabbing an injury, the EPIC Selectorized Leg Extension’s range of motion can be customized. The padded backpad adjusts horizontally to fit a variety of users. Leg assembly has a rolling shin pad for comfort through the entire range of motion. It’s counterweight make for easy adjustments.
Enquire Today

Details & SPecs

Convenient Accessory Storage

Users can keep their essentials close at hand with accessory trays at the top of the weight stack.

Molded Floor Protectors

Heavy-duty rubber feet guard against floor damage.

Built to Last

Constructed with 11- and 7-gauge steel and electrostatically powder-coated, this machine is built to stand up to the rigors of the weight room.

Easy Serviceability

The tower design allows for simple, routine cable service.

Enclosed Weight Stack

The weight stack is enclosed to limit access to moving parts for safety.

Product Features

  • Instructional Placards
    Yes
  • Adjustments
    Multiple Start Positions, Adjustable Back Pad and Leg Assembly
  • Resistance
    285 lb / 129.2 kg
  • Seat
    Vinyl, 1.5 in / 3.8 cm thick foam
  • Pulleys
    N/A
  • Cable Travel
    N/A
  • Rubber Feet
    Heavy Duty Floor Protectors
  • Maximum User Weight
    350 lb / 159 kg
  • Americans with Disabilities Act (ADA)
    N/A
Product Specifications

  • Weight Stack
    285 lb / 129.2 kg
  • Drop Down Weight
    5 lb / 2.2 kg
  • Weight Stack Configuration
    10 lb / 4.5 kg top plate
    20-70 x 10 lb / 4.5 kg
    80-280 x 20 lb / 9 kg
  • Standard Frame Color
    Black River, Platinum Sparkle
  • Optional Frame Color
    N/A
  • Plastic Color
    Ebony
  • Standard Upholstery Color
    Black, Graphite, Blue Ridge, Burgundy, American Beauty Red
  • Optional Upholstery Color
    Custom colors available upon request
  • Hand Grip Color
    Black
Product Dimensions & Weight

  • Dimensions L x W x H
    51.3 x 54 x 57.8 in / 130.3 x 137.1 x 146.8 cm
  • Footprint
    51.3 x 54 in / 130.3 x 137.1 cm
  • Maximum workout area
    51.3 x 54 in / 130.3 x 137.1 cm
  • Weight
    573.2 lb / 260 kg
  • Shipping Dimensions
    Box 1: 74.4 x 30.3 x 42.1 in / 188.9 x 76.9 x 106.9 cm
    Box 2: 28.3 x 25.2 x 5.9 in / 71.8 x 64 x 14.9 cm
  • Shipping Weight
    Box 1: 712.1 lb / 322.9 kg
    Box 2: 25.3 lb / 11.4 kg
Certifications

  • CE
Warranty (US & Canada)

  • Frame
    10 Years
  • Parts
    3 Years
  • Cables & Labor
    1 Year
  • Cosmetic & Wear Items
    6 Months
  • Upholstery & Padding
    120 Days
Warranty (International)

  • Frame
    10 Years
  • Parts
    3 Years
  • Cables & Labor
    1 Year
  • Cosmetic & Wear Items
    6 Months
  • Upholstery & Padding
    120 Days
Enquire Today

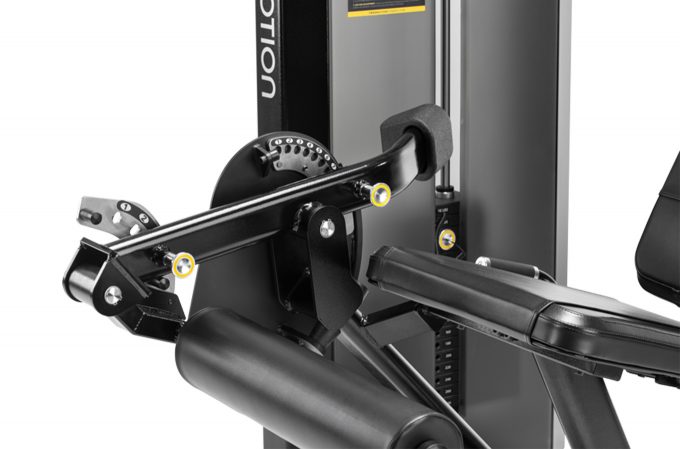

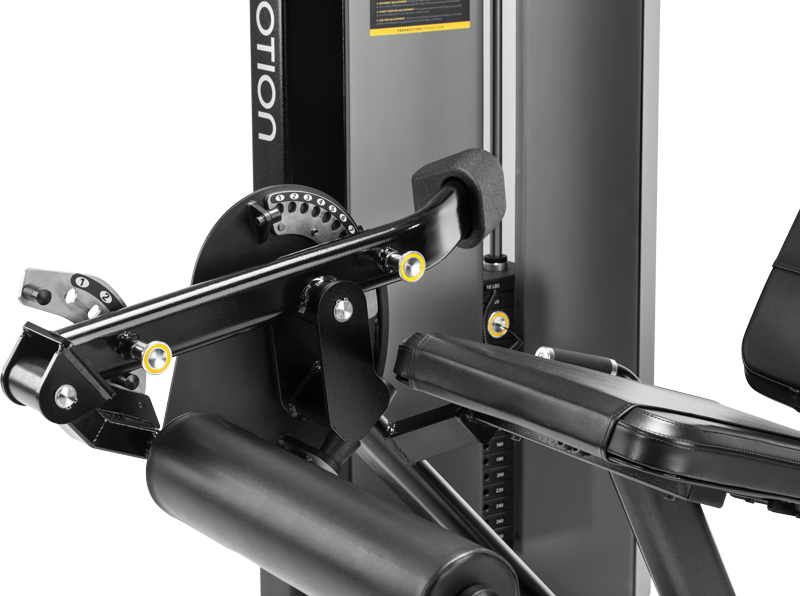

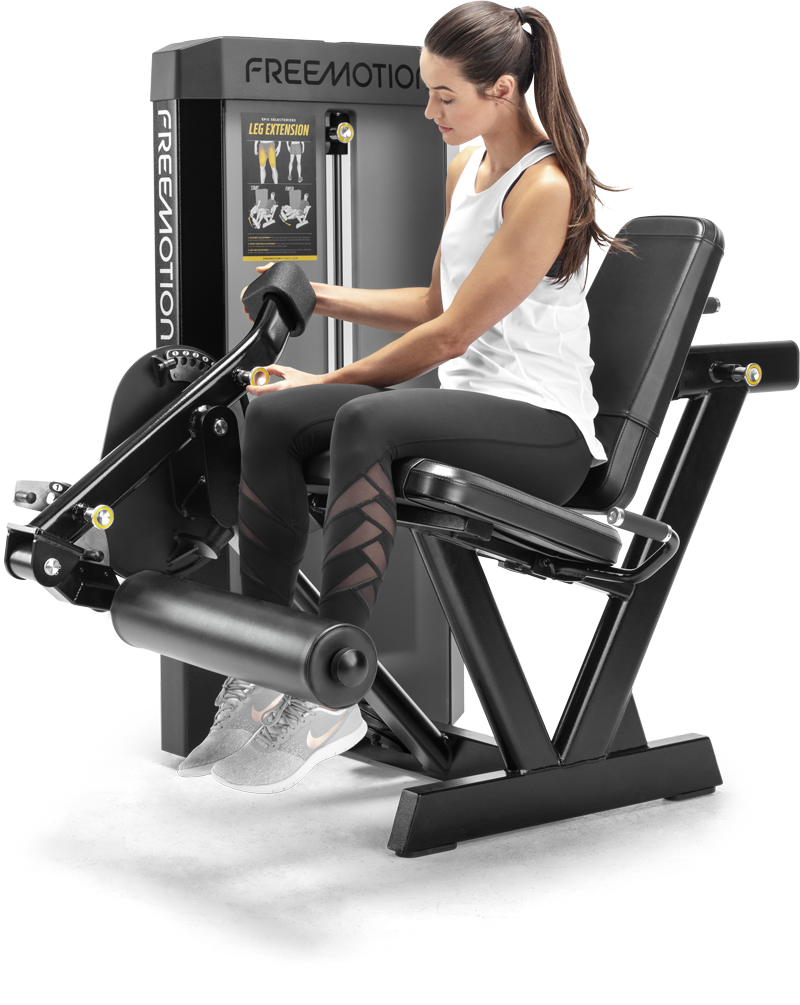

Set the Range

Leg assembly features two adjustments to tailor the range of motion for the user and is counterweighted for easy positioning.

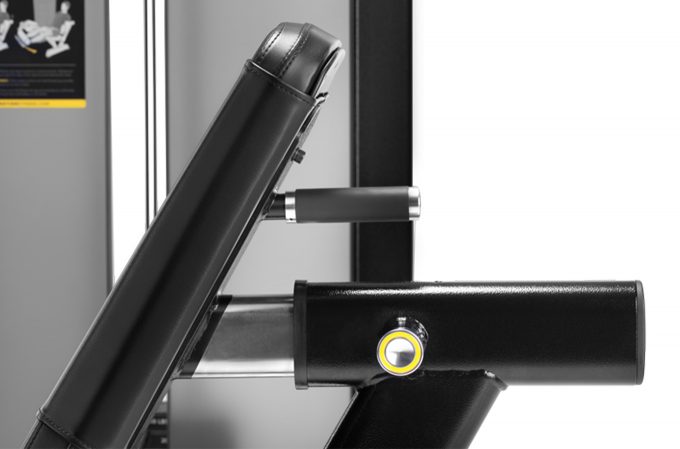

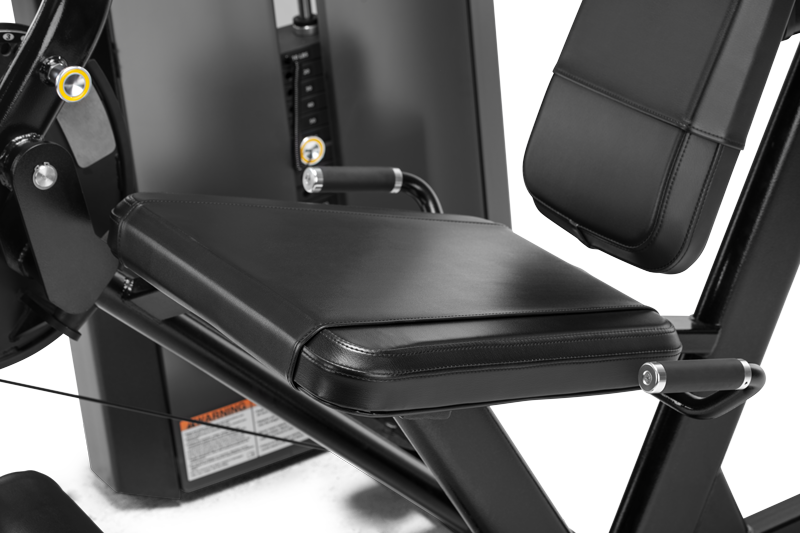

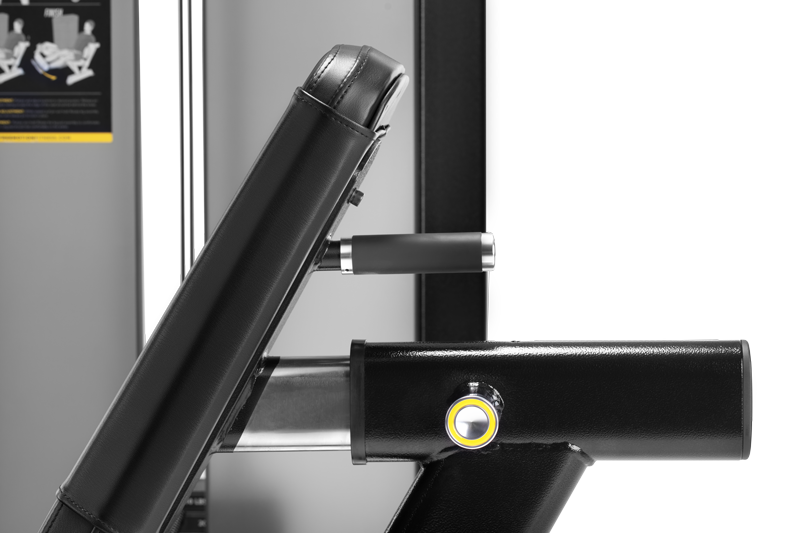

Comfortable by Design

The shin pads roll for comfort throughout the range of motion. Back pad is contoured and adjustable for precise body positioning.

Low Profile Weight Stack

Approachable, compact design also features accessory trays so users can keep their essentials within reach.
