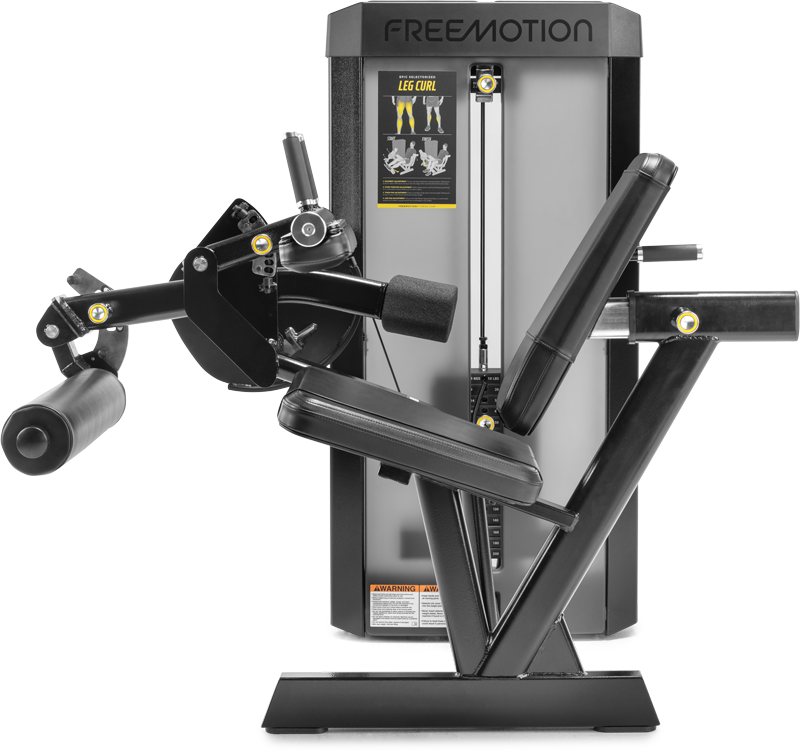

ES803

LEG CURL

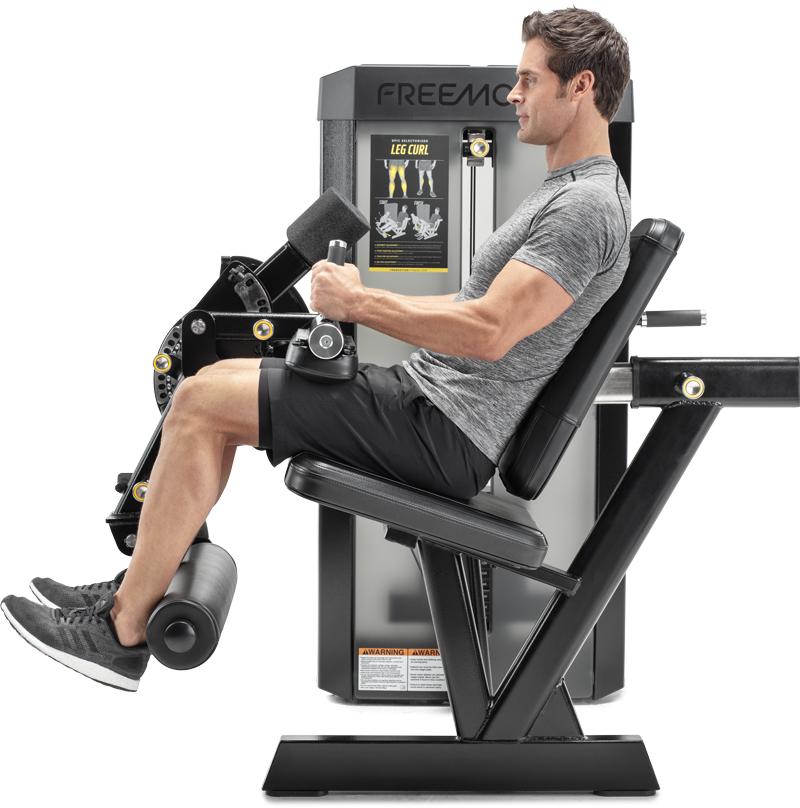

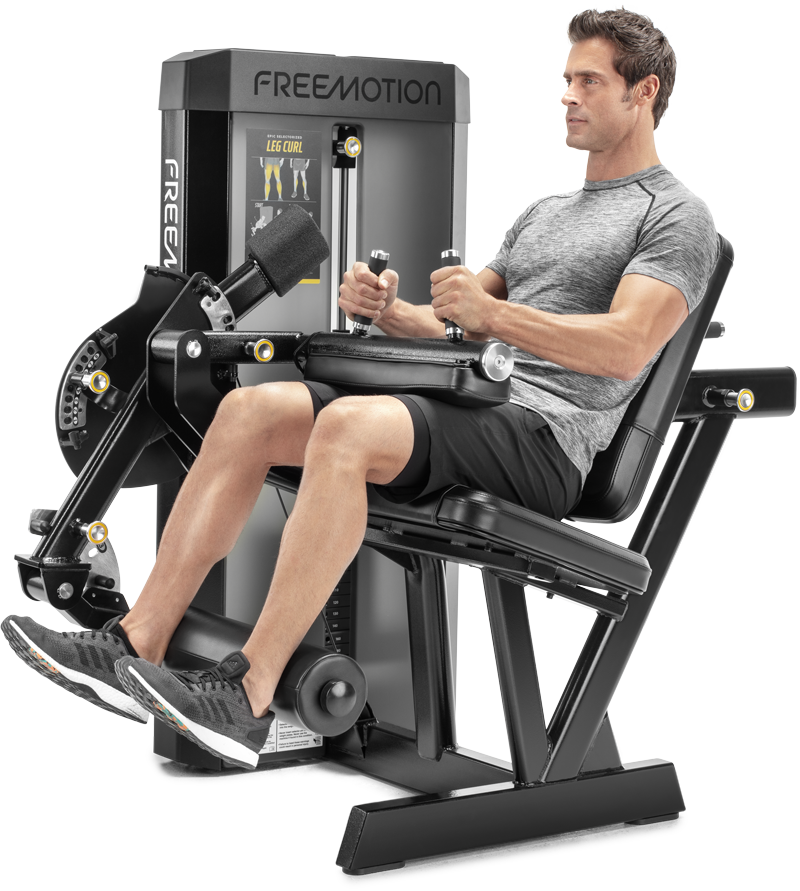

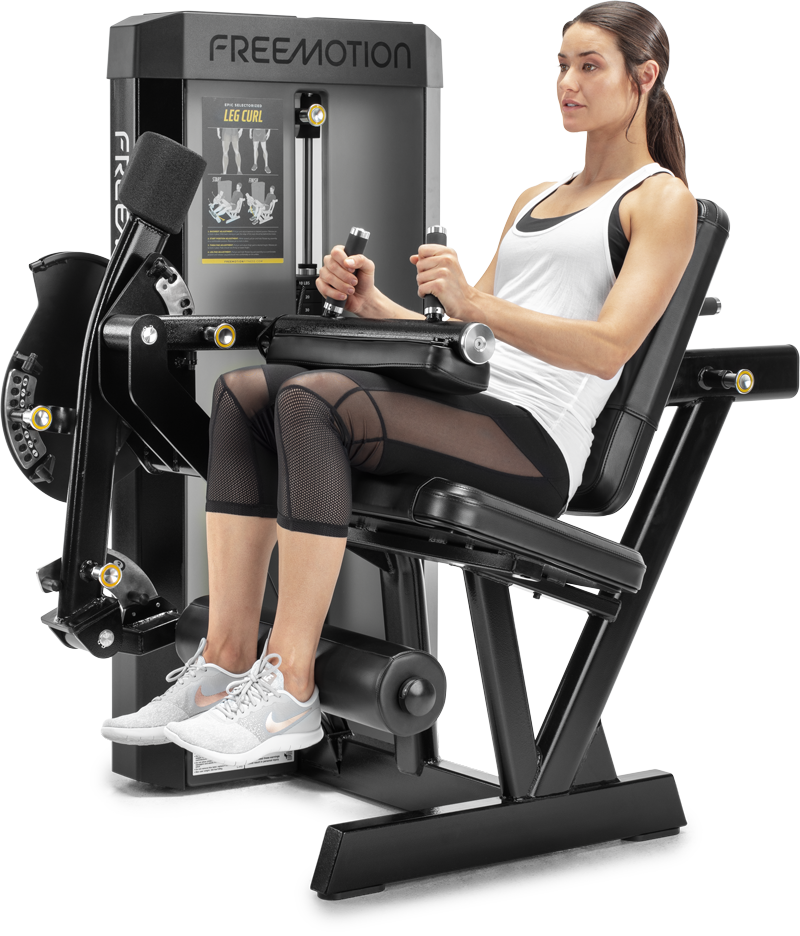

The EPIC Selectorized Leg Curl provides precise fit and support while users build hamstring strength. The leg assembly is counterweighted for easy positioning and adjusts for range of motion. To focus the effort on the hamstrings, the calf pad adjusts and the ankle pad rolls for comfort. Members can adjust the contoured back pad for proper positioning.
Enquire Today

Details & SPecs

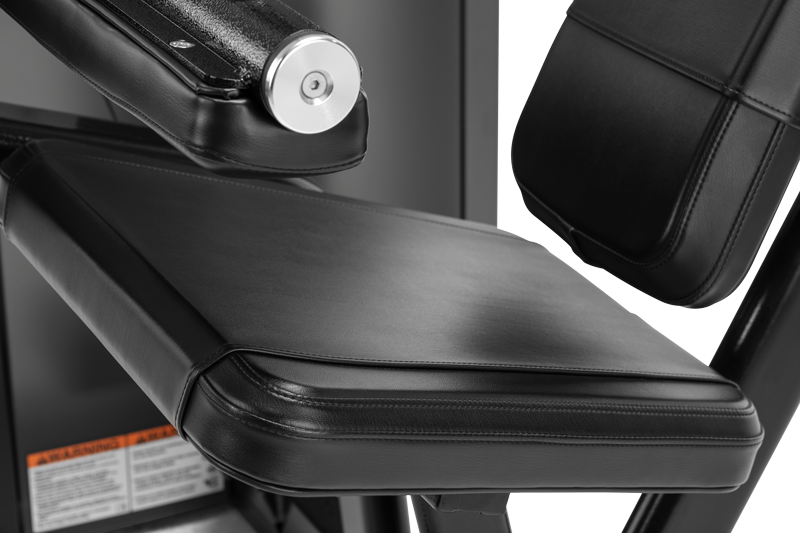

Padded Seat and Thigh Pad

Thigh pad comfortably isolates the upper legs. Seat bottom is also padded for fit and comfort.

Convenient Accessory Storage

Users can keep their essentials close at hand with accessory trays at the top of the weight stack.

Molded Floor Protectors

Heavy-duty rubber feet guard against floor damage.

Built to Last

Constructed with 11- and 7-gauge steel and electrostatically powder-coated, this machine is built to stand up to the rigors of the weight room.

Easy Serviceability

The tower design allows for simple, routine cable service.

Enclosed Weight Stack

The weight stack is enclosed to limit access to moving parts for safety.

Product Features

  • Instructional Placards
    Yes

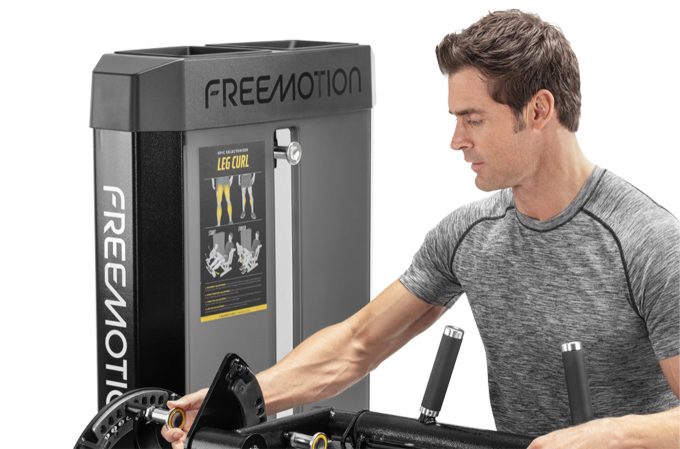

  • Adjustments
    Adjustable Back Pad, Thigh Pad and Leg Assembly
  • Resistance
    205 lb / 92.9 kg
  • Seat
    Vinyl, 1.5 in / 3.8 cm thick foam
  • Pulleys
    N/A
  • Cable Travel
    N/A
  • Rubber Feet
    Heavy Duty Floor Protectors
  • Maximum User Weight
    350 lb / 159 kg
  • Americans with Disabilities Act (ADA)
    N/A
Product Specifications

  • Weight Stack
    205 lb / 92.9 kg
  • Drop Down Weight
    5 lb / 2.2 kg
  • Weight Stack Configuration
    10 lb / 4.5 kg top plate
    20-150 x 10 lbs / 4.5 kg
    160-200 x 200 lb / 9 kg
  • Standard Frame Color
    Black River, Platinum Sparkle
  • Optional Frame Color
    N/A
  • Plastic Color
    Ebony
  • Standard Upholstery Color
    Black, Graphite, Blue Ridge, Burgundy, American Beauty Red
  • Optional Upholstery Color
    Custom colors available upon request
  • Hand Grip Color
    Black
Product Dimensions & Weight

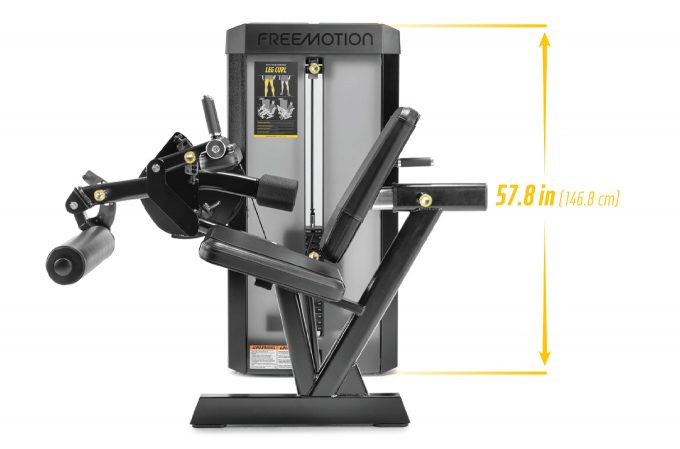

  • Dimensions L x W x H
    48.9 x 59 x 57.8 in / 124.2 x 149.8 x 146.8 cm
  • Footprint
    48.9 x 59 in / 124.2 x 149.8 cm
  • Maximum workout area
    48.9 x 59 in / 124.2 x 149.8 cm
  • Weight
    560 lb / 254.3 kg
  • Shipping Dimensions
    Box 1: 74.4 x 30.3 x 42.1 in / 188.9 x 76.9 x 106.9 cm
    Box 2: 29.9 x 27.9 x 5.9 in / 75.9 x 70.8 x 14.9 cm
  • Shipping Weight
    Box 1: 635 lb / 288 kg
    Box 2: 26.5 lb / 12 kg
Certifications

  • CE
Warranty (US & Canada)

  • Frame
    10 Years
  • Parts
    3 Years
  • Cables & Labor
    1 Year
  • Cosmetic & Wear Items
    6 Months
  • Upholstery & Padding
    120 Days
Warranty (International)

  • Frame
    10 Years
  • Parts
    3 Years
  • Cables & Labor
    1 Year
  • Cosmetic & Wear Items
    6 Months
  • Upholstery & Padding
    120 Days
Enquire Today

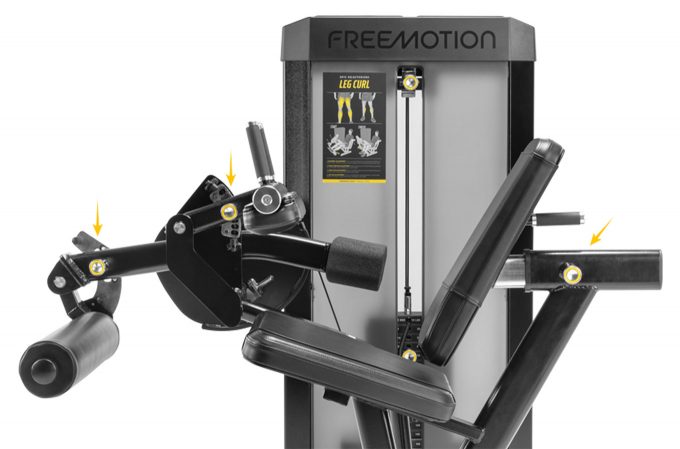

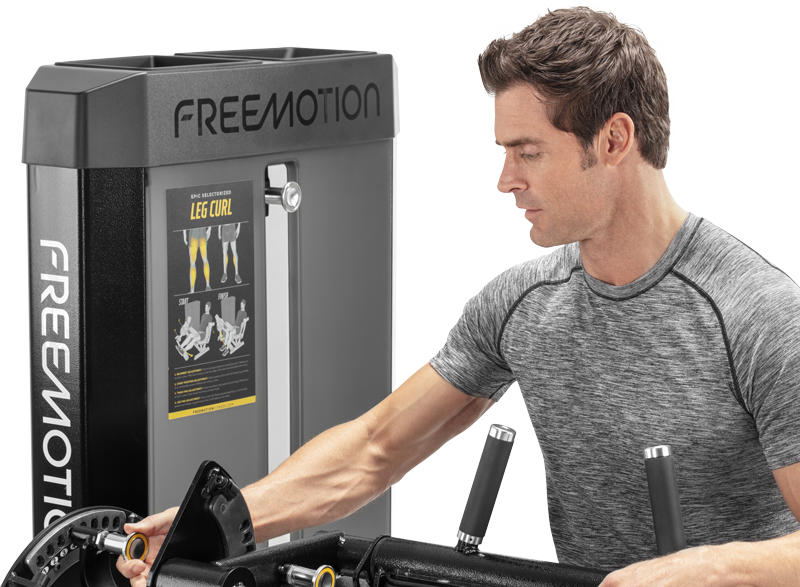

Set the Range

Leg assembly features two adjustments to tailor the range of motion for the user and is counterweighted for easy positioning.

Comfortable by Design

The calf pad rolls for comfort throughout the range of motion. Back pad is contoured and adjustable for precise body positioning.

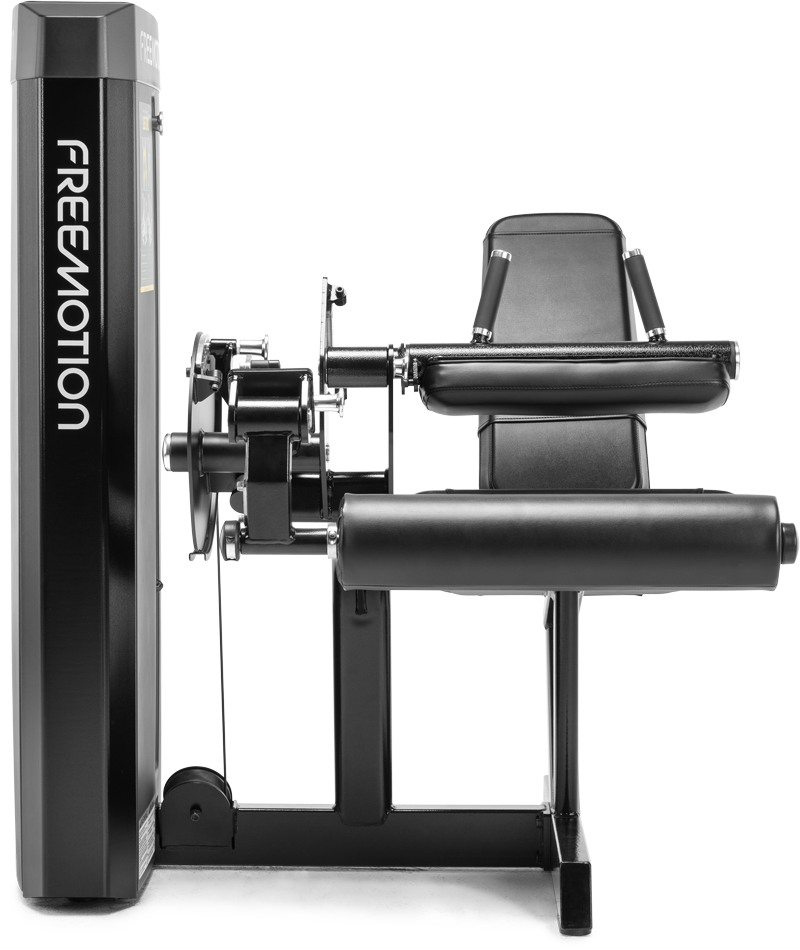

Low Profile Weight Stack

Approachable, compact design also features accessory trays so users can keep their essentials within reach.
