ES816

LATERAL RAISE

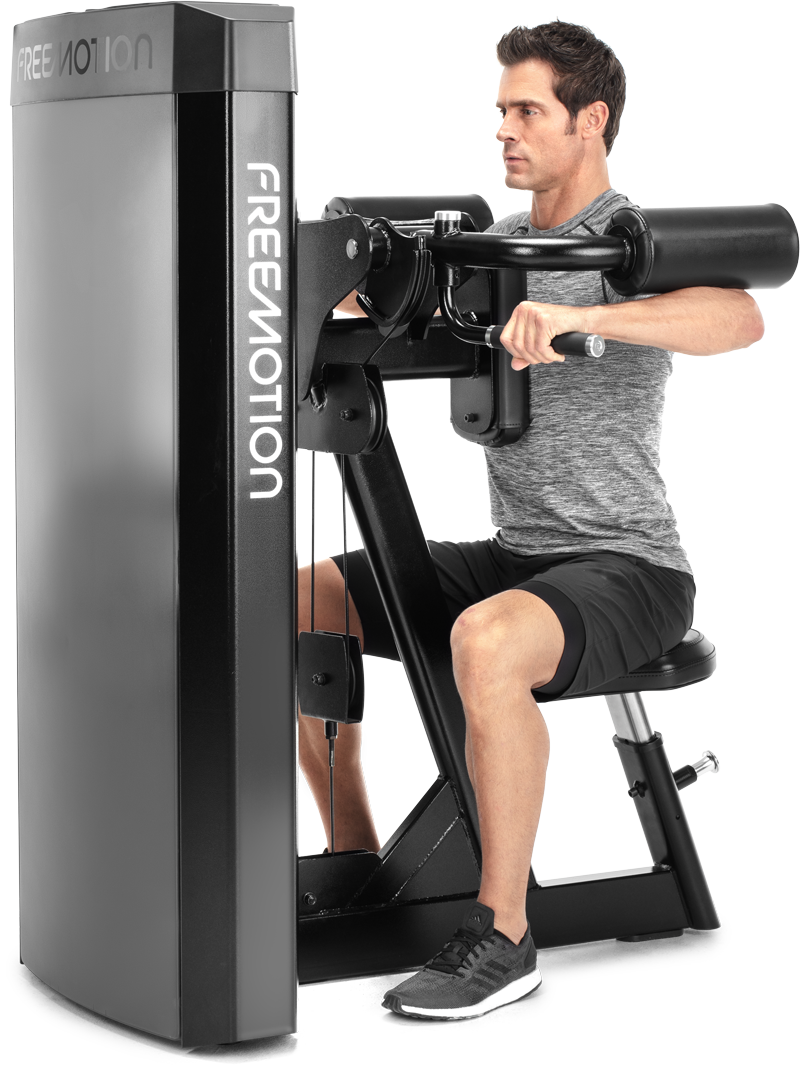

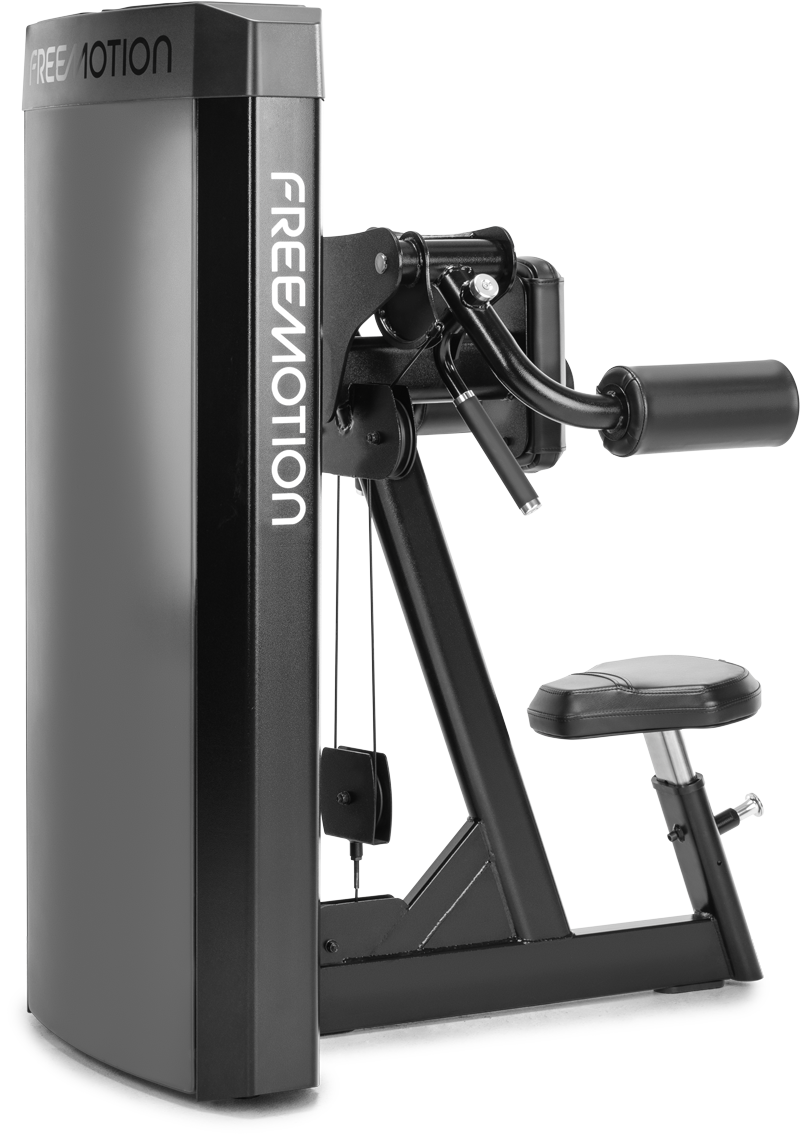

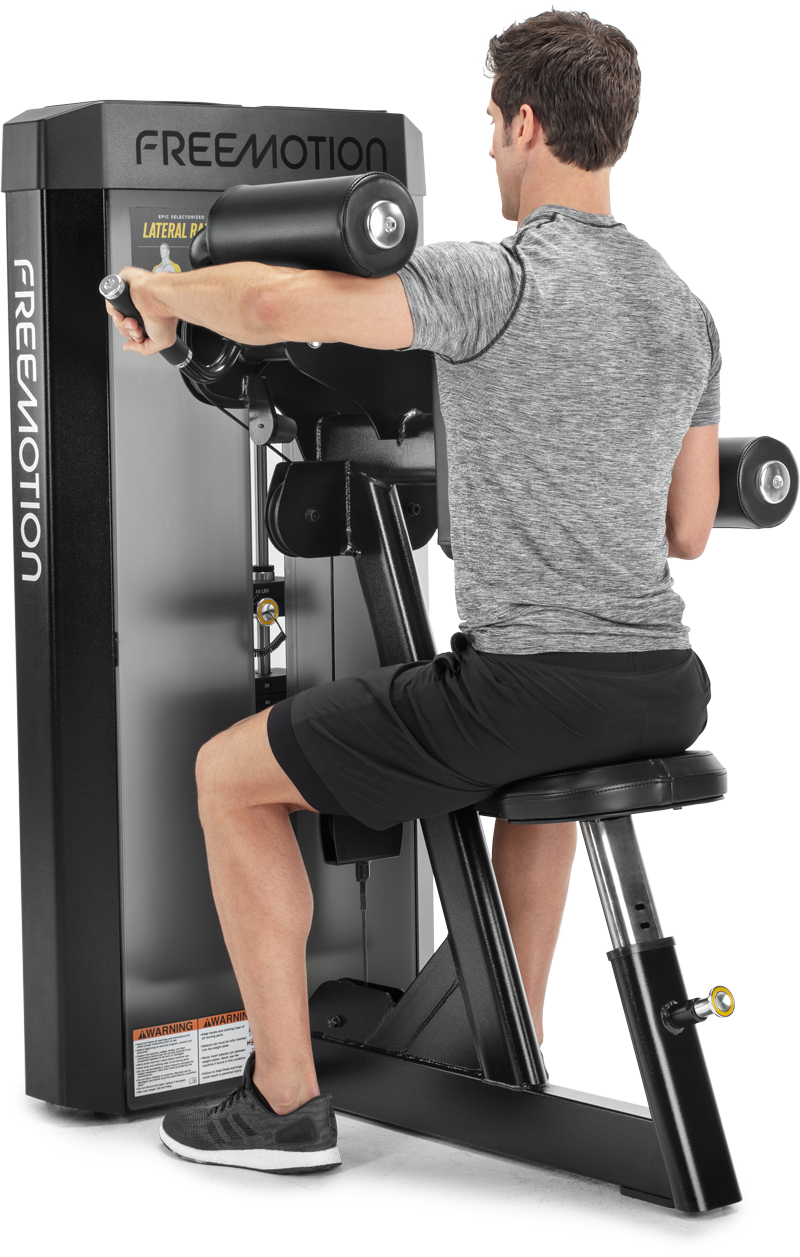

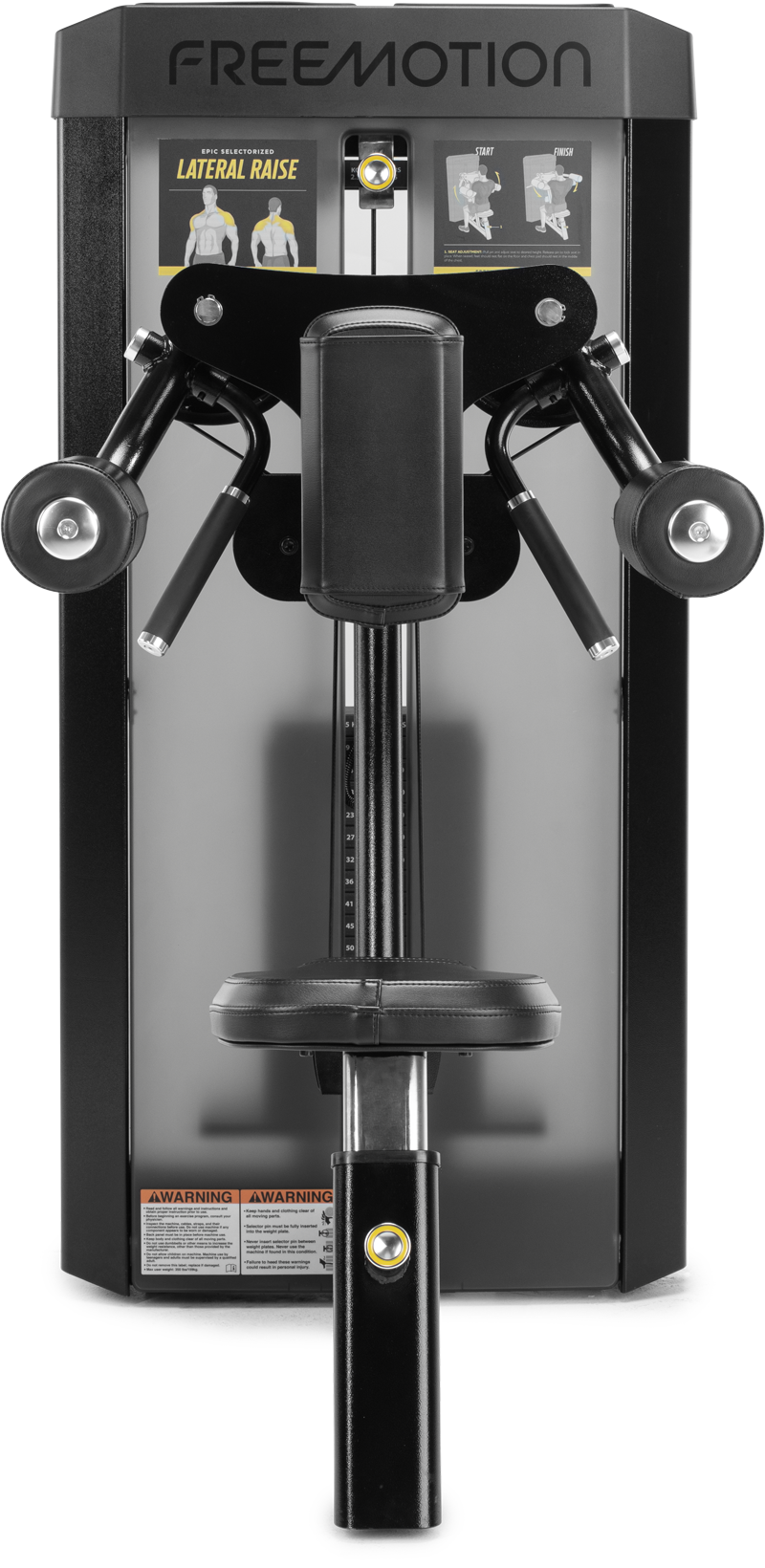

The EPIC Selectorized Lateral Raise provides comfortable support throughout the range of motion. Upper arm pads roll through the reps and adjustable seat bottom is contoured. Bent arm exercise position eliminates stress on the elbow joints to allow users to lift heavy.
Enquire Today

Details & SPecs

Comfortable Support

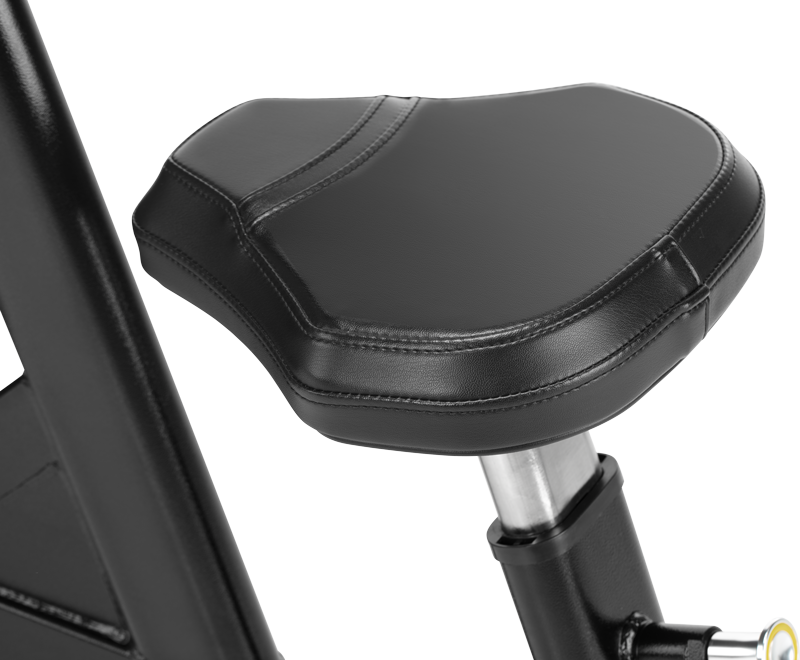

Both the seat bottom and chest pad are contoured to provide comfortable support.

Convenient Accessory Storage

Users can keep their essentials close at hand with accessory trays at the top of the weight stack.

Molded Floor Protectors

Heavy duty rubber feet guard against floor damage.

Built to Last

Constructed with 11- and 7-gauge steel and electrostatically powder-coated, this machine is built to stand up to the rigors of the weight room.

Easy Serviceability

The tower design allows for simple, routine cable service.

Enclosed Weight Stack

The weight stack is enclosed to limit access to moving parts for safety.

Product Features

  • Instructional Placards
    Yes
  • Adjustments
    Multiple Seat Adjustments
  • Resistance
    205 lb / 92.9 kg
  • Seat
    Vinyl, 1.5 in / 3.8 cm thick foam
  • Pulleys
    N/A
  • Cable Travel
    N/A
  • Rubber Feet
    Heavy Duty Floor Protectors
  • Maximum User Weight
    350 lb / 159 kg
  • Americans with Disabilities Act (ADA)
    N/A
Product Specifications

  • Weight Stack
    205 lb / 92.9 kg
  • Drop Down Weight
    5 lb / 2.2 kg
  • Weight Stack Configuration
    10 lb / 4.5 kg top plate
    20-180 x 10 lb / 4.5 kg
    190-200 x 20 lb / 9 kg
  • Standard Frame Color
    Black River, Platinum Sparkle
  • Optional Frame Color
    N/A
  • Plastic Color
    Ebony
  • Standard Upholstery Color
    Black, Graphite, Blue Ridge, Burgundy, American Beauty Red
  • Optional Upholstery Color
    Custom colors available upon request
  • Hand Grip Color
    Black
Product Dimensions & Weight

  • Dimensions L x W x H

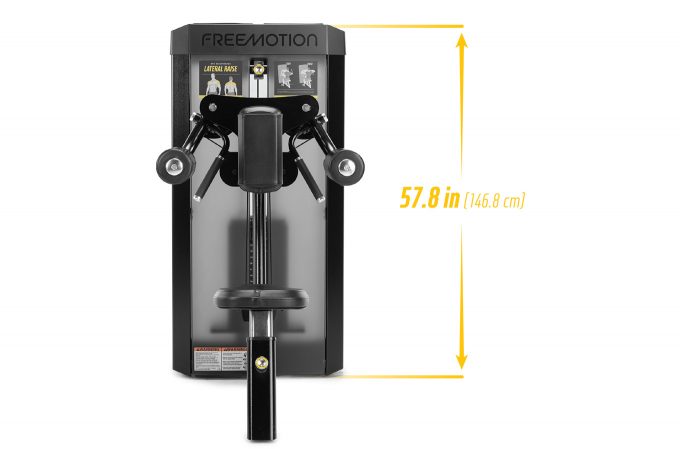

    33.4 x 45.3 x 57.8 in / 84.8 x 115 x 146.8 cm
  • Footprint
    33.4 x 45.3 in / 84.8 x 115 cm
  • Maximum workout area
    33.4 x 45.3 in / 84.8 x 115 cm
  • Weight
    440.9 lb / 200 kg
  • Shipping Dimensions
    Box 1: 75 x 29 x 46 in / 190.5 x 73.6 x 116.8 cm
    Box 2: 20.2 x 15.3 x 5.9 in / 51.3 x 38.8 x 14.9 cm
  • Shipping Weight
    Box 1: 545.8 lb / 248.5 kg
    Box 2: 13 lb / 5.8 kg
Certifications

  • CE
Warranty (US & Canada)

  • Frame
    10 Years
  • Parts
    3 Years
  • Cables & Labor
    1 Year
  • Cosmetic & Wear Items
    6 Months
  • Upholstery & Padding
    120 Days
Warranty (International)

  • Frame
    10 Years
  • Parts
    3 Years
  • Cables & Labor
    1 Year
  • Cosmetic & Wear Items
    6 Months
  • Upholstery & Padding
    120 Days
Enquire Today

Movement Variety

Arm pads move independently for single and alternating side exercises.

Low Profile Weight Stack

Approachable, compact design also features accessory trays so users can keep their essentials within reach.

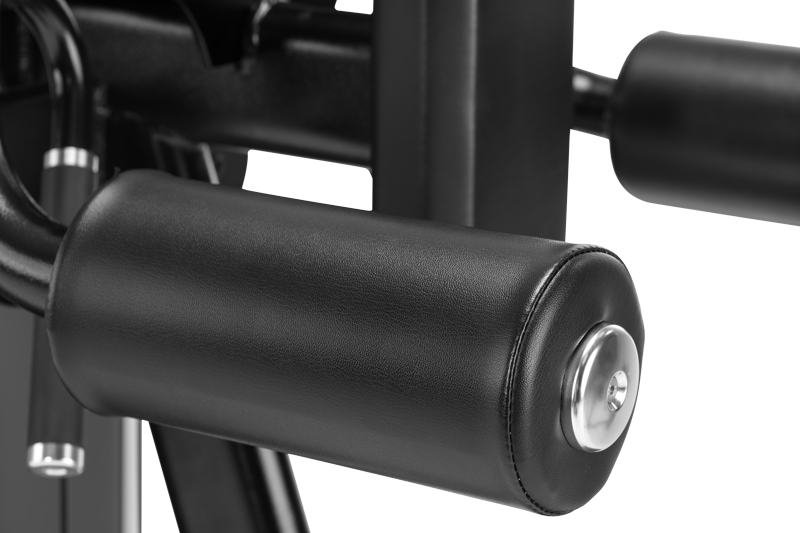

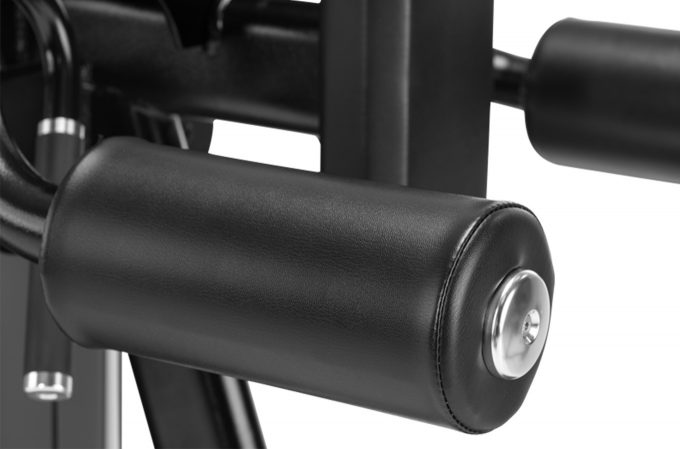

Molded Arm Pads

Contoured to fit the shape of the body, the machine’s arm pad have been carefully molded to create a comfortable fit.
