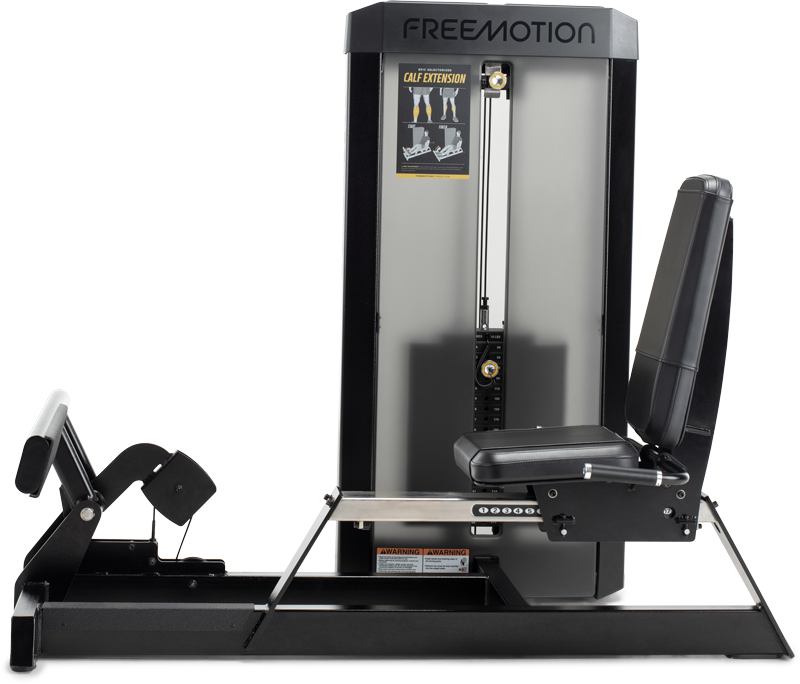

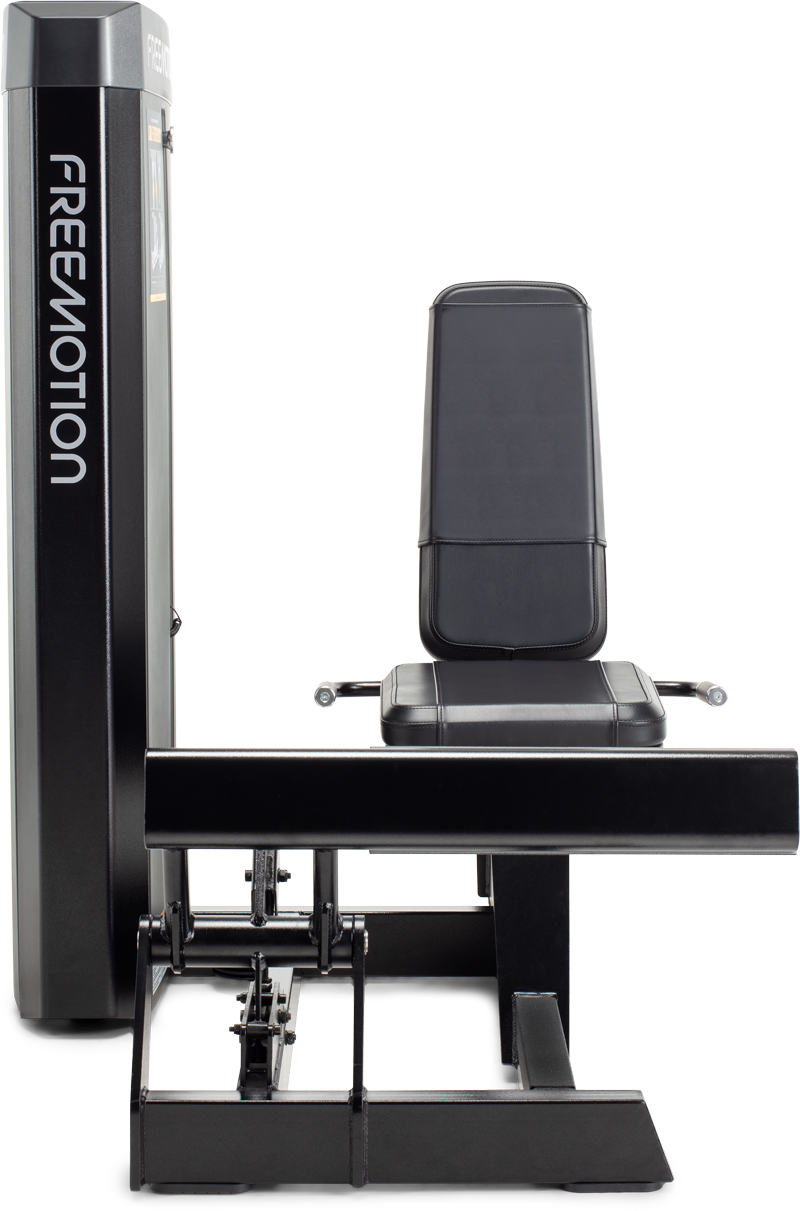

ES813

CALF EXTENSION

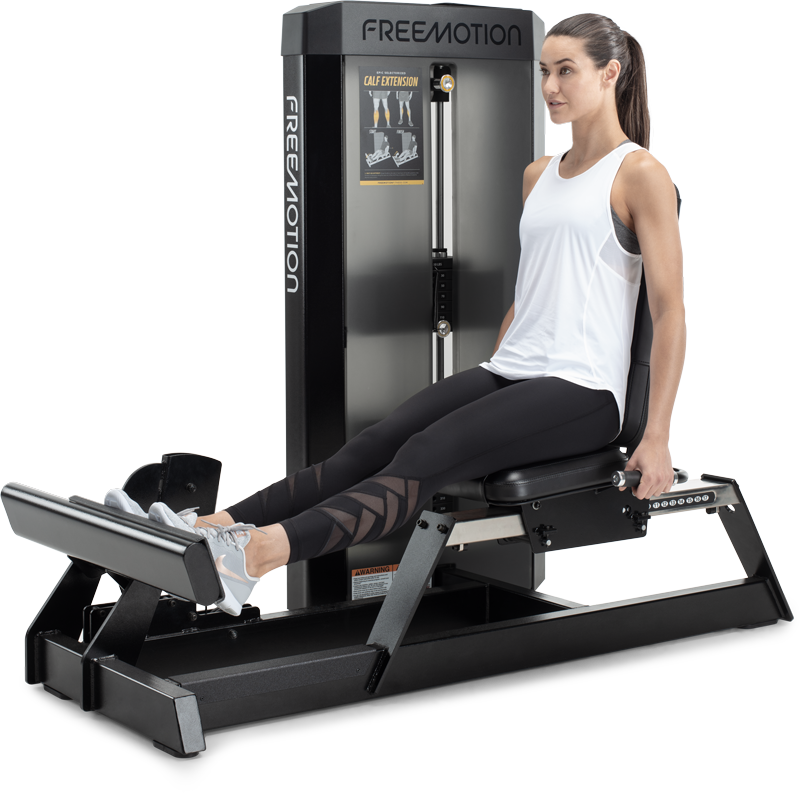

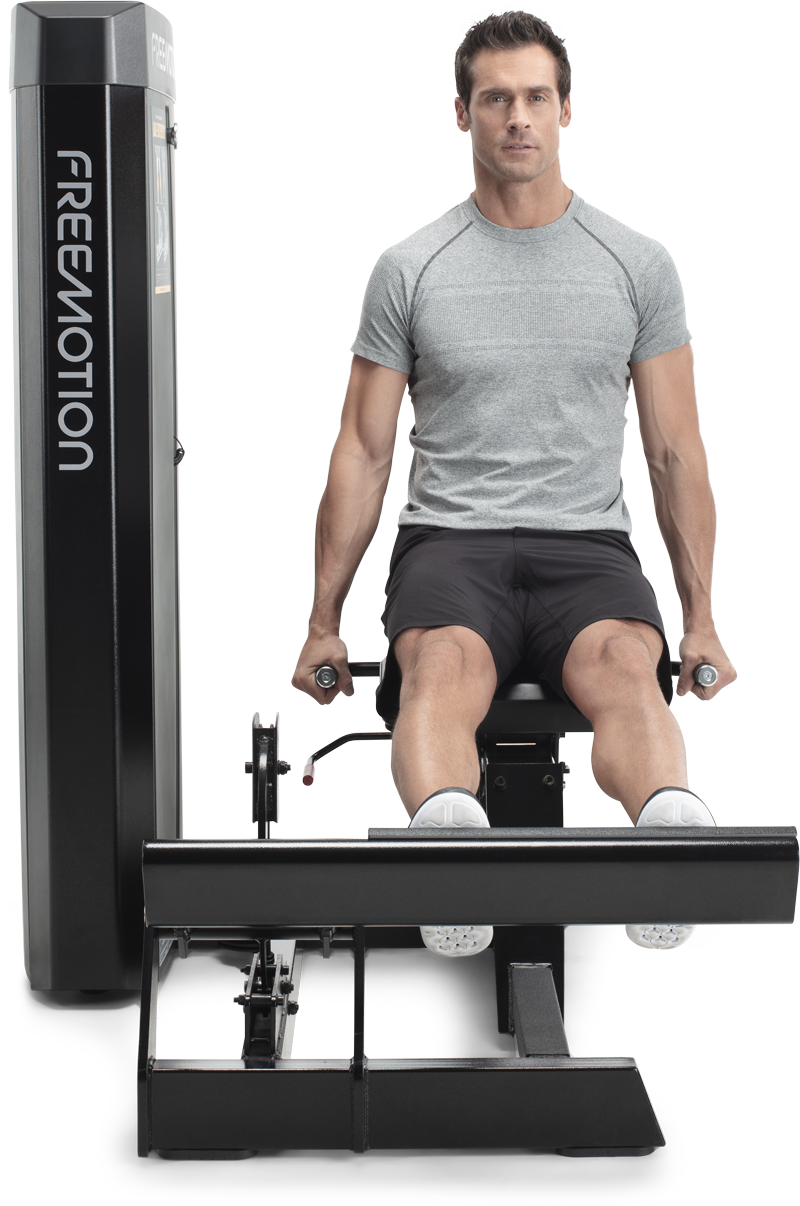

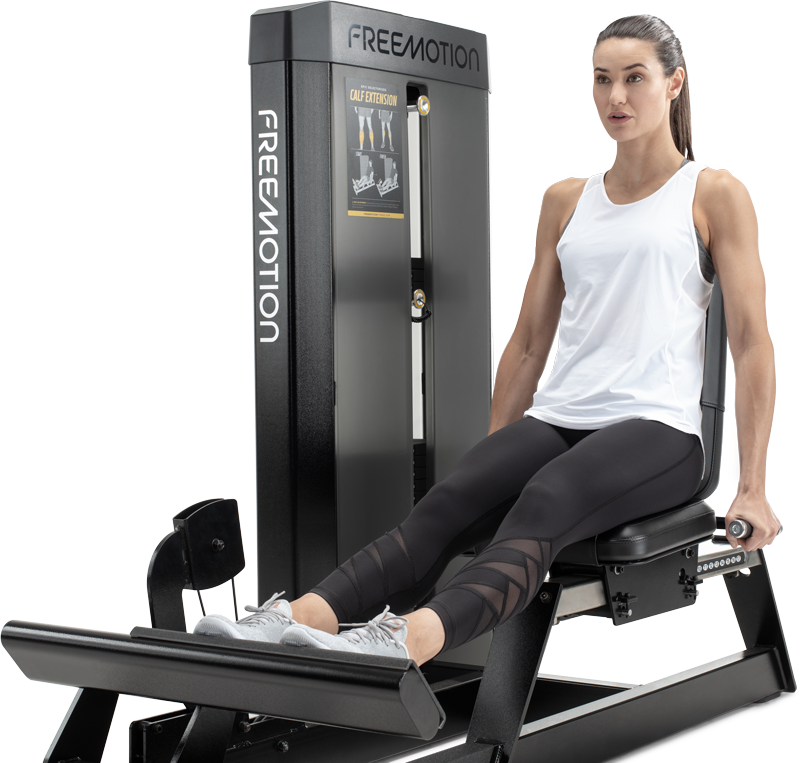

Comfortably isolate the effort on the calves with the support of the adjustable, comfort-padded seat. The EPIC Selectorized Calf Extension features a textured foot bar for sure-footed movement. Seat adjusts to fit users of varying heights.
Enquire Today

Details & SPecs

Convenient Accessory Storage

Users can keep their essentials close at hand with accessory trays at the top of the weight stack.

Molded Floor Protectors

Heavy duty rubber feet guard against floor damage.

Built to Last

Constructed with 11- and 7-gauge steel and electrostatically powder-coated, this machine is built to stand up to the rigors of the weight room.

Easy Serviceability

The tower design allows for simple, routine cable service.

Enclosed Weight Stack

The weight stack is enclosed to limit access to moving parts for safety.

Product Features

  • Instructional Placards
    Yes
  • Adjustments
    Multiple Seat Adjustments
  • Resistance
    375 lb / 170 kg
  • Seat
    Vinyl, 1.5 in / 3.8 cm thick foam
  • Pulleys
    N/A
  • Cable Travel
    N/A
  • Rubber Feet
    Heavy Duty Floor Protectors
  • Maximum User Weight
    350 lb / 159 kg
  • Americans with Disabilities Act (ADA)
    N/A
Product Specifications

  • Weight Stack
    375 lb / 170 kg
  • Drop Down Weight
    5 lb / 2.2 kg
  • Weight Stack Configuration
    10 lb / 4.5 kg top plaste
    20-190 x 10 lb / 4.5 kg
    200-370 20 lb / 9 kg
  • Standard Frame Color
    Black River, Platinum Sparkle
  • Optional Frame Color
    N/A
  • Plastic Color
    Ebony
  • Standard Upholstery Color
    Black, Graphite, Blue Ridge, Burgundy, American Beauty Red
  • Optional Upholstery Color
    Custom colors available upon request
  • Hand Grip Color
    Black
Product Dimensions & Weight

  • Dimensions L x W x H
    68.9 x 43.3 x 57.8 in / 175 x 190.9 x 146.8 cm

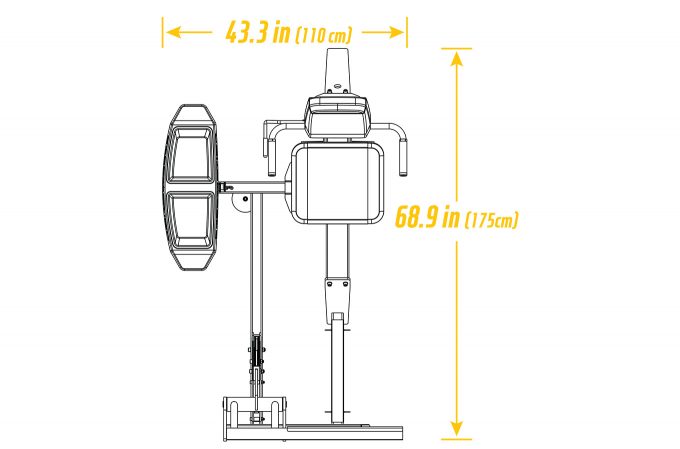

  • Footprint
    68.9 x 43.3 in / 175 x 190.9 cm
  • Maximum workout area
    68.9 x 43.3 in / 175 x 190.9 cm
  • Weight
    705.4 lb / 320 kg
  • Shipping Dimensions
    Box 1: 74 x 37.4 x 44 in / 187.9 x 94.9 x 111.7 cm
    Box 2: 42.5 x 15.3 x 3.5 in / 107.9 x 38.8 x 8.8 cm
  • Shipping Weight
    Box 1: 820.1 lb / 371.9 kg
    Box 2: 20 lb / 9 kg
Certifications

  • CE
Warranty (US & Canada)

  • Frame
    10 Years
  • Parts
    3 Years
  • Cables & Labor
    1 Year
  • Cosmetic & Wear Items
    6 Months
  • Upholstery & Padding
    120 Days
Warranty (International)

  • Frame
    10 Years
  • Parts
    3 Years
  • Cables & Labor
    1 Year
  • Cosmetic & Wear Items
    6 Months
  • Upholstery & Padding
    120 Days
Enquire Today

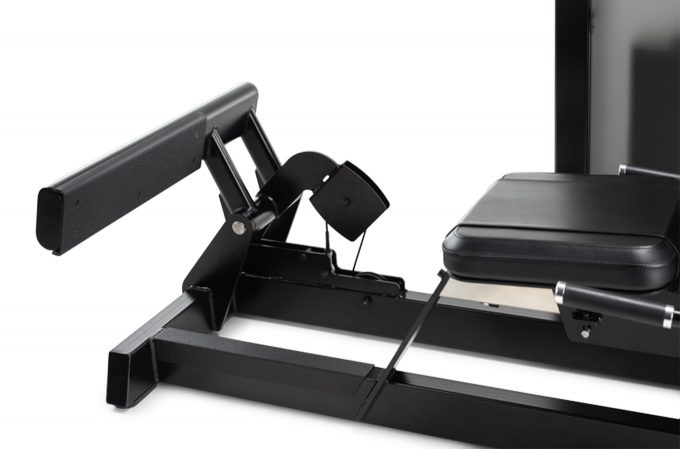

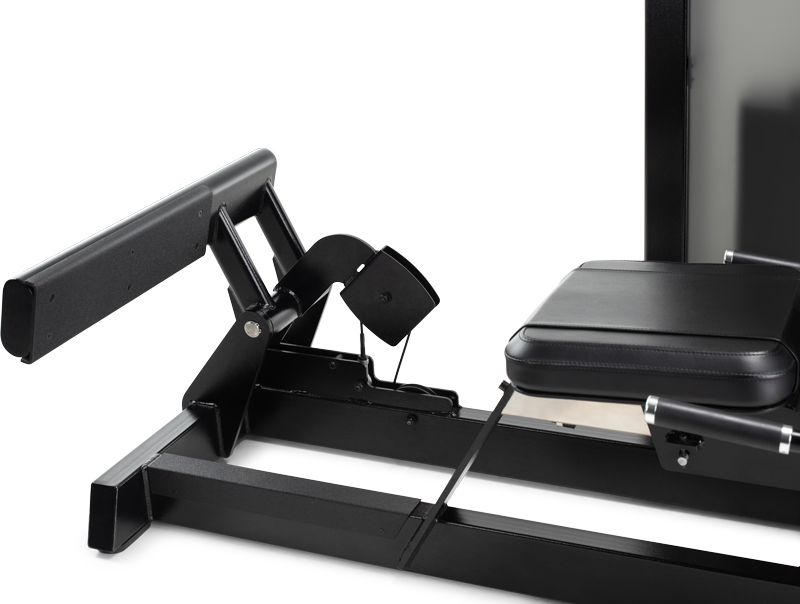

Sure Footing

Textured foot bar helps ensure secure foot placement even under heavy loads.

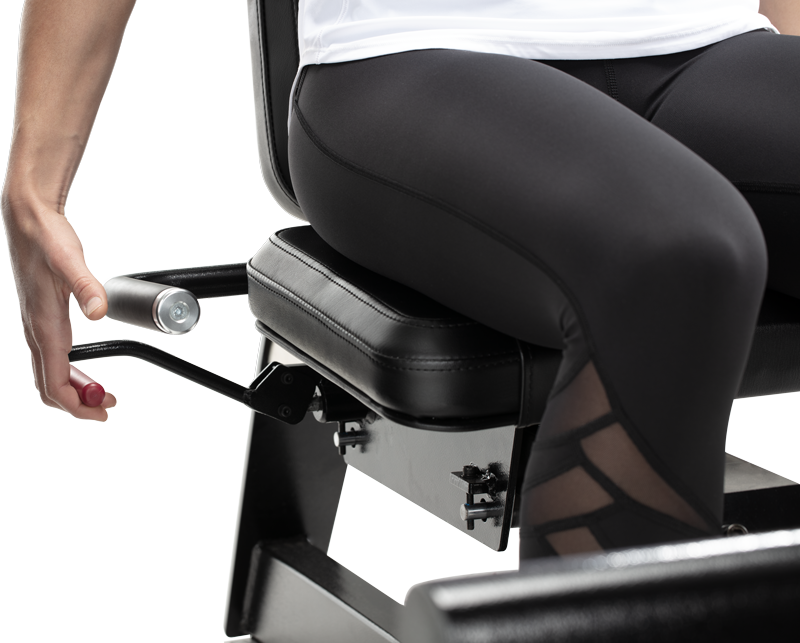

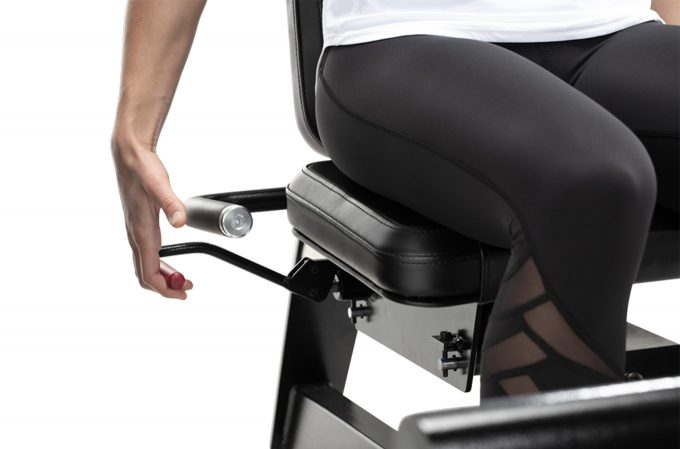

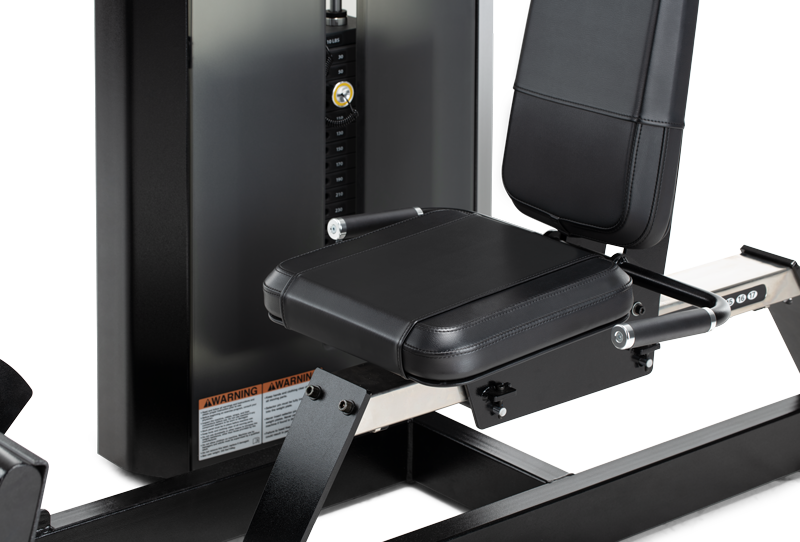

Comfortable by Design

Seat assembly is contoured, padded, and adjusts for precise fit.

Low Profile Weight Stack

Approachable, compact design also features accessory trays so users can keep their essentials within reach.
